Placi de baza

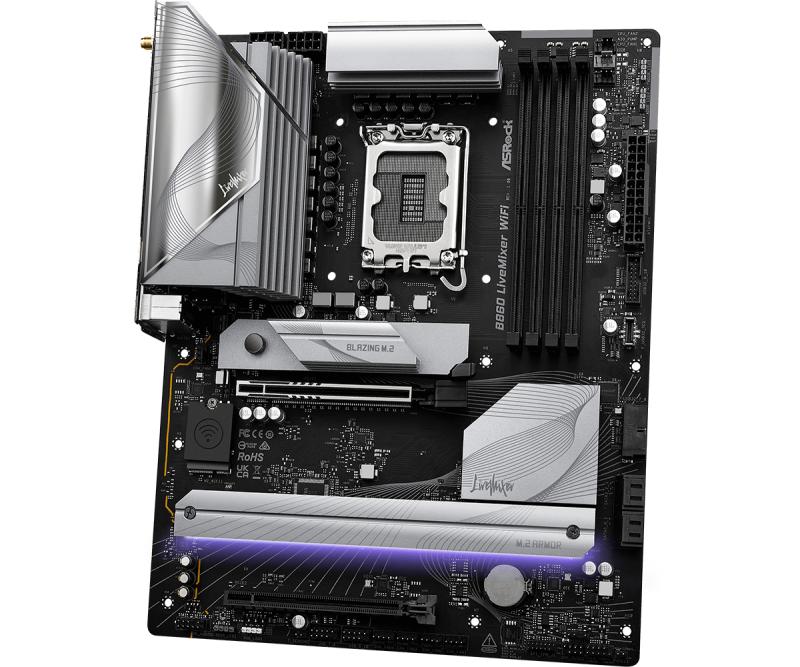

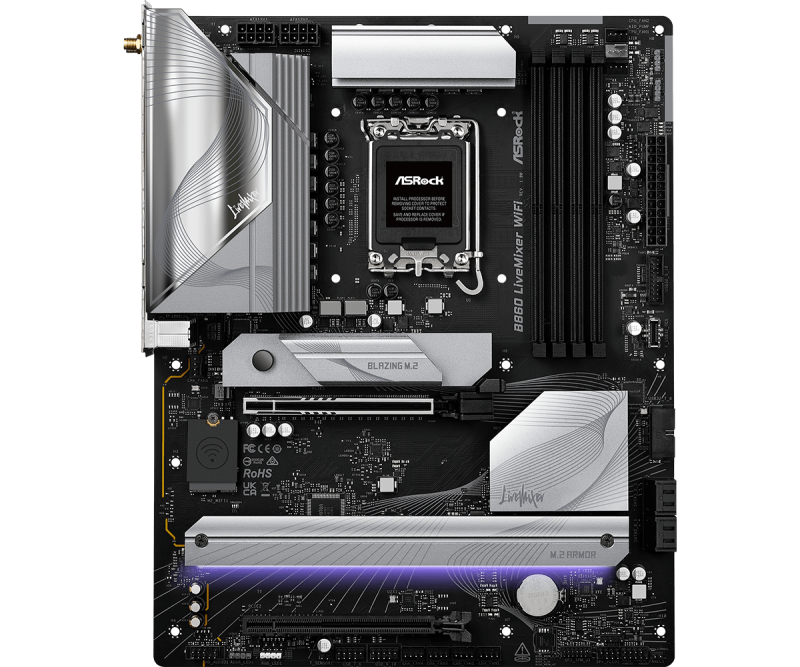

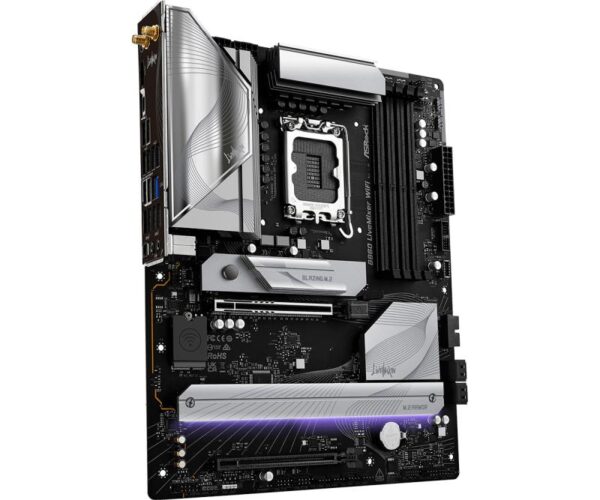

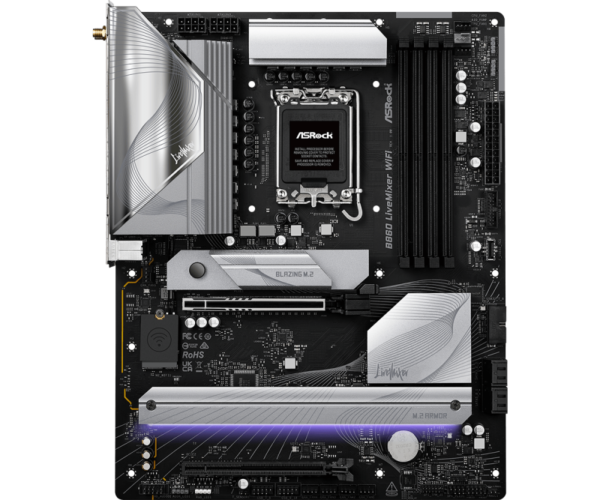

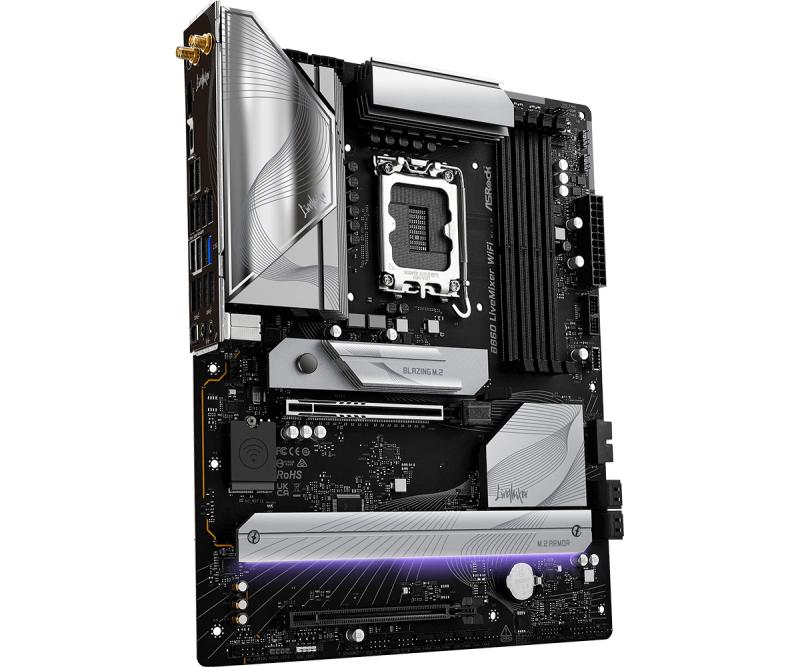

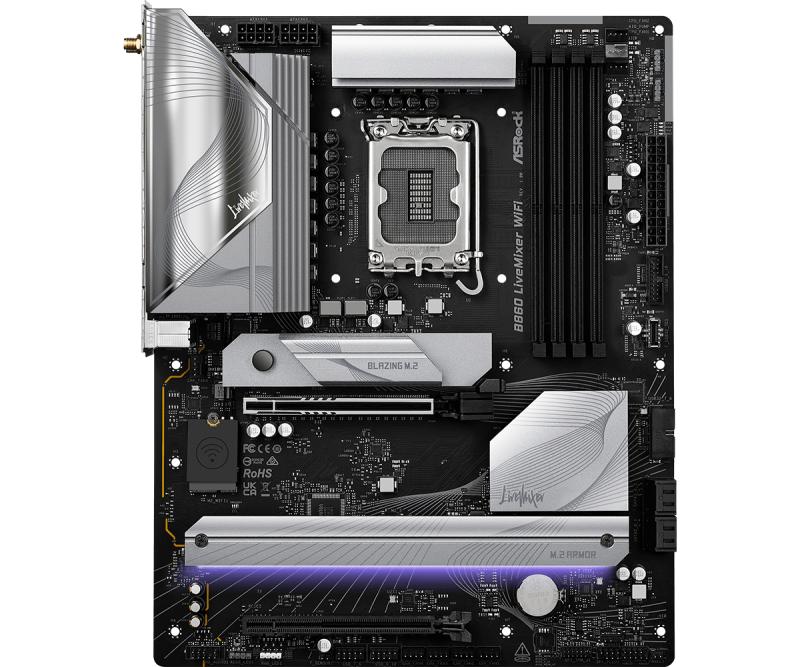

Placa de Baza ASROCK B860 LIVEMIXER WIFI LGA1851
SKU: B860 LIVEMIXER WIFI
Availability:
În stoc
1,164.99 lei 1,270.99 lei
În stoc
ComparăPlaca de Baza ASROCK B860 LIVEMIXER WIFI LGA1851, 4x DDR5, 1x HDMI 1x Intel Thunderbolt, 2x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
| PCI | |
|---|---|
| Serial-or-Paralel | |
| Video-Connection | |
| Wi-Fi | |
| USB3 | 4-8 |
| Onboard-CPU | |
| Product colour | Black |
| RAID support | Yes |
| Component for | PC |
| USB connector type | USB Type-A, USB Type-C |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Bluetooth version | 5.3 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| S/PDIF out port | Yes |
| HDCP | Yes |
| VGA (D-Sub) ports quantity | 0 |
| MAXIMUM-RESOLUTION | |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Model Chipset | B860 |
| Gaming | |
| Format | |
| Soclu Procesor | Socket 1851 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 256 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | |
| Bluetooth | |
| USB Type-C | Da |
| HDMI | |
| Thunderbolt | Da |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Windows operating systems supported | Windows 11 x64 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Antenna included | Yes |
| 12V power connector | Yes |
| Cables included | SATA |
| ECC сompatibility | Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Number of chassis fan connectors | 5 |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of RGB LED pin headers | 1 |
| LAN controller | Dragon RTL8125BG |
| Certification | FCC, CE, ErP/EuP |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| Audio Chip | Realtek ALC1220 |
| USB 2.0 ports quantity | 6 |
| Number of water pump connectors | 1 |
| Thunderbolt ports quantity | 1 |
| MB-Format | ATX |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| MB-Socket | AM5 |
| PCI-Ex16 | 2 |
| Producator | |
| Garantie |
