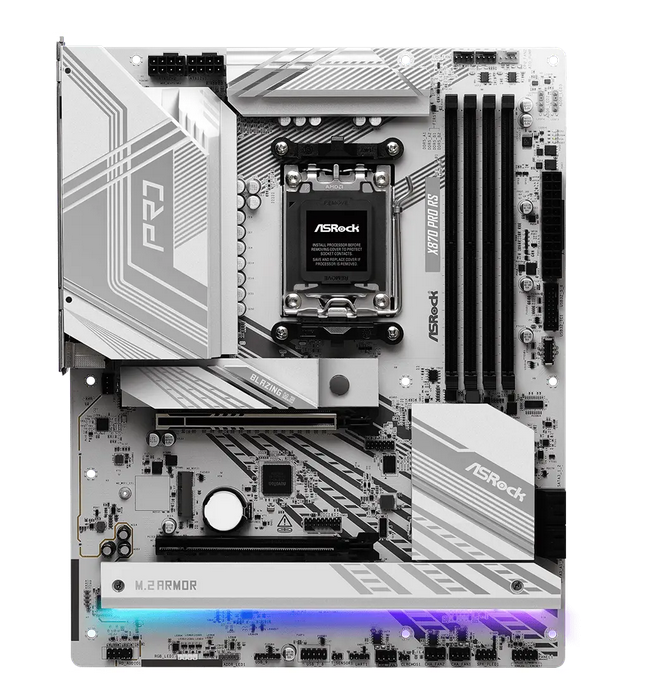

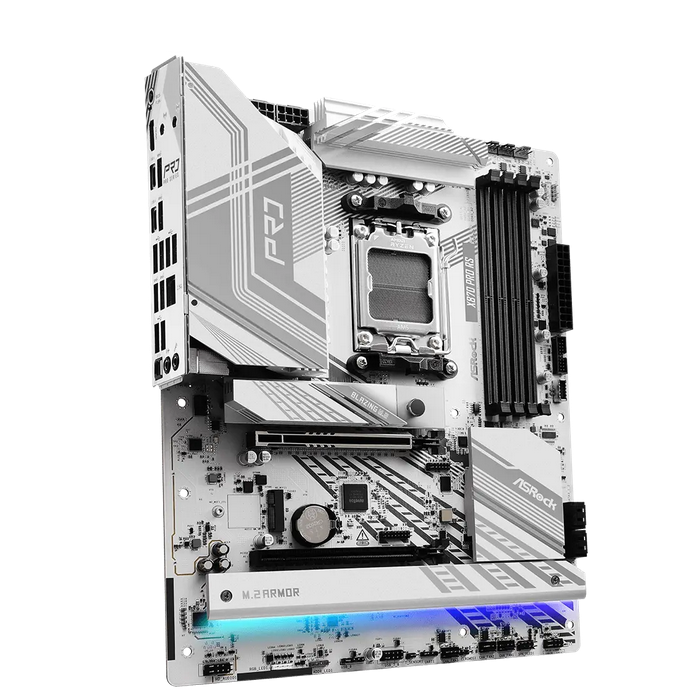

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5,

Placi de baza

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: X870 PRO RS

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, Placa de baza ASRock A520M-HDV, Socket AM4 Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA
Alte caracteristici
1st M.2 highest PCI Express generation 5.0 — — — 5.0
1st M.2 largest key size 2280 — — — 25110
2nd M.2 highest PCI Express generation 4.0 — — — 4.0
2nd M.2 largest key size 2280 — — — 22110
3rd M.2 highest PCI Express generation 3.0 — — — 4.0
3rd M.2 largest key size 2280 — — — 22110
12V power connector — — Yes — Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip Realtek ALC1220 — — — Realtek ALC1220
Audio output channels 7.1 channels 7.1 channels 7.1 channels — 7.1 channels
BIOS memory size 256 Mbit — 128 Mbit — 512 Mbit
BIOS type UEFI AMI UEFI AMI UEFI AMI — UEFI AMI
Bluetooth Nu Nu Nu Nu Yes
Canale audio 7.1 7.1 7.1 N/A 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS jumper — — Yes — Yes
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 3000 Series — Intel® Xeon® Intel Core Ultra (Series 2)
Component for PC PC PC Server PC
CPU fan connector Yes Yes Yes — Yes
Depth 24.4 mm 201 mm 193 mm 330.2 mm 305 mm
Digital audio optical out 1 — — — 1
ECC сompatibility ECC & Non-ECC Non-ECC Non-ECC — ECC & Non-ECC
EPS power connector (8-pin) Yes — — Yes Yes
Ethernet interface type 2.5 Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet LAN Yes Yes — Yes Yes
Ethernet LAN (RJ-45) ports — — — 2 1
Format ATX Micro-ATX Micro-ATX E-ATX ATX
Front panel audio connector Yes Yes Yes — Yes
Gaming Nu Nu Nu Nu Nu
Garantie 36 24 36 24 36
Graphics card — Radeon Vega — AST2600 —
Graphics card family — AMD — ASPEED —
Harmonized System (HS) code — 84733020 84733020 — —
HDCP Yes — — — Yes
HDMI Da Da Da Nu Nu
HDMI ports quantity 1 1 — — —
HDMI version 2.1 — 2.1 — —
Headphone outputs 1 — 3 — 1
LAN controller Dragon RTL8125BG Realtek RTL8111H — Intel X710-AT2 Realtek RTL8126
MAXIMUM-RESOLUTION 7680 x 4320 pixels — 3840 x 2160 pixels — 4096 x 2304 pixels
Maximum internal memory 256 GB 64 GB — 2 TB 256 GB
MB-Format ATX micro-ATX micro-ATX — ATX
MB-Socket AM5 AM4 1700 — AM5
Memorie maxima 256 GB 64 GB 64 GB 2 TB 256 GB
Memory channels Dual-channel Dual-channel — Octa-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Microphone in Yes Yes Yes — —
Model Chipset X870 A520 H610 C741 Z890
Motherboard chipset AMD X870 — Intel H610 Intel C741 Intel Z890 Express
Motherboard chipset family AMD AMD Intel Intel Intel
Motherboard form factor ATX micro ATX micro ATX Extended ATX ATX
Numar sloturi memorie 4 2 2 16 2
Number of chassis fan connectors 4 2 1 — 4
Number of COM connectors — 1 1 — —
Number of CPU fan connectors 2 — — — 2
Number of EPS power connectors (8-pin) 2 — — — 2
Number of HDDs supported 4 5 — 10 4
Number of M.2 (M) slots 3 — 1 2 5
Number of memory slots 4 2 2 16 2
Number of RGB LED pin headers 5 — — — 4
Number of SATA III connectors 4 — 4 10 4
Number of storage drives supported 7 — 5 — 9
Number of water pump connectors 1 — — — 2
Onboard-CPU No — No — No
Package weight — — — 2.75 kg 3.05 kg
Parallel processing technology support Crossfire — — — Not supported
PCI-Ex1 — 1 — — 1
PCI-Ex16 2 1 1 — 4
PCI Express x1 (Gen 3.x) slots — 1 1 — —
PCI Express x16 (Gen 4.x) slots 1 — 1 — 2
PCI Express x16 (Gen 5.x) slots 1 — — 5 1
Power source type ATX — — — ATX
Processor manufacturer AMD AMD — Intel Intel
Processor socket Socket AM5 Socket AM4 LGA 1700 LGA 4677 (Socket E) LGA 1851 (Socket V1)
Product colour White — — — Black
PS/2 ports quantity — 1 2 — —
RAID levels 0, 1, 10 — — — 0, 1, 5, 10
RAID support Yes — — — Yes
RAM-Slots 4 4 2 — 4
RGB LED pin header Yes — — — Yes
RJ-45 LAN 1 1 1 2 1
S/PDIF out port Yes — — — Yes
Serial-or-Paralel No/No No/No No/No — Yes/No
Sloturi M.2 4 1 1 2 5
Soclu Procesor Socket AM5 Socket AM4 Socket 1700 Socket LGA 4677 Socket 1851
Supported memory clock speeds 8000 MHz 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz 10266 MHz
Supported memory types DDR5-SDRAM DDR4-SDRAM DDR4-SDRAM DDR5-SDRAM DDR5-SDRAM
Supported processor sockets — — LGA 1700 — LGA 1851
Supported storage drive interfaces PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III M.2, SATA III M.2, SATA III M.2, SATA III PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III
Supported storage drive types HDD & SSD — HDD & SSD HDD & SSD HDD & SSD
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR5 DDR4 DDR4 DDR5 DDR5
Tip slot interfata grafica PCIe 5.0 x16 PCIe 3.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 PCIe 5.0 x16
TPM connector — — Yes Yes Yes
Unbuffered memory Yes Yes Yes — Yes
USB 2.0 connectors 2 2 2 1 2
USB 2.0 ports quantity 6 2 2 — 4
USB3 4-8 4-8 4-8 — 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 1 1 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 4 — — —
USB4 Gen 2x2 ports quantity 2 — — — 1
USB Type-C Da Da Da N/A N/A
VGA (D-Sub) ports quantity — 1 1 1 —
Video-Connection HDMI VGA/DVI/HDMI VGA/DVI/HDMI — HDMI/DP
Wake-on-LAN ready — Yes Yes — —
Weight — — 842 g 1.75 kg 2.63 kg
Wi-Fi No No — — Yes
Width 30.5 mm 230 mm 226 mm 304.8 mm 244 mm
Windows operating systems supported Windows 10 x64, Windows 11 x64 — Windows 10 x64, Windows 11 x64 — Windows 11
Wireless Nu Nu Nu N/A Da
Producator ASROCK ASROCK ASUS ASUS GIGABYTE

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

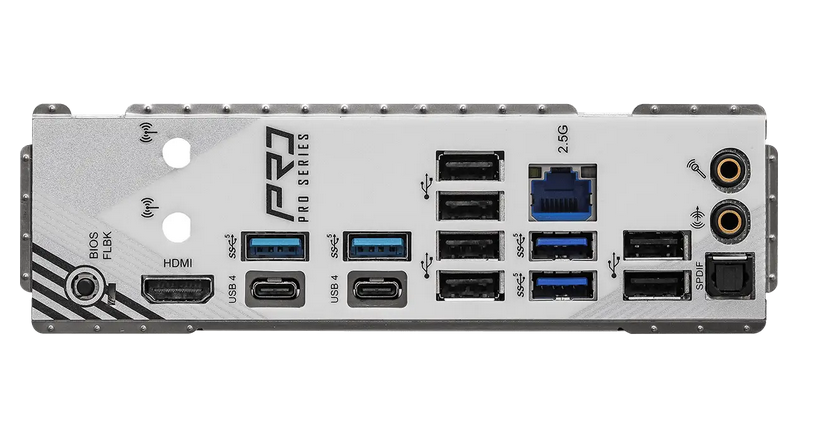

Placa de Baza ASROCK X870 PRO RS AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

Specificații tehnice 99 caracteristici
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
3.0
3rd M.2 largest key size
2280
ATX Power connector (24-pin)
Yes
Audio Chip
Realtek ALC1220
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Nu
Canale audio
7.1
Certification
FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Chipset audio integrat
Realtek
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
CPU fan connector
Yes
Depth
24.4 mm
Digital audio optical out
1
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Format
ATX
Front panel audio connector
Yes
Gaming
Nu
Garantie
36
HDCP
Yes
HDMI
Da
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
LAN controller
Dragon RTL8125BG
MAXIMUM-RESOLUTION
7680 x 4320 pixels
Maximum internal memory
256 GB
MB-Format
ATX
MB-Socket
AM5
Memorie maxima
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Model Chipset
X870
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
Numar sloturi memorie
4
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (E) slots
1
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
5
Number of SATA III connectors
4
Number of storage drives supported
7
Number of temperature sensor headers
1
Number of water pump connectors
1
Onboard-CPU
No
Parallel processing technology support
Crossfire
PCI-Ex16
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
RAID levels
0, 1, 10
RAID support
Yes
RAM-Slots
4
RGB LED pin header
Yes
RJ-45 LAN
1
S/PDIF out port
Yes
Serial-or-Paralel
No/No
Sloturi M.2
4
Soclu Procesor
Socket AM5
Supported memory clock speeds
8000 MHz
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
Thunderbolt
Nu
Tip Memorie
DDR5
Tip slot interfata grafica
PCIe 5.0 x16
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
6
USB3
4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
USB Type-C
Da
Video-Connection
HDMI
Wi-Fi
No
Width
30.5 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Wireless
Nu
Producator
ASROCK
