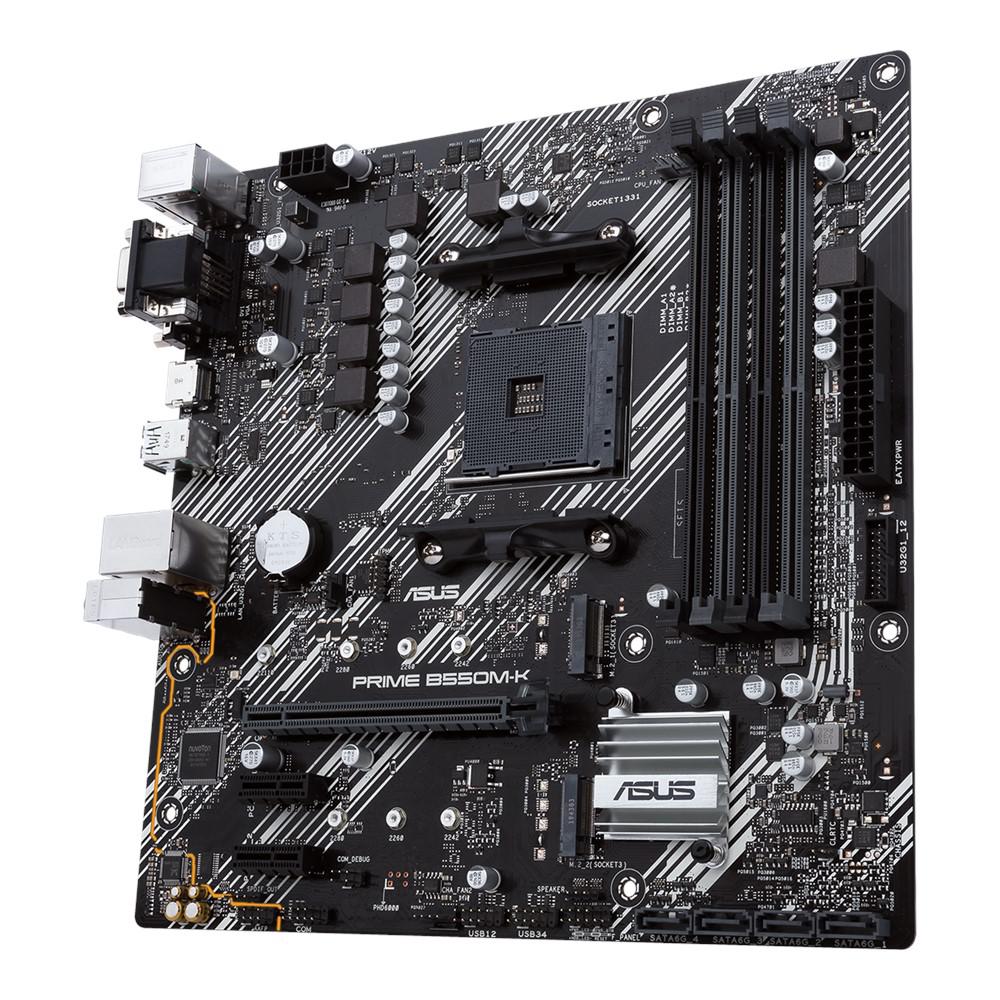

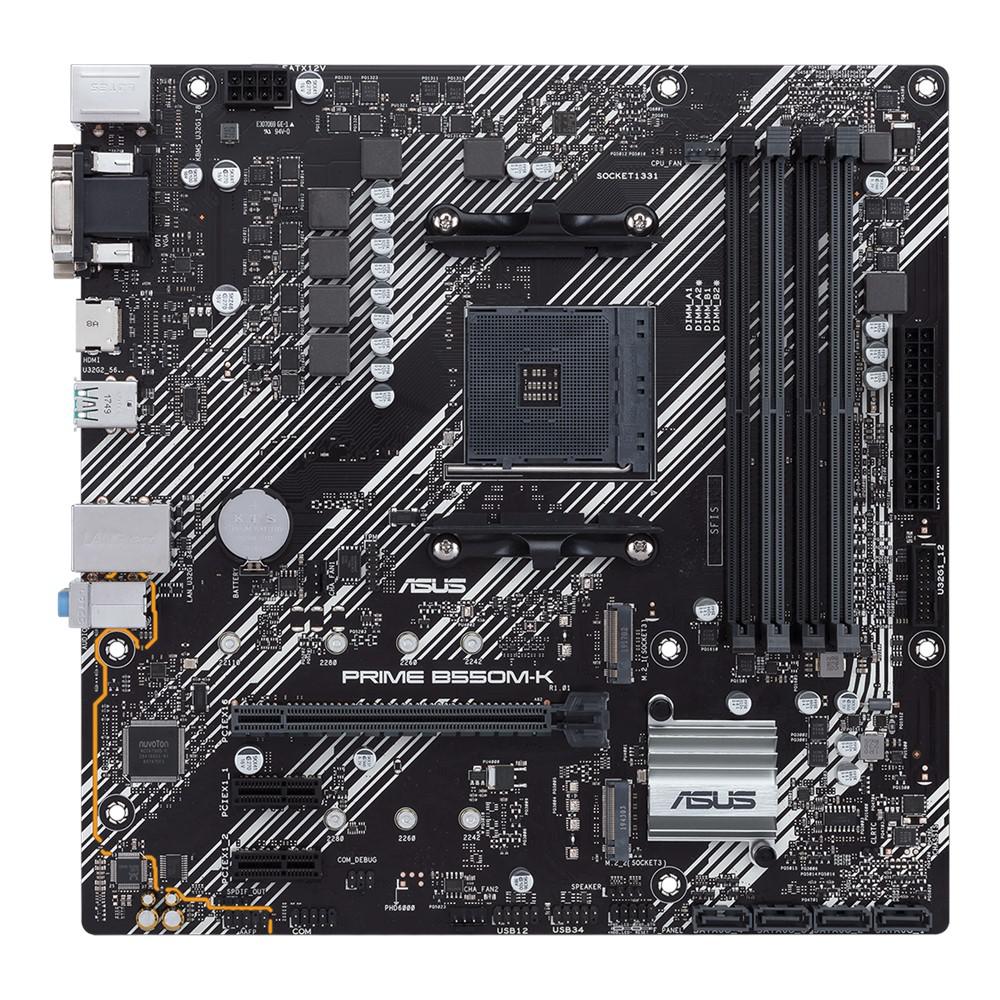

Placa de baza ASUS PRIME B550M-K, Socket AM4, DDR4, Micro-ATX

Placi de baza

Placa de baza ASUS PRIME B550M-K, Socket AM4, DDR4, Micro-ATX

(0) În stoc
Vândut de RITC.ro Cod produs: PRIME B550M-K

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza ASUS PRIME B550M-K, Socket AM4, DDR4, Micro-ATX Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX Placa de bază ASUS TUF GAMING B550-PLUS AM4 Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA
Alte caracteristici
12V power connector — Yes — — Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip — — — Realtek ALC S1200A Realtek ALC1220
Audio output channels — 7.1 channels — 7.1 channels 7.1 channels
BIOS memory size 256 Mbit 128 Mbit — 256 Mbit 512 Mbit
BIOS type UEFI AMI UEFI AMI — UEFI AMI UEFI AMI
Bluetooth Nu Nu Nu Nu Yes
Cables included — SATA — SATA —
Canale audio 7.1 7.1 N/A 7.1 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS jumper — Yes — Yes Yes
Compatible processor series AMD Ryzen 3000 Series — Intel® Xeon® AMD Ryzen 3000 Series Intel Core Ultra (Series 2)
Component for — PC Server Nettop PC
CPU fan connector — Yes — Yes Yes
CPU încorporat No — — No —
Depth 24.4 mm 193 mm 330.2 mm 24.4 mm 305 mm
DisplayPorts quantity — — — 1 1
Drivers included — Yes — Yes —
DVI-D ports quantity 1 1 — — —
ECC сompatibility — Non-ECC — ECC ECC & Non-ECC
EPS power connector (8-pin) — — Yes Yes Yes
Ethernet interface type — Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet LAN Yes — Yes Yes Yes
Ethernet LAN (RJ-45) ports — — 2 1 1
Format Micro-ATX Micro-ATX E-ATX ATX ATX
Front panel audio connector — Yes — Yes Yes
Gaming Nu Nu Nu Da Nu
Garantie 36 36 24 36 36
Harmonized System (HS) code 84733020 84733020 — 84733020 —
HDMI Da Da Nu Da Nu
HDMI ports quantity 1 — — 1 —
Headphone outputs — 3 — — 1
Height — — — 6.8 mm 35 mm
LAN controller Realtek RTL8111H — Intel X710-AT2 Realtek RTL8125B Realtek RTL8126
MAXIMUM-RESOLUTION — 3840 x 2160 pixels — — 4096 x 2304 pixels
Maximum internal memory 128 GB — 2 TB 128 GB 256 GB
MB-Format — micro-ATX — ATX ATX
MB-Socket — 1700 — AM4 AM5
Memorie maxima 128 GB 64 GB 2 TB 128 GB 256 GB
Memory channels — — Octa-channel Dual-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Model Chipset B550 H610 C741 B550 Z890
Motherboard chipset AMD B550 Intel H610 Intel C741 AMD B550 Intel Z890 Express
Motherboard chipset family AMD Intel Intel AMD Intel
Motherboard form factor micro ATX micro ATX Extended ATX ATX ATX
Numar sloturi memorie 4 2 16 4 2
Number of chassis fan connectors — 1 — 3 4
Number of HDDs supported — — 10 — 4
Number of M.2 (M) slots 2 1 2 2 5
Number of memory slots 4 2 16 4 2
Number of SATA III connectors — 4 10 6 4
Number of storage drives supported — 5 — — 9
Onboard-CPU — No — — No
Package weight — — 2.75 kg — 3.05 kg
Parallel processing technology support — — — 2-Way CrossFireX Not supported
PCI-Ex1 — — — 1 1
PCI-Ex16 — 1 — 2 4
PCI Express x1 (Gen 3.x) slots 2 1 — 3 —
PCI Express x16 (Gen 4.x) slots 1 1 — 1 2
PCI Express x16 (Gen 5.x) slots — — 5 — 1
Processor manufacturer AMD — Intel AMD Intel
Processor socket Socket AM4 LGA 1700 LGA 4677 (Socket E) Socket AM4 LGA 1851 (Socket V1)
PS/2 ports quantity 1 2 — 1 —
RAID levels — — — 0, 1, 10 0, 1, 5, 10
RAM-Slots — 2 — 4 4
RJ-45 LAN 1 1 2 1 1
S/PDIF out port — — — Yes Yes
Serial-or-Paralel No/No No/No — No/No Yes/No
Sloturi M.2 2 1 2 2 5
Soclu Procesor Socket AM4 Socket 1700 Socket LGA 4677 Socket AM4 Socket 1851
Supported memory clock speeds 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 10266 MHz
Supported memory types DDR4-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM
Supported processor sockets — LGA 1700 — Socket AM4 LGA 1851
Supported storage drive interfaces M.2, SATA M.2, SATA III M.2, SATA III M.2, SATA PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III
Supported storage drive types — HDD & SSD HDD & SSD — HDD & SSD
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR4 DDR4 DDR5 DDR4 DDR5
Tip slot interfata grafica PCIe 4.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 N/A PCIe 5.0 x16
TPM connector — Yes Yes Yes Yes
Unbuffered memory — Yes — — Yes
USB 2.0 connectors 2 2 1 2 2
USB 2.0 ports quantity — 2 — 2 4
USB3 — 4-8 — 4-8 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 1 1 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 — — 4 —
USB Type-C Da Da N/A Da N/A
VGA (D-Sub) ports quantity — 1 1 — —
Video-Connection VGA/DVI/HDMI VGA/DVI/HDMI — HDMI/DP HDMI/DP
Weight 785 g 842 g 1.75 kg 945 g 2.63 kg
Wi-Fi No — — No Yes
Width 244 mm 226 mm 304.8 mm 30.5 mm 244 mm
Windows operating systems supported Windows 10 Windows 10 x64, Windows 11 x64 — Windows 10 x64 Windows 11
Wireless Nu Nu N/A Nu Da
Producator ASUS ASUS ASUS ASUS GIGABYTE

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Seria ASUS Prime este conceputa in mod special pentru a debloca intregul potential al procesoarelor AMD Ryzen din a 3-a generatie. Cu un design robust, cu solutii complete de racire si cu optiuni inteligente de reglare, placile de baza din seria Prime B550 ofera utilizatorilor obisnuiti si constructorilor de PC-uri o serie de optiuni de reglare a performantelor prin software si hardware incluse.

Specificații tehnice 54 caracteristici
ATX Power connector (24-pin)
Yes
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Nu
Canale audio
7.1
Chipset audio integrat
Realtek
Compatible processor series
AMD Ryzen 3000 Series
CPU încorporat
No
Depth
24.4 mm
DVI-D ports quantity
1
Ethernet LAN
Yes
Format
Micro-ATX
Gaming
Nu
Garantie
36
Harmonized System (HS) code
84733020
HDMI
Da
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Maximum internal memory
128 GB
Memorie maxima
128 GB
Memory slots type
DIMM
Model Chipset
B550
Motherboard chipset
AMD B550
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Numar sloturi memorie
4
Number of M.2 (M) slots
2
Number of memory slots
4
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
RJ-45 LAN
1
Serial-or-Paralel
No/No
Sloturi M.2
2
Soclu Procesor
Socket AM4
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA
Thunderbolt
Nu
Tip Memorie
DDR4
Tip slot interfata grafica
PCIe 4.0 x16
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB Type-C
Da
Video-Connection
VGA/DVI/HDMI
Weight
785 g
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10
Wireless
Nu
Producator
ASUS
