Placa de baza Gigabyte B760M H, Socket 1700, DDR4, Micro-ATX
422,99 lei 618,99 lei
Placa de baza Gigabyte B760M H, Socket 1700, DDR4, Micro-ATX
(0)
În stoc
Vândut de RITC.ro
Cod produs: B760M H DDR4
Livrare și beneficii
Compară cu produse similare
Placa de baza Gigabyte B760M H, Socket 1700, DDR4, Micro-ATX
Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA
1.676,00 lei 1.956,99 lei
Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4,
837,99 lei 977,99 lei
Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5,
1.179,99 lei 1.376,99 lei
Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,
713,98 lei 832,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza Gigabyte B760M H, Socket 1700, DDR4, Micro-ATX | Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA | Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4, | Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5, | Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4, |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 1st M.2 highest PCI Express generation | — | 5.0 | 4.0 | 5.0 | 4.0 |
| 1st M.2 largest key size | — | 25110 | 22110 | 2280 | 22110 |
| 2nd M.2 highest PCI Express generation | — | 4.0 | 3.0 | 4.0 | 3.0 |
| 2nd M.2 largest key size | — | 22110 | 22110 | 2280 | 22110 |
| 3rd M.2 highest PCI Express generation | — | 4.0 | — | 4.0 | — |
| 3rd M.2 largest key size | — | 22110 | — | 2280 | — |
| 12V power connector | — | Yes | Yes | Yes | Yes |
| ACPI version | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Antenna included | — | Yes | Yes | Yes | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | Realtek ALC897 | Realtek ALC1220 | Realtek ALC897 | Realtek ALC1220 | Realtek ALC897 |
| Audio output channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels |
| Batteries included | Yes | Yes | Yes | Yes | Yes |
| Battery-Capacity | — | 220 mAh | 220 mAh | 220 mAh | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 | CR2032 | CR2032 | CR2032 | CR2032 |
| Battery weight | 3 g | 3 g | 3 g | 3 g | 3 g |
| BIOS memory size | 128 Mbit | 512 Mbit | 128 Mbit | 512 Mbit | 128 Mbit |
| BIOS type | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI |
| Bluetooth | Nu | Yes | Yes | Yes | Yes |
| Bluetooth version | — | 5.4 | 5.4 | 5.4 | 5.3 |
| Bundled software | — | Norton® Internet Security (OEM version) | Norton® Internet Security (OEM version) | Norton® Internet Security (OEM version) | Norton® Internet Security (OEM version) |
| Canale audio | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Clear CMOS button | — | Yes | — | Yes | — |
| Clear CMOS jumper | Yes | Yes | — | Yes | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold | Intel Core Ultra (Series 2) | AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series |
| Component for | PC | PC | PC | PC | PC |
| Cooling type | — | Passive | Passive | Passive | Passive |
| Country of origin | China | China | China | — | China |
| CPU fan connector | Yes | Yes | Yes | Yes | Yes |
| Depth | 215 mm | 305 mm | 305 mm | 244 mm | 244 mm |
| Desktop Management Interface (DMI) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Digital audio optical out | — | 1 | 1 | 1 | — |
| DirectX version | 12.1 | 12.0 | 12.0 | 12.0 | 12.0 |
| DisplayPorts quantity | 1 | 1 | 1 | 1 | — |
| DisplayPort version | 1.4 | 2.1 | 1.4 | 1.4 | — |
| ECC сompatibility | Non-ECC | ECC & Non-ECC | ECC & Non-ECC | Non-ECC | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes | Yes | Yes | Yes | Yes |
| Ethernet interface type | Gigabit Ethernet | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes | Yes | Yes | Yes | Yes |
| Ethernet LAN (RJ-45) ports | 1 | 1 | 1 | 1 | 1 |
| Format | Micro-ATX | ATX | ATX | Micro-ATX | ATX |
| Front panel audio connector | Yes | Yes | Yes | Yes | Yes |
| Front panel connector | Yes | Yes | Yes | Yes | Yes |
| Gaming | Nu | Nu | Nu | Nu | Da |
| Garantie | 36 | 36 | 36 | 36 | — |
| HDCP | — | Yes | Yes | — | Yes |
| HDCP version | — | 2.3 | 2.3 | — | 2.3 |
| HDMI | Da | Nu | Da | Da | Da |
| HDMI ports quantity | 1 | — | 1 | 1 | 1 |
| HDMI version | 1.4 | — | 2.1 | 2.1 | 2.1 |
| Headphone outputs | — | 1 | 1 | 1 | 1 |
| Height | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| LAN controller | — | Realtek RTL8126 | Realtek RTL8125 | Realtek RTL8126 | Realtek RTL8125 |
| Line-in | — | Yes | Yes | Yes | Yes |
| Lithium weight per battery | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g |
| MAXIMUM-RESOLUTION | — | 4096 x 2304 pixels | 5120 x 2880 pixels | 4096 x 2160 pixels | 4096 x 2160 pixels |
| Maximum internal memory | 64 GB | 256 GB | 128 GB | 256 GB | 128 GB |
| Maximum internal memory per slot | — | 128 GB | 32 GB | 64 GB | 32 GB |
| MB-Format | micro-ATX | ATX | ATX | ATX | — |
| MB-Socket | 1700 | AM5 | AM4 | AM5 | — |
| Memorie maxima | 64 GB | 256 GB | 128 GB | 256 GB | 128 GB |
| Memory channels | Dual-channel | Dual-channel | Dual-channel | Dual-channel | Dual-channel |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Model Chipset | B760 | Z890 | B550 | B850 | B550 |
| Motherboard chipset | Intel B760 Express | Intel Z890 Express | AMD B550 | AMD B850 | AMD B550 |
| Motherboard chipset family | Intel | Intel | AMD | AMD | AMD |
| Motherboard form factor | micro ATX | ATX | ATX | micro ATX | ATX |
| Numar sloturi memorie | 2 | 2 | 4 | 4 | 4 |
| Number of battery cells | 1 | 1 | 1 | 1 | 1 |
| Number of chassis fan connectors | — | 4 | 3 | 2 | 4 |
| Number of CPU fan connectors | — | 2 | 2 | 2 | 2 |
| Number of EPS power connectors (8-pin) | — | 2 | 1 | 1 | 1 |
| Number of HDDs supported | 4 | 4 | 4 | 2 | 4 |
| Number of M.2 (M) slots | 2 | 5 | 2 | 3 | 2 |
| Number of memory slots | 2 | 2 | 4 | 4 | 4 |
| Number of RGB LED pin headers | — | 4 | 5 | 4 | 4 |
| Number of SATA III connectors | 4 | 4 | 4 | 2 | 4 |
| Number of storage drives supported | 6 | 9 | 6 | 5 | 6 |
| Number of water pump connectors | — | 2 | 1 | 2 | 2 |
| Onboard-CPU | No | No | No | No | — |
| Package depth | 265 mm | 294 mm | 270 mm | 287 mm | 294 mm |
| Package height | 54 mm | 80 mm | 80 mm | 89 mm | 80 mm |
| Package weight | 825 g | 3.05 kg | 1.92 kg | 2.66 kg | 2.46 kg |
| Package width | 265 mm | 345 mm | 335 mm | 268 mm | 345 mm |
| Parallel processing technology support | Not supported | Not supported | Not supported | Not supported | Not supported |
| PC health monitoring | — | Fan, Temperature, Voltage, Water cooling | Fan, LED, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling | CPU, Fan, Temperature, Voltage, Water cooling |
| PCI-Ex1 | 1 | 1 | 1 | — | — |
| PCI-Ex16 | 1 | 4 | 3 | 1 | — |
| PCI Express x16 (Gen 3.x) slots | — | — | 2 | — | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 | 2 | 1 | 1 | 1 |
| PCI Express x16 (Gen 5.x) slots | — | 1 | — | 1 | — |
| Power source type | ATX | ATX | ATX | ATX | ATX |
| Processor manufacturer | Intel | Intel | AMD | AMD | AMD |
| Processor socket | LGA 1700 | LGA 1851 (Socket V1) | Socket AM4 | Socket AM5 | Socket AM4 |
| Product colour | Brown | Black | Black | Black | Dark brown |
| Products per shipping (inner) case | 1 pc(s) | 1 pc(s) | 1 pc(s) | 1 pc(s) | 1 pc(s) |
| RAID levels | 0, 1, 5, 10 | 0, 1, 5, 10 | 0, 1, 10 | 0, 1, 10, 5 | 0, 1, 10 |
| RAID support | Yes | Yes | Yes | Yes | Yes |
| RAM-Slots | 2 | 4 | 4 | 4 | — |
| RGB LED pin header | Yes | Yes | Yes | Yes | Yes |
| RJ-45 LAN | 1 | 1 | 1 | 1 | 1 |
| S/PDIF out port | — | Yes | Yes | Yes | — |
| Screws included | — | Yes | Yes | Yes | Yes |
| Serial-or-Paralel | No/No | Yes/No | No/No | No/No | — |
| Sloturi M.2 | 2 | 5 | 2 | 3 | 2 |
| Soclu Procesor | Socket 1700 | Socket 1851 | Socket AM4 | Socket AM5 | Socket AM4 |
| Supported memory clock speeds | 3200 MHz | 10266 MHz | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz | 8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz | 2133,2400,2667,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 | LGA 1851 | Socket AM4 | Socket AM5 | Socket AM4 |
| Supported storage drive interfaces | M.2, SATA III | PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III | M.2, PCI Express 4.0, PCI Express 3.0, SATA III | M.2, PCI Express 4.0, PCI Express 5.0, SATA III | M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA |
| Supported storage drive types | — | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| Tip Memorie | DDR4 | DDR5 | DDR4 | DDR5 | DDR4 |
| Tip slot interfata grafica | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 |
| Top Wi-Fi standard | — | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 6E (802.11ax) | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes | Yes | — | Yes | — |
| Unbuffered memory | — | Yes | Yes | Yes | Yes |
| USB 2.0 connectors | 2 | 2 | 2 | 2 | 2 |
| USB 2.0 ports quantity | 2 | 4 | 2 | 4 | 4 |
| USB3 | 4-8 | 4-8 | 4-8 | 4-8 | — |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 | 1 | 2 | 1 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 | — | — | 4 | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | — | 1 | — | 1 | — |
| USB Type-C | Da | N/A | N/A | Da | N/A |
| Video-Connection | HDMI/DP | HDMI/DP | HDMI/DP | HDMI | — |
| Weight | — | 2.63 kg | 1.68 kg | 2.29 kg | 2.04 kg |
| Wi-Fi | No | Yes | Yes | Yes | Yes |
| Width | 230 mm | 244 mm | 244 mm | 244 mm | 305 mm |
| WiFi-AP antenna jack | — | 2 | 2 | 2 | 2 |
| Windows operating systems supported | Windows 10, Windows 11 | Windows 11 | Windows 11 | Windows 11 Home | Windows 11 x64, Windows 10 x64 |
| Wireless | Nu | Da | Da | Da | Da |
| WLAN controller model | — | Intel Wi-Fi 7 BE200 | Realtek RTL8922AE | Realtek RTL8922AE | MediaTek MT7902 |
| Producator | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE |
Analiză inteligentă a produsului
Descriere oficială
Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX
Specificații tehnice 104 caracteristici ⌄
- ACPI version
- 5.0
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Batteries included
- Yes
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Bluetooth
- Nu
- Canale audio
- 7.1
- Chipset audio integrat
- Realtek
- Clear CMOS jumper
- Yes
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold
- Component for
- PC
- Country of origin
- China
- CPU fan connector
- Yes
- Depth
- 215 mm
- Desktop Management Interface (DMI) version
- 2.7
- DirectX version
- 12.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- ECC сompatibility
- Non-ECC
- EPS power connector (8-pin)
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Format
- Micro-ATX
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Gaming
- Nu
- Garantie
- 36
- HDMI
- Da
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- Height
- 35 mm
- Lithium weight per battery
- 0.07 g
- Maximum internal memory
- 64 GB
- Maximum internal memory supported by processor
- 64 GB
- Maximum number of SMP processors
- 1
- MB-Format
- micro-ATX
- MB-Socket
- 1700
- Memorie maxima
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Model Chipset
- B760
- Motherboard chipset
- Intel B760 Express
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 2
- Number of battery cells
- 1
- Number of HDDs supported
- 4
- Number of M.2 (M) slots
- 2
- Number of memory slots
- 2
- Number of SATA III connectors
- 4
- Number of storage drives supported
- 6
- Onboard-CPU
- No
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 825 g
- Package width
- 265 mm
- Parallel processing technology support
- Not supported
- PCI-Ex1
- 1
- PCI-Ex16
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Power source type
- ATX
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Product colour
- Brown
- Products per shipping (inner) case
- 1 pc(s)
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- RAM-Slots
- 2
- RGB LED pin header
- Yes
- RJ-45 LAN
- 1
- Serial-or-Paralel
- No/No
- Serial port headers
- 1
- Sloturi M.2
- 2
- Soclu Procesor
- Socket 1700
- Supported memory clock speeds
- 3200 MHz
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Supported memory types
- DDR4-SDRAM
- Supported processor sockets
- LGA 1700
- Supported storage drive interfaces
- M.2, SATA III
- System Management BIOS (SMBIOS) version
- 2.7
- Thunderbolt
- Nu
- Tip Memorie
- DDR4
- Tip slot interfata grafica
- PCIe 4.0 x16
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 2
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB Type-C
- Da
- VGA (D-Sub) ports quantity
- 1
- Video-Connection
- HDMI/DP
- Wi-Fi
- No
- Width
- 230 mm
- Windows operating systems supported
- Windows 10, Windows 11
- Wireless
- Nu
- Producator
- GIGABYTE
Întrebări și răspunsuri 0 întrebări ⌄
Nu există întrebări încă.
Pune o întrebare despre produs
Recenzii clienți Nicio recenzie încă ⌄
0,0
☆☆☆☆☆
0 recenzii
- 5 ★ 0
- 4 ★ 0
- 3 ★ 0
- 2 ★ 0
- 1 ★ 0
Acest produs nu are încă recenzii.
Scrie o recenzie
Produse recomandate
-

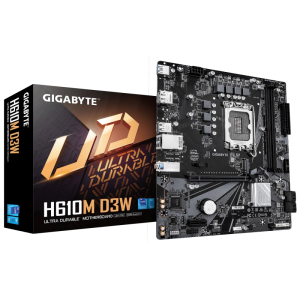

Placa de baza Gigabyte H610M D3W, Socket 1700, DDR5, Micro-ATX
-

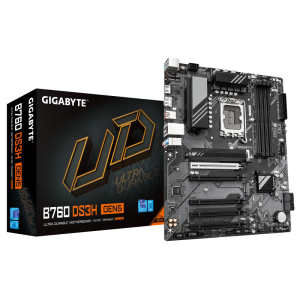

Placa de baza Gigabyte B760 DS3H GEN5, Socket 1700, DDR5,
-
Placa de baza Gigabyte B860M E, Socket 1851, DDR5, Micro-ATX
-
Placa de baza Gigabyte B860M E GEN5, Socket 1851, DDR5,
-
Placa de baza Gigabyte H610M D3W WIFI6, Socket 1700, DDR5,
-
Placa de baza Gigabyte B760 DS3H WIFI6E GEN5, Socket 1700,
-

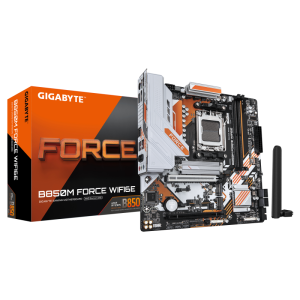

Placa de baza Gigabyte B850M FORCE WIFI6E, Socket AM5, DDR5,
-

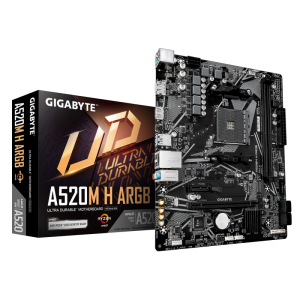

Placa de baza Gigabyte A520M H ARGB, Socket AM4, DDR4,
-
Placa de baza Gigabyte H810M S2H GEN5, Socket 1851, DDR5,
-

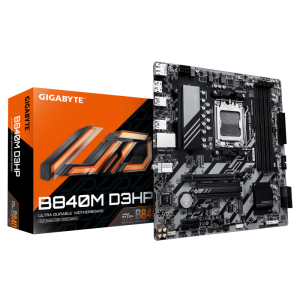

Placa de baza Gigabyte B840M D3HP, Socket AM5, DDR5, Micro-ATX
Trebuie să fii autentificat pentru a publica un comentariu.
