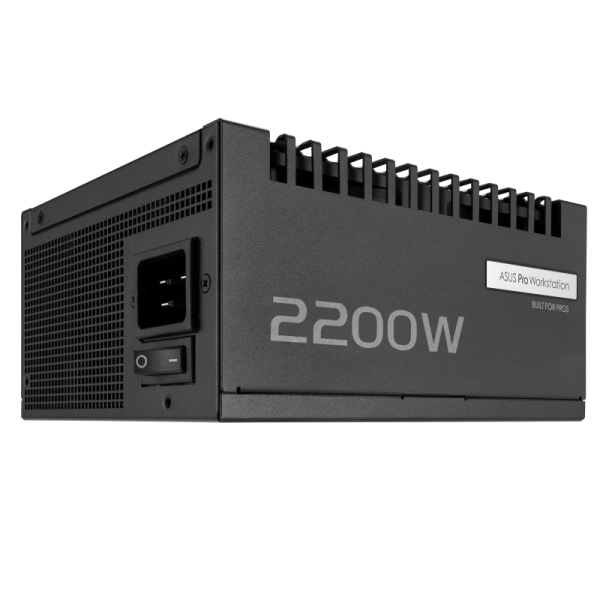

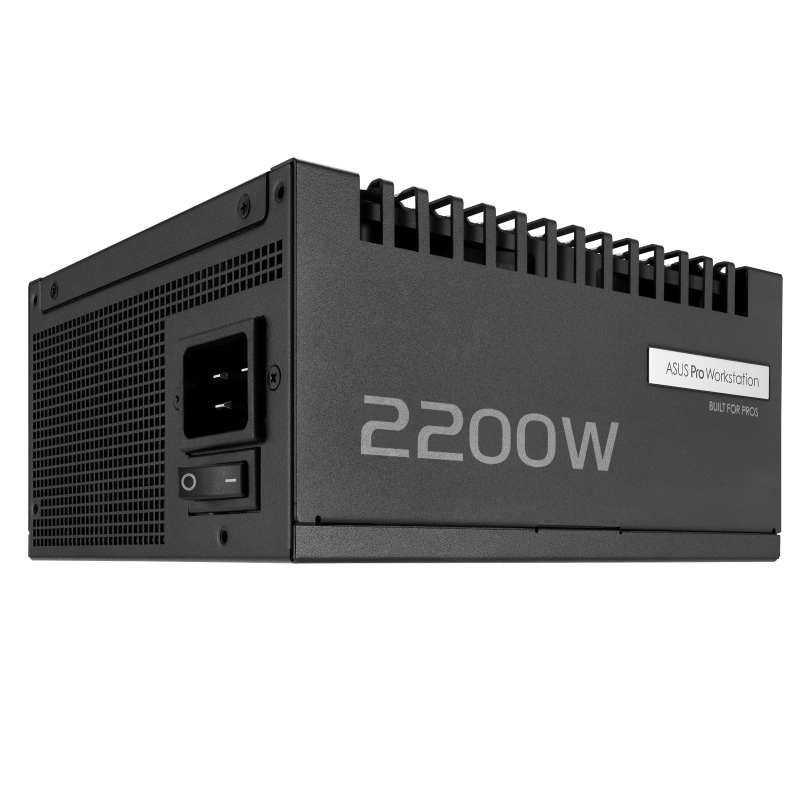

Sursa ASUS Pro WS 2200W Platinum, 80 PLUS Platinum, 2200

Surse PC

Sursa ASUS Pro WS 2200W Platinum, 80 PLUS Platinum, 2200

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: 90YE00Z1-B0NA00

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Sursa ASUS Pro WS 2200W Platinum, 80 PLUS Platinum, 2200 Sursa MSI MEG Ai1600T PCIE5, 80 PLUS Titanium, 1600 W Sursa MSI MPG Ai1300TS PCIE5, 80+ Titanium, 1300W Sursa MSI MAG A750BN PCIE5 II, 80+ Bronze, 750W Sursa MSI PRO A1000PL PCIE5, 80 PLUS Platinum, 1000W
Alte caracteristici
80 PLUS certification 80 PLUS Platinum 80 PLUS Titanium 80 PLUS Titanium 80 PLUS Bronze 80 PLUS Platinum
ATX power connector (20+4 pin) Yes — — — Yes
ATX Power connector (24-pin) — — Yes Yes No
ATX version 3.1 — 3.1 — —
Bearing technology Ball bearing DBB — — —
Cabling type Fully-Modular Fully-Modular Fully-Modular Non-Modular Fully-Modular
Certificare 80 Plus 80 PLUS Platinum 80 PLUS Titanium 80 PLUS Titanium 80 PLUS Bronze 80 PLUS Platinum
Combined power (+3.3V) 130 W 120 W 120 W 120 W 100 W
Combined power (+5V) 130 W 120 W 120 W 120 W 100 W
Combined power (+5Vsb) 15 W 15 W 15 W 15 W 12.5 W
Combined power (-12V) 2200 W 1600 W 1299.96 W 750 W 999.6 W
Conectivitate Full - Modular Full - Modular Full - Modular Non Modular Full - Modular
Cooling type Active — Active Active Active
CPU power connector (4+4 pin) Yes — — — Yes
Depth 175 mm 150 mm 150 mm 140 mm 150 mm
Efficiency 92% 94% — 85% 92%
EPS power connector (4+4 pin) — Yes Yes Yes Yes
EPS power connector (8-pin) — No Yes — —
Fan diameter — 13.5 cm 13.5 cm 12 cm 12 cm
Floppy disk drive connector — — Yes — No
Garantie 24 24 — — —
Height 86 mm 86 mm 86 mm 86 mm 86 mm
Illumination — — No No —
Iluminare RGB Nu Nu Nu Nu Nu
Max output current (+3.3V) 25 A 22 A 22 A 20 A 20 A
Max output current (+5V) 25 A 22 A 22 A 20 A 20 A
Max output current (+5Vsb) 3 A 3 A 3 A 32.5 A 2.5 A
Max output current (-12V) 0.8 A 133.3 A 108.33 A 62.5 A 70.8 A
Motherboard power cable length 61 cm — 60 cm — 60 cm
Motherboard power connector 20+4 pin ATX 24-pin ATX 24-pin ATX 24-pin ATX 20+4 pin ATX
Number of fans — — 1 fan(s) 1 fan(s) 1 fan(s)
Number of SATA power connectors 12 8 8 1 6
On/off switch Yes — Yes Yes Yes
PCI Express power connectors (16-pin) 4 9 8 2 3
Peripheral (Molex) power connectors (4-pin) 3 8 4 1 2
Power Factor Correction (PFC) type Active Active Active Active Active
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage — Over current, Over power, Over voltage, Short circuit, Under voltage Over current, Over power, Over voltage, Short circuit —
Power supply unit (PSU) form factor ATX ATX ATX ATX ATX
Product colour Black Black Black Black Black
PSU Power 2200 W 1600 W 1300W 750 W 1000 W
PSU Type ATX ATX ATX ATX ATX
Purpose PC PC PC PC PC
TOTAL-POWER 2200 W 1600 W 1300 W 750 W 1000 W
Width 150 mm 190 mm 190 mm 150 mm 150 mm
Producator ASUS MSI MSI MSI MSI

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

ASUS Pro WS 2200W Platinum. Total power: 2200 W, AC input voltage: 200 – 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active. Compliance certificates: RoHS

Specificații tehnice 51 caracteristici
80 PLUS certification
80 PLUS Platinum
AC input voltage
200 - 240 V
ATX power connector (20+4 pin)
Yes
ATX version
3.1
Bearing technology
Ball bearing
Cabling type
Fully-Modular
Certificare 80 Plus
80 PLUS Platinum
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
2200 W
Compliance certificates
RoHS
Conectivitate
Full - Modular
Cooling type
Active
CPU power cable length
100 cm
CPU power connector (4+4 pin)
Yes
Depth
175 mm
Efficiency
92%
Garantie
24
Height
86 mm
Iluminare RGB
Nu
Max output current (+3.3V)
25 A
Max output current (+5V)
25 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.8 A
Motherboard power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
12
On/off switch
Yes
Package depth
208 mm
Package height
144 mm
Package type
Box
Package weight
5.06 kg
Package width
346 mm
PCI Express power cable length
75 cm
PCI Express power connectors (16-pin)
4
Peripheral (Molex) power cable length
150,400 mm
Peripheral (Molex) power connectors (4-pin)
3
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
PSU Power
2200 W
PSU Type
ATX
Purpose
PC
SATA power cable length
120,400 mm
TOTAL-POWER
2200 W
Warranty-Period
10 year(s)
Weight
21.3 kg
Width
150 mm
Producator
ASUS
