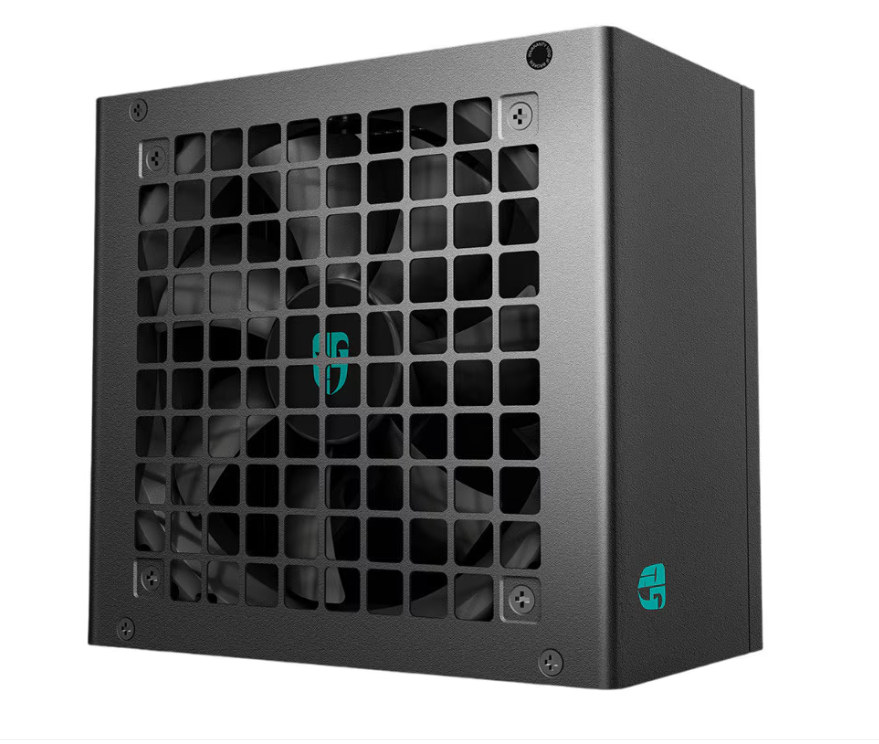

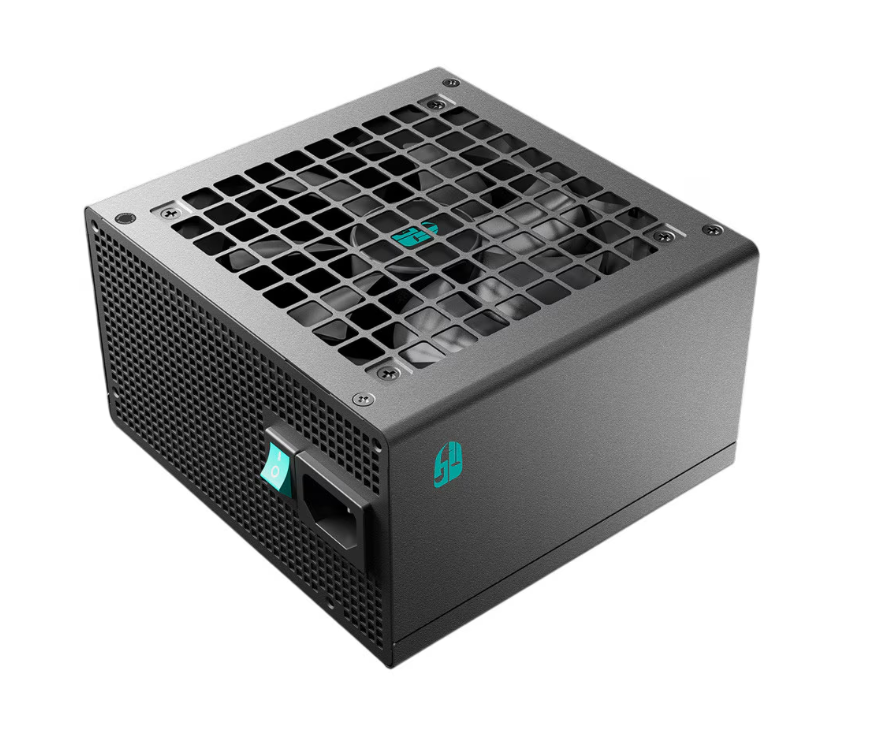

Sursa DEEPCOOL PF700X, 80+ Bronze, 700W
351,99 lei
Sursa DEEPCOOL PF700X, 80+ Bronze, 700W
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: R-PF700X-HD0B-JGEU
Livrare și beneficii
Compară cu produse similare
Sursa DEEPCOOL PF700X, 80+ Bronze, 700W
Sursa GENESIS Nihon 650NM, 80+ Bronze, 650W
272,99 lei 358,99 lei
Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W
317,99 lei 417,99 lei
Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W
317,99 lei 417,99 lei
Sursa Corsair X550 Non Modular 550W, bronze
456,99 lei
Vezi comparația completă
| Caracteristică | Sursa DEEPCOOL PF700X, 80+ Bronze, 700W | Sursa GENESIS Nihon 650NM, 80+ Bronze, 650W | Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W | Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W | Sursa Corsair X550 Non Modular 550W, bronze |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| -12V | 0.3 A | — | — | — | 0.3 A |
| 4+4 Pin ATX/EPS | 2 | — | — | — | 1 |
| 6+2 PCI-E | 2 | — | — | — | 2 |
| 20+4 Pin ATX | 1 | — | — | — | 1 |
| 80 PLUS certification | 80 PLUS Bronze | 80 PLUS Bronze | 80 PLUS Bronze | 80 PLUS Bronze | — |
| ATX version | 2.52 | 3.1 | 3.1 | 3.1 | — |
| Bearing technology | HYB | FDB | FDB | FDB | — |
| Cables included | AC | AC | AC | AC | — |
| Cabling type | Non-Modular | Non-Modular | Non-Modular | Non-Modular | — |
| Certificare | 80 PLUS Bronze | — | — | — | Cybenetics Silver |
| Certificare 80 Plus | 80 PLUS Bronze | 80 PLUS Bronze | 80 PLUS Bronze | 80 PLUS Bronze | 80 PLUS Gold |
| Combined power (+3.3V) | 110 W | 100 W | 100 W | 100 W | — |
| Combined power (+5V) | 110 W | 100 W | 100 W | 100 W | — |
| Combined power (+5Vsb) | 15 W | 15 W | 15 W | 15 W | — |
| Combined power (-12V) | 3.6 W | 3.6 W | 750 W | 750 W | — |
| Compliance certificates | CCC, CE, KC, RCM, TÜV mark, WEEE | CE, RoHS, UKCA | CE, RoHS, UKCA | CE, RoHS, UKCA | — |
| Cooling type | Active | Active | Active | Active | — |
| Country of origin | — | China | China | China | — |
| CPU power cable length | 62 cm | 85 cm | 85 cm | 85 cm | — |
| CPU power connector (4+4 pin) | Yes | Yes | Yes | Yes | — |
| Cybenetics certification | — | Silver | Silver | Silver | — |
| Cybenetics noise rating | — | Standard++ | Standard++ | Standard++ | — |
| Efficiency | 80Plus-Bronze | 88% | 88% | 88% | 80Plus-Gold |
| Fan diameter | 12 cm | 12 cm | 12 cm | 12 cm | — |
| Illumination | — | No | No | No | — |
| Iluminare RGB | Nu | Nu | Nu | Nu | Nu |
| Input current | 5 A | 8 - 4 A | 9 - 4.5 A | 9 - 4.5 A | — |
| Max output current (+3.3V) | 18 A | 20 A | 20 A | 20 A | — |
| Max output current (+5V) | 18 A | 20 A | 20 A | 20 A | — |
| Max output current (+5Vsb) | 3 A | 3 A | 3 A | 3 A | — |
| Max output current (-12V) | 0.3 A | 0.3 A | 62.5 A | 62.5 A | — |
| Mean time between failures (MTBF) | 40000 h | 80000 h | 80000 h | 80000 h | — |
| Modular | No | — | — | — | No |
| Molex | 2 | — | — | — | 2 |
| Motherboard power cable length | 55 cm | 55 cm | 55 cm | 55 cm | — |
| Motherboard power connector | 20+4 pin ATX | 20+4 pin ATX | 20+4 pin ATX | 20+4 pin ATX | — |
| Noise level | — | 24.7 dB | 24.7 dB | 24.7 dB | — |
| Numar de ventilatoare | 1x 120 mm | — | — | — | 120 mm |
| Number of EPS connectors | — | 2 | 2 | 2 | — |
| Number of fans | 1 fan(s) | 1 fan(s) | 1 fan(s) | 1 fan(s) | — |
| Number of SATA power cables | 2 | 2 | 2 | 2 | — |
| Number of SATA power connectors | 3 | 6 | 6 | 6 | — |
| On/off switch | Yes | Yes | Yes | Yes | — |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | — |
| Package depth | — | 290 mm | 290 mm | 290 mm | — |
| Package height | — | 125 mm | 125 mm | 125 mm | — |
| Package weight | — | 2.36 kg | 2.52 kg | 2.52 kg | — |
| Package width | — | 240 mm | 240 mm | 240 mm | — |
| Packaging content | — | User guide, Set of assembly elements, Velcro bands, Cable combs | User guide, Set of assembly elements, Velcro bands, Cable combs | User guide, Set of assembly elements, Velcro bands, Cable combs | — |
| PCI Express connector | Yes | Yes | Yes | Yes | — |
| PCI Express power cable length | 55 cm | 67 cm | 67 cm | 67 cm | — |
| PCI Express power connectors (16-pin) | 2 | 3 | 3 | 3 | — |
| Peripheral (Molex) power cable length | 900 mm | 750 mm | 750 mm | 750 mm | — |
| Peripheral (Molex) power connectors (4-pin) | 1 | 2 | 2 | 2 | — |
| PFC | Activ | — | — | — | Active |
| Power Factor Correction (PFC) type | Active | Active | Active | Active | — |
| Power supply unit (PSU) form factor | ATX | ATX | ATX | ATX | — |
| PSU Power | 700 W | 650 W | 750 W | 750 W | 550 W |
| PSU Type | ATX | ATX | ATX | ATX | ATX |
| Purpose | PC | PC | PC | PC | — |
| Putere sursă | 700 W | — | — | — | 550 W |
| Rail +12V | 1 | — | — | — | 1 |
| Recomandat Gaming | Nu | — | — | — | Da |
| SATA | 6 | — | — | — | 3 |
| SATA power cable length | 450,600,750 mm | 450,550,650 mm | 450,550,650 mm | 450,550,650 mm | — |
| Sursa Modulara | Nu | — | — | — | Nu |
| Tip sursa | ATX V2.52 | — | — | — | ATX 3.1 |
| TOTAL-POWER | 500 W | 650 W | 750 W | 750 W | — |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 140 mm | 140 mm | 140 mm | 140 mm | — |
| Lățime | 150 mm | 150 mm | 150 mm | 150 mm | — |
| Înălțime | 86 mm | 86 mm | 86 mm | 86 mm | — |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Conectivitate wireless | Non Modular | Non Modular | Non Modular | Non Modular | Non Modular |
| Laptopuri - Construcție | |||||
| Culoare | Black | Black | Black | Black | — |
| Greutate | — | 1.96 kg | 2.13 kg | 2.13 kg | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 120 | 12 | — | — | 60 |
| Producător | DEEPCOOL | GENESIS | GENESIS | GENESIS | CORSAIR |
| Voltaj suportat | |||||
| +3.3V | 18 A | — | — | — | 20 A |
| +5V | 18 A | — | — | — | 20 A |
| +5Vsb | 3 A | — | — | — | 3 A |
| +12V 1 | 58.3 A | — | — | — | 45.8 A |
Analiză inteligentă a produsului
Descriere oficială
Sursa DEEPCOOL PF700X 700W, ATX, ACTIVE PFC, 80 PLUS BRONZE
Specificații tehnice 81 caracteristici ⌄
- -12V
- 0.3 A
- 4+4 Pin ATX/EPS
- 2
- 6+2 PCI-E
- 2
- 20+4 Pin ATX
- 1
- 80 PLUS certification
- 80 PLUS Bronze
- AC input voltage
- 200 - 240 V
- ATX power connector (20+4 pin)
- Yes
- ATX version
- 2.52
- Bearing technology
- HYB
- Cables included
- AC
- Cable tie(s) included
- Yes
- Cabling type
- Non-Modular
- Certificare
- 80 PLUS Bronze
- Certificare 80 Plus
- 80 PLUS Bronze
- Combined power (+3.3V)
- 110 W
- Combined power (+5V)
- 110 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Compliance certificates
- CCC, CE, KC, RCM, TÜV mark, WEEE
- Cooling type
- Active
- CPU power cable length
- 62 cm
- CPU power connector (4+4 pin)
- Yes
- Efficiency
- 80Plus-Bronze
- Fan diameter
- 12 cm
- Fan location
- Top
- Hold time
- 16 ms
- Iluminare RGB
- Nu
- Input current
- 5 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 18 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Mean time between failures (MTBF)
- 40000 h
- Modular
- No
- Molex
- 2
- Motherboard power cable length
- 55 cm
- Motherboard power connector
- 20+4 pin ATX
- Numar de ventilatoare
- 1x 120 mm
- Number of fans
- 1 fan(s)
- Number of SATA power cables
- 2
- Number of SATA power connectors
- 3
- On/off switch
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Package type
- Box
- PCI Express connector
- Yes
- PCI Express power cable length
- 55 cm
- PCI Express power connectors (16-pin)
- 2
- Peripheral (Molex) power cable length
- 900 mm
- Peripheral (Molex) power connectors (4-pin)
- 1
- Permite Asamblare
- Standard
- Permite Wire Management
- Nu
- PFC
- Activ
- Power Factor Correction (PFC) type
- Active
- Power supply unit (PSU) form factor
- ATX
- Protectii
- OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO
- PSU Power
- 700 W
- PSU Type
- ATX
- Purpose
- PC
- Putere sursă
- 700 W
- Rail +12V
- 1
- Recomandat Gaming
- Nu
- SATA
- 6
- SATA power cable length
- 450,600,750 mm
- Screws included
- Yes
- Sursa Modulara
- Nu
- Sustainability certificates
- ErP, Triman
- Tip sursa
- ATX V2.52
- TOTAL-POWER
- 500 W
- Voltaj/Amperaj
- 200 - 240 VAC50 - 60 Hz5 A
- Adâncime
- 140 mm
- Dimensiuni
- 150 x 140 x 86 mm
- Lățime
- 150 mm
- Înălțime
- 86 mm
- Conectivitate wireless
- Non Modular
- Culoare
- Black
- Garanție comercială
- 120
- Producător
- DEEPCOOL
- +3.3V
- 18 A
- +5V
- 18 A
- +5Vsb
- 3 A
- +12V 1
- 58.3 A
