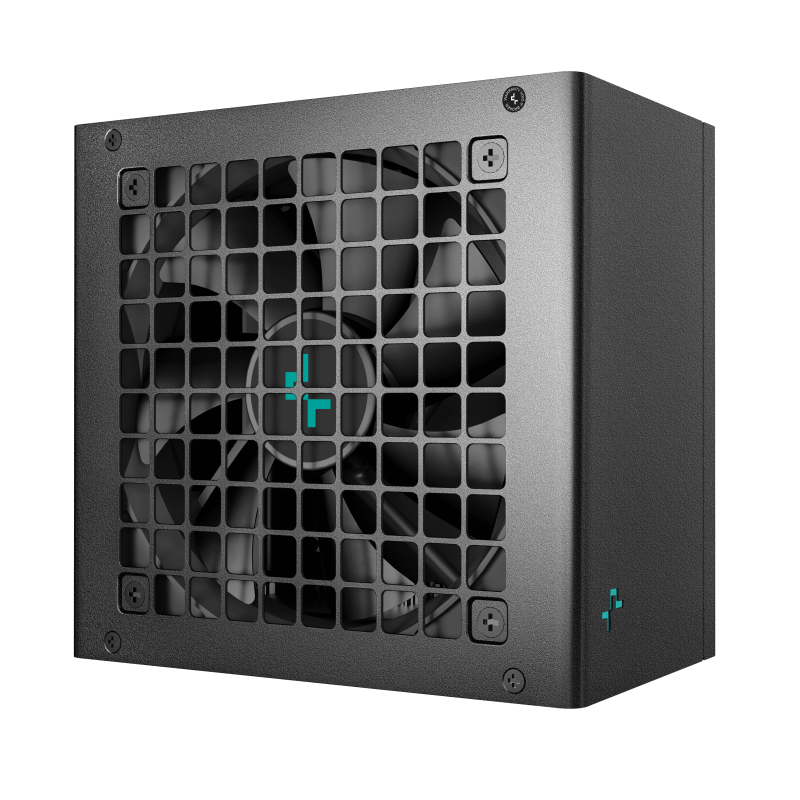

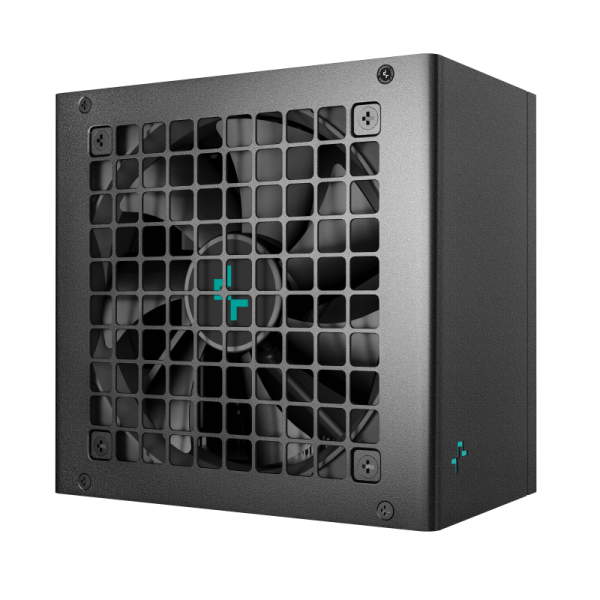

Sursa DeepCool PN750M, 80+ Gold, 750W

Surse PC

Sursa DeepCool PN750M, 80+ Gold, 750W

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: R-PN750M-FC0B-JGEU

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Sursa DeepCool PN750M, 80+ Gold, 750W Sursa GENESIS Nihon 650NM, 80+ Bronze, 650W Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W Sursa GENESIS Nihon 750NM, 80+ Bronze, 750W Sursa MSI MEG Ai1600T PCIE5, 80 PLUS Titanium, 1600 W
Alte caracteristici
80 PLUS certification 80 PLUS Gold 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Titanium
ATX version 3.1 3.1 3.1 3.1 —
Bearing technology FDB FDB FDB FDB DBB
Cables included AC, CPU, PCIe, Peripheral (Molex), SATA AC AC AC —
Cabling type Fully-Modular Non-Modular Non-Modular Non-Modular Fully-Modular
Certificare 80 Plus 80 PLUS Gold 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Titanium
Combined power (+3.3V) 110 W 100 W 100 W 100 W 120 W
Combined power (+5V) 110 W 100 W 100 W 100 W 120 W
Combined power (+5Vsb) 15 W 15 W 15 W 15 W 15 W
Combined power (-12V) 3.6 W 3.6 W 750 W 750 W 1600 W
Compliance certificates CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE CE, RoHS, UKCA CE, RoHS, UKCA CE, RoHS, UKCA —
Cooling type Active Active Active Active —
Country of origin — China China China —
CPU power cable length 70 cm 85 cm 85 cm 85 cm —
CPU power connector (4+4 pin) Yes Yes Yes Yes —
Cybenetics certification — Silver Silver Silver —
Cybenetics noise rating — Standard++ Standard++ Standard++ —
Efficiency 90% 88% 88% 88% 94%
Fan diameter 12 cm 12 cm 12 cm 12 cm 13.5 cm
Illumination — No No No —
Iluminare RGB Nu Nu Nu Nu Nu
Input current 10 - 5 A 8 - 4 A 9 - 4.5 A 9 - 4.5 A —
Max output current (+3.3V) 20 A 20 A 20 A 20 A 22 A
Max output current (+5V) 20 A 20 A 20 A 20 A 22 A
Max output current (+5Vsb) 3 A 3 A 3 A 3 A 3 A
Max output current (-12V) 0.3 A 0.3 A 62.5 A 62.5 A 133.3 A
Mean time between failures (MTBF) 100000 h 80000 h 80000 h 80000 h —
Motherboard power cable length 55 cm 55 cm 55 cm 55 cm —
Motherboard power connector 20+4 pin ATX 20+4 pin ATX 20+4 pin ATX 20+4 pin ATX 24-pin ATX
Noise level — 24.7 dB 24.7 dB 24.7 dB —
Number of EPS connectors — 2 2 2 —
Number of fans 1 fan(s) 1 fan(s) 1 fan(s) 1 fan(s) —
Number of SATA power cables — 2 2 2 —
Number of SATA power connectors 8 6 6 6 8
On/off switch Yes Yes Yes Yes —
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C —
Package depth — 290 mm 290 mm 290 mm —
Package height — 125 mm 125 mm 125 mm —
Package weight — 2.36 kg 2.52 kg 2.52 kg —
Package width — 240 mm 240 mm 240 mm —
Packaging content — User guide, Set of assembly elements, Velcro bands, Cable combs User guide, Set of assembly elements, Velcro bands, Cable combs User guide, Set of assembly elements, Velcro bands, Cable combs —
PCI Express connector — Yes Yes Yes —
PCI Express power cable length — 67 cm 67 cm 67 cm —
PCI Express power connectors (16-pin) 1 3 3 3 9
Peripheral (Molex) power cable length 930 mm 750 mm 750 mm 750 mm —
Peripheral (Molex) power connectors (4-pin) 2 2 2 2 8
Power Factor Correction (PFC) type Active Active Active Active Active
Power supply unit (PSU) form factor ATX ATX ATX ATX ATX
PSU Power 750 W 650 W 750 W 750 W 1600 W
PSU Type ATX ATX ATX ATX ATX
Purpose PC PC PC PC PC
SATA power cable length 450,570,690,810 mm 450,550,650 mm 450,550,650 mm 450,550,650 mm —
TOTAL-POWER 750 W 650 W 750 W 750 W 1600 W
Caracteristici fizice
Greutate — 1.96 kg 2.13 kg 2.13 kg —
Laptopuri - Caracteristici fizice 25.09
Adâncime 140 mm 140 mm 140 mm 140 mm 150 mm
Lățime 150 mm 150 mm 150 mm 150 mm 190 mm
Înălțime 86 mm 86 mm 86 mm 86 mm 86 mm
Laptopuri - Conectivitate și porturi 25.09
Conectivitate wireless Full - Modular Non Modular Non Modular Non Modular Full - Modular
Laptopuri - Construcție
Culoare Black Black Black Black Black
Laptopuri - Generale
Garanție comercială 120 12 — — 24
Producător DEEPCOOL GENESIS GENESIS GENESIS MSI

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

DeepCool PN750M. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Specificații tehnice 54 caracteristici
80 PLUS certification
80 PLUS Gold
ATX power connector (20+4 pin)
Yes
ATX version
3.1
Bearing technology
FDB
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Cabling type
Fully-Modular
Certificare 80 Plus
80 PLUS Gold
Combined power (+3.3V)
110 W
Combined power (+5V)
110 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Compliance certificates
CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Cooling type
Active
CPU power cable length
70 cm
CPU power connector (4+4 pin)
Yes
Efficiency
90%
Fan diameter
12 cm
Fan location
Top
Hold time
16 ms
Iluminare RGB
Nu
Input current
10 - 5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Mean time between failures (MTBF)
100000 h
Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
8
On/off switch
Yes
Operating temperature (T-T)
0 - 40 °C
Package type
Box
PCI Express power connectors (16-pin)
1
Peripheral (Molex) power cable length
930 mm
Peripheral (Molex) power connectors (4-pin)
2
Power Factor Correction (PFC) type
Active
Power Good signal delay range
100 - 150 ms
Power supply unit (PSU) form factor
ATX
PSU Power
750 W
PSU Type
ATX
Purpose
PC
SATA power cable length
450,570,690,810 mm
Sustainability certificates
ErP, Triman
TOTAL-POWER
750 W
Warranty-Period
10 year(s)
Adâncime
140 mm
Lățime
150 mm
Înălțime
86 mm
Conectivitate wireless
Full - Modular
Culoare
Black
Garanție comercială
120
Producător
DEEPCOOL
