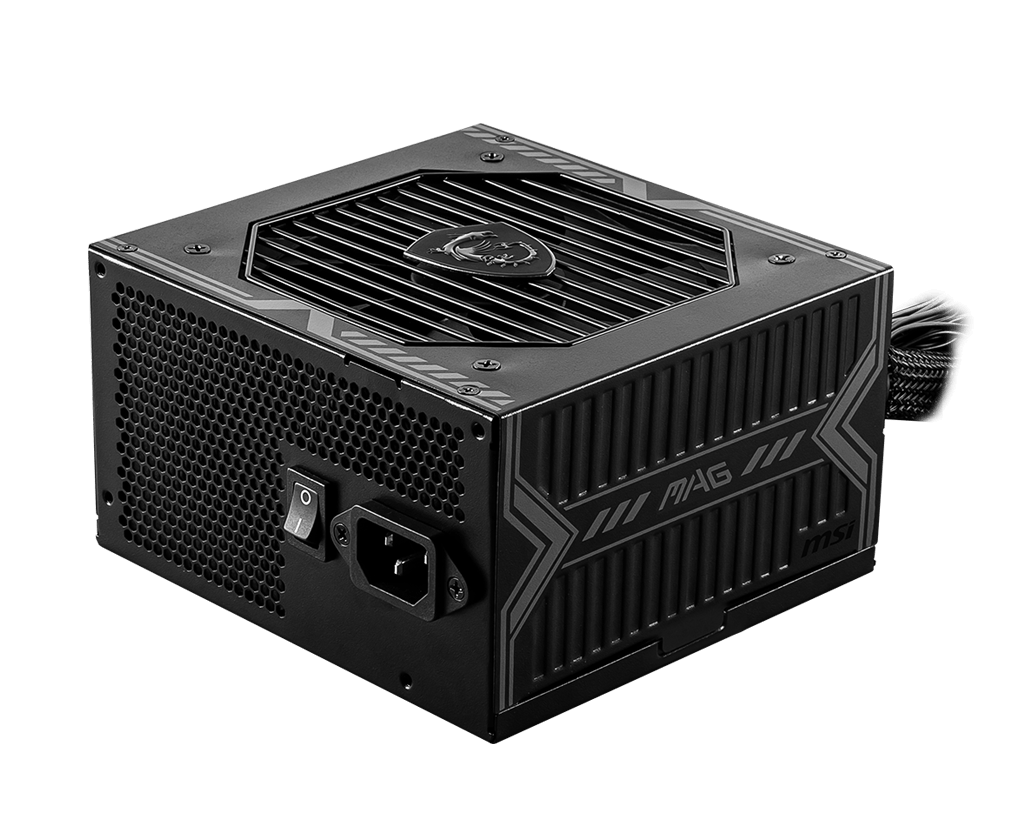

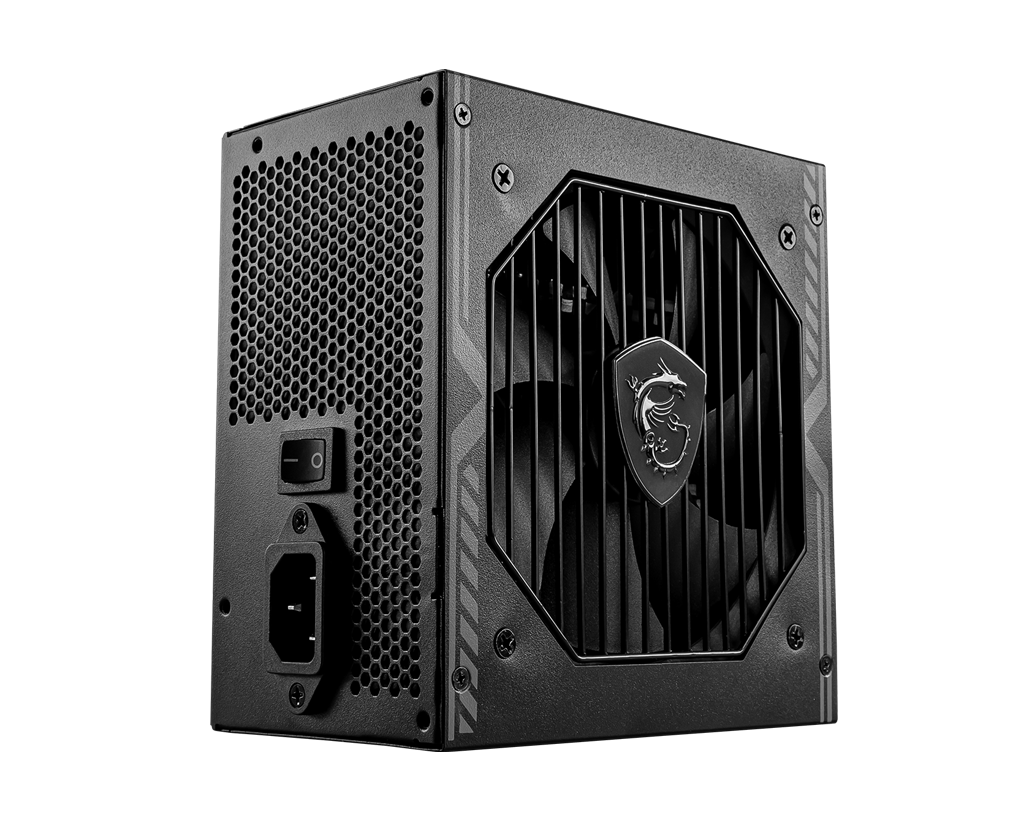

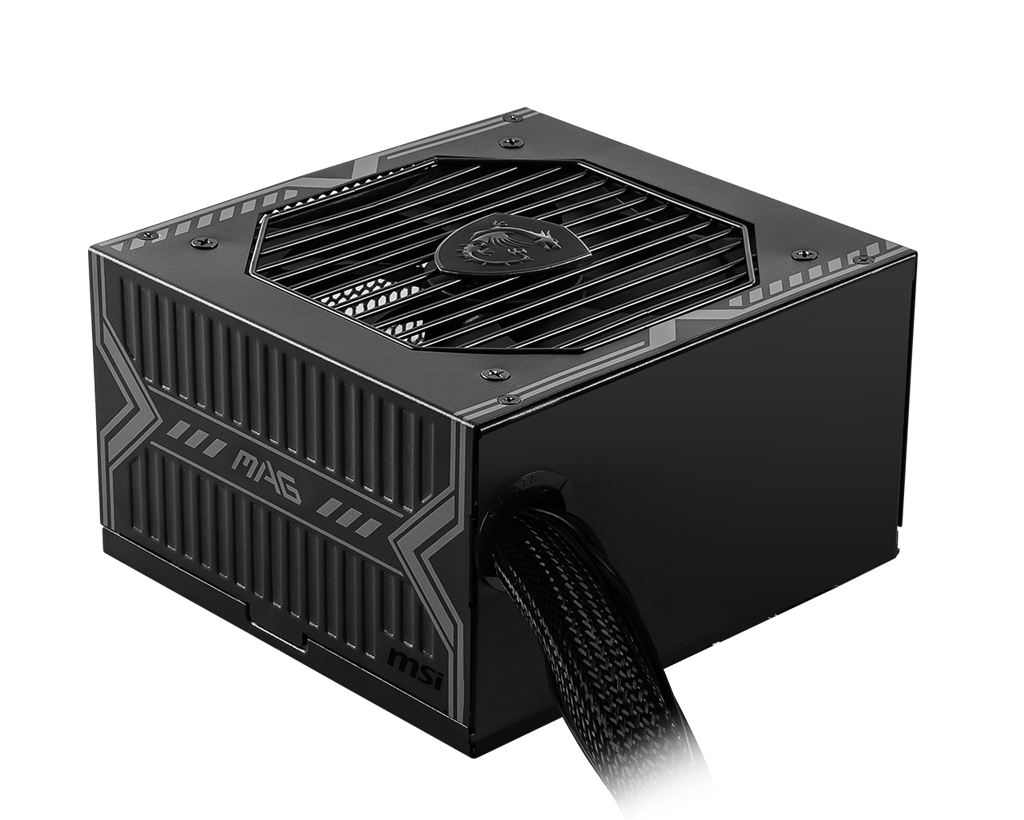

Sursa MSI MAG A550BN, 80 PLUS Bronze, 550 W

Surse PC

Sursa MSI MAG A550BN, 80 PLUS Bronze, 550 W

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: MAG A550BN

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Sursa MSI MAG A550BN, 80 PLUS Bronze, 550 W Sursa MSI MAG A750BN PCIE5 II, 80+ Bronze, 750W Sursa MSI PRO A850PL PCIE5, 80 PLUS Platinum, 850 W Sursa MSI MAG A850GL PCIE5, 80+ Gold, 850W Sursa MSI MEG Ai1600T PCIE5, 80 PLUS Titanium, 1600 W
Alte caracteristici
80 PLUS certification 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Platinum 80 PLUS Gold 80 PLUS Titanium
ATX power connector (20+4 pin) No — Yes No —
ATX Power connector (24-pin) No Yes No No —
Cabling type Non-Modular Non-Modular Fully-Modular Fully-Modular Fully-Modular
Certificare 80 Plus 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Platinum 80 PLUS Gold 80 PLUS Titanium
Combined power (+3.3V) 110 W 120 W 100 W 110 W 120 W
Combined power (+5V) 110 W 120 W 100 W 110 W 120 W
Combined power (+5Vsb) 12.5 W 15 W 12.5 W 12.5 W 15 W
Combined power (-12V) 546 W 750 W 849.6 W 846 W 1600 W
Cooling type — Active Active — —
CPU power connector (4+4 pin) Yes — Yes Yes —
Efficiency — 85% 80Plus-Platinum 90% 94%
EPS power connector (4+4 pin) Yes Yes Yes Yes Yes
EPS power connector (8-pin) No — — No No
Fan diameter 12 cm 12 cm 12 cm 12 cm 13.5 cm
Harmonized System (HS) code 84733020 — — 84733020 —
Illumination — No — No —
Iluminare RGB Nu Nu Nu Nu Nu
Maximum input current (@110V) 8 A — — 8 A —
Maximum input current (@220V) 4 A — — 4 A —
Max output current (+3.3V) 20 A 20 A 20 A 20 A 22 A
Max output current (+5V) 20 A 20 A 20 A 20 A 22 A
Max output current (+5Vsb) 2.5 A 32.5 A 2.5 A 2.5 A 3 A
Max output current (-12V) 45.5 A 62.5 A 70.8 A 70.5 A 133.3 A
Modular — — Yes Yes —
Motherboard power cable length 60 cm — 60 cm 60 cm —
Motherboard power connector 20+4 pin ATX 24-pin ATX 20+4 pin ATX 20+4 pin ATX 24-pin ATX
Number of fans 1 fan(s) 1 fan(s) 1 fan(s) 1 fan(s) —
Number of SATA power connectors 5 1 6 8 8
On/off switch Yes Yes Yes Yes —
PCI Express power connectors (16-pin) 2 2 3 — 9
Peripheral (Molex) power connectors (4-pin) 2 1 2 4 8
PFC Active — Active Active —
Power Factor Correction (PFC) type Active Active Active Active Active
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit Over current, Over power, Over voltage, Short circuit — Over current, Over power, Over voltage, Overheating, Short circuit —
Power supply unit (PSU) form factor ATX ATX ATX ATX ATX
PSU Power 550 W 750 W 850 W 850 W 1600 W
PSU Type ATX ATX ATX ATX ATX
Purpose PC PC PC PC PC
TOTAL-POWER 550 W 750 W 850 W 850 W 1600 W
Laptopuri - Caracteristici fizice 25.09
Adâncime 140 mm 140 mm 150 mm 140 mm 150 mm
Lățime 150 mm 150 mm 150 mm 150 mm 190 mm
Înălțime 86 mm 86 mm 86 mm 86 mm 86 mm
Laptopuri - Conectivitate și porturi 25.09
Conectivitate wireless Non Modular Non Modular Full - Modular Full - Modular Full - Modular
Laptopuri - Construcție
Culoare — Black Black — Black
Laptopuri - Generale
Garanție comercială 120 — — 120 24
Producător MSI MSI MSI MSI MSI

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Sursa MSI MAG A550BN 80+ Bronze SPECIFICATIONS Product Name MAG A550BN PSU Form Factor ATX Power Watt 550W Input Voltage 100-240Vac Input Current 115Vac/8.0A max. 230Vac/4.0A max. Input Frequency 50Hz ~ 60Hz Efficiency Up to 85% (80 Plus Bronze) Fan Size 120 mm Dimension 150mm x140mm x86mm PFC Type Active PFC Protection OCP / OVP / OPP / OTP / SCP https://www.msi.com/Power-Supply/MAG-A550BN/Specification

Specificații tehnice 43 caracteristici
80 PLUS certification
80 PLUS Bronze
AC input frequency
50 - 60 Hz
ATX power connector (20+4 pin)
No
ATX Power connector (24-pin)
No
Cabling type
Non-Modular
Certificare 80 Plus
80 PLUS Bronze
Combined power (+3.3V)
110 W
Combined power (+5V)
110 W
Combined power (+5Vsb)
12.5 W
Combined power (-12V)
546 W
CPU power connector (4+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
EPS power connector (8-pin)
No
Fan diameter
12 cm
Harmonized System (HS) code
84733020
Iluminare RGB
Nu
Maximum input current (@110V)
8 A
Maximum input current (@220V)
4 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
45.5 A
Motherboard power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
5
On/off switch
Yes
PCI Express power connectors (16-pin)
2
Peripheral (Molex) power connectors (4-pin)
2
PFC
Active
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit
Power supply unit (PSU) form factor
ATX
PSU Power
550 W
PSU Type
ATX
Purpose
PC
TOTAL-POWER
550 W
Adâncime
140 mm
Lățime
150 mm
Înălțime
86 mm
Conectivitate wireless
Non Modular
Garanție comercială
120
Producător
MSI
