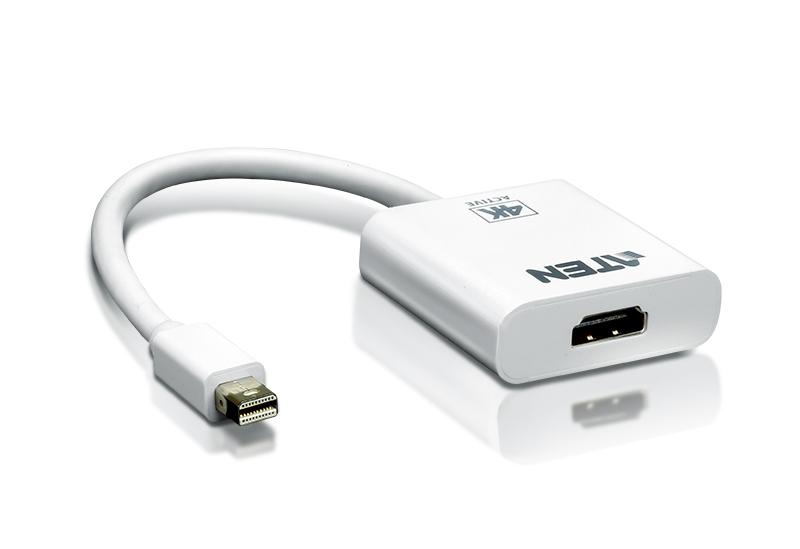

Adaptor Aten VC981-AT. Conector 1: Mini DisplayPort, Conector 2: HDMI,

Cabluri video

Adaptor Aten VC981-AT. Conector 1: Mini DisplayPort, Conector 2: HDMI,

(0) În stoc
Vândut de RITC.ro Cod produs: VC981-AT

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Adaptor Aten VC981-AT. Conector 1: Mini DisplayPort, Conector 2: HDMI, Adaptor ATEN VC985-AT. Conector 1: DisplayPort, Conector 2: HDMI, Conector Adaptor Aten USB Type C to HDMI 4K UC3008A1-AT. Versiune Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu
Alte caracteristici
AWG wire size — — — 32 34
Bandwidth 297 MHz 165 MHz — — —
Bend radius (min) — — — 2.88 cm 2.88 cm
Cable length — — — 1 m 2 m
Canal Ethernet N/A N/A Nu Nu Nu
Chipset — — — CS5565AN CS5565AN
Compliance certificates — — — CE, Federal Communications Commission (FCC), REACH, RoHS, UL CE, Federal Communications Commission (FCC), REACH, RoHS, UL
Conductor material — — — Tinned copper Tinned copper
Conector 1 Mini DisplayPort DisplayPort USB Type C USB Type C USB Type C
Conector 2 HDMI HDMI HDMI HDMI HDMI
Connector 1 Mini DisplayPort DisplayPort — USB Type-C USB Type-C
Connector 1 dimensions (WxDxH) — — — 39.6 x 12 x 6.5 mm 39.6 x 12 x 6.5 mm
Connector 1 form factor Straight Straight — Straight Straight
Connector 1 gender Male Male — Male Male
Connector 2 HDMI HDMI — HDMI HDMI
Connector 2 dimensions (WxDxH) — — — 71 x 21 x 11 mm 71 x 21 x 11 mm
Connector 2 form factor Straight Straight — Straight Straight
Connector 2 gender Female Female — Male Male
Connector contacts plating — — — Gold Gold
Connector housing material — — — Plastic Plastic
Data transfer rate — — — 48 Gbit/s 48 Gbit/s
Depth 175 mm 180 mm — — —
DisplayPort version 1.2a 1.1a — — —
Garantie 24 24 24 24 24
Harmonized System (HS) code 84733080 84733080 84733020 — —
HDCP Yes — Yes Yes Yes
HDCP version 1.3 — — 2.2 2.2
HDMI version — — 2.0 2.1 2.1
Height 15 mm 15 mm — — —
Jacket material Plastic Plastic — Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) Polyvinyl chloride (PVC)
Lungime cablu N/A sub 1m sub 1m 1m - 1.5m 1.6m - 2m
Master (outer) case gross weight 4.35 kg 4.6 kg 2.25 kg — —
Master (outer) case height 230 mm 230 mm 270 mm — —
Master (outer) case length 335 mm 335 mm 370 mm — —
Master (outer) case net weight 3 kg 1.4 kg 400 g — —
Master (outer) case width 270 mm 270 mm 200 mm — —
MAXIMUM-RESOLUTION 3840 x 2160 pixels 1920 x 1200 pixels 4096 x 2160 pixels 7680 x 4320 pixels 7680 x 4320 pixels
Maximum refresh rate — 60 Hz — 144 Hz 144 Hz
Operating relative humidity (H-H) 0 - 80% 0 - 80% — — —
Operating temperature (T-T) 0 - 50 °C 0 - 50 °C — -20 - 40 °C -20 - 40 °C
Package depth 120 mm 120 mm 125 mm — —
Package height 212 mm 212 mm 180 mm — —
Package type — — — Polybag Polybag
Package weight 96 g 87 g 84 g — —
Package width 19 mm 19 mm 35 mm — —
Plug and Play — — — Yes Yes
Product colour White White Silver Black Black
Products per master (outer) case 40 pc(s) 40 pc(s) 20 pc(s) — —
Quantity per pack 1 pc(s) 1 pc(s) — 1 pc(s) 1 pc(s)
Storage temperature (T-T) -20 - 60 °C -20 - 60 °C — -40 - 80 °C -40 - 80 °C
Supported graphics resolutions 1920 x 1200 (WUXGA), 3840 x 2160 — — 7860 x 4320, 3840 x 2160 7860 x 4320, 3840 x 2160
Supported video modes — — — 4320p, 2160p 4320p, 2160p
USB Type-C DisplayPort Alternate Mode — — — Yes Yes
Weight 75 g 35 g 20 g — —
Width 45 mm 45 mm — — —
Producator ATEN ATEN ATEN LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Adaptor Aten VC981-AT. Conector 1: Mini DisplayPort, Conector 2: HDMI, Conector 1 gen: Tată. Greutate: 75 g, Lățime: 45 mm, Adâncime: 175 mm. Lăţime de ambalaj: 19 mm, Adâncimea de ambalaj: 120 mm, Înălţime de ambalaj: 212 mm. Cantitate per ambalaj: 1 buc.. Greutate netă ambalaj principal: 3 kg, Lățime cutie ambalaj (exterior): 270 mm, Lungime cutie ambalaj (exterior): 335 mm

Specificații tehnice 39 caracteristici
Bandwidth
297 MHz
Canal Ethernet
N/A
Conector 1
Mini DisplayPort
Conector 2
HDMI
Connector 1
Mini DisplayPort
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
HDMI
Connector 2 form factor
Straight
Connector 2 gender
Female
Depth
175 mm
DisplayPort version
1.2a
Garantie
24
Harmonized System (HS) code
84733080
HDCP
Yes
HDCP version
1.3
Height
15 mm
Jacket material
Plastic
Lungime cablu
N/A
Master (outer) case gross weight
4.35 kg
Master (outer) case height
230 mm
Master (outer) case length
335 mm
Master (outer) case net weight
3 kg
Master (outer) case width
270 mm
MAXIMUM-RESOLUTION
3840 x 2160 pixels
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Package depth
120 mm
Package height
212 mm
Package weight
96 g
Package width
19 mm
Product colour
White
Products per master (outer) case
40 pc(s)
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 60 °C
Supported graphics resolutions
1920 x 1200 (WUXGA), 3840 x 2160
Weight
75 g
Width
45 mm
Producator
ATEN
