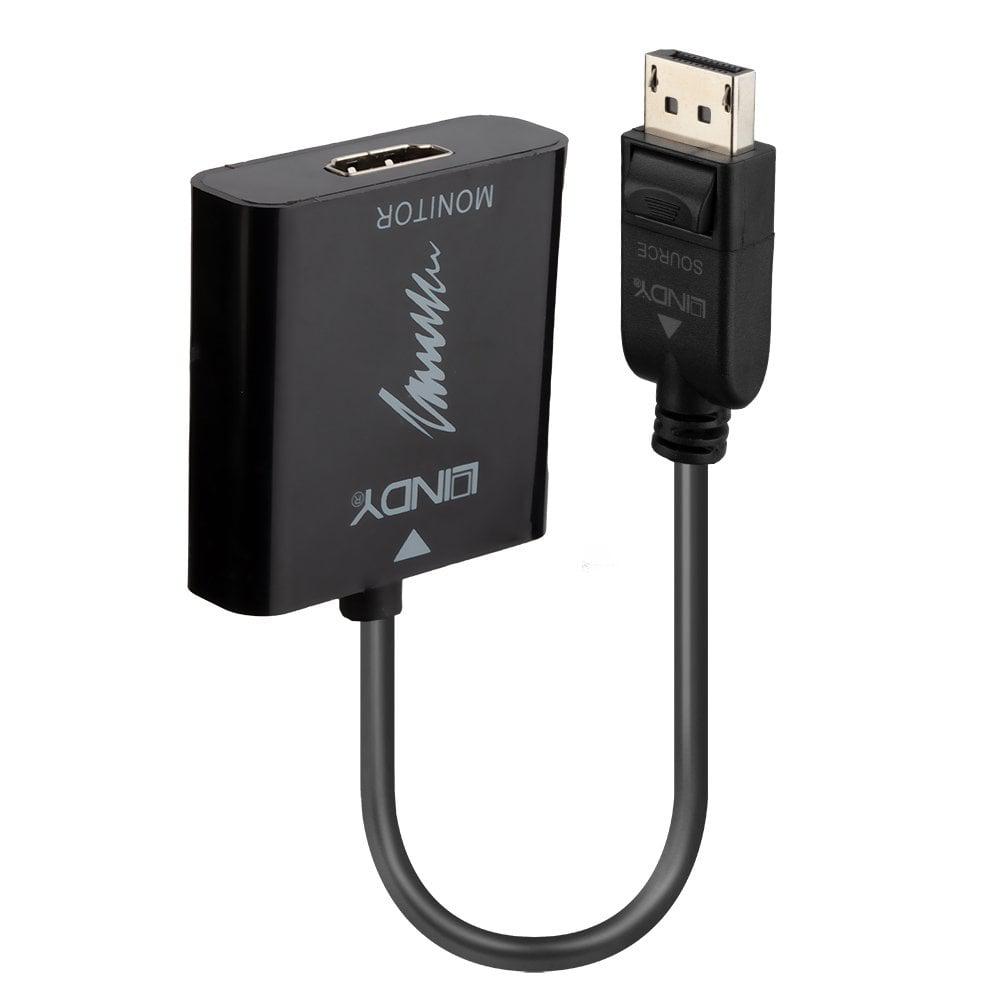

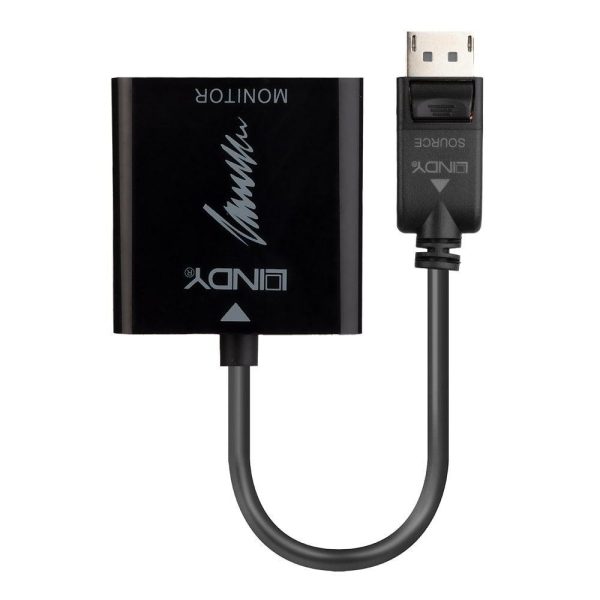

Adaptor Lindy LY-41068, DisplayPort 1.2 to HDMI 2.0 18G Active,

Cabluri video

Adaptor Lindy LY-41068, DisplayPort 1.2 to HDMI 2.0 18G Active,

(0) În stoc
Vândut de RITC.ro Cod produs: LY-41068

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Adaptor Lindy LY-41068, DisplayPort 1.2 to HDMI 2.0 18G Active, Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Emulator 8K60 EDID Feeder, rezolutie maxima 680x4320@60Hz 4:4:4 10Bit, latime Cablu Lindy C14 to C13, lungime 0.5m, material cablu H05-VVF
Alte caracteristici
AWG wire size — 32 34 — —
Bend radius (min) 5.5 cm 2.88 cm 2.88 cm — —
Cable length 1.5 m 1 m 2 m — 0.5 m
Canal Ethernet N/A Nu Nu N/A N/A
Chipset PS176 CS5565AN CS5565AN — —
Compliance certificates — CE, Federal Communications Commission (FCC), REACH, RoHS, UL CE, Federal Communications Commission (FCC), REACH, RoHS, UL CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS —
Conductor material — Tinned copper Tinned copper — —
Conector 1 DisplayPort USB Type C USB Type C HDMI C14 coupler
Conector 2 HDMI HDMI HDMI HDMI C13 coupler
Connector 1 DisplayPort USB Type-C USB Type-C — C14 coupler
Connector 1 dimensions (WxDxH) 31.5 x 20 x 9 mm 39.6 x 12 x 6.5 mm 39.6 x 12 x 6.5 mm — —
Connector 1 form factor Straight Straight Straight — —
Connector 1 gender Male Male Male — Male
Connector 2 HDMI Type A (Standard) HDMI HDMI — C13 coupler
Connector 2 dimensions (WxDxH) 45 x 45 x 15 mm 71 x 21 x 11 mm 71 x 21 x 11 mm — —
Connector 2 form factor Straight Straight Straight — —
Connector 2 gender Female Male Male — Female
Connector contacts plating Gold Gold Gold — —
Connector housing material Thermoplastic elastomer (TPE) Plastic Plastic — —
Data transfer rate 18 Gbit/s 48 Gbit/s 48 Gbit/s — —
Harmonized System (HS) code 84733080 — — — 84733080
HDCP Yes Yes Yes Yes —
HDCP version 2.2 2.2 2.2 2.3 —
Jacket material Polyvinyl chloride (PVC) Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) Polyvinyl chloride (PVC) — —
Lungime cablu N/A 1m - 1.5m 1.6m - 2m N/A sub 1m
MAXIMUM-RESOLUTION 3840 x 2160 pixels 7680 x 4320 pixels 7680 x 4320 pixels — —
Operating relative humidity (H-H) 10 - 90% — — 0 - 80% —
Operating temperature (T-T) 0 - 70 °C -20 - 40 °C -20 - 40 °C 0 - 50 °C —
Package type Polybag Polybag Polybag Polybag —
Package weight 45 g — — 36 g —
Plug and Play — Yes Yes — —
Quantity per pack — 1 pc(s) 1 pc(s) — —
Storage temperature (T-T) -20 - 70 °C -40 - 80 °C -40 - 80 °C -20 - 70 °C —
Supported graphics resolutions — 7860 x 4320, 3840 x 2160 7860 x 4320, 3840 x 2160 — —
Supported video modes 2160p 4320p, 2160p 4320p, 2160p — —
Caracteristici fizice
Greutate 20 g — — 13 g —
Display
Rată maximă de reîmprospătare — 144 Hz 144 Hz — —
Laptopuri - Conectivitate și porturi 25.09
Ieșire video prin USB-C — Yes Yes — —
Versiune HDMI 2.0a 2.1 2.1 — —
Laptopuri - Construcție
Culoare — Black Black Black Black, Orange
Laptopuri - Generale
Garanție comercială 24 24 24 24 24
Producător LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Specifications

  • AV Interface: DisplayPort to HDMI
  • Interface Standard: DisplayPort 1.2 / HDMI 2.0a
  • Supported Bandwidth: 18Gbps
  • Maximum Input Resolution: 3840×2160@60Hz 4:4:4 8bit
  • Maximum  Output Resolution: 3840×2160@60Hz 4:4:4 8bit
  • Chipset: PS176
  • HDCP Support: HDCP 2.2
  • Supported Audio: Pass-through
  • Separate Audio Ports: –
  • Special Features: –

Connectors

  • Input: DisplayPort Male
  • Output: HDMI Type A Female
Specificații tehnice 49 caracteristici
Bend radius (min)
5.5 cm
Cable diameter
5 mm
Cable length
1.5 m
Canal Ethernet
N/A
Caracteristici
Rezolutie maxima: 3840x2160@60Hz
Certification
CE, UKCA, FCC, RoHS & REACH
Chipset
PS176
Colour depth
8 bit
Colour sampling
4:4:4
Conector 1
DisplayPort
Conector 2
HDMI
Connector 1
DisplayPort
Connector 1 dimensions (WxDxH)
31.5 x 20 x 9 mm
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
HDMI Type A (Standard)
Connector 2 dimensions (WxDxH)
45 x 45 x 15 mm
Connector 2 form factor
Straight
Connector 2 gender
Female
Connector contacts plating
Gold
Connector housing material
Thermoplastic elastomer (TPE)
Converter type
Active video converter
Data transfer rate
18 Gbit/s
DisplayPort version
1.2
Harmonized System (HS) code
84733080
HDCP
Yes
HDCP version
2.2
Jacket material
Polyvinyl chloride (PVC)
Lungime cablu
N/A
MAXIMUM-RESOLUTION
3840 x 2160 pixels
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 70 °C
Package depth
160 mm
Package height
20 mm
Package type
Polybag
Package weight
45 g
Package width
160 mm
Pentru
Semnal
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Supported video modes
2160p
Tip
Adaptor
Tip Conector 1
male
Tip conector 2
female
Greutate
20 g
Culoare
Negru
Versiune HDMI
2.0a
Garanție comercială
24
Producător
LINDY
