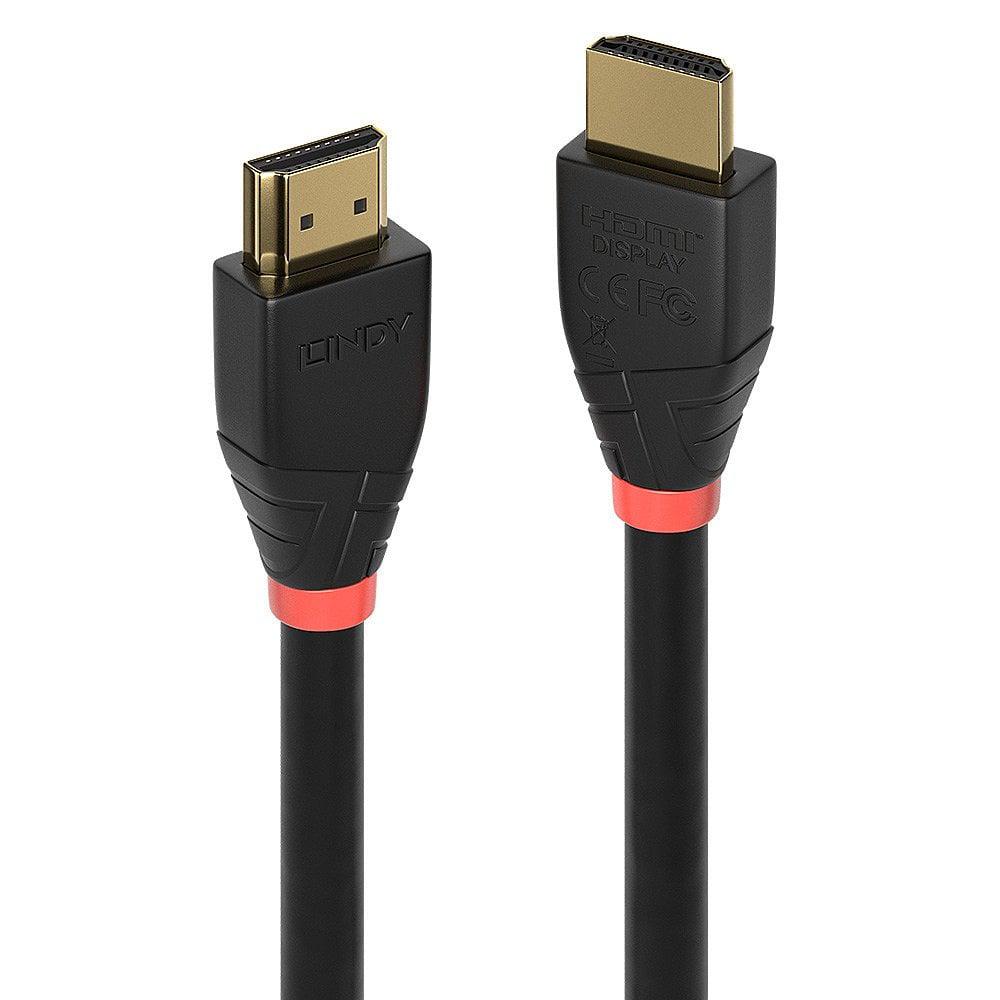

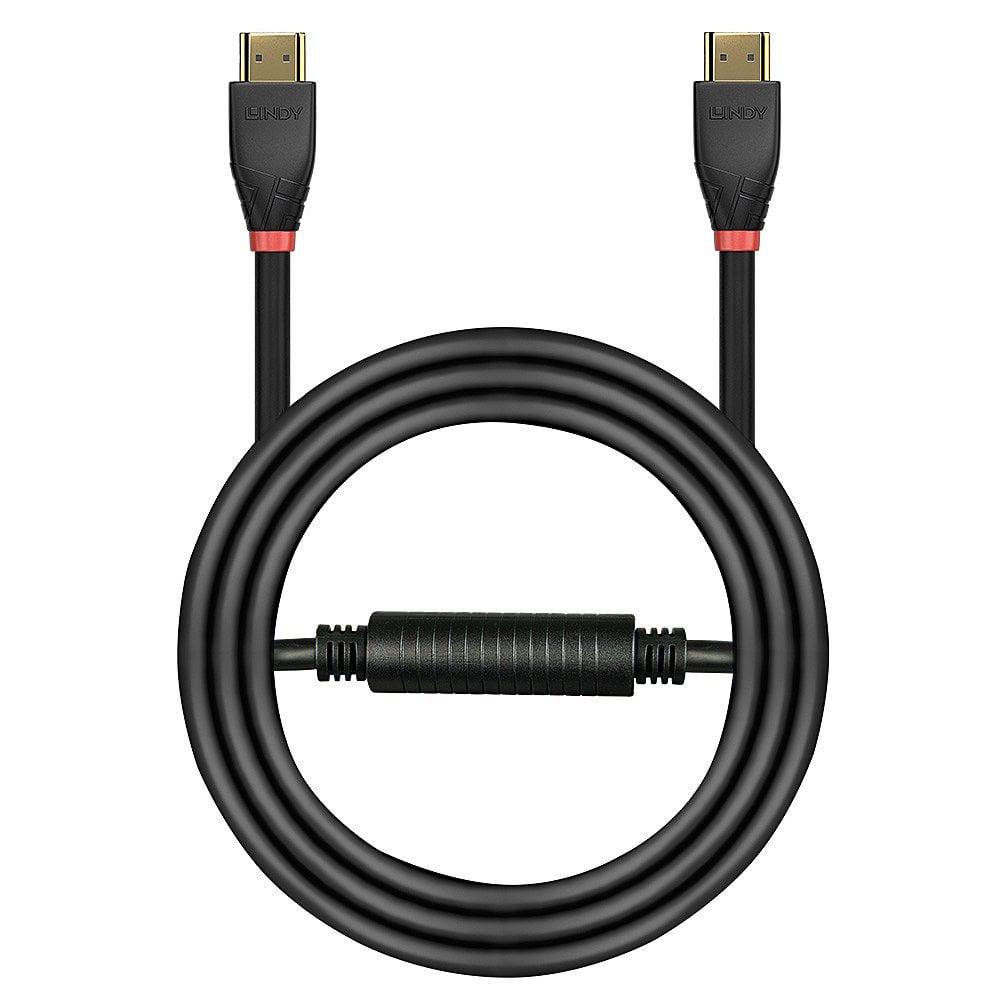

Cablu Lindy LY-41073, Active HDMI 2.0 18G, negru

Cabluri video

Cablu Lindy LY-41073, Active HDMI 2.0 18G, negru

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: LY-41073

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Cablu Lindy LY-41073, Active HDMI 2.0 18G, negru Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu adaptor Lindy USB C to HDMI 8K60, lungime cablu Cablu Lindy, lungime 10m Micro-HDMI 8K60 LSZH, Maximum Resolution: Cablu Lindy, lungime 10m Micro-HDMI 8K60 LSZH, Maximum Resolution:
Alte caracteristici
AWG wire size 28 32 34 — —
Bend radius (min) — 2.88 cm 2.88 cm — —
Cable jacket material Polyvinyl chloride (PVC) — — Low smoke zero halogen (LSZH) Low smoke zero halogen (LSZH)
Cable length 20 m 1 m 2 m 10 m 15 m
Canal Ethernet Da Nu Nu Nu Nu
Chipset — CS5565AN CS5565AN — —
Compliance certificates RoHS CE, Federal Communications Commission (FCC), REACH, RoHS, UL CE, Federal Communications Commission (FCC), REACH, RoHS, UL — —
Conductor material — Tinned copper Tinned copper — —
Conector 1 HDMI USB Type C USB Type C HDMI HDMI
Conector 2 HDMI HDMI HDMI HDMI HDMI
Connector 1 HDMI Type A (Standard) USB Type-C USB Type-C HDMI Type D (Micro) HDMI Type D (Micro)
Connector 1 dimensions (WxDxH) — 39.6 x 12 x 6.5 mm 39.6 x 12 x 6.5 mm — —
Connector 1 form factor Straight Straight Straight — —
Connector 1 gender Male Male Male Male Male
Connector 2 HDMI Type A (Standard) HDMI HDMI HDMI Type D (Micro) HDMI Type D (Micro)
Connector 2 dimensions (WxDxH) — 71 x 21 x 11 mm 71 x 21 x 11 mm — —
Connector 2 form factor Straight Straight Straight — —
Connector 2 gender Male Male Male Male Male
Connector contacts plating Gold Gold Gold — —
Connector housing material — Plastic Plastic Metal Metal
Data transfer rate — 48 Gbit/s 48 Gbit/s — —
HDCP — Yes Yes — —
HDCP version — 2.2 2.2 — —
High Dynamic Range (HDR) supported — — — Yes Yes
Jacket material — Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) Polyvinyl chloride (PVC) — —
Lungime cablu peste 10m 1m - 1.5m 1.6m - 2m 5.1m - 10m 5.1m - 10m
MAXIMUM-RESOLUTION 4096 x 2160 pixels 7680 x 4320 pixels 7680 x 4320 pixels — —
Operating temperature (T-T) — -20 - 40 °C -20 - 40 °C — —
Package type Polybag Polybag Polybag — —
Plug and Play — Yes Yes — —
Quantity per pack — 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s)
Storage temperature (T-T) -10 - 60 °C -40 - 80 °C -40 - 80 °C — —
Supported graphics resolutions — 7860 x 4320, 3840 x 2160 7860 x 4320, 3840 x 2160 — —
Supported video modes — 4320p, 2160p 4320p, 2160p — —
Display
Rată maximă de reîmprospătare 60 Hz 144 Hz 144 Hz 60 Hz 60 Hz
Laptopuri - Conectivitate și porturi 25.09
Ieșire video prin USB-C — Yes Yes — —
Versiune HDMI 2.0 2.1 2.1 — —
Laptopuri - Construcție
Culoare Black Black Black Black Black
Laptopuri - Generale
Garanție comercială 24 24 24 24 24
Producător LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Connectors

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold Flash
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 3um
  • Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85×1.69×0.52in)

Cable Construction

  • Length: 20m (65.62ft)
  • Standard: HDMI 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 8.6mm (0.34in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Foil Mylar, 100% / Aluminum Alloy Braiding, 70%

Specifications

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit
  • Nominal Attenuation: 300KHz~825MHz  5dB, 2.475GHz~4.125GHz   12dB~20dB
  • Minimum Bend Radius: 100mm (3.94in)
  • Operating Temperature: -20°C – 80°C (-4°F – 176°F)
  • Storage Temperature: -10°C – 60°C (14°F – 140°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2 Years
  • Certified: CE, UKCA, FCC, RoHS, REACH & UL
Specificații tehnice 33 caracteristici
Audio Return Channel (ARC)
Yes
AWG wire size
28
Bandwidth
18000 MB/s
Cable diameter
8.6 mm
Cable jacket material
Polyvinyl chloride (PVC)
Cable length
20 m
Cable material
Copper
Cable shielding
Aluminum mylar foil
Canal Ethernet
Da
Certification
CE, FCC, RoHS, REACH & UL
Colour depth
8 bit
Compliance certificates
RoHS
Conector 1
HDMI
Conector 2
HDMI
Connector 1
HDMI Type A (Standard)
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
HDMI Type A (Standard)
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Harmonized System (HS) code
84733080
HDMI Ethernet channel
Yes
Lungime cablu
peste 10m
MAXIMUM-RESOLUTION
4096 x 2160 pixels
Package type
Polybag
Storage temperature (T-T)
-10 - 60 °C
Rată maximă de reîmprospătare
60 Hz
Versiune HDMI
2.0
Culoare
Black
Garanție comercială
24
Producător
LINDY
