The GS1350 Series offers a smart, intuitive web UI experience, specifically for your surveillance applications.
Monitor your cameras and PoE status at a glance and setup your surveillance network with absolute ease.
Management | |
---|---|
PoE | |
LAN port type | |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 5 – 95% |
Storage relative humidity (H-H) | 5 – 95% |
LED indicators | Yes |
AC input frequency | 50 – 60 Hz |
Height | 44 mm |
Cables included | AC |
Power over Ethernet (PoE) | Yes |
Depth | 270 mm |
Harmonized System (HS) code | 85176990 |
Rack mounting | Yes |
VLAN support | Yes |
Web-based management | Yes |
System event log | Yes |
Switch type | Managed |
Port mirroring | Yes |
Firmware upgradeable | Yes |

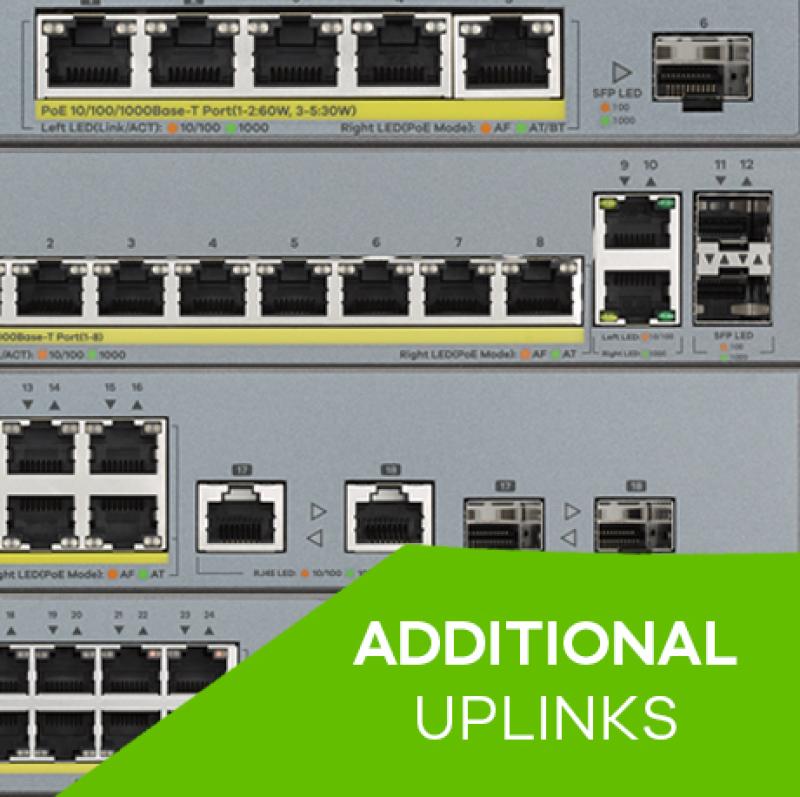

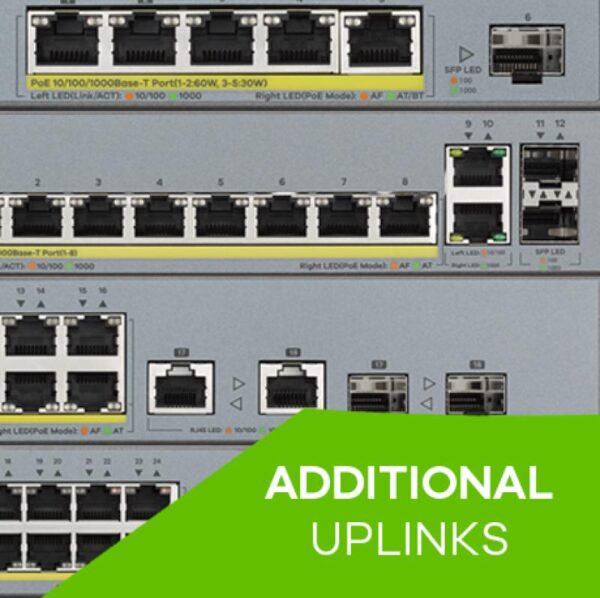

Combo SFP ports quantity | 2 |
Switch layer | L2 |
Flow control support | Yes |
Rate limiting | Yes |
IGMP snooping | Yes |
Operating temperature (T-T) | -20 – 50 °C |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
IGMP proxy | Yes |
Rack mount kit | Yes |
Width | 441 mm |
Installed SFP modules quantity | 0 |
Configuring Location Settings (CLI) | Yes |
Basic switching RJ-45 Ethernet ports type | 24 |
10G support | No |
Broadcast storm control | Yes |
Spanning tree protocol | Yes |
Switching capacity | 52 Gbit/s |
Multicast support | Yes |
MAC address table | 8000 entries |
Loop protection | Yes |
Packet buffer memory | 0.525 MB |
Power over Ethernet (PoE) ports quantity | 24 |
Total Power over Ethernet (PoE) budget | 375 W |
DHCP features | DHCP client, DHCP relay, DHCP snooping |
Virtual LAN features | MAC address-based VLAN, Port-based VLAN |
Number of VLANs | 256 |
Fiber ethernet cabling technology | 1000BASE-X |
Security algorithms | SNMP, SNMPv3, SSH, SSL/TLS |
Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
Forwarding rate | 38.7 Mpps |
Noise level | 40.1 dB |
Mean time between failures (MTBF) | 888495 h |
Power consumption (max) | 448.9 W |
Heat dissipation | 1530.75 BTU/h |
Weight | 3.58 kg |
Porturi RJ 45 | 24-28 |
Viteza transfer | |
Porturi SFP | 1-2 |
Montare in rack | |
Producator | |
Garantie |
