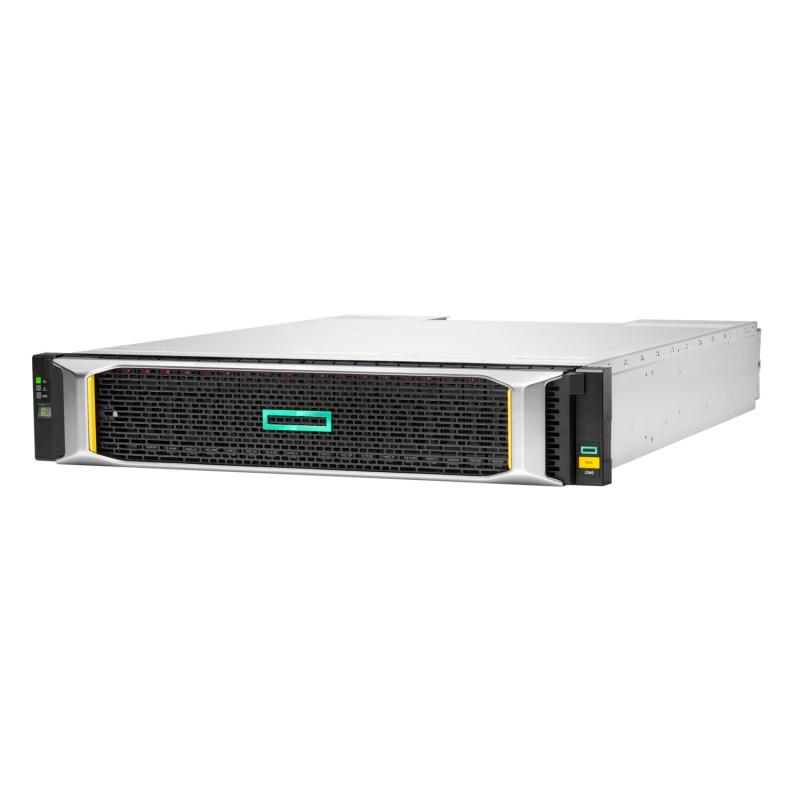

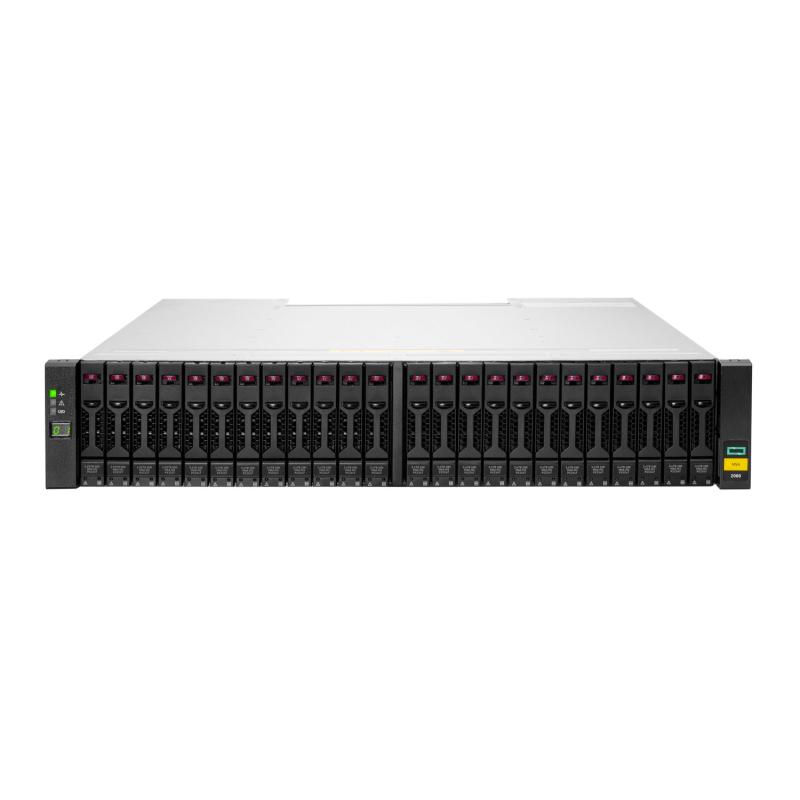

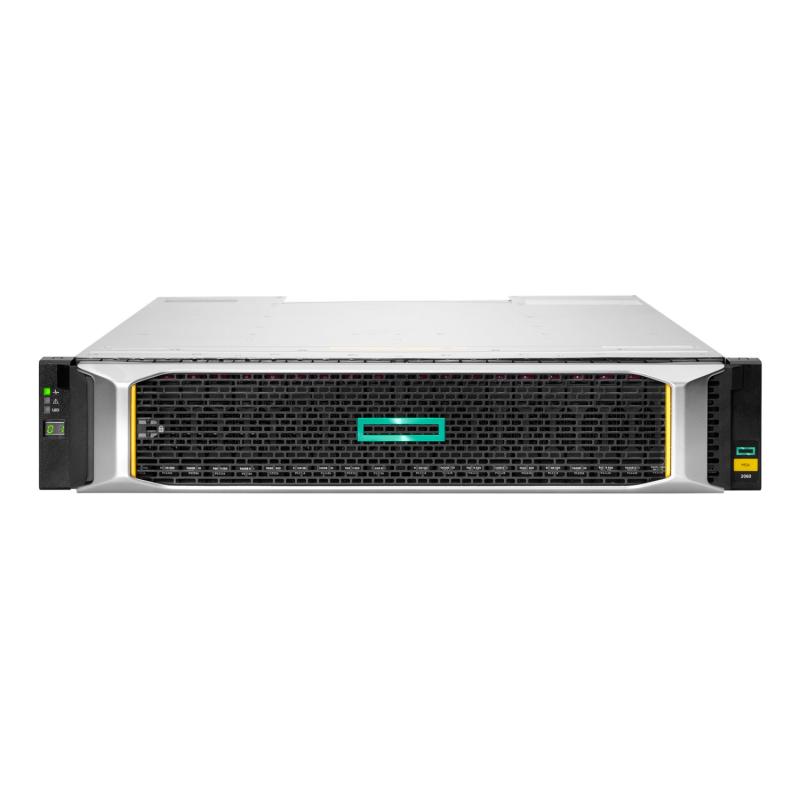

HPE MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle
89.836,99 lei
HPE MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: S2E37B
Livrare și beneficii
Compară cu produse similare
HPE MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle
NAS QNAP 873A 8-Bay, CPU AMD Ryzen V1000 series V1500B
7.434,99 lei 7.623,99 lei
Extensie USB QNAP TR-004 4-Bay, 2.5/3.5 SATA 3Gbps HDD (compatibile
1.272,99 lei 1.452,99 lei
Extensie USB QNAP TR-002 2-Bay, 2.5/3.5 SATA 6Gbps HDD (neincluse),
995,00 lei 1.055,99 lei
NAS QNAP 216G 2-Bay, CPU ARM 2.0GHz Quad core, RAM
1.656,99 lei 1.660,99 lei
Vezi comparația completă
| Caracteristică | HPE MSA 2060 16Gb Fibre Channel SFF 12TB Flash Bundle | NAS QNAP 873A 8-Bay, CPU AMD Ryzen V1000 series V1500B | Extensie USB QNAP TR-004 4-Bay, 2.5/3.5 SATA 3Gbps HDD (compatibile | Extensie USB QNAP TR-002 2-Bay, 2.5/3.5 SATA 6Gbps HDD (neincluse), | NAS QNAP 216G 2-Bay, CPU ARM 2.0GHz Quad core, RAM |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| AC adapter included | — | — | Yes | Yes | — |
| AC adapter input voltage | — | — | 100 - 240 V | 100 - 240 V | — |
| Buzzer | — | Yes | — | — | Yes |
| Cable lock slot | — | Yes | — | — | Yes |
| Cable lock slot type | — | Kensington | — | — | Kensington |
| Cables included | — | LAN (RJ-45) | AC, USB Type-A to USB Type-C | AC, USB Type-C | — |
| Chassis type | — | Tower | — | — | Tower |
| Concurrent connections | — | 2000 | — | — | 200 |
| Cooling type | — | Active | — | — | Active |
| Country of origin | — | — | Taiwan | Taiwan | — |
| Data transfer rate | — | — | 3 Gbit/s | 6 Gbit/s | — |
| DC-in jack | — | — | Yes | Yes | — |
| Depth | — | 279.6 mm | 219 mm | 225 mm | 225 mm |
| Device class | — | Small & Medium Business | — | — | Large Enterprise Business |
| ECC | — | Yes | — | — | No |
| Ethernet LAN (RJ-45) ports | — | 2 | — | — | 2 |
| Ethernet LAN data rates | — | 100,1000,2500 Mbit/s | — | — | 10,100,1000,2500 Mbit/s |
| External power adapter | — | — | Yes | Yes | — |
| Fan diameter | — | 12 cm | 12 cm | 7 cm | 7 cm |
| Flash memory | — | 5000 MB | — | — | 4000 MB |
| Format | — | Tower | Tower | Tower | Tower |
| Frecventa procesor | — | 2.2 GHz | N/A | N/A | 2 GHz |
| Harmonized System (HS) code | — | 84714100 | 84733080 | 84733080 | — |
| HDD inclus | — | — | No | No | — |
| HDMI | — | Nu | Nu | Nu | Nu |
| Height | — | 188.2 mm | 168.5 mm | 168.5 mm | 168.5 mm |
| Hot-swap | — | — | Yes | Yes | — |
| Hot-swap drive bays | — | Yes | — | — | Yes |
| Installed storage drive type | — | No | — | — | HDD |
| Jumbo frames support | — | Yes | — | — | Yes |
| Key lock | — | — | Yes | Yes | — |
| LED indicators | — | HDD, Power, SSD, Status, USB | HDD, SSD, Status, USB | HDD, SSD, Status, USB | HDD, LAN, Status, USB |
| Linux operating systems supported | — | Yes | Yes | Yes | — |
| Manual | — | — | Yes | Yes | — |
| Maximum RAM supported | — | 64 GB | — | — | 4 GB |
| Media-Player | — | — | No | No | — |
| Media storage inclus: | — | Nu | Nu | Nu | Nu |
| Media storage suportat: | — | 8 | 4 | 2 | 2 |
| Memorie RAM instalata: | — | 8GB | N/A | N/A | 4GB |
| Numar porturi RJ-45 | — | 2 | N/A | N/A | 2 |
| Number of 3.5 bays | — | — | 4 | 2 | — |
| Number of fans | — | 3 fan(s) | 1 fan(s) | 1 fan(s) | 1 fan(s) |
| Number of keys included | — | — | 2 pc(s) | 2 pc(s) | — |
| Number of storage drives supported | — | 8 | 4 | 2 | 2 |
| On/off switch | — | Yes | Yes | Yes | Yes |
| Operating relative humidity (H-H) | — | 5 - 95% | 5 - 95% | 5 - 95% | 5 - 95% |
| Operating temperature (T-T) | — | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C |
| Package depth | — | 390 mm | 520 mm | 205 mm | 205 mm |
| Package height | — | 417 mm | 320 mm | 240 mm | 240 mm |
| Package type | — | Box | Box | Box | Box |
| Package weight | — | 8.41 kg | 3.18 kg | 20.5 kg | 2.92 kg |
| Package width | — | 295 mm | 307 mm | 275 mm | 275 mm |
| Power consumption (sleep) | — | 25.668 W | — | — | 4.973 W |
| Power consumption (typical) | — | 54.067 W | — | — | 13.907 W |
| Power source type | — | — | DC | DC | — |
| Power supply location | — | Built-in | — | — | Built-in |
| Power supply unit (PSU) capacity | — | 250 W | — | — | 65 W |
| Product type | — | — | HDD/SSD enclosure | HDD/SSD enclosure | — |
| Quick installation guide | — | — | Yes | Yes | — |
| RAID levels | — | 0, 1, 5, 6, 10, 50, 60, JBOD | 0, 1, 5, 10, JBOD | 0, 1, JBOD | — |
| Reset button | — | Yes | — | — | Yes |
| S.M.A.R.T. support | — | Yes | Yes | Yes | — |
| Screws included | — | — | Yes | Yes | — |
| Storage-Format | — | NAS | — | — | NAS |
| Storage-Interface | — | RJ45 | USB3.0 | USB3.0 | RJ45+USB |
| Storage-Type | — | HDD | — | — | HDD |
| Storage drive interface | — | Serial ATA III | — | — | Serial ATA |
| Storage drives installed | — | No | — | — | Yes |
| Storage drive size | — | — | 2.5/3.5 | 2.5/3.5 | 2.5/3.5 |
| Storage drive sizes supported | — | 2.5,3.5,M.2 | — | — | 2.5,3.5 |
| Storage temperature (T-T) | — | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C |
| Supported file systems | — | FAT32, HFS+, NTFS, exFAT, ext3, ext4 | NTFS, ext3, HFS+, exFAT, ext4 | HFS+, NTFS, exFAT, ext3, ext4 | — |
| Supported HDDs | — | 8 | 4 | 2 | 12 |
| Supported storage drive interfaces | — | M.2, Serial ATA II, Serial ATA III | Serial ATA II, Serial ATA III | Serial ATA II, Serial ATA III | Serial ATA |
| Supported storage drive types | — | HDD & SSD | — | — | HDD & SSD |
| Tip Media storage : | — | HDD si SSD | HDD si SSD | HDD si SSD | HDD si SSD |
| Tip Memorie | — | DDR4 | N/A | N/A | N/A |
| USB-Port | — | Yes | — | — | Yes |
| USB connectivity | — | — | Yes | Yes | — |
| USB connector gender | — | — | Female | Female | — |
| USB connector type | — | — | USB Type-C | USB Type-C | — |
| USB copy function | — | Yes | — | — | Yes |
| USB ports quantity | — | — | 1 | 1 | — |
| USB version | — | — | 3.2 Gen 1 (3.1 Gen 1) | 3.2 Gen 2 (3.1 Gen 2) | — |
| Wake-on-LAN ready | — | Yes | — | — | Yes |
| Width | — | 329.3 mm | 160 mm | 102 mm | 102 mm |
| Windows operating systems supported | — | Windows 10, Windows 7, Windows 8 | Windows 10, Windows 7, Windows 8, Windows 8.1 | Windows 10, Windows 7, Windows 8, Windows 8.1 | — |
| Laptopuri - Conectivitate | |||||
| Rețea prin cablu (LAN) | — | Yes | — | — | Yes |
| Laptopuri - Construcție | |||||
| Culoare | — | Black | Black | Black | White |
| Greutate | — | 6.76 kg | 3.18 kg | 13.7 kg | 1.45 kg |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 24 | 24 | 24 |
| Producător | HPE | QNAP | QNAP | QNAP | QNAP |
| Laptopuri - Memorie | |||||
| Capacitate memorie RAM | — | 8 GB | — | — | 4 GB |
| Laptopuri - Porturi | |||||
| Număr USB-A 3.2 Gen 1 | — | 1 | — | — | 1 |
| Laptopuri - Procesor | |||||
| Familie procesor | — | Ryzen Embedded | — | — | Cortex-A |
| Frecvență procesor | — | 2.2 GHz | — | — | 2 GHz |
| Model procesor | — | V1500B | — | — | Cortex-A55 |
| Număr nuclee procesor | — | 4 | — | — | 4 |
| Producător procesor | — | AMD | — | — | ARM |
Analiză inteligentă a produsului
Descriere oficială
Lifecycle
- Obsolete Date 31-10-2026
Specifications
- Weight 11 lb
- Storage controller 2 per array, 4-ports each (8-ports total)
- Form factor 2U rack mount
- Capacity Up to 1,762.56 TB with all SFF expansion / 2,263.68 TB with combined SFF & LFF expansion (with maximum expansion)
- Warranty Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and options for the HPE MSA 2060 carry their own warranty.
- Energy efficiency Energy Star Compliant

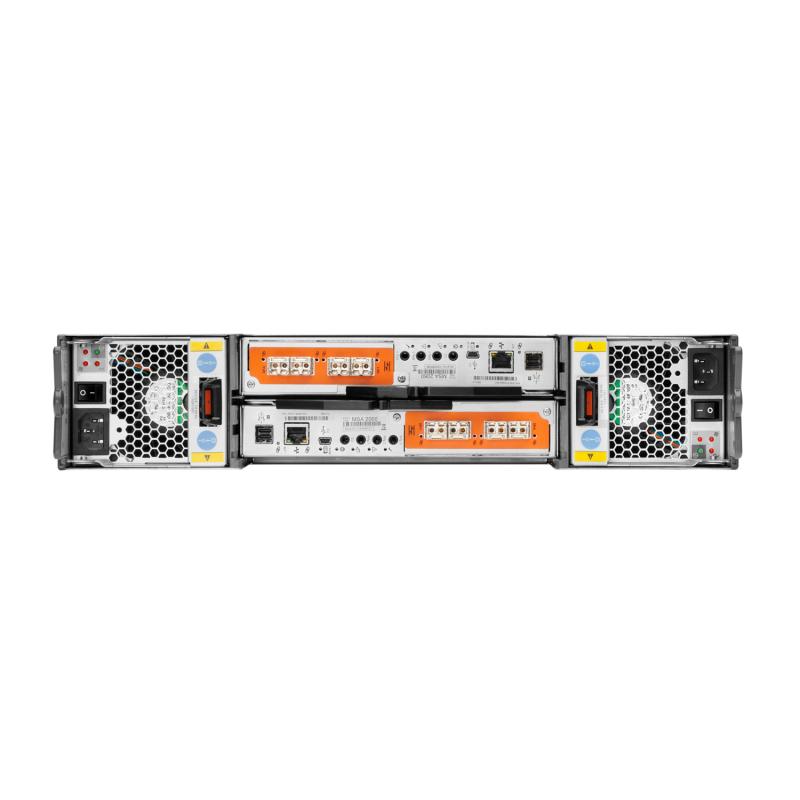

- Host connectivity 16 Gb Fibre Channel, 10/25 GbE iSCSI, 10GBase-T iSCSI, or 12 Gb SAS; depending on model
- Host interface 8-ports 16 Gb FC, 4 ports per controller
- Clustering support Yes
- Systems Insight Manager support No
- Storage mirroring support No
- Product dimensions (metric) 8.9 x 44.5 x 50.8 cm
- Product dimensions (imperial) 3.5 x 17.5 x 20.0 in
- SAN backup support Yes
- Storage expansion options 24 drive bay 2060 SFF drive enclosure and/or 12 drive bay 2060 LFF drive enclosure (add up to 9)
- Drive description Bundled with 12x 960 GB SAS RI SFF SSD drives; Add up to 12x additional SFF HDD and/or SSD drives per array model
- Weight 5 kg
- Compatible operating systems Windows Server 2022 Windows Server 2019 Windows Server 2016 VMWare vSphere 6.7 Red Hat Linux 8 SuSE SLES 15
Quickspecs
Overview
Is your company looking for easy-to-use, affordable, and high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads. [1]
What’s new
- MSA Gen6 HDD and SSD media options supporting an increase in MSA 2060 raw capacity of up to a maximum of 7.37 PB.
- All MSA Gen6 and Gen7 storage array models are now fully certified for use with HPE Morpheus VM Essentials Software.
- Customer configurable HPE MSA 2060 storage array models and storage media options available through the HPE Smart Choice program.
- HPE Smart Choice MSA Gen6 storage array bundles with up to 240 TB of raw storage capacity included, supporting 16 Gb Fibre Channel, 10 GbE iSCSI, and 12 Gb SAS host connectivity.
Features
The HPE MSA 2060 Storage is easy to install, easy to use, and easy to maintain, even for an IT generalist. Administrators will find the MSA 2060’s new Storage Management Utility intuitive and easy to navigate.
Accelerate Applications Affordably
The HPE MSA 2060 Storage is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. [1]
The HPE MSA 2060 Storage allows users to define and deploy hybrid or flash storage configurations from day one and grow as their needs change.
HPE MSA’s "Set It and Forget It" Data Services Do Not Require a Dedicated Storage Administrator
HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, ensuring the hottest data will be moved to the fastest media automatically and in real time.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
The HPE MSA 2060 Storage delivers virtualized snapshot technology, making data protection and instant recovery a snap.
Remote replication via Fibre Channel (FC) or iSCSI facilitates an affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Flexible, Modular Architecture That Facilitates Growth into the Future
The HPE MSA 2060 Storage solution supports a mixture of 3.5-inch LFF and 2.5-inch SFF expansion enclosures for a maximum of nine enclosures (10 total including the array).
Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs, or Midline SAS HDDs.
