Compară cu produse similare

Vezi comparația completă
Caracteristică TPL OMADA GIGABIT VPN ROUTER G36 "Omada Gigabit Rackmount/Desktop VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports FEATURE: Integration with Omada SDN Controller, Support 100 IPsec VPN Tunnels, 50 PPTP/L2TP VPN Tunnels, 50 OpenVPN Tunnels, 150000 Concurrent Sessions, Load "Omada VPN Router with 10G Ports PORT: 1× 10G SFP+ WAN Port, 1× 10G SFP+ WAN/LAN Port,1× Gigabit SFP WAN/LAN Port, 8× Gigabit RJ45 WAN/LAN Ports, 2× USB3.0 port FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 1500000 Concurrent Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+ PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 2 Nano SIM slot (4G+ Cat6) SPEC: 802.3 at/af, 4 Ports with 45W PoE Power, Desktop & Wall-mount Steel Case SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 "Omada 4G+ Cat6 AX3000 Gigabit VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 1 Nano SIM slot (4G+ Cat6) SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) Wi-Fi Speed, 300 Mbps Download LTE Speed FEATURE: Integration with Omada SDN
Culoare produs Grey Black Black Black Black
Intrare alimentare DC Yes — Yes — —
3G/4G USB modem compatibility No Yes No Yes No
4G bands supported — — — 800,850,900,1500,1700,1800,1900,2000,2300,2400,2500,2600,3400,3500,3600,3700 MHz 800,850,900,1800,2100,2300,2500,2600 MHz
Access Control List (ACL) Yes — Yes — Yes
AC input frequency — 50/60 Hz 50 - 60 Hz — —
AC input voltage — 100 - 240 V 100 - 240 V — —
Additional-Slot Slot-LAN/WAN Slot-LAN/WAN Slot-LAN/WAN Slot-LAN/WAN Slot-LAN/WAN
ADSL No No No No No
Antenna design — — — External External
Antennas quantity — — — 5 5
ARP attack prevention Yes Yes — — —
Cabling technology 10/100/1000Base-T(X) — 10/100/1000Base-T(X) — —
Certification CE, FCC, RoHS — CE, FCC, RoHS — —
Combo SFP ports quantity 1 — 2 — —
DHCP client Yes — Yes Yes —
DHCP server Yes Yes Yes Yes Yes
DSL WAN No No No Yes No
Dynamic DNS (DDNS) — — — Yes Yes
Ethernet LAN interface type — — — Gigabit Ethernet Gigabit Ethernet
ICMP attack prevention Yes Yes — — —
LAN port type Gigabit Gigabit Gigabit Gigabit Gigabit
LED indicators Yes — Yes LTE, Power, Status, System, WLAN LAN, LTE, Status, System, WAN
MU-MIMO technology — — — Yes Yes
Network address translation (NAT) Yes — — Yes Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.1Q — —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Port forwarding Yes — Yes Yes —
Power consumption (max) 7.5 W 7.5 W — — —
Redundant PSU No No No No No
Reset button Yes Yes Yes Yes Yes
Security algorithms 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SHA-1, SHA-256, SHA-384, SHA-512 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 — IPSec, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3-Personal —
SFP WAN Yes Yes Yes — —
SIM card slot No No No Yes Yes
Static route Yes Yes Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Universal Plug and Play (UPnP) Yes — Yes — —
URL filtering Yes Yes Yes Yes Yes
VPN Passthrough — — — Yes Yes
WAN-Port-Type Gigabit Gigabit Gigabit Gigabit Gigabit
Web-based management — Yes — Yes —
Încărcător inclus Yes — Yes — —
Montare in rack Nu Da Nu Nu Nu
PoE Nu Nu Nu Da Nu
Porturi LAN 3 4 8 4 4
Porturi RJ 45 5 Peste 5 Peste 5 Peste 5 Peste 5
Port USB 1 1 2 Nu Nu
Viteză transfer 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps N/A
Număr porturi RJ-45 5 5 8 5 5
Număr porturi USB 1 1 2 — —
Număr tuneluri VPN 100 50 — 50 —
Porturi WAN 3 1 1 1 1
Suport VLAN Yes Yes Yes — —
Tip sursă alimentare DC — — DC, PoE AC
Viteză maximă Wi-Fi — — — 300 Mbit/s 2402 Mbit/s
WAN Ethernet Yes Yes Yes Yes Yes
Adâncime 131 mm 140 mm 220 mm 131 mm 131 mm
Lățime 226 mm 294 mm 440 mm 226 mm 226 mm
Înălțime 35 mm 44 mm 44 mm 35 mm 35 mm
Benzi Wi-Fi — — — Dual-band (2.4 GHz / 5 GHz) Dual-band (2.4 GHz / 5 GHz)
Rețea prin cablu (LAN) — — — Yes Yes
Viteză rețea LAN 10,100,1000 Mbit/s 10,100,1000 Mbit/s 10,100,1000 Mbit/s 10,100,1000 Mbit/s —
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Tip memorie RAM DDR4 DDR4 DDR4 DDR4 DDR4
Tip produs — — — Desktop/pole router Desktop/pole router
Segment Consumer Consumer Consumer Consumer Consumer
Generație rețea mobilă — — — 4G 4G
Tip SIM — — — NanoSIM NanoSIM
Tip rețea Ethernet Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet — —
Memorie flash 128 MB 128 MB 256 MB 256 MB 128 MB

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

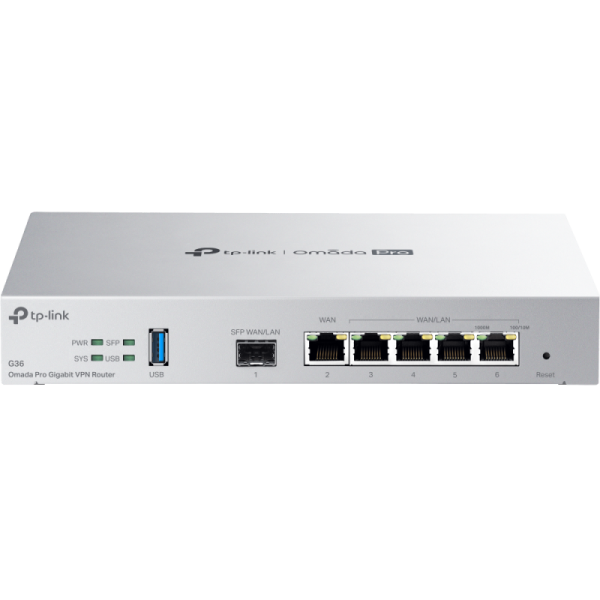

TPL OMADA GIGABIT VPN ROUTER G36

Specificații tehnice 72 caracteristici
Culoare produs
Grey
Intrare alimentare DC
Yes
3G/4G USB modem compatibility
No
Access Control List (ACL)
Yes
Additional-Slot
Slot-LAN/WAN
ADSL
No
ARP attack prevention
Yes
Cabling technology
10/100/1000Base-T(X)
Certification
CE, FCC, RoHS
Combo SFP ports quantity
1
Concurrent connections
150000
DHCP client
Yes
DHCP server
Yes
DSL WAN
No
Guest access
Yes
ICMP attack prevention
Yes
IP address filtering
Yes
LAN port type
Gigabit
LED indicators
Yes
Network address translation (NAT)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Output current
1 A
Policy-based routing
Yes
Port forwarding
Yes
Power consumption (max)
7.5 W
Power consumption (typical)
4.5 W
Quick start guide
Yes
Rackable
No
Redundant PSU
No
Reset button
Yes
Routing protocols
OSPF, RIP
Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SHA-1, SHA-256, SHA-384, SHA-512
SFP WAN
Yes
SIM card slot
No
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
System event log
Yes
Traffic control
Yes
Universal Plug and Play (UPnP)
Yes
URL filtering
Yes
WAN-Port-Type
Gigabit
WAN/Ethernet LAN ports quantity
4
WAN ports quantity
1
Încărcător inclus
Yes
Montare in rack
Nu
PoE
Nu
Porturi LAN
3
Porturi RJ 45
5
Port USB
1
Viteză transfer
10/100/1000 Mbps
Versiune USB
3.2 Gen 1 (3.1 Gen 1)
Număr porturi RJ-45
5
Număr porturi USB
1
Număr tuneluri VPN
100
Porturi WAN
3
Suport QoS
Yes
Suport VLAN
Yes
Tensiune de ieșire
12 V
Tip sursă alimentare
DC
WAN Ethernet
Yes
Adâncime
131 mm
Lățime
226 mm
Înălțime
35 mm
Viteză rețea LAN
10,100,1000 Mbit/s
Producător
TP-LINK
Tip memorie RAM
DDR4
Segment
Consumer
Tip rețea Ethernet
Gigabit Ethernet
Memorie flash
128 MB
