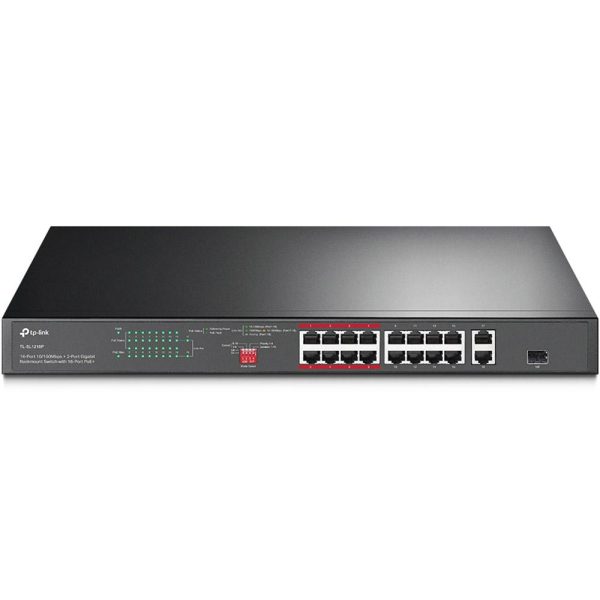

Switch TP-Link TL-SL1218P, 16 port, 10/100/1000 Mbps

Switchuri

Switch TP-Link TL-SL1218P, 16 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SL1218P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător De confirmat Producător: De confirmat

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TP-Link TL-SL1218P, 16 port, 10/100/1000 Mbps Switch TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 2.5G, 8 porturi Switch TP-LINK LiteWave LS106LP, Fast Ethernet, 6 porturi, PoE Switch TP-LINK JetStream TL-SG3428X-M2, 2.5G, 24 porturi Switch TP-LINK Omada SG2210XMP-M2, 8 porturi, 10G+
Culoare produs Black Black Black Black Black
2.5G Ethernet (copper) ports quantity — 8 — 24 —
Access Control List (ACL) — Yes — Yes Yes
AC input frequency 50 - 60 Hz 50/60 Hz 50 Hz 50/60 Hz —
AC input voltage 100 - 240 V 100 - 240 V 220 V 100 - 240 V —
ARP inspection — Yes — Yes Yes
Authentication — MAC-based authentication, Port-based authentication — Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication MAC-based authentication, Port-based authentication
Auto-negotiation Yes — Yes — —
Auto MDI/MDI-X Yes — Yes — —
Basic switching RJ-45 Ethernet ports type 18, Gigabit Ethernet (10/100/1000) 2.5G Ethernet (100/1000/2500), 8 6, Fast Ethernet (10/100) 2.5G Ethernet (100/1000/2500), 24 2.5G Ethernet (100/1000/2500), 8
BPDU filtering/protection — Yes — Yes —
Broadcast storm control — Yes — Yes Yes
Cables included AC AC — LAN (RJ-45) —
Certification CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS —
Cloud-managed — Yes — Yes Yes
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — Yes — Yes Yes
Console port — RJ-45/micro-USB — RJ-45/micro-USB —
DHCP features — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Fanless — Yes Yes — —
Flow control support — Yes Yes Yes Yes
GARP VLAN Registration Protocol (GVRP) — Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — — —
Head-of-line (HOL) blocking — Yes — Yes —
Heat dissipation 589.25 BTU/h 51.18 BTU/h 162.38 BTU/h 154.38 BTU/h 614.58 BTU/h
IGMP snooping — Yes — Yes Yes
IP-MAC-Port binding — Yes — Yes —
Jumbo frames 10000 9000 — 9000 9000
Jumbo frames support Yes Yes Yes Yes Yes
LAN port type — FastEthernet Gigabit Gigabit FastEthernet
LED indicators Yes Yes Yes Yes Yes
Link aggregation — Yes — Yes Yes
Loop protection — Yes — Yes Yes
MAC address table 8000 entries 16000 entries 2000 entries 32000 entries 16000 entries
Management protocols — SNMPv1/v2c/v3, SNTP — SNMP v1/v2c/v3, SNTP —
MIB support — RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 — Yes Y
Multicast Listener Discovery (MLD) snooping — Y — Y —
Multicast support — Yes — Yes Yes
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x IEEE 802.1D, IEEE 802.1s, IEEE 802.1w IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Number of static routes — 48 — 48 —
Number of VLANs — 4000 — — 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 50 °C 0 - 50 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth 528 mm 250 mm — 250 mm —
Package height 80 mm 80 mm — 80 mm —
Package weight 28 kg 2.84 kg — 3 kg —
Package width 250 mm 528 mm — 528 mm —
Packet buffer memory 4.1 MB 12 MB — 16 MB 9 MB
Port mirroring — Yes — Yes Yes
Power connector — AC-in jack — AC-in jack AC/DC
Power consumption (max) 172.8 W — 47.76 W 45.1 W 180.1 W
Power over Ethernet (PoE) power per port 30 W — 15.4 W — —
Power over Ethernet plus (PoE+) ports quantity 16 — — — 8
Quick start guide Yes Yes — Yes Yes
Rackable — — — Yes No
Rate limiting — Yes — Yes Yes
Redundant PSU — — — Yes No
Security algorithms — HTTPS, SSH, SSH-2, SSL/TLS — — SNMP, SNMPv2, SNMPv3
SFP module slots quantity — 2 — 4 2
Spanning tree protocol — Yes — Yes Yes
SSH/SSL support — Yes — Yes —
Static route — Yes — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes —
Switch layer — L2 — L2 L2/L2+
Switch type Unmanaged Managed Unmanaged Managed Managed
System event log — Yes — Yes Yes
Traffic classification Yes Yes — — —
Virtual LAN features — MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Protocol-based VLAN, Tagged VLAN, Voice VLAN
Wall mountable — — Yes — Yes
Web-based management — Yes — Yes Yes
Management nu nu nu Da Da
Montare in rack Nu Nu Nu Da Da
PoE Da Nu Da Nu Nu
Porturi LAN — — — 24 8
Porturi RJ 45 11-18 5-10 5-10 24-28 5-10
Porturi SFP 1-2 1-2 N/A 3-4 1-2
Viteză transfer Gigabit 2.5G Fast Ethernet 2.5G 10G+
Sursă inclusă Yes Yes Yes Yes Yes
Sursă de alimentare AC AC DC/PoE AC AC
Alimentare PoE Yes — Yes No Yes
Buget total PoE 150 W — — — 160 W
Capacitate switching 7.2 Gbit/s 80 Gbit/s 12 Gbit/s 200 Gbit/s 80 Gbit/s
Metode autentificare — AAA, TACACS+ — AAA, RADIUS, TACACS+ RADIUS
Montare rack Yes Yes — Yes Yes
Rată forwarding 5.36 Mpps 59.52 Mpps 0.8928 Mpps 14.88 Mpps 59.52 Mpps
Stivuibil — — — No No
Suport 10G No Yes No Yes No
Suport QoS — Yes Yes Yes Yes
Suport VLAN — Yes — Yes Yes
Adâncime 180 mm 180 mm 101 mm 180 mm 131 mm
Lățime 440 mm 294 mm 158 mm 440 mm 226 mm
Înălțime 44 mm 44 mm 25 mm 44 mm 35 mm
Viteză rețea LAN — 100,1000,2500 Mbit/s — — 10,100,1000,2500 Mbit/s
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Construcție laptop 1U 1U — 1U Desktop/Wall-Mounting
Număr ventilatoare 2 fan(s) 2 fan(s) 0 fan(s) 1 fan(s) —
Tipuri cabluri suportate Cat3, Cat4, Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e — —
Tip ambalare — Box Box — —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot HARDWARE: 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Extend Mode for 250 m PoE Transmitting, Priority Mode for Port 1-8, Isolation Mode, Plug and Play”

Specificații tehnice 55 caracteristici
Culoare produs
Black
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
18, Gigabit Ethernet (10/100/1000)
Cables included
AC
Certification
CE, FCC, RoHS
Combo SFP ports quantity
1
Fast Ethernet (copper) ports quantity
16
Gigabit Ethernet (copper) ports quantity
2
Harmonized System (HS) code
85176990
Heat dissipation
589.25 BTU/h
Jumbo frames
10000
Jumbo frames support
Yes
LED indicators
Yes
MAC address table
8000 entries
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Package depth
528 mm
Package height
80 mm
Package weight
28 kg
Package width
250 mm
Packet buffer memory
4.1 MB
Power consumption (max)
172.8 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Quick start guide
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switch type
Unmanaged
Traffic classification
Yes
Management
nu
Montare in rack
Nu
PoE
Da
Porturi RJ 45
11-18
Porturi SFP
1-2
Viteză transfer
Gigabit
Sursă inclusă
Yes
Sursă de alimentare
AC
Alimentare PoE
Yes
Buget total PoE
150 W
Capacitate switching
7.2 Gbit/s
Montare rack
Yes
Rată forwarding
5.36 Mpps
Suport 10G
No
Adâncime
180 mm
Lățime
440 mm
Material carcasă
Metal
Înălțime
44 mm
Producător
TP-LINK
Construcție laptop
1U
Număr ventilatoare
2 fan(s)
Tipuri cabluri suportate
Cat3, Cat4, Cat5, Cat5e, Cat6
