Lindy 50m Cat.6 HDMI & IR Extender with Loop Out

Extendere audiovideo

Lindy 50m Cat.6 HDMI & IR Extender with Loop Out

(0) În stoc
Vândut de RITC.ro Cod produs: LY-38208

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Lindy 50m Cat.6 HDMI & IR Extender with Loop Out HDMI Extender Lindy, 50m, Cat 6, HDMI 4K60, interfata HDMI Lindy extractor Audio HDMI 4K60, interfata HDMI 2.0, latime de Extender Lindy fibra optica, distanta maxima 300m, latime de banda Lindy 300m Cat.6 VGA, USB & PS/2 KVM Extender, Maximum
Alte caracteristici
Bandwidth 10.2 Gbit/s 18 Gbit/s — 10.2 Gbit/s —
Certification CE, FCC, RoHS, REACH — CE. FCC, REACH — —
Compliance certificates CE, REACH, RoHS — RoHS — —
Depth 6.9 mm — 104.4 mm — —
Distanta maxima 70 m 50 m 100 m 300 m 300 m
Extended display identification data (EDID) Yes Yes — — —
Garantie 24 24 24 24 24
Harmonized System (HS) code — — 85176990 — 85176200
HDCP Yes Yes — — —
HDCP version 1.4 2.2 — — —
HDMI in 1 — 1 — —
Height 16.5 mm — 28.3 mm — —
Interfata HDMI Da Da Da Da Nu
Manual Yes — — Yes Yes
MAXIMUM-DISTANCE — — — 150M 70M
MAXIMUM-RESOLUTION 3840 x 2160 pixels 3840 x 2160 pixels 3840 x 2160 pixels 3840 x 2160 pixels 1920 x 1080 pixels
Maximum transfer distance 70 m — — 300 m —
Numar porturi RJ-45 1 1 1 N/A 1
Numar porturi USB 1 1 1 None 2
Number of HDMI outputs 2 — 1 — —
Operating relative humidity (H-H) 20 - 90% — 5 - 90% — —
Operating voltage 12 V — 5 V — —
Package depth 70 mm — 57 mm — —
Package height 113 mm — 151 mm — —
Package width 200 mm — 205 mm — —
Product colour Black — Black Black Black
Rezolutie maxima 3840 x 2160 pixeli 3840 x 2160 pixeli 3840 x 2160 pixeli 3840 x 2160 pixeli 1920 x 1200 pixeli
SUPPORTED-BANDWIDTH 10.2 Gbit/s 18 Gbit/s 18 Gbit/s 5GBPS 350 MHz
Supported graphics resolutions 1920 x 1080 (HD 1080), 3840 x 2160 — — 3840 x 2160, 1920 x 1080 (HD 1080) —
Weight 130 g — 175 g — —
Width 79.5 mm — 64 mm — —
Producator LINDY LINDY LINDY LINDY LINDY

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

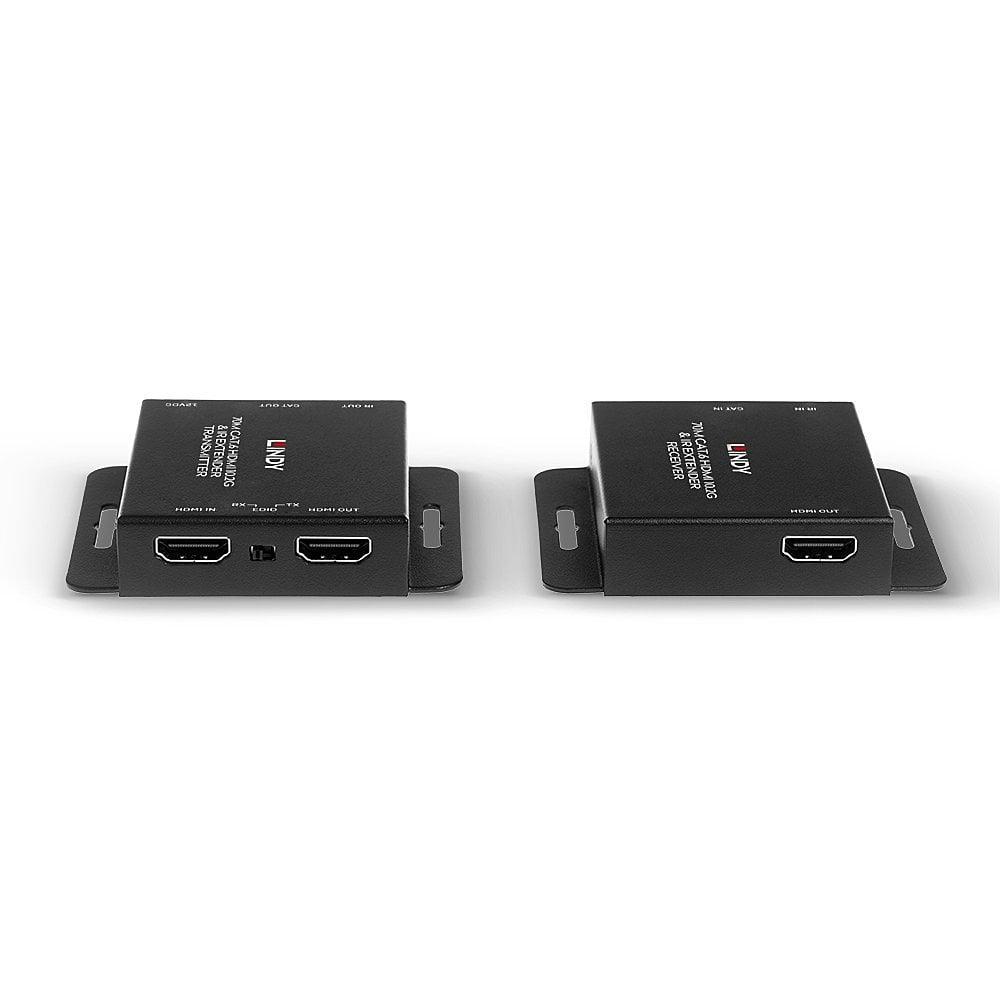

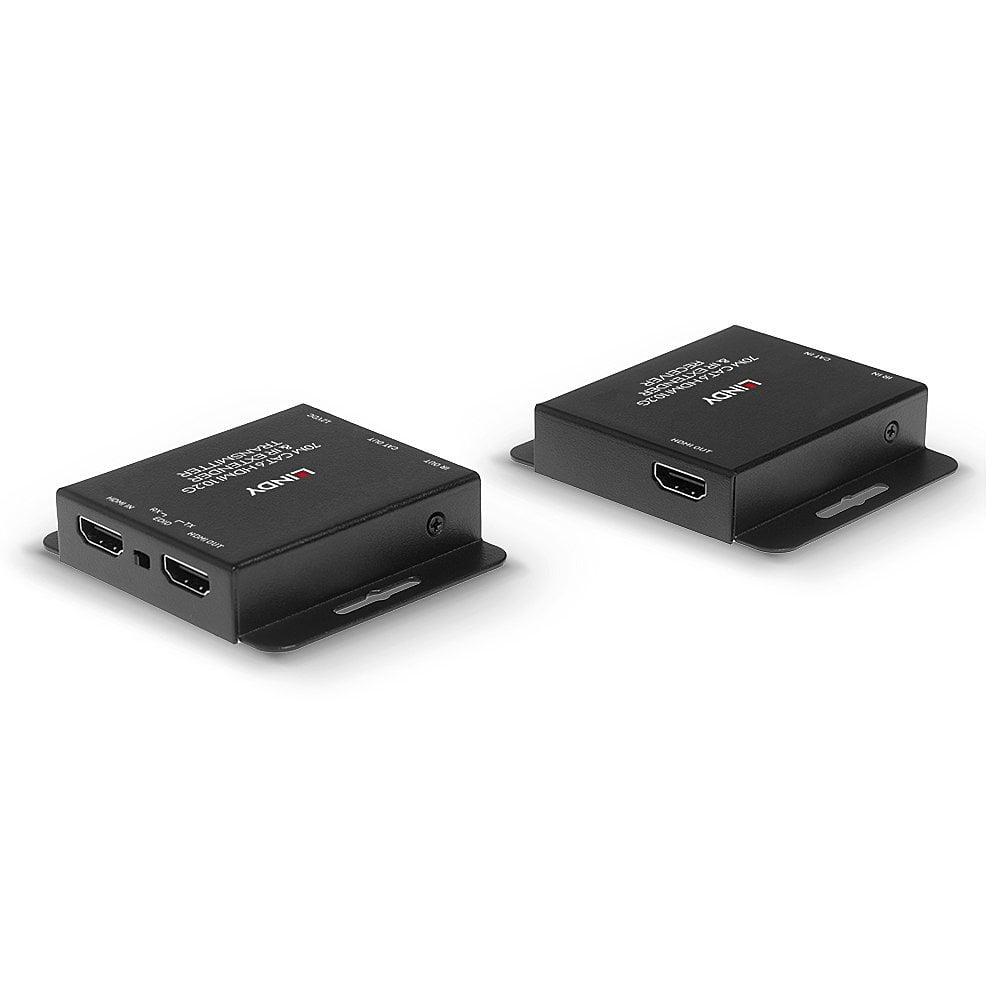

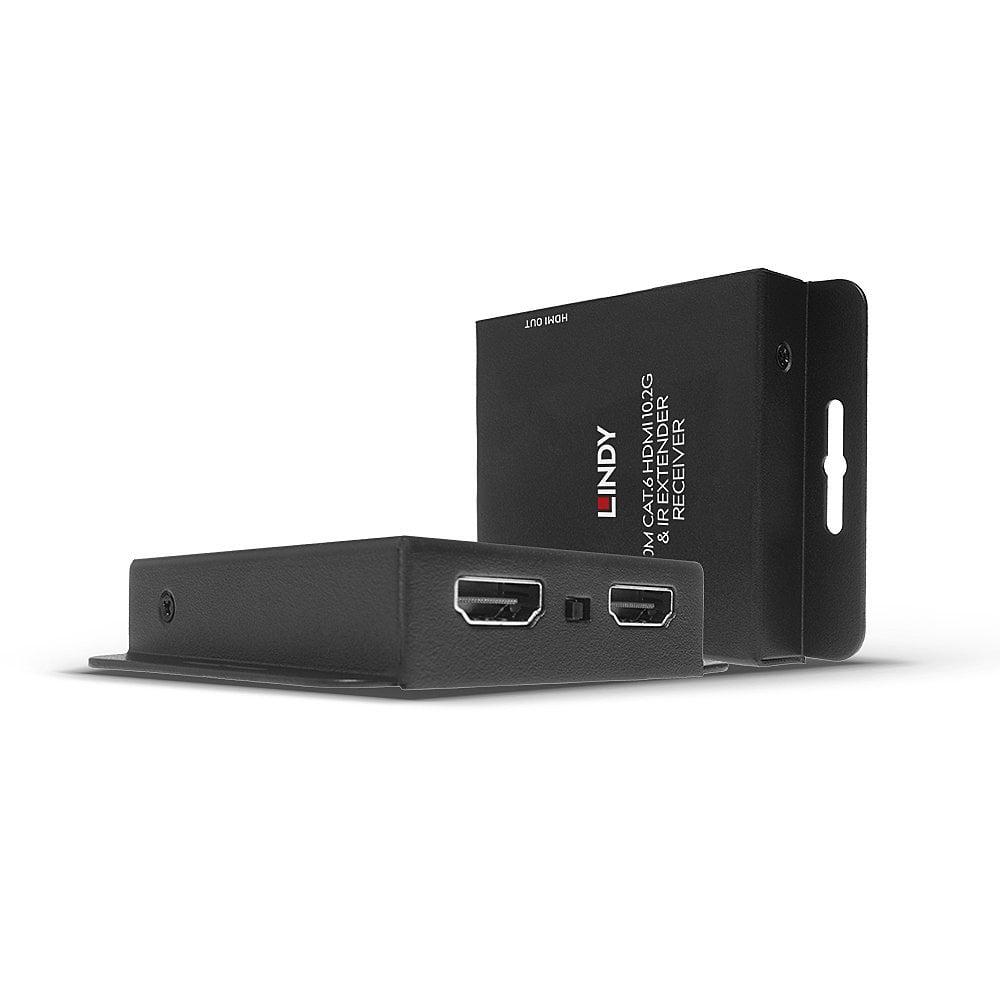

Lindy 50m Cat.6 HDMI & IR Extender with Loop Out Description Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable Supports resolutions up to 3840×2160@30Hz 4:4:4 8bit Features a loop-through HDMI output on the Transmitter for local monitoring Supports power over Cable, only a single power supply is required Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.4 Supported Bandwidth: 10.2Gbps Maximum Distance: 70m (229.66ft) – 1920×1080@60Hz, 40m (131.23ft) – 3840×2160@30Hz 4:4:4 8bit Maximum Resolution: 3840×2160@30Hz 4:4:4 8bit HDCP Support: HDCP 1.4 EDID Pass Through: EDID Copy Functionality Supported Audio: Up to 7.1 (Pass-through) Separate Audio Ports: – IR Support: 20-60kHz CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: GSV1001 Special Features: PoC (Power over Cable), IR Pass-through, Loop Out Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female) Receiver Input: RJ-45 (Female), IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: – Power : 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 79.5×16.5x69mm (3.13×0.65×2.72in) Housing Material: Metal Net Weight: 0.13kg (0.29lb) per unit Operating Temperature : 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (no condensation) Power Requirements: 12VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 200x70x113mm (7.87×2.76×4.45in) Gross Weight: 0.414kg (0.91lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH & California Proposition 65 Package Contents Transmitter Receiver Multi-country Power Supply (UK, EU, US & AUS) IR Transmitter IR Receiver Lindy Manual https://www.lindy-international.com/70m-Cat-6-HDMI-4K30-IR-Extender- with-PoC-Loop-Out-.htm?websale8=ld0101.ld021102&pi=38208 &ci=20

Specificații tehnice 47 caracteristici
AC adapter included
Yes
Audio output channels
7.1 channels
Bandwidth
10.2 Gbit/s
Cable types supported
Cat6
Certification
CE, FCC, RoHS, REACH
Chipset
GSV1001
Compliance certificates
CE, REACH, RoHS
Connectivity technology
Wired
Depth
6.9 mm
Distanta maxima
70 m
Extended display identification data (EDID)
Yes
Garantie
24
HDCP
Yes
HDCP version
1.4
HDMI in
1
HDMI version
1.4
Height
16.5 mm
Input current
1 A
Interfata HDMI
Da
IR receiver included
Yes
Manual
Yes
Material
Metal
MAXIMUM-RESOLUTION
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Maximum transfer distance
70 m
Numar porturi RJ-45
1
Numar porturi USB
1
Number of HDMI outputs
2
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating voltage
12 V
Package depth
70 mm
Package height
113 mm
Package weight
414 g
Package width
200 mm
Product colour
Black
Remote (IR) input
1
Remote (IR) output
1
Rezolutie maxima
3840 x 2160 pixeli
RJ-45 input ports
1
RJ-45 output ports
1
Storage temperature (T-T)
-20 - 60 °C
SUPPORTED-BANDWIDTH
10.2 Gbit/s
Supported graphics resolutions
1920 x 1080 (HD 1080), 3840 x 2160
Weight
130 g
Width
79.5 mm
Producator
LINDY
