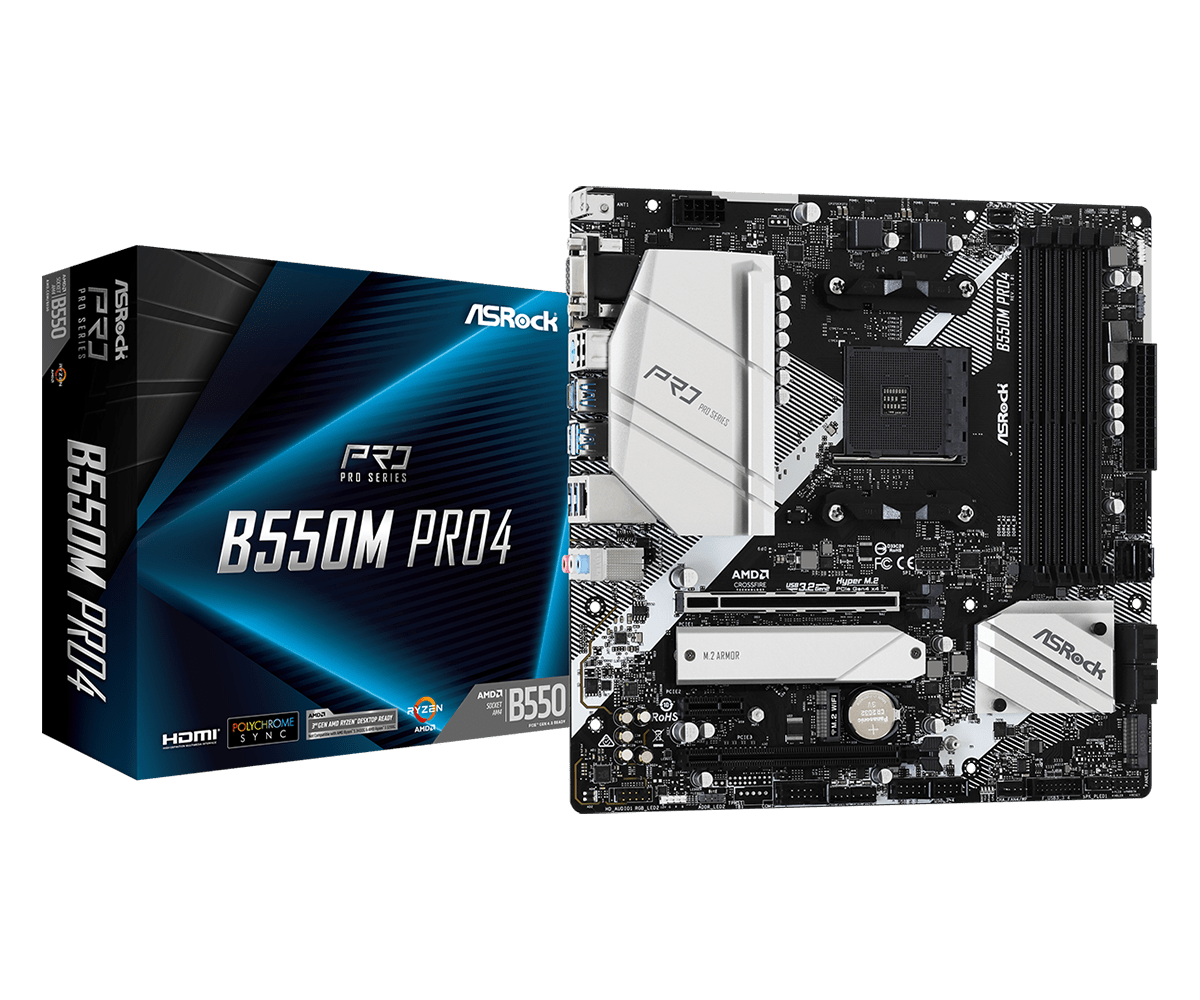

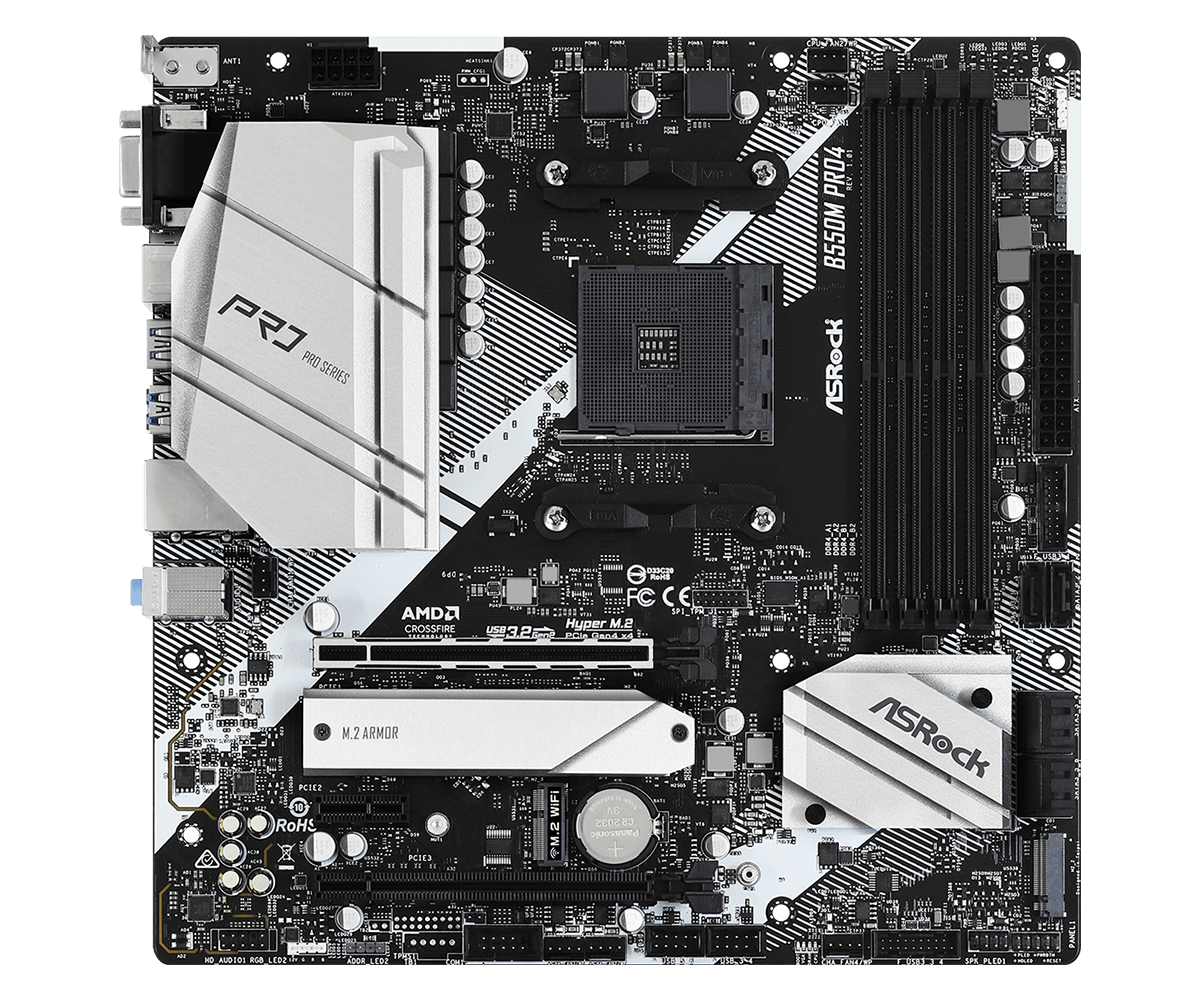

Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX
604,00 lei
Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: B550M PRO4
Livrare și beneficii
Compară cu produse similare

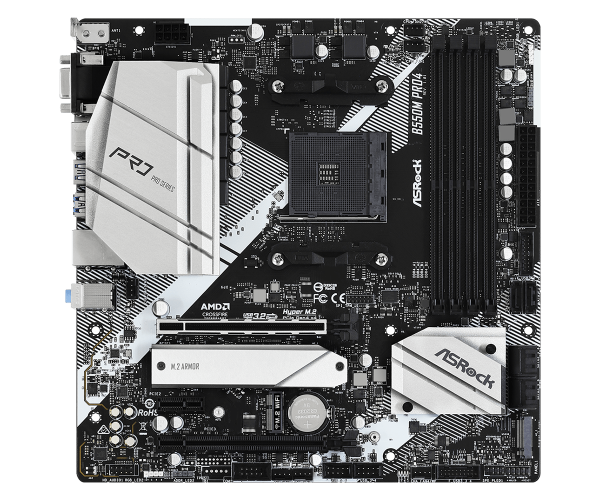

Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 453,99 lei
Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
7.788,99 lei
Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4,
528,00 lei 604,00 lei
Placa de baza Gigabyte B850 GAMING WIFI6, Socket AM5, DDR5,
1.050,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX | Placa de bază ASUS PRIME H610M-R D4 LGA1700 | Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX | Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, | Placa de baza Gigabyte B850 GAMING WIFI6, Socket AM5, DDR5, |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 12V power connector | Yes | Yes | — | Yes | Yes |
| ACPI version | 5.1 | — | — | 5.0 | 5.0 |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | Realtek ALC1200 | — | — | Realtek ALC887 | Realtek ALC897 |
| Audio output channels | 7.1 channels | 7.1 channels | — | 7.1 channels | 7.1 channels |
| Battery technology | — | — | — | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | — | — | — | CR2032 | CR2032 |
| Battery weight | — | — | — | 3 g | 3 g |
| BIOS memory size | 256 Mbit | 128 Mbit | — | 256 Mbit | 256 Mbit |
| BIOS type | UEFI AMI | UEFI AMI | — | UEFI AMI | UEFI AMI |
| Cables included | SATA | SATA | — | SATA | — |
| Canale audio | 7.1 | 7.1 | N/A | 7.1 | 7.1 |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Clear CMOS button | — | — | — | Yes | Yes |
| Clear CMOS jumper | — | Yes | — | Yes | Yes |
| Compatible processor series | AMD Ryzen 3000 Series | — | Intel® Xeon® | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Component for | PC | PC | Server | PC | PC |
| Country of origin | — | — | — | China | China |
| CPU fan connector | Yes | Yes | — | Yes | Yes |
| CPU încorporat | No | — | — | No | — |
| Desktop Management Interface (DMI) version | — | — | — | 2.7 | 2.7 |
| DirectX version | 12.0 | — | — | 12.0 | 12.0 |
| DisplayPorts quantity | 1 | — | — | — | 1 |
| Drivers included | Yes | Yes | — | Yes | — |
| DVI-D ports quantity | — | 1 | — | 1 | — |
| ECC сompatibility | ECC & Non-ECC | Non-ECC | — | ECC & Non-ECC | Non-ECC |
| EPS power connector (8-pin) | Yes | — | Yes | — | Yes |
| Ethernet interface type | Gigabit Ethernet | Gigabit Ethernet | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet |
| Format | Micro-ATX | Micro-ATX | E-ATX | Micro-ATX | ATX |
| Front panel audio connector | Yes | Yes | — | Yes | Yes |
| Front panel connector | Yes | — | — | Yes | Yes |
| Gaming | Da | Nu | Nu | Da | Da |
| Harmonized System (HS) code | 84733020 | 84733020 | — | 84733020 | — |
| HDCP | Yes | — | — | Yes | Yes |
| Headphone outputs | — | 3 | — | 1 | 1 |
| LAN controller | Realtek RTL8111H | — | Intel X710-AT2 | — | — |
| Lithium weight per battery | — | — | — | 0.07 g | 0.07 g |
| MAXIMUM-RESOLUTION | 5120 x 2880 pixels | 3840 x 2160 pixels | — | 4096 x 2160 pixels | 4096 x 2160 pixels |
| Maximum number of SMP processors | 1 | — | — | 1 | — |
| MB-Format | — | micro-ATX | — | micro-ATX | ATX |
| MB-Socket | — | 1700 | — | AM4 | AM5 |
| Memorie maxima | 128 GB | 64 GB | 2 TB | 128 GB | 256 GB |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Microphone in | Yes | Yes | — | Yes | Yes |
| Model Chipset | B550 | H610 | C741 | B550 | B850 |
| Motherboard chipset | AMD B550 | Intel H610 | Intel C741 | AMD B550 | AMD B850 |
| Motherboard chipset family | AMD | Intel | Intel | AMD | AMD |
| Motherboard form factor | micro ATX | micro ATX | Extended ATX | micro ATX | ATX |
| Numar sloturi memorie | 4 | 2 | 16 | 4 | 4 |
| Number of chassis fan connectors | 4 | 1 | — | 2 | 3 |
| Number of COM connectors | 1 | 1 | — | — | — |
| Number of displays supported | 3 | — | — | 2 | — |
| Number of HDDs supported | — | — | 10 | 4 | 4 |
| Number of M.2 (M) slots | 3 | 1 | 2 | 2 | 3 |
| Number of memory slots | 4 | 2 | 16 | 4 | 4 |
| Number of SATA III connectors | — | 4 | 10 | 4 | 4 |
| Number of storage drives supported | — | 5 | — | 6 | 7 |
| Onboard-CPU | — | No | — | — | No |
| Package depth | — | — | — | 265 mm | 270 mm |
| Package height | — | — | — | 65 mm | 80 mm |
| Package weight | — | — | 2.75 kg | 1.27 kg | 1.76 kg |
| Package width | — | — | — | 265 mm | 335 mm |
| Parallel processing technology support | CrossFireX, Quad-GPU CrossFireX | — | — | Not supported | Not supported |
| PC health monitoring | CPU, Fan, Temperature, Voltage | — | — | CPU, Fan, LED, Power supply, Temperature, Voltage | Fan, Temperature, Voltage, Water cooling |
| PCI-Ex16 | — | 1 | — | 1 | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 | 1 | — | 1 | — |
| PCI Express x16 (Gen 3.x) slots | 1 | — | — | — | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 | 1 | — | — | — |
| PCI Express x16 (Gen 5.x) slots | — | — | 5 | — | 1 |
| Power source type | — | — | — | ATX | ATX |
| Processor socket | Socket AM4 | LGA 1700 | LGA 4677 (Socket E) | Socket AM4 | Socket AM5 |
| PS/2 ports quantity | 1 | 2 | — | 1 | — |
| RAID levels | 0, 1, 10 | — | — | 0, 1, 10 | 0, 1, 10 |
| RAID support | Yes | — | — | — | Yes |
| RAM-Slots | — | 2 | — | 4 | 4 |
| RGB LED pin header | Yes | — | — | Yes | Yes |
| RJ-45 LAN | 1 | 1 | 2 | 1 | 1 |
| Serial-or-Paralel | No/No | No/No | — | No/No | No/No |
| Serial port headers | — | — | — | 1 | 1 |
| Serial ports quantity | — | — | 1 | 1 | — |
| Sloturi M.2 | 3 | 1 | 2 | 2 | 3 |
| Soclu Procesor | Socket AM4 | Socket 1700 | Socket LGA 4677 | Socket AM4 | Socket AM5 |
| Supported memory clock speeds | 4733 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz | 4800,5600 MHz | 4733 MHz | 8200 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB | — | 16GB, 32GB, 64GB, 128GB | 1GB, 2GB, 4GB, 16GB, 32GB | — |
| Supported memory types | DDR4-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM |
| Supported processor sockets | Socket AM4 | LGA 1700 | — | Socket AM4 | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III | M.2, SATA III | M.2, SATA III | M.2, SATA III | M.2, SATA III |
| Supported storage drive types | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.3 | — | — | 2.7 | 2.7 |
| Tip Memorie | DDR4 | DDR4 | DDR5 | DDR4 | DDR5 |
| Tip slot interfata grafica | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 | N/A |
| TPM connector | Yes | Yes | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | — | Yes | Yes |
| USB 2.0 connectors | 2 | 2 | 1 | 1 | 2 |
| USB3 | — | 4-8 | — | 4-8 | 4-8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 | 1 | 1 | 1 | 1 |
| VGA (D-Sub) ports quantity | 1 | 1 | 1 | — | — |
| Video-Connection | VGA/DVI/HDMI/DP | VGA/DVI/HDMI | — | DVI/HDMI | HDMI/DP |
| Wake-on-LAN ready | Yes | Yes | — | — | — |
| Wi-Fi | No | — | — | No | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Windows 10 x64, Windows 11 x64 | — | Windows 10 x64, Windows 11 x64 | Windows 10 x64, Windows 11 x64 |
| Wireless | Nu | Nu | N/A | Nu | Da |
| Caracteristici fizice | |||||
| Greutate | 465 g | 842 g | 1.75 kg | — | 1.51 kg |
| Conectivitate | |||||
| Tip conector USB | — | USB Type-A | — | USB Type-A | — |
| Laptopuri - Baterie 25.09 | |||||
| Număr celule baterie | — | — | — | 1 | 1 |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 24.4 mm | 193 mm | 330.2 mm | 24.4 mm | 24.4 mm |
| Lățime | 244 mm | 226 mm | 304.8 mm | 244 mm | 30.5 mm |
| Înălțime | 70 mm | — | — | 35 mm | 35 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Bluetooth | Nu | Nu | Nu | Nu | Da |
| HDMI | Da | Da | Nu | Da | Da |
| Număr porturi HDMI | 1 | — | — | 1 | 1 |
| Număr porturi USB 2.0 | 2 | 2 | — | 4 | 4 |
| Porturi USB-A 3.2 Gen 1 | 4 | — | — | 4 | — |
| Porturi USB-A 3.2 Gen 2 | 1 | — | — | — | 2 |
| Rețea prin cablu (LAN) | Yes | — | Yes | Yes | Yes |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | N/A | Da | Da |
| Versiune HDMI | 2.1 | 2.1 | — | 2.1 | — |
| Laptopuri - Construcție | |||||
| Culoare | — | — | — | Brown | Brown |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 36 | 24 | 36 | 36 |
| Producător | ASROCK | ASUS | ASUS | GIGABYTE | GIGABYTE |
| Laptopuri - Memorie RAM 25.09 | |||||
| Canale memorie RAM | Dual-channel | — | Octa-channel | Dual-channel | Dual-channel |
| Memorie RAM maximă | 128 GB | — | 2 TB | 128 GB | 256 GB |
| Laptopuri - Procesor | |||||
| Producător procesor | AMD | — | Intel | AMD | AMD |
Analiză inteligentă a produsului
Descriere oficială
Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare.
Specificații tehnice 97 caracteristici ⌄
- 12V power connector
- Yes
- ACPI version
- 5.1
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC1200
- Audio output channels
- 7.1 channels
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Cables included
- SATA
- Canale audio
- 7.1
- Certification
- FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
- Chipset audio integrat
- Realtek
- Compatible processor series
- AMD Ryzen 3000 Series
- Component for
- PC
- CPU fan connector
- Yes
- CPU încorporat
- No
- DirectX version
- 12.0
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Drivers included
- Yes
- ECC сompatibility
- ECC & Non-ECC
- EPS power connector (8-pin)
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Format
- Micro-ATX
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Gaming
- Da
- Harmonized System (HS) code
- 84733020
- HDCP
- Yes
- LAN controller
- Realtek RTL8111H
- MAXIMUM-RESOLUTION
- 5120 x 2880 pixels
- Maximum number of SMP processors
- 1
- Memorie maxima
- 128 GB
- Memory slots type
- DIMM
- Microphone in
- Yes
- Model Chipset
- B550
- Motherboard chipset
- AMD B550
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 4
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Number of displays supported
- 3
- Number of M.2 (M) slots
- 3
- Number of memory slots
- 4
- Number of SATA II connectors
- 6
- Parallel processing technology support
- CrossFireX, Quad-GPU CrossFireX
- PC health monitoring
- CPU, Fan, Temperature, Voltage
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Processor socket
- Socket AM4
- PS/2 ports quantity
- 1
- RAID levels
- 0, 1, 10
- RAID support
- Yes
- RGB LED pin header
- Yes
- RJ-45 LAN
- 1
- Serial-or-Paralel
- No/No
- Sloturi M.2
- 3
- Soclu Procesor
- Socket AM4
- Supported memory clock speeds
- 4733 MHz
- Supported memory module capacities
- 4GB, 8GB, 16GB, 32GB
- Supported memory types
- DDR4-SDRAM
- Supported processor sockets
- Socket AM4
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- System Management BIOS (SMBIOS) version
- 2.3
- Tip Memorie
- DDR4
- Tip slot interfata grafica
- PCIe 4.0 x16
- TPM connector
- Yes
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- VGA (D-Sub) ports quantity
- 1

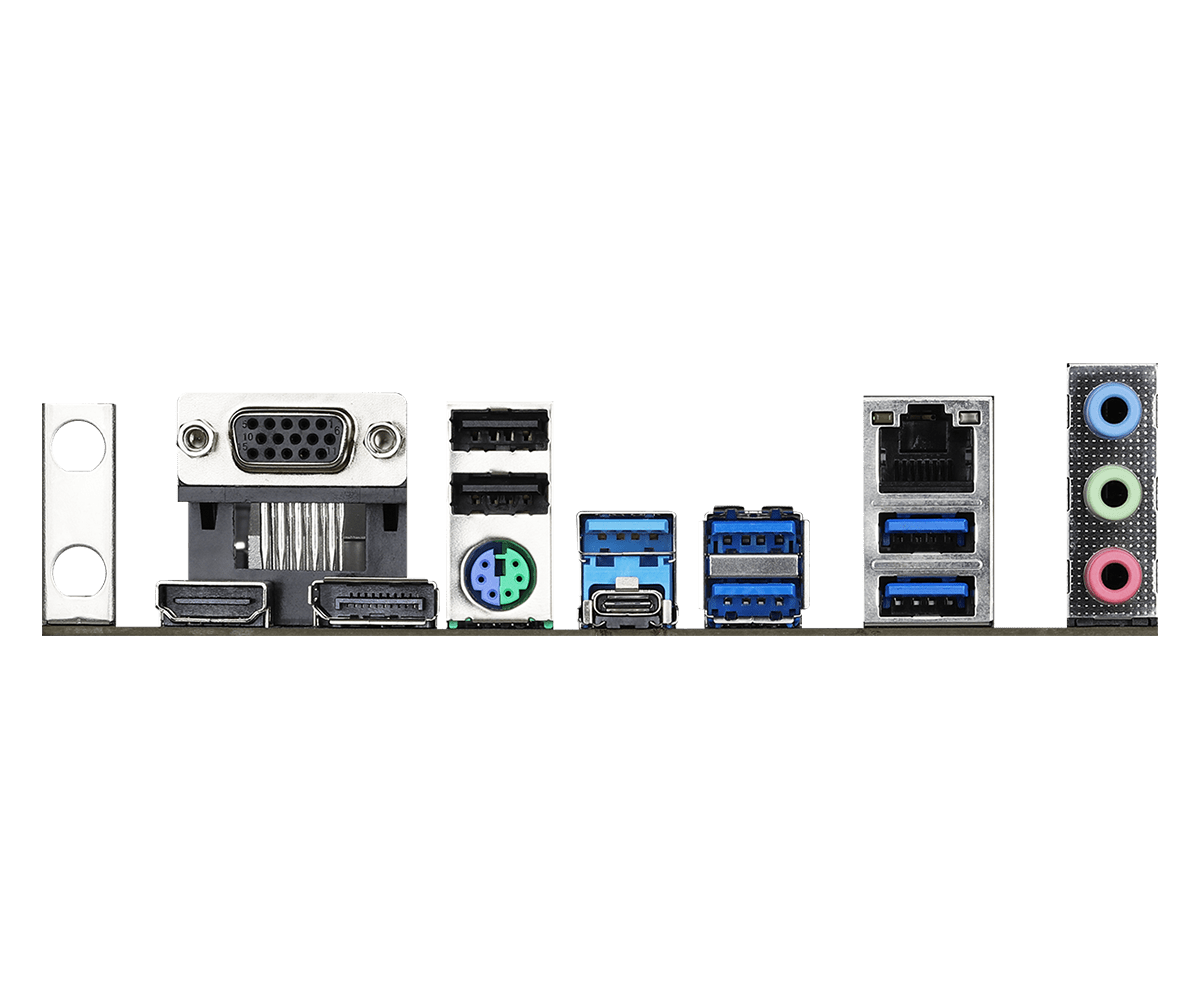

- Video-Connection
- VGA/DVI/HDMI/DP
- Wake-on-LAN ready
- Yes
- Wi-Fi
- No
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Wireless
- Nu
- Greutate
- 465 g
- Adâncime
- 24.4 mm
- Lățime
- 244 mm
- Înălțime
- 70 mm
- Bluetooth
- Nu
- HDMI
- Da
- Număr porturi HDMI
- 1
- Număr porturi USB 2.0
- 2
- Porturi USB-A 3.2 Gen 1
- 4
- Porturi USB-A 3.2 Gen 2
- 1
- Rețea prin cablu (LAN)
- Yes
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune HDMI
- 2.1
- Garanție comercială
- 24
- Producător
- ASROCK
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 128 GB
- Producător procesor
- AMD
Întrebări și răspunsuri 0 întrebări ⌄
Nu există întrebări încă.
Pune o întrebare despre produs
Recenzii clienți Nicio recenzie încă ⌄
0,0
☆☆☆☆☆
0 recenzii
- 5 ★ 0
- 4 ★ 0
- 3 ★ 0
- 2 ★ 0
- 1 ★ 0
Acest produs nu are încă recenzii.
Scrie o recenzie
Produse recomandate
-
Placa de baza Gigabyte B860M E, Socket 1851, DDR5, Micro-ATX
-
Placa de baza Gigabyte B840M H, Socket AM5, DDR5, Micro-ATX
-
Placa de baza Gigabyte B850M FORCE WIFI6E, Socket AM5, DDR5,
-
Placa de baza Gigabyte B760M H V2, Socket 1700, DDR5,
-
Placa de baza Gigabyte B840 GAMING X WIFI6E, Socket AM5,
-
Placa de baza Gigabyte B650E EAGLE WIFI6E, Socket AM5, DDR5,
-
Placa de baza Gigabyte H610M D3W, Socket 1700, DDR5, Micro-ATX
-
Placa de baza Gigabyte X870M AORUS ELITE WIFI7, Socket AM5,
-
Placa de baza Gigabyte B860M D3W, Socket 1851, DDR5, Micro-ATX
-
Placa de baza Gigabyte H610M D3W WIFI6, Socket 1700, DDR5,
Trebuie să fii autentificat pentru a publica un comentariu.
