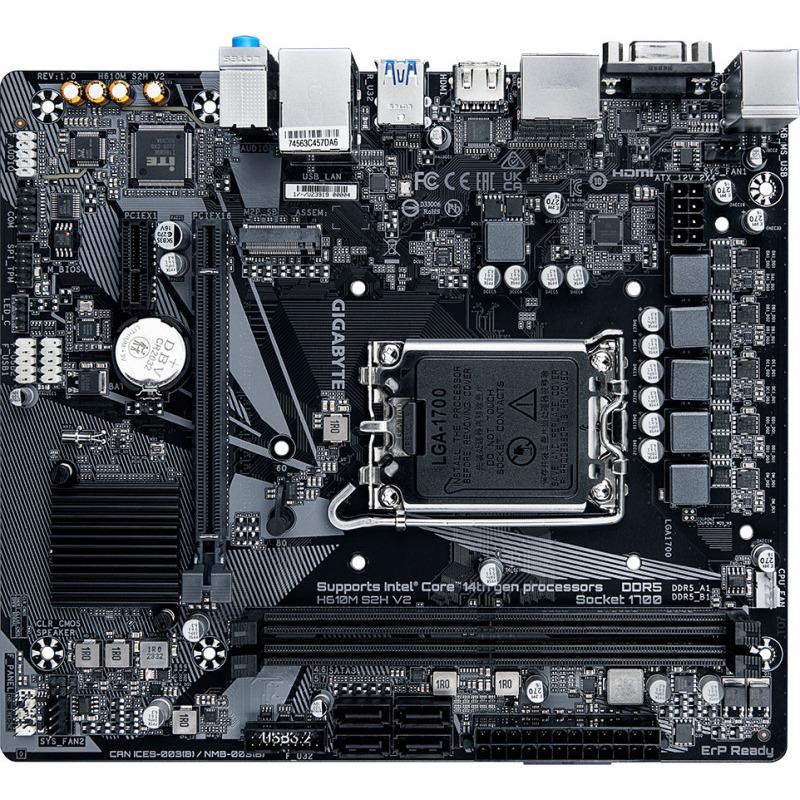

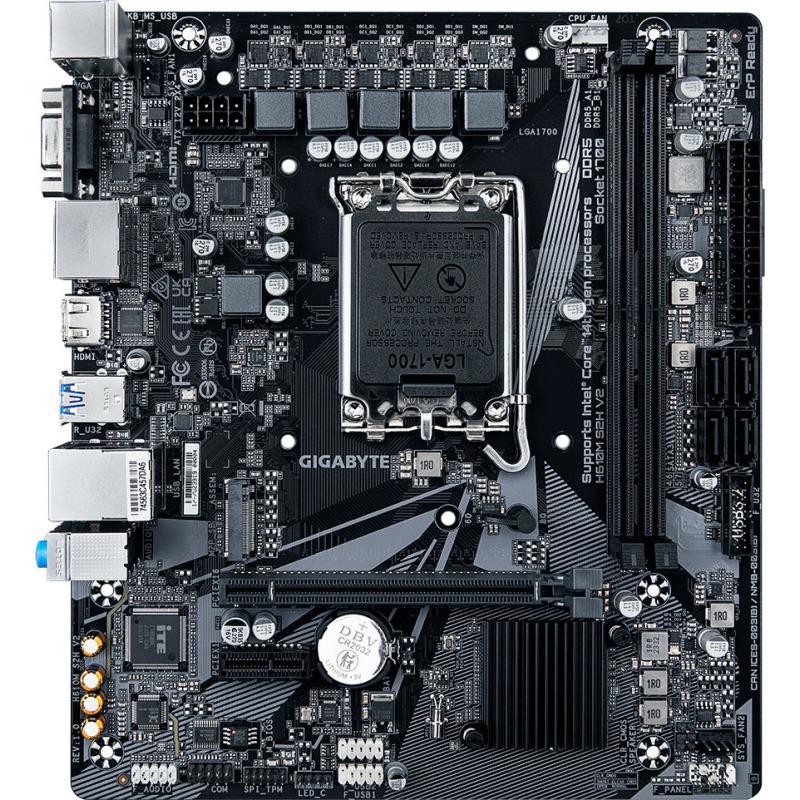

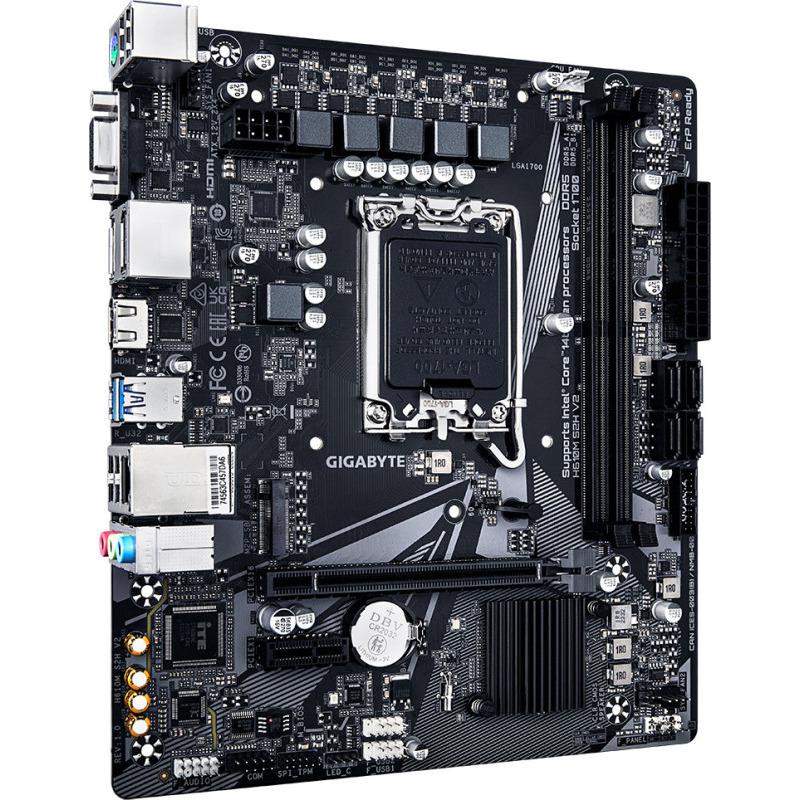

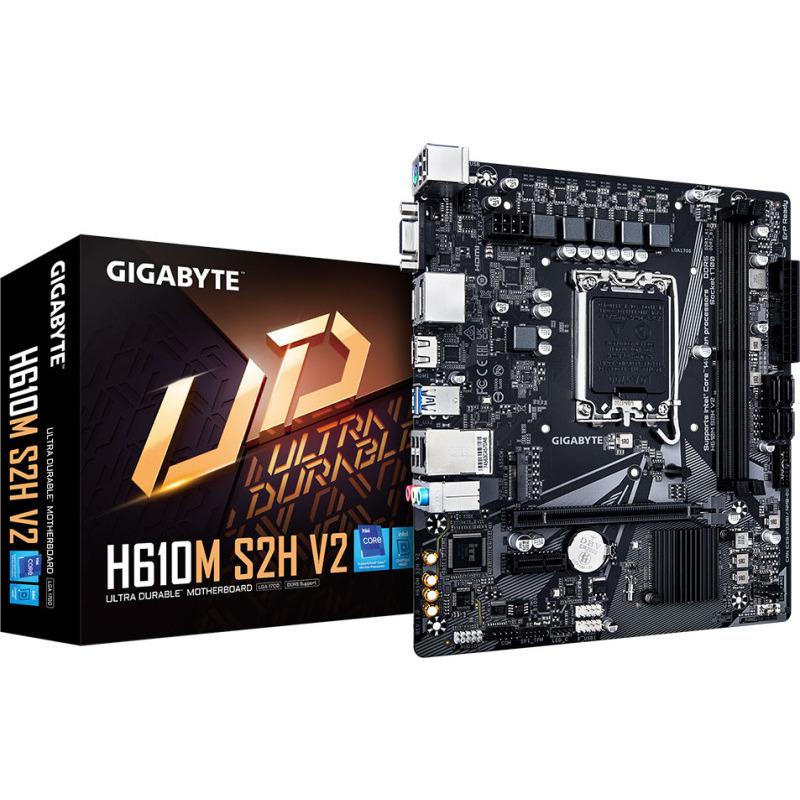

Placa de baza Gigabyte H610M S2H V2, Socket 1700, DDR5,

Placi de baza

Placa de baza Gigabyte H610M S2H V2, Socket 1700, DDR5,

(0) În stoc
Vândut de RITC.ro Cod produs: H610M S2H V2

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza Gigabyte H610M S2H V2, Socket 1700, DDR5, Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4, Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5, Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,
Alte caracteristici
1st M.2 highest PCI Express generation — 5.0 4.0 5.0 4.0
1st M.2 largest key size — 25110 22110 2280 22110
2nd M.2 highest PCI Express generation — 4.0 3.0 4.0 3.0
2nd M.2 largest key size — 22110 22110 2280 22110
3rd M.2 highest PCI Express generation — 4.0 — 4.0 —
3rd M.2 largest key size — 22110 — 2280 —
12V power connector Yes Yes Yes Yes Yes
ACPI version 5.0 5.0 5.0 5.0 5.0
Antenna included — Yes Yes Yes Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip Realtek ALC897 Realtek ALC1220 Realtek ALC897 Realtek ALC1220 Realtek ALC897
Audio output channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels
Batteries included Yes Yes Yes Yes Yes
Battery-Capacity — 220 mAh 220 mAh 220 mAh 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032 CR2032 CR2032 CR2032 CR2032
Battery weight 3 g 3 g 3 g 3 g 3 g
BIOS memory size 128 Mbit 512 Mbit 128 Mbit 512 Mbit 128 Mbit
BIOS type UEFI AMI UEFI AMI UEFI AMI UEFI AMI UEFI AMI
Bluetooth Nu Yes Yes Yes Yes
Bluetooth version — 5.4 5.4 5.4 5.3
Bundled software — Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version)
Canale audio 7.1 7.1 7.1 7.1 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS button Yes Yes — Yes —
Clear CMOS jumper Yes Yes — Yes Yes
Compatible processor series — Intel Core Ultra (Series 2) AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Component for PC PC PC PC PC
Cooling type Active Passive Passive Passive Passive
Country of origin China China China — China
CPU fan connector Yes Yes Yes Yes Yes
Depth 215 mm 305 mm 305 mm 244 mm 244 mm
Desktop Management Interface (DMI) version 2.7 2.7 2.7 2.7 2.7
Digital audio optical out — 1 1 1 —
DirectX version — 12.0 12.0 12.0 12.0
DisplayPorts quantity 1 1 1 1 —
DisplayPort version — 2.1 1.4 1.4 —
ECC сompatibility ECC & Non-ECC ECC & Non-ECC ECC & Non-ECC Non-ECC ECC & Non-ECC
EPS power connector (8-pin) Yes Yes Yes Yes Yes
Ethernet interface type Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet
Ethernet LAN Yes Yes Yes Yes Yes
Ethernet LAN (RJ-45) ports 1 1 1 1 1
Format Micro-ATX ATX ATX Micro-ATX ATX
Front panel audio connector Yes Yes Yes Yes Yes
Front panel connector Yes Yes Yes Yes Yes
Gaming Nu Nu Nu Nu Da
Garantie 36 36 36 36 —
HDCP Yes Yes Yes — Yes
HDCP version — 2.3 2.3 — 2.3
HDMI Da Nu Da Da Da
HDMI ports quantity 1 — 1 1 1
HDMI version — — 2.1 2.1 2.1
Headphone outputs 1 1 1 1 1
Height 35 mm 35 mm 35 mm 35 mm 35 mm
LAN controller — Realtek RTL8126 Realtek RTL8125 Realtek RTL8126 Realtek RTL8125
Line-in — Yes Yes Yes Yes
Lithium weight per battery 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g
MAXIMUM-RESOLUTION 4096 x 2304 pixels 4096 x 2304 pixels 5120 x 2880 pixels 4096 x 2160 pixels 4096 x 2160 pixels
Maximum internal memory 96 GB 256 GB 128 GB 256 GB 128 GB
Maximum internal memory per slot — 128 GB 32 GB 64 GB 32 GB
MB-Format — ATX ATX ATX —
MB-Socket — AM5 AM4 AM5 —
Memorie maxima 96 GB 256 GB 128 GB 256 GB 128 GB
Memory channels Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Microphone in Yes — Yes — —
Model Chipset H610 Z890 B550 B850 B550
Motherboard chipset Intel H610 Express Intel Z890 Express AMD B550 AMD B850 AMD B550
Motherboard chipset family Intel Intel AMD AMD AMD
Motherboard form factor micro ATX ATX ATX micro ATX ATX
Numar sloturi memorie 2 2 4 4 4
Number of battery cells 1 1 1 1 1
Number of chassis fan connectors 2 4 3 2 4
Number of CPU fan connectors — 2 2 2 2
Number of EPS power connectors (8-pin) — 2 1 1 1
Number of HDDs supported 4 4 4 2 4
Number of M.2 (M) slots 1 5 2 3 2
Number of memory slots 2 2 4 4 4
Number of RGB LED pin headers — 4 5 4 4
Number of SATA III connectors 4 4 4 2 4
Number of storage drives supported 1 9 6 5 6
Number of water pump connectors — 2 1 2 2
Onboard-CPU No No No No —
Package depth 235 mm 294 mm 270 mm 287 mm 294 mm
Package height 52 mm 80 mm 80 mm 89 mm 80 mm
Package weight 690 g 3.05 kg 1.92 kg 2.66 kg 2.46 kg
Package width 265 mm 345 mm 335 mm 268 mm 345 mm
Parallel processing technology support — Not supported Not supported Not supported Not supported
PC health monitoring Fan, LED, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, LED, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling CPU, Fan, Temperature, Voltage, Water cooling
PCI-Ex1 — 1 1 — —
PCI-Ex16 — 4 3 1 —
PCI Express x16 (Gen 3.x) slots — — 2 — 4
PCI Express x16 (Gen 4.x) slots — 2 1 1 1
PCI Express x16 (Gen 5.x) slots — 1 — 1 —
Power source type ATX ATX ATX ATX ATX
Processor manufacturer Intel Intel AMD AMD AMD
Processor socket LGA 1700 LGA 1851 (Socket V1) Socket AM4 Socket AM5 Socket AM4
Product colour Black Black Black Black Dark brown
Products per shipping (inner) case 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s)
RAID levels — 0, 1, 5, 10 0, 1, 10 0, 1, 10, 5 0, 1, 10
RAID support — Yes Yes Yes Yes
RAM-Slots — 4 4 4 —
RGB LED pin header Yes Yes Yes Yes Yes
RJ-45 LAN 1 1 1 1 1
S/PDIF out port — Yes Yes Yes —
Screws included — Yes Yes Yes Yes
Serial-or-Paralel No/No Yes/No No/No No/No —
Sloturi M.2 1 5 2 3 2
Soclu Procesor Socket 1700 Socket 1851 Socket AM4 Socket AM5 Socket AM4
Supported memory clock speeds 5600 MHz 10266 MHz 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz 8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz 2133,2400,2667,2933,3200 MHz
Supported memory types DDR5-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM
Supported processor sockets LGA 1700 LGA 1851 Socket AM4 Socket AM5 Socket AM4
Supported storage drive interfaces M.2, SATA PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III M.2, PCI Express 4.0, PCI Express 3.0, SATA III M.2, PCI Express 4.0, PCI Express 5.0, SATA III M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
Supported storage drive types HDD & SSD HDD & SSD HDD & SSD HDD & SSD HDD & SSD
System Management BIOS (SMBIOS) version 2.7 2.7 2.7 2.7 2.7
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR5 DDR5 DDR4 DDR5 DDR4
Tip slot interfata grafica PCIe 3.0 x16 PCIe 5.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 PCIe 4.0 x16
Top Wi-Fi standard — Wi-Fi 7 (802.11be) Wi-Fi 7 (802.11be) Wi-Fi 6E (802.11ax) Wi-Fi 6E (802.11ax)
TPM connector Yes Yes — Yes —
Unbuffered memory Yes Yes Yes Yes Yes
USB 2.0 connectors 2 2 2 2 2
USB 2.0 ports quantity 4 4 2 4 4
USB3 — 4-8 4-8 4-8 —
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 2 1 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity — — — 4 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors — 1 — 1 —
USB Type-C Da N/A N/A Da N/A
Video-Connection — HDMI/DP HDMI/DP HDMI —
Weight — 2.63 kg 1.68 kg 2.29 kg 2.04 kg
Wi-Fi No Yes Yes Yes Yes
Width 230 mm 244 mm 244 mm 244 mm 305 mm
WiFi-AP antenna jack — 2 2 2 2
Windows operating systems supported Windows 10 x64, Windows 11 x64 Windows 11 Windows 11 Windows 11 Home Windows 11 x64, Windows 10 x64
Wireless Nu Da Da Da Da
WLAN controller model — Intel Wi-Fi 7 BE200 Realtek RTL8922AE Realtek RTL8922AE MediaTek MT7902
Producator GIGABYTE GIGABYTE GIGABYTE GIGABYTE GIGABYTE

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placa de baza GIGABYTE H610M S2H V2 LGA1700 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX

Specificații tehnice 109 caracteristici
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bluetooth
Nu
Cables included
SATA
Canale audio
7.1
Chipset audio integrat
Realtek
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Component for
PC
Cooling type
Active
Country of origin
China
CPU fan connector
Yes
Depth
215 mm
Desktop Management Interface (DMI) version
2.7
DisplayPorts quantity
1
DVI-D ports quantity
1
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Format
Micro-ATX
Front panel audio connector
Yes
Front panel connector
Yes
Gaming
Nu
Garantie
36
Graphics card
HD Graphics
Graphics card family
Intel
HDCP
Yes
HDMI
Da
HDMI ports quantity
1
Headphone outputs
1
Height
35 mm
Lithium weight per battery
0.07 g
MAXIMUM-RESOLUTION
4096 x 2304 pixels
Maximum internal memory
96 GB
Maximum internal memory supported by processor
96 GB
Maximum number of SMP processors
1
Memorie maxima
96 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Model Chipset
H610
Motherboard chipset
Intel H610 Express
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Numar sloturi memorie
2
Number of battery cells
1
Number of chassis fan connectors
2
Number of COM connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
1
On-board graphics card
Yes
On-board graphics card model
Intel® HD Graphics
Onboard-CPU
No
Package depth
235 mm
Package height
52 mm
Package weight
690 g
Package width
265 mm
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
PCI Express x1 slots
1
PCI Express x16 slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1700
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RGB LED pin header
Yes
RJ-45 LAN
1
Serial-or-Paralel
No/No
Serial port headers
1
Sloturi M.2
1
Soclu Procesor
Socket 1700
Supported DIMM module capacities
8GB, 16GB
Supported memory clock speeds
5600 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt
Nu
Tip Memorie
DDR5
Tip slot interfata grafica
PCIe 3.0 x16
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB Type-C
Da
VGA (D-Sub) ports quantity
1
Wi-Fi
No
Width
230 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Wireless
Nu
Producator
GIGABYTE
