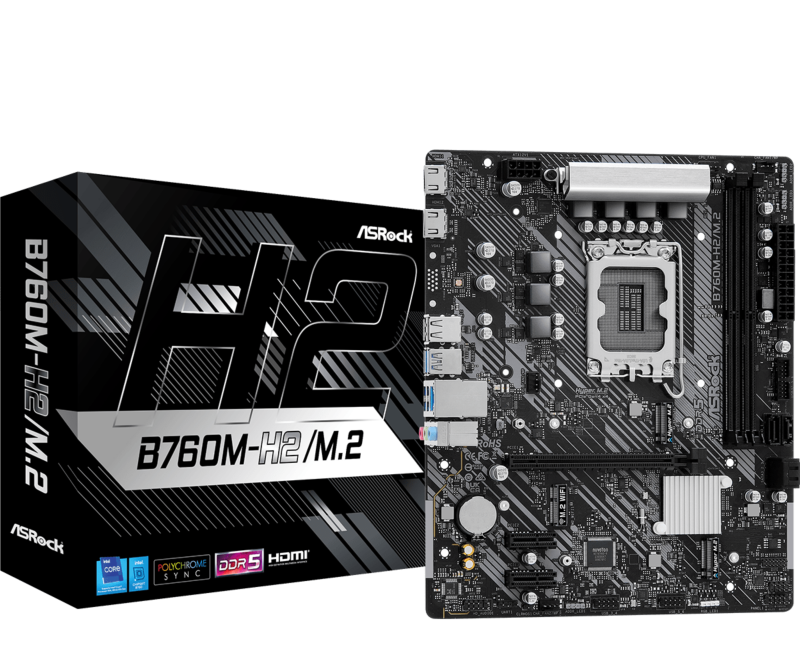

Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX
440,98 lei 531,99 lei
Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX
(0)
În stoc
Vândut de RITC.ro
Cod produs: B760M-H2/M.2
Livrare și beneficii
Compară cu produse similare
Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX

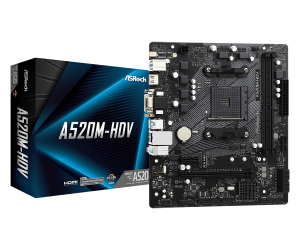

Placa de baza ASRock A520M-HDV, Socket AM4
251,99 lei 351,99 lei
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 449,99 lei

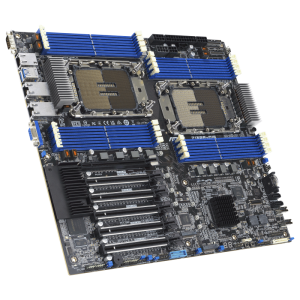

Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
7.712,99 lei
Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA
1.676,00 lei 1.956,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX | Placa de baza ASRock A520M-HDV, Socket AM4 | Placa de bază ASUS PRIME H610M-R D4 LGA1700 | Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX | Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 12V power connector | — | — | Yes | — | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | Realtek ALC897 | — | — | — | Realtek ALC1220 |
| Audio output channels | 7.1 channels | 7.1 channels | 7.1 channels | — | 7.1 channels |
| BIOS memory size | 128 Mbit | — | 128 Mbit | — | 512 Mbit |
| BIOS type | UEFI AMI | UEFI AMI | UEFI AMI | — | UEFI AMI |
| Bluetooth | Nu | Nu | Nu | Nu | Yes |
| Cables included | SATA | — | SATA | — | — |
| Canale audio | 7.1 | 7.1 | 7.1 | N/A | 7.1 |
| Chassis intrusion connector | Yes | — | Yes | — | — |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Clear CMOS jumper | — | — | Yes | — | Yes |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 | AMD Ryzen 3000 Series | — | Intel® Xeon® | Intel Core Ultra (Series 2) |
| Component for | PC | PC | PC | Server | PC |
| CPU fan connector | Yes | Yes | Yes | — | Yes |
| Depth | 201 mm | 201 mm | 193 mm | 330.2 mm | 305 mm |
| ECC сompatibility | Non-ECC | Non-ECC | Non-ECC | — | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes | — | — | Yes | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN | Yes | Yes | — | Yes | Yes |
| Ethernet LAN (RJ-45) ports | 1 | — | — | 2 | 1 |
| Format | Micro-ATX | Micro-ATX | Micro-ATX | E-ATX | ATX |
| Front panel audio connector | — | Yes | Yes | — | Yes |
| Front panel connector | Yes | — | — | — | Yes |
| Gaming | Nu | Nu | Nu | Nu | Nu |
| Garantie | 36 | 24 | 36 | 24 | 36 |
| Graphics card | — | Radeon Vega | — | AST2600 | — |
| Graphics card family | — | AMD | — | ASPEED | — |
| Harmonized System (HS) code | — | 84733020 | 84733020 | — | — |
| HDCP | Yes | — | — | — | Yes |
| HDMI | Nu | Da | Da | Nu | Nu |
| HDMI ports quantity | 2 | 1 | — | — | — |
| HDMI version | 2.1 | — | 2.1 | — | — |
| Headphone outputs | — | — | 3 | — | 1 |
| LAN controller | — | Realtek RTL8111H | — | Intel X710-AT2 | Realtek RTL8126 |
| Line-in | Yes | — | — | — | Yes |
| MAXIMUM-RESOLUTION | — | — | 3840 x 2160 pixels | — | 4096 x 2304 pixels |
| Maximum internal memory | 128 GB | 64 GB | — | 2 TB | 256 GB |
| MB-Format | micro-ATX | micro-ATX | micro-ATX | — | ATX |
| MB-Socket | 1700 | AM4 | 1700 | — | AM5 |
| Memorie maxima | 128 GB | 64 GB | 64 GB | 2 TB | 256 GB |
| Memory channels | Dual-channel | Dual-channel | — | Octa-channel | Dual-channel |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Microphone in | Yes | Yes | Yes | — | — |
| Model Chipset | B760 | A520 | H610 | C741 | Z890 |
| Motherboard chipset | Intel B760 | — | Intel H610 | Intel C741 | Intel Z890 Express |
| Motherboard chipset family | Intel | AMD | Intel | Intel | Intel |
| Motherboard form factor | micro ATX | micro ATX | micro ATX | Extended ATX | ATX |
| Numar sloturi memorie | 2 | 2 | 2 | 16 | 2 |
| Number of chassis fan connectors | — | 2 | 1 | — | 4 |
| Number of COM connectors | — | 1 | 1 | — | — |
| Number of HDDs supported | 6 | 5 | — | 10 | 4 |
| Number of M.2 (M) slots | 2 | — | 1 | 2 | 5 |
| Number of memory slots | 2 | 2 | 2 | 16 | 2 |
| Number of SATA III connectors | 4 | — | 4 | 10 | 4 |
| Number of storage drives supported | 4 | — | 5 | — | 9 |
| Onboard-CPU | No | — | No | — | No |
| Package weight | — | — | — | 2.75 kg | 3.05 kg |
| Parallel processing technology support | Not supported | — | — | — | Not supported |
| PCI-Ex1 | 2 | 1 | — | — | 1 |
| PCI-Ex16 | 1 | 1 | 1 | — | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 | 1 | 1 | — | — |
| PCI Express x16 (Gen 4.x) slots | 1 | — | 1 | — | 2 |
| PCI Express x16 (Gen 5.x) slots | — | — | — | 5 | 1 |
| Processor manufacturer | Intel | AMD | — | Intel | Intel |
| Processor socket | LGA 1700 | Socket AM4 | LGA 1700 | LGA 4677 (Socket E) | LGA 1851 (Socket V1) |
| PS/2 ports quantity | 1 | 1 | 2 | — | — |
| RAID levels | 0, 1, 5, 10 | — | — | — | 0, 1, 5, 10 |
| RAID support | Yes | — | — | — | Yes |
| RAM-Slots | 2 | 4 | 2 | — | 4 |
| RJ-45 LAN | 1 | 1 | 1 | 2 | 1 |
| Serial-or-Paralel | No/No | No/No | No/No | — | Yes/No |
| Sloturi M.2 | 2 | 1 | 1 | 2 | 5 |
| Soclu Procesor | Socket 1700 | Socket AM4 | Socket 1700 | Socket LGA 4677 | Socket 1851 |
| Supported memory clock speeds | 5600,6800,7200 MHz | 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz | 4800,5600 MHz | 10266 MHz |
| Supported memory types | DDR5-SDRAM | DDR4-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 | — | LGA 1700 | — | LGA 1851 |
| Supported storage drive interfaces | M.2, SATA III | M.2, SATA III | M.2, SATA III | M.2, SATA III | PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III |
| Supported storage drive types | — | — | HDD & SSD | HDD & SSD | HDD & SSD |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| Tip Memorie | DDR5 | DDR4 | DDR4 | DDR5 | DDR5 |
| Tip slot interfata grafica | PCIe 4.0 x16 | PCIe 3.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 5.0 x16 |
| TPM connector | Yes | — | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | Yes | — | Yes |
| USB 2.0 connectors | 4 | 2 | 2 | 1 | 2 |
| USB 2.0 ports quantity | 2 | 2 | 2 | — | 4 |
| USB3 | 4-8 | 4-8 | 4-8 | — | 4-8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 | 1 | 1 | 1 | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 | 4 | — | — | — |
| USB Type-C | N/A | Da | Da | N/A | N/A |
| VGA (D-Sub) ports quantity | — | 1 | 1 | 1 | — |
| Video-Connection | HDMI/DP | VGA/DVI/HDMI | VGA/DVI/HDMI | — | HDMI/DP |
| Wake-on-LAN ready | — | Yes | Yes | — | — |
| Weight | — | — | 842 g | 1.75 kg | 2.63 kg |
| Wi-Fi | No | No | — | — | Yes |
| Width | 244 mm | 230 mm | 226 mm | 304.8 mm | 244 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | — | Windows 10 x64, Windows 11 x64 | — | Windows 11 |
| Wireless | Nu | Nu | Nu | N/A | Da |
| Producator | ASROCK | ASROCK | ASUS | ASUS | GIGABYTE |
Analiză inteligentă a produsului
Descriere oficială
Placă de bază ASRock B760M-H2/M.2, micro-ATX, socket LGA1700, chipset Intel B760, suport DDR4 128 GB, PCIe 4.0 x16, slot M.2 PCIe Gen4, LAN Gigabit.
Specificații tehnice 86 caracteristici ⌄
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Bluetooth
- Nu
- Cables included
- SATA
- Canale audio
- 7.1
- Certification
- - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
- Chassis intrusion connector
- Yes
- Chipset audio integrat
- Realtek
- Compatible processor series
- Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Component for
- PC
- CPU fan connector
- Yes
- Depth
- 201 mm
- ECC сompatibility
- Non-ECC
- EPS power connector (8-pin)
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Format
- Micro-ATX
- Front panel connector
- Yes
- Gaming
- Nu
- Garantie
- 36
- HDCP
- Yes
- HDMI
- Nu
- HDMI ports quantity
- 2
- HDMI version
- 2.1
- Line-in
- Yes
- Maximum internal memory
- 128 GB
- Maximum internal memory supported by processor
- 128 GB
- Maximum number of SMP processors
- 1
- MB-Format
- micro-ATX
- MB-Socket
- 1700
- Memorie maxima
- 128 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Microphone in
- Yes
- Model Chipset
- B760
- Motherboard chipset
- Intel B760
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 2
- Number of HDDs supported
- 6
- Number of M.2 (M) slots
- 2
- Number of memory slots
- 2
- Number of SATA III connectors
- 4
- Number of storage drives supported
- 4
- Onboard-CPU
- No
- Parallel processing technology support
- Not supported
- PCI-Ex1
- 2
- PCI-Ex16
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- PS/2 ports quantity
- 1
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- RAM-Slots
- 2
- RJ-45 LAN
- 1
- Serial-or-Paralel
- No/No
- Sloturi M.2
- 2
- Soclu Procesor
- Socket 1700
- Supported memory clock speeds
- 5600,6800,7200 MHz
- Supported memory types
- DDR5-SDRAM
- Supported processor sockets
- LGA 1700
- Supported storage drive interfaces
- M.2, SATA III
- Thunderbolt
- Nu
- Tip Memorie
- DDR5
- Tip slot interfata grafica
- PCIe 4.0 x16
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB Type-C
- N/A
- Video-Connection
- HDMI/DP
- Wi-Fi
- No
- Width
- 244 mm
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Wireless
- Nu
- Producator
- ASROCK
