Placa de baza ASUS PRIME B760M-A WIFI D4, Socket 1700,

Placi de baza

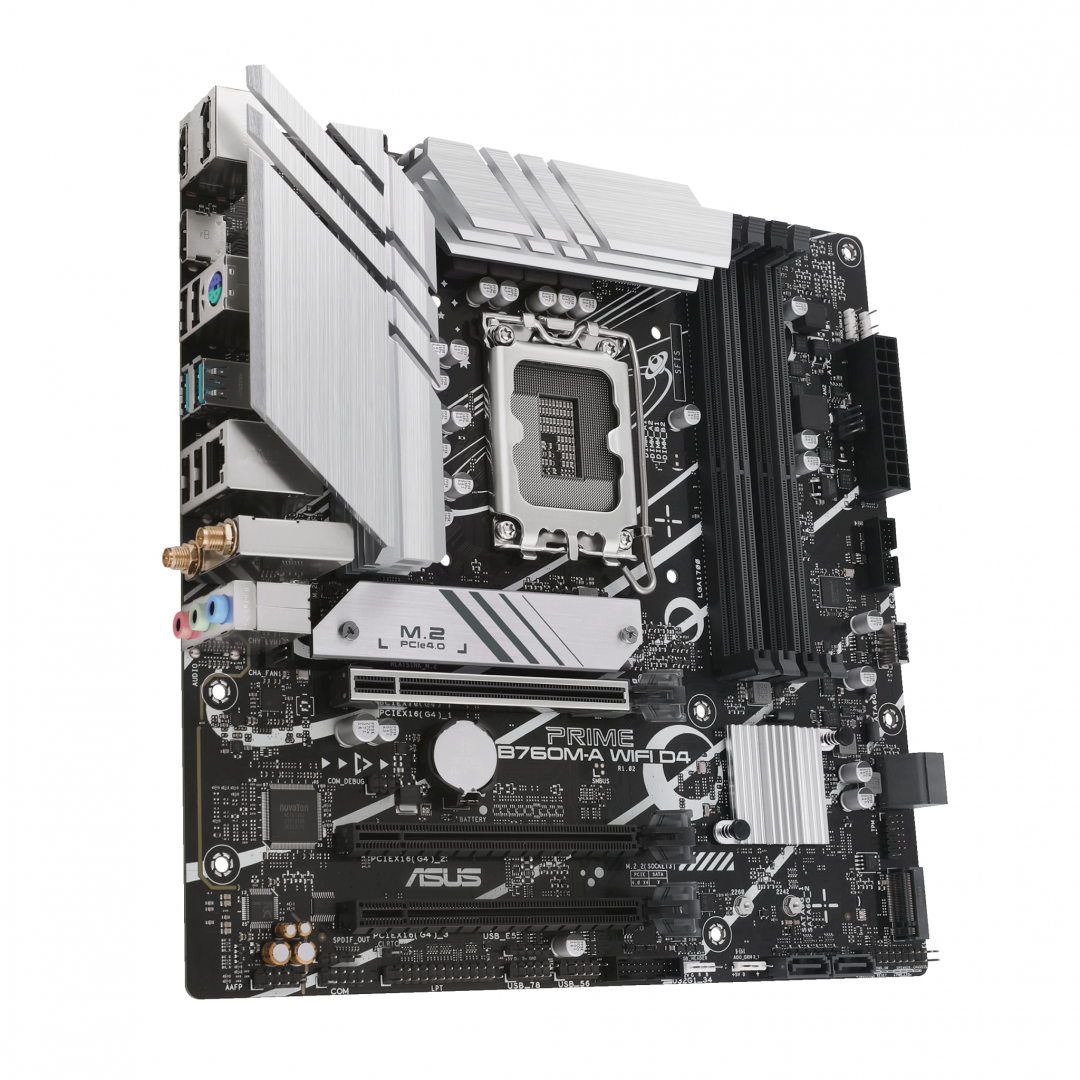

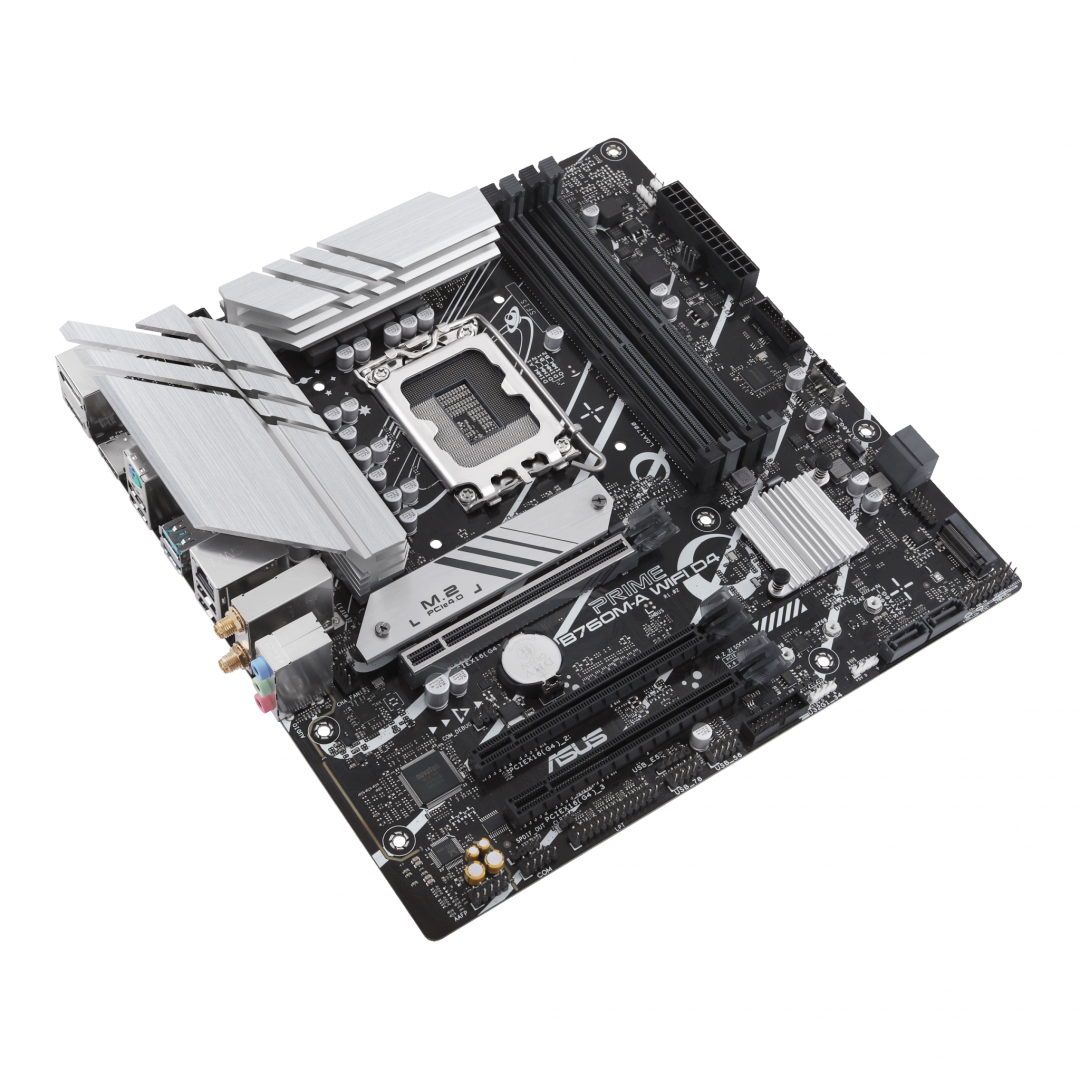

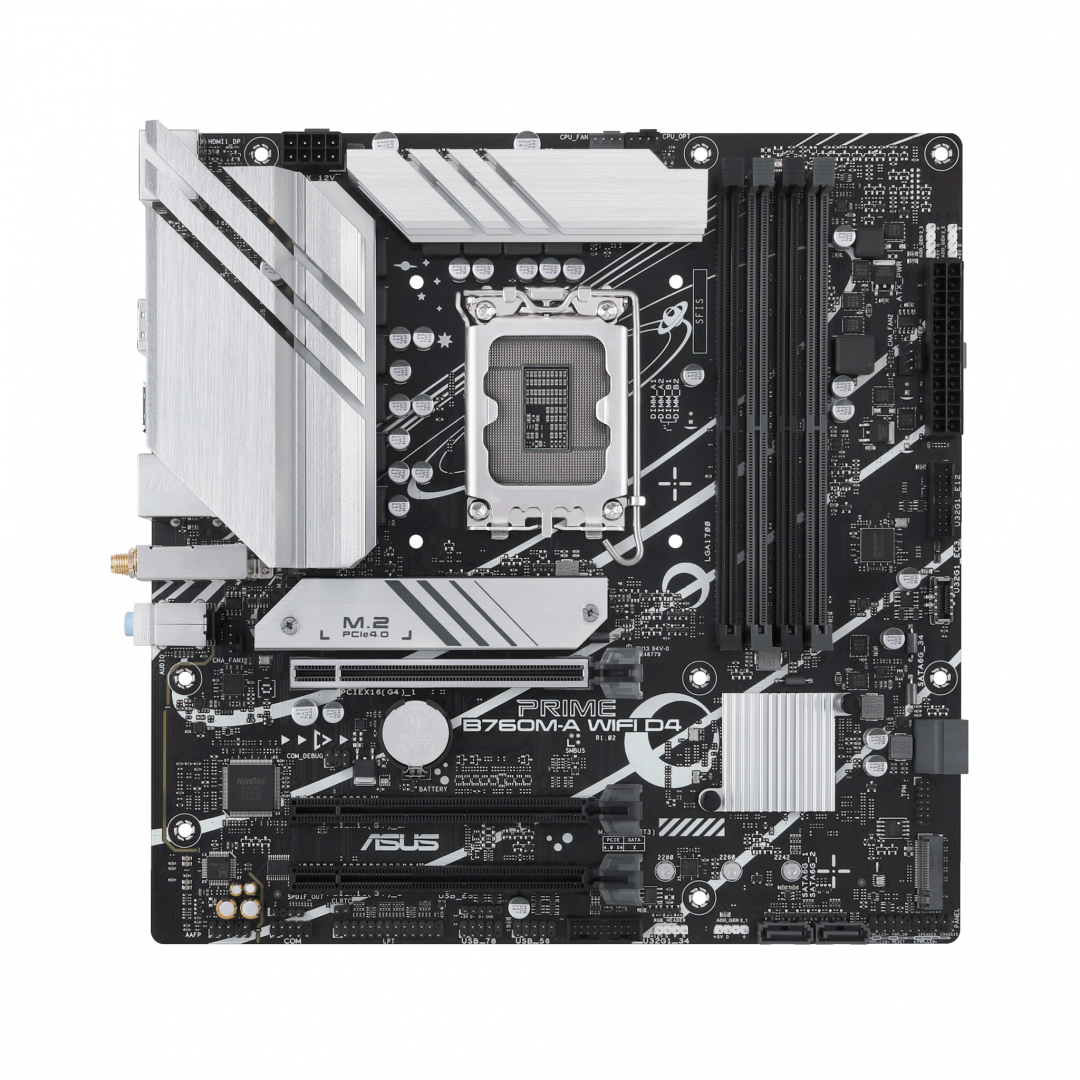

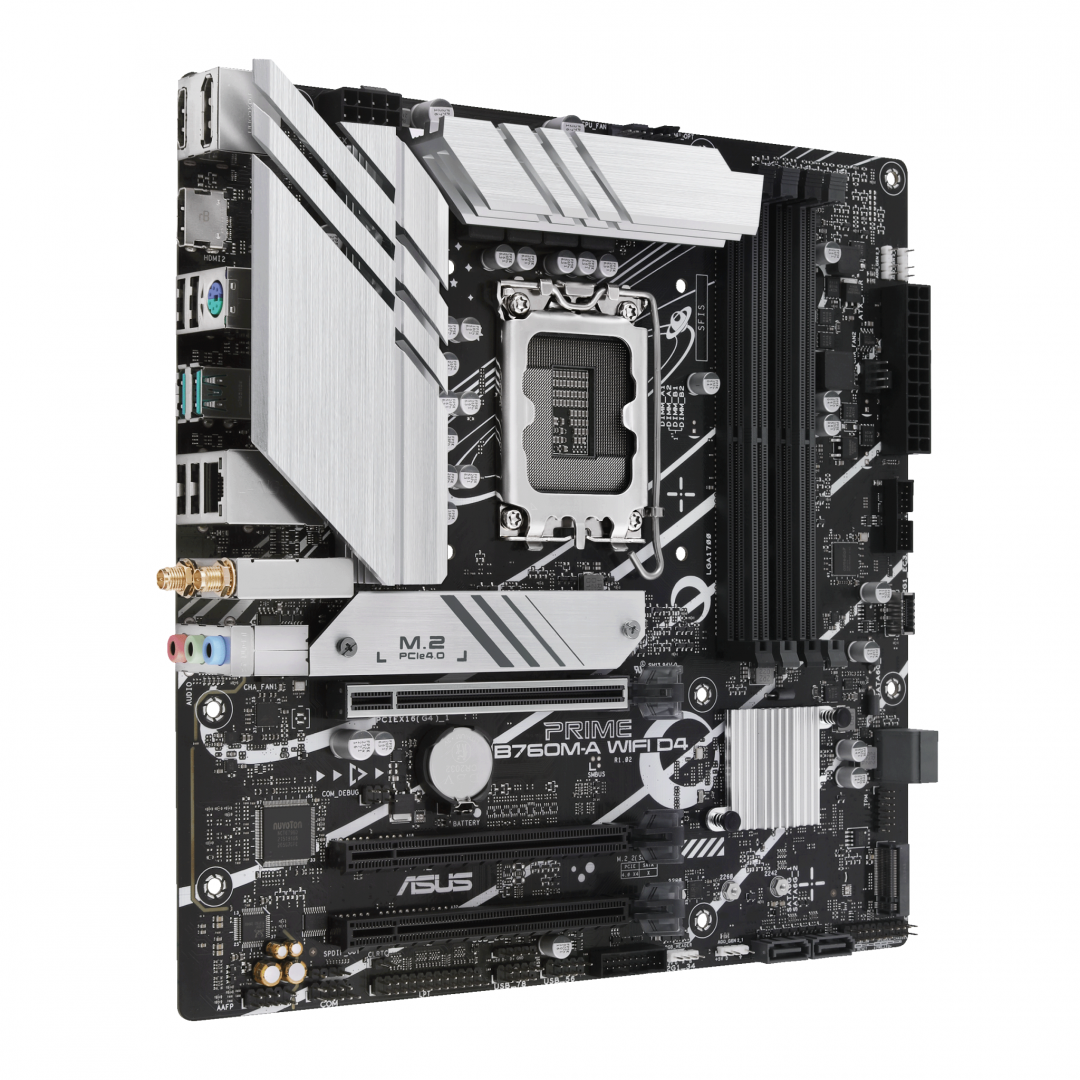

Placa de baza ASUS PRIME B760M-A WIFI D4, Socket 1700,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: PRIME B760M-A WID4

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza ASUS PRIME B760M-A WIFI D4, Socket 1700, Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX Placa de bază ASUS TUF GAMING B550-PLUS AM4 Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4,
Alte caracteristici
12V power connector Yes Yes — — Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip — — — Realtek ALC S1200A Realtek ALC887
Audio output channels 7.1 channels 7.1 channels — 7.1 channels 7.1 channels
BIOS memory size 128 Mbit 128 Mbit — 256 Mbit 256 Mbit
BIOS type UEFI AMI UEFI AMI — UEFI AMI UEFI AMI
Cables included SATA SATA — SATA SATA
Canale audio 7.1 7.1 N/A 7.1 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS button Yes — — — Yes
Clear CMOS jumper — Yes — Yes Yes
Compatible processor series — — Intel® Xeon® AMD Ryzen 3000 Series AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for PC PC Server Nettop PC
CPU fan connector Yes Yes — Yes Yes
CPU încorporat — — — No No
DisplayPorts quantity 1 — — 1 —
Drivers included — Yes — Yes Yes
DVI-D ports quantity — 1 — — 1
ECC сompatibility Non-ECC Non-ECC — ECC ECC & Non-ECC
EPS power connector (8-pin) Yes — Yes Yes —
Ethernet interface type 2.5 Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1 — 2 1 —
Format Micro-ATX Micro-ATX E-ATX ATX Micro-ATX
Front panel audio connector Yes Yes — Yes Yes
Gaming Nu Nu Nu Da Da
Harmonized System (HS) code — 84733020 — 84733020 84733020
Headphone outputs 3 3 — — 1
LAN controller — — Intel X710-AT2 Realtek RTL8125B —
MAXIMUM-RESOLUTION — 3840 x 2160 pixels — — 4096 x 2160 pixels
Maximum number of SMP processors — — — 1 1
MB-Format micro-ATX micro-ATX — ATX micro-ATX
MB-Socket 1700 1700 — AM4 AM4
Memorie maxima 128 GB 64 GB 2 TB 128 GB 128 GB
Memory slots type DIMM DIMM DIMM DIMM DIMM
Microphone in Yes Yes — — Yes
Model Chipset B760 H610 C741 B550 B550
Motherboard chipset Intel B760 Intel H610 Intel C741 AMD B550 AMD B550
Motherboard chipset family Intel Intel Intel AMD AMD
Motherboard form factor micro ATX micro ATX Extended ATX ATX micro ATX
Numar sloturi memorie 4 2 16 4 4
Number of chassis fan connectors 2 1 — 3 2
Number of COM connectors 1 1 — — —
Number of HDDs supported — — 10 — 4
Number of M.2 (M) slots 2 1 2 2 2
Number of memory slots 4 2 16 4 4
Number of SATA III connectors 4 4 10 6 4
Number of storage drives supported 6 5 — — 6
Onboard-CPU No No — — —
Package depth 275 mm — — — 265 mm
Package height 67.5 mm — — — 65 mm
Package weight 14 kg — 2.75 kg — 1.27 kg
Package width 275 mm — — — 265 mm
Parallel processing technology support Not supported — — 2-Way CrossFireX Not supported
PCI-Ex1 — — — 1 1
PCI-Ex16 3 1 — 2 1
PCI Express x1 (Gen 3.x) slots — 1 — 3 1
PCI Express x16 (Gen 4.x) slots 3 1 — 1 —
Processor socket LGA 1700 LGA 1700 LGA 4677 (Socket E) Socket AM4 Socket AM4
PS/2 ports quantity 1 2 — 1 1
RAID levels 0, 1, 5, 10 — — 0, 1, 10 0, 1, 10
RAM-Slots 4 2 — 4 4
RGB LED pin header Yes — — — Yes
RJ-45 LAN 1 1 2 1 1
Serial-or-Paralel No/No No/No — No/No No/No
Serial ports quantity — — 1 — 1
Sloturi M.2 2 1 2 2 2
Soclu Procesor Socket 1700 Socket 1700 Socket LGA 4677 Socket AM4 Socket AM4
Supported memory clock speeds 5333 MHz 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 4733 MHz
Supported memory module capacities — — 16GB, 32GB, 64GB, 128GB — 1GB, 2GB, 4GB, 16GB, 32GB
Supported memory types DDR4-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM DDR4-SDRAM
Supported processor sockets LGA 1700 LGA 1700 — Socket AM4 Socket AM4
Supported storage drive interfaces M.2, SATA III M.2, SATA III M.2, SATA III M.2, SATA M.2, SATA III
Supported storage drive types HDD & SSD HDD & SSD HDD & SSD — HDD & SSD
Tip Memorie DDR4 DDR4 DDR5 DDR4 DDR4
Tip slot interfata grafica PCIe 4.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 N/A PCIe 4.0 x16
TPM connector Yes Yes Yes Yes Yes
Unbuffered memory Yes Yes — — Yes
USB 2.0 connectors 3 2 1 2 1
USB3 4-8 4-8 — 4-8 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 3 1 1 1 1
VGA (D-Sub) ports quantity — 1 1 — —
Video-Connection HDMI/DP VGA/DVI/HDMI — HDMI/DP DVI/HDMI
Wi-Fi Yes — — No No
Windows operating systems supported Windows 10 x64, Windows 11 Windows 10 x64, Windows 11 x64 — Windows 10 x64 Windows 10 x64, Windows 11 x64
Wireless Da Nu N/A Nu Nu
Caracteristici fizice
Greutate — 842 g 1.75 kg 945 g —
Conectivitate
Tip conector USB — USB Type-A — — USB Type-A
Laptopuri - Caracteristici fizice 25.09
Adâncime 24.4 mm 193 mm 330.2 mm 24.4 mm 24.4 mm
Lățime 244 mm 226 mm 304.8 mm 30.5 mm 244 mm
Înălțime — — — 6.8 mm 35 mm
Laptopuri - Conectivitate și porturi 25.09
Bluetooth Yes Nu Nu Nu Nu
HDMI Da Da Nu Da Da
Număr porturi HDMI 2 — — 1 1
Număr porturi USB 2.0 4 2 — 2 4
Porturi USB-A 3.2 Gen 1 — — — 4 4
Rețea prin cablu (LAN) Yes — Yes Yes Yes
Thunderbolt Nu Nu Nu Nu Nu
USB-C Da Da N/A Da Da
Versiune HDMI 2.1 2.1 — — 2.1
Laptopuri - Generale
Garanție comercială 36 36 24 36 36
Producător ASUS ASUS ASUS ASUS GIGABYTE
Laptopuri - Memorie RAM 25.09
Canale memorie RAM Dual-channel — Octa-channel Dual-channel Dual-channel
Memorie RAM maximă 128 GB — 2 TB 128 GB 128 GB
Laptopuri - Procesor
Producător procesor Intel — Intel AMD AMD

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placa de baza ASUS PRIME B760M-A WIFI DDR4 LGA1700 Model PRIME B760M-A WIFI D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort** 2 x HDMI® ports*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

Specificații tehnice 91 caracteristici
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Cables included
SATA
Canale audio
7.1
Chipset audio integrat
Realtek
Clear CMOS button
Yes
Component for
PC
CPU fan connector
Yes
DisplayPorts quantity
1
DisplayPort version
1.4
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports
1
Format
Micro-ATX
Front panel audio connector
Yes
Gaming
Nu
Headphone outputs
3
Line-in
Yes
MB-Format
micro-ATX
MB-Socket
1700
Memorie maxima
128 GB
Memory slots type
DIMM
Microphone in
Yes
Model Chipset
B760
Motherboard chipset
Intel B760
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Numar sloturi memorie
4
Number of chassis fan connectors
2
Number of COM connectors
1
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA III connectors
4
Number of storage drives supported
6
Onboard-CPU
No
Package depth
275 mm
Package height
67.5 mm
Package weight
14 kg
Package width
275 mm
Parallel processing technology support
Not supported
PCI-Ex16
3
PCI Express x16 (Gen 4.x) slots
3
Processor socket
LGA 1700
PS/2 ports quantity
1
RAID levels
0, 1, 5, 10
RAID support
Yes
RAM-Slots
4
RGB LED pin header
Yes
RJ-45 LAN
1
S/PDIF out connector
Yes
Serial-or-Paralel
No/No
Sloturi M.2
2
Soclu Procesor
Socket 1700
Supported memory clock speeds
5333 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Tip Memorie
DDR4
Tip slot interfata grafica
PCIe 4.0 x16
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
3
USB3
4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Video-Connection
HDMI/DP
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Windows operating systems supported
Windows 10 x64, Windows 11
Wireless
Da
Adâncime
24.4 mm
Lățime
244 mm
Bluetooth
Yes
HDMI
Da
Număr porturi HDMI
2
Număr porturi USB 2.0
4
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 6 (802.11ax)
Thunderbolt
Nu
USB-C
Da
Versiune Bluetooth
5.2
Versiune HDMI
2.1
Garanție comercială
36
Producător
ASUS
Canale memorie RAM
Dual-channel
Memorie RAM maximă
128 GB
Producător procesor
Intel
