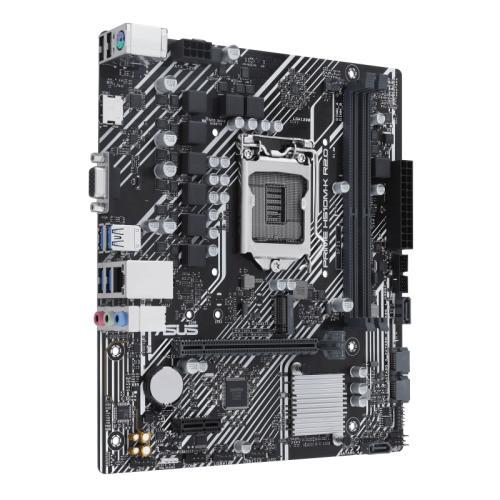

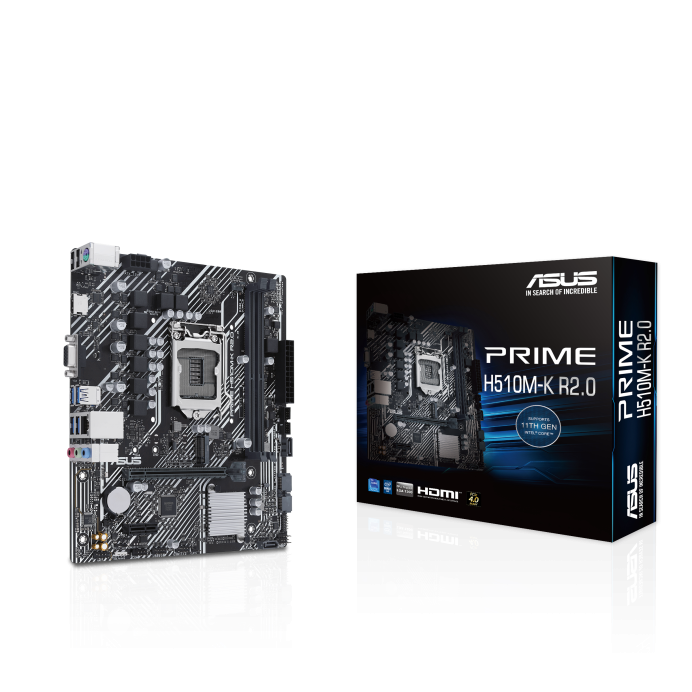

Placa de baza ASUS PRIME H510M-K R2.0, Socket 1200, DDR4,
583,99 lei
Placa de baza ASUS PRIME H510M-K R2.0, Socket 1200, DDR4,
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: PRIME H510M-K R2.0
Livrare și beneficii
Compară cu produse similare
Placa de baza ASUS PRIME H510M-K R2.0, Socket 1200, DDR4,
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 454,98 lei
Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
7.806,99 lei
Placa de bază ASUS TUF GAMING B550-PLUS AM4
571,99 lei 667,99 lei
Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4,
605,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza ASUS PRIME H510M-K R2.0, Socket 1200, DDR4, | Placa de bază ASUS PRIME H610M-R D4 LGA1700 | Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX | Placa de bază ASUS TUF GAMING B550-PLUS AM4 | Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 12V power connector | Yes | Yes | — | — | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | — | — | — | Realtek ALC S1200A | Realtek ALC887 |
| Audio output channels | 7.1 channels | 7.1 channels | — | 7.1 channels | 7.1 channels |
| BIOS memory size | 128 Mbit | 128 Mbit | — | 256 Mbit | 256 Mbit |
| BIOS type | EFI AMI | UEFI AMI | — | UEFI AMI | UEFI AMI |
| Cables included | — | SATA | — | SATA | SATA |
| Canale audio | 7.1 | 7.1 | N/A | 7.1 | 7.1 |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Clear CMOS jumper | — | Yes | — | Yes | Yes |
| Compatible processor series | — | — | Intel® Xeon® | AMD Ryzen 3000 Series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| Component for | PC | PC | Server | Nettop | PC |
| CPU fan connector | Yes | Yes | — | Yes | Yes |
| CPU încorporat | — | — | — | No | No |
| Drivers included | — | Yes | — | Yes | Yes |
| DVI-D ports quantity | — | 1 | — | — | 1 |
| ECC сompatibility | Non-ECC | Non-ECC | — | ECC | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes | — | Yes | Yes | — |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet | Gigabit Ethernet | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | 2.5 Gigabit Ethernet | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 | — | 2 | 1 | — |
| Format | Micro-ATX | Micro-ATX | E-ATX | ATX | Micro-ATX |
| Front panel audio connector | Yes | Yes | — | Yes | Yes |
| Gaming | Nu | Nu | Nu | Da | Da |
| Harmonized System (HS) code | — | 84733020 | — | 84733020 | 84733020 |
| Headphone outputs | — | 3 | — | — | 1 |
| LAN controller | — | — | Intel X710-AT2 | Realtek RTL8125B | — |
| MAXIMUM-RESOLUTION | — | 3840 x 2160 pixels | — | — | 4096 x 2160 pixels |
| Maximum number of SMP processors | — | — | — | 1 | 1 |
| MB-Format | ATX | micro-ATX | — | ATX | micro-ATX |
| MB-Socket | AM4 | 1700 | — | AM4 | AM4 |
| Memorie maxima | 64 GB | 64 GB | 2 TB | 128 GB | 128 GB |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Microphone in | — | Yes | — | — | Yes |
| Model Chipset | H510 | H610 | C741 | B550 | B550 |
| Motherboard chipset | Intel H510 | Intel H610 | Intel C741 | AMD B550 | AMD B550 |
| Motherboard chipset family | Intel | Intel | Intel | AMD | AMD |
| Motherboard form factor | micro ATX | micro ATX | Extended ATX | ATX | micro ATX |
| Numar sloturi memorie | 2 | 2 | 16 | 4 | 4 |
| Number of chassis fan connectors | 1 | 1 | — | 3 | 2 |
| Number of HDDs supported | 4 | — | 10 | — | 4 |
| Number of M.2 (M) slots | 1 | 1 | 2 | 2 | 2 |
| Number of memory slots | 2 | 2 | 16 | 4 | 4 |
| Number of SATA III connectors | 4 | 4 | 10 | 6 | 4 |
| Number of storage drives supported | 5 | 5 | — | — | 6 |
| Onboard-CPU | Yes | No | — | — | — |
| Package weight | — | — | 2.75 kg | — | 1.27 kg |
| Parallel processing technology support | — | — | — | 2-Way CrossFireX | Not supported |
| PCI-Ex1 | 1 | — | — | 1 | 1 |
| PCI-Ex16 | 2 | 1 | — | 2 | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 | 1 | — | 3 | 1 |
| PCI Express x16 (Gen 4.x) slots | — | 1 | — | 1 | — |
| Processor socket | LGA 1200 (Socket H5) | LGA 1700 | LGA 4677 (Socket E) | Socket AM4 | Socket AM4 |
| PS/2 ports quantity | 1 | 2 | — | 1 | 1 |
| RAID levels | — | — | — | 0, 1, 10 | 0, 1, 10 |
| RAM-Slots | 4 | 2 | — | 4 | 4 |
| RJ-45 LAN | 1 | 1 | 2 | 1 | 1 |
| Serial-or-Paralel | No/No | No/No | — | No/No | No/No |
| Serial ports quantity | — | — | 1 | — | 1 |
| Sloturi M.2 | 1 | 1 | 2 | 2 | 2 |
| Soclu Procesor | Socket 1200 | Socket 1700 | Socket LGA 4677 | Socket AM4 | Socket AM4 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz | 4800,5600 MHz | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz | 4733 MHz |
| Supported memory module capacities | — | — | 16GB, 32GB, 64GB, 128GB | — | 1GB, 2GB, 4GB, 16GB, 32GB |
| Supported memory types | DDR4-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR4-SDRAM |
| Supported processor sockets | — | LGA 1700 | — | Socket AM4 | Socket AM4 |
| Supported storage drive interfaces | M.2, SATA III | M.2, SATA III | M.2, SATA III | M.2, SATA | M.2, SATA III |
| Supported storage drive types | HDD & SSD | HDD & SSD | HDD & SSD | — | HDD & SSD |
| Tip Memorie | DDR4 | DDR4 | DDR5 | DDR4 | DDR4 |
| Tip slot interfata grafica | PCIe 3.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | N/A | PCIe 4.0 x16 |
| TPM connector | Yes | Yes | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | — | — | Yes |
| USB 2.0 connectors | 2 | 2 | 1 | 2 | 1 |
| USB3 | 4-8 | 4-8 | — | 4-8 | 4-8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 | 1 | 1 | 1 | 1 |
| USB connector type | — | USB Type-A | — | — | USB Type-A |
| VGA (D-Sub) ports quantity | 1 | 1 | 1 | — | — |
| Video-Connection | HDMI | VGA/DVI/HDMI | — | HDMI/DP | DVI/HDMI |
| Wi-Fi | No | — | — | No | No |
| Windows operating systems supported | Windows 10 x64 | Windows 10 x64, Windows 11 x64 | — | Windows 10 x64 | Windows 10 x64, Windows 11 x64 |
| Wireless | Nu | Nu | N/A | Nu | Nu |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 203 mm | 193 mm | 330.2 mm | 24.4 mm | 24.4 mm |
| Lățime | 226 mm | 226 mm | 304.8 mm | 30.5 mm | 244 mm |
| Înălțime | — | — | — | 6.8 mm | 35 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Bluetooth | Nu | Nu | Nu | Nu | Nu |
| HDMI | Da | Da | Nu | Da | Da |
| Număr porturi HDMI | 1 | — | — | 1 | 1 |
| Număr porturi USB 2.0 | 2 | 2 | — | 2 | 4 |
| Porturi USB-A 3.2 Gen 1 | 4 | — | — | 4 | 4 |
| Rețea prin cablu (LAN) | Yes | — | Yes | Yes | Yes |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | N/A | Da | Da |
| Versiune HDMI | — | 2.1 | — | — | 2.1 |
| Laptopuri - Construcție | |||||
| Greutate | — | 842 g | 1.75 kg | 945 g | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 24 | 36 | 36 |
| Producător | ASUS | ASUS | ASUS | ASUS | GIGABYTE |
| Laptopuri - Memorie RAM 25.09 | |||||
| Canale memorie RAM | Dual-channel | — | Octa-channel | Dual-channel | Dual-channel |
| Memorie RAM maximă | 64 GB | — | 2 TB | 128 GB | 128 GB |
| Laptopuri - Procesor | |||||
| Producător procesor | Intel | — | Intel | AMD | AMD |
Analiză inteligentă a produsului
Descriere oficială
Placa de baza Asus PRIME H510M-K R2.0 LGA 1200, 2x DDR4, 1x VGA, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX
Specificații tehnice 75 caracteristici ⌄
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio output channels
- 7.1 channels
- BIOS memory size
- 128 Mbit
- BIOS type
- EFI AMI
- Canale audio
- 7.1
- Chipset audio integrat
- Realtek
- Component for
- PC
- COM ports quantity
- 1
- CPU fan connector
- Yes
- ECC сompatibility
- Non-ECC
- EPS power connector (8-pin)
- Yes
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Format
- Micro-ATX
- Front panel audio connector
- Yes
- Gaming
- Nu
- MB-Format
- ATX
- MB-Socket
- AM4
- Memorie maxima
- 64 GB
- Memory slots type
- DIMM
- Model Chipset
- H510
- Motherboard chipset
- Intel H510
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 2
- Number of chassis fan connectors
- 1
- Number of HDDs supported
- 4
- Number of M.2 (M) slots
- 1
- Number of memory slots
- 2
- Number of SATA III connectors
- 4
- Number of storage drives supported
- 5
- Onboard-CPU
- Yes
- PCI-Ex1
- 1
- PCI-Ex16
- 2
- PCI Express x1 (Gen 3.x) slots
- 1
- Processor socket
- LGA 1200 (Socket H5)
- PS/2 ports quantity
- 1
- RAM-Slots
- 4
- RJ-45 LAN
- 1
- S/PDIF out connector
- Yes
- Serial-or-Paralel
- No/No
- Sloturi M.2
- 1
- Soclu Procesor
- Socket 1200
- Supported memory clock speeds
- 2133,2400,2666,2800,2933,3000,3200 MHz
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Tip Memorie
- DDR4
- Tip slot interfata grafica
- PCIe 3.0 x16
- TPM connector
- Yes
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 2
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- VGA (D-Sub) ports quantity
- 1
- Video-Connection
- HDMI
- Wi-Fi
- No
- Windows operating systems supported
- Windows 10 x64
- Wireless
- Nu
- Adâncime
- 203 mm
- Lățime
- 226 mm
- Bluetooth
- Nu
- HDMI
- Da
- Număr porturi HDMI
- 1
- Număr porturi USB 2.0
- 2
- Porturi USB-A 3.2 Gen 1
- 4
- Rețea prin cablu (LAN)
- Yes
- Thunderbolt
- Nu
- USB-C
- Da
- Garanție comercială
- 36
- Producător
- ASUS
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 64 GB
- Producător procesor
- Intel
