Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket

Placi de baza

Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: PRO WS WRX80E-SAGE

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX Placa de bază ASUS TUF GAMING B550-PLUS AM4 Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA
Alte caracteristici
12V power connector — Yes — — Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip — — — Realtek ALC S1200A Realtek ALC1220
Audio output channels — 7.1 channels — 7.1 channels 7.1 channels
BIOS memory size 256 Mbit 128 Mbit — 256 Mbit 512 Mbit
BIOS type UEFI AMI UEFI AMI — UEFI AMI UEFI AMI
Bluetooth Da Nu Nu Nu Yes
Cables included SATA, VGA SATA — SATA —
Canale audio N/A 7.1 N/A 7.1 7.1
Chassis intrusion connector Yes Yes — — —
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS button Yes — — — Yes
Clear CMOS jumper — Yes — Yes Yes
Compatible processor series AMD Ryzen Threadripper PRO 3000 WX-Series — Intel® Xeon® AMD Ryzen 3000 Series Intel Core Ultra (Series 2)
Component for PC PC Server Nettop PC
Cooling type Passive — — — Passive
CPU fan connector Yes Yes — Yes Yes
CPU încorporat Yes — — No —
Depth 330 mm 193 mm 330.2 mm 24.4 mm 305 mm
DisplayPorts quantity — — — 1 1
Drivers included Yes Yes — Yes —
ECC сompatibility ECC & Non-ECC Non-ECC — ECC ECC & Non-ECC
EPS power connector (8-pin) Yes — Yes Yes Yes
Ethernet interface type 10 Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet LAN (RJ-45) ports — — 2 1 1
Format E-ATX Micro-ATX E-ATX ATX ATX
Front panel audio connector — Yes — Yes Yes
Gaming Da Nu Nu Da Nu
Harmonized System (HS) code 84733020 84733020 — 84733020 —
HDMI Nu Da Nu Da Nu
Headphone outputs 1 3 — — 1
Height 108 mm — — 6.8 mm 35 mm
LAN controller Intel X550-T2 — Intel X710-AT2 Realtek RTL8125B Realtek RTL8126
MAXIMUM-RESOLUTION — 3840 x 2160 pixels — — 4096 x 2304 pixels
Maximum number of SMP processors 1 — — 1 —
MB-Format — micro-ATX — ATX ATX
MB-Socket — 1700 — AM4 AM5
Memorie maxima 2 TB 64 GB 2 TB 128 GB 256 GB
Memory channels Octa-channel — Octa-channel Dual-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Model Chipset WRX80 H610 C741 B550 Z890
Motherboard chipset AMD WRX80 Intel H610 Intel C741 AMD B550 Intel Z890 Express
Motherboard chipset family AMD Intel Intel AMD Intel
Motherboard form factor Extended ATX micro ATX Extended ATX ATX ATX
Numar sloturi memorie 8 2 16 4 2
Number of chassis fan connectors 6 1 — 3 4
Number of HDDs supported — — 10 — 4
Number of M.2 (M) slots 3 1 2 2 5
Number of memory slots 8 2 16 4 2
Number of SATA III connectors 8 4 10 6 4
Number of storage drives supported — 5 — — 9
Onboard-CPU — No — — No
Package weight — — 2.75 kg — 3.05 kg
Parallel processing technology support 2-Way SLI, 3-Way SLI, 4-Way SLI — — 2-Way CrossFireX Not supported
PCI-Ex1 — — — 1 1
PCI-Ex16 — 1 — 2 4
PCI Express x1 (Gen 3.x) slots — 1 — 3 —
PCI Express x16 (Gen 4.x) slots — 1 — 1 2
PCI Express x16 (Gen 5.x) slots — — 5 — 1
Processor socket Socket SP3 LGA 1700 LGA 4677 (Socket E) Socket AM4 LGA 1851 (Socket V1)
PS/2 ports quantity — 2 — 1 —
RAID levels 0, 1, 5, 10 — — 0, 1, 10 0, 1, 5, 10
RAID support Yes — — — Yes
RAM-Slots — 2 — 4 4
RJ-45 LAN N/A 1 2 1 1
S/PDIF out port — — — Yes Yes
Serial-or-Paralel No/No No/No — No/No Yes/No
Sloturi M.2 3 1 2 2 5
Soclu Procesor Socket sWRX8 Socket 1700 Socket LGA 4677 Socket AM4 Socket 1851
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200 MHz 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 10266 MHz
Supported memory types DDR4-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM
Supported processor sockets — LGA 1700 — Socket AM4 LGA 1851
Supported storage drive interfaces SATA III M.2, SATA III M.2, SATA III M.2, SATA PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III
Supported storage drive types — HDD & SSD HDD & SSD — HDD & SSD
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR4 DDR4 DDR5 DDR4 DDR5
Tip slot interfata grafica PCIe 4.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 N/A PCIe 5.0 x16
TPM connector Yes Yes Yes Yes Yes
Unbuffered memory — Yes — — Yes
USB 2.0 connectors 2 2 1 2 2
USB3 — 4-8 — 4-8 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 1 1 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 — — — 1
USB Type-C Da Da N/A Da N/A
VGA (D-Sub) ports quantity 1 1 1 — —
Video-Connection None VGA/DVI/HDMI — HDMI/DP HDMI/DP
Wi-Fi Yes — — No Yes
Width 309.8 mm 226 mm 304.8 mm 30.5 mm 244 mm
Windows operating systems supported Windows 10 x64 Windows 10 x64, Windows 11 x64 — Windows 10 x64 Windows 11
Wireless Da Nu N/A Nu Da
Laptopuri - Conectivitate
Rețea prin cablu (LAN) Yes — Yes Yes Yes
Standard Wi-Fi Wi-Fi 6 (802.11ax) — — — Wi-Fi 7 (802.11be)
Laptopuri - Construcție
Greutate 572 g 842 g 1.75 kg 945 g 2.63 kg
Laptopuri - Generale
Garanție comercială 36 36 24 36 36
Producător ASUS ASUS ASUS ASUS GIGABYTE
Laptopuri - Memorie
Memorie RAM maximă 2 TB — 2 TB 128 GB 256 GB
Laptopuri - Porturi
Număr porturi USB 2.0 — 2 — 2 4
Număr USB-A 3.2 Gen 2 9 — — 1 —
Laptopuri - Procesor
Producător procesor AMD — Intel AMD Intel

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

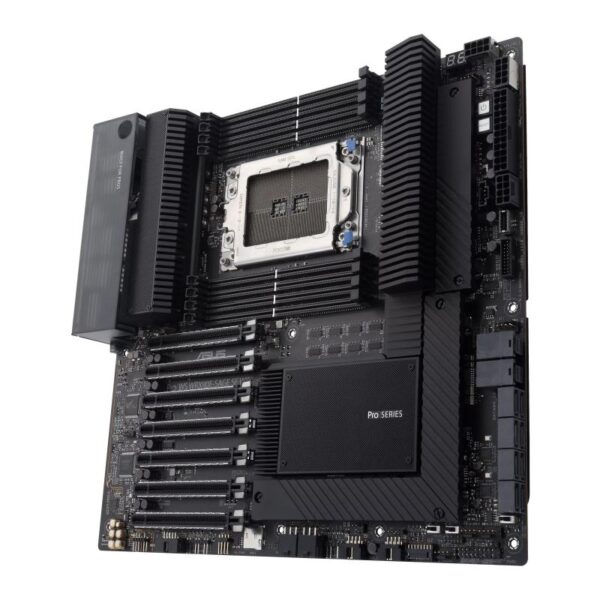

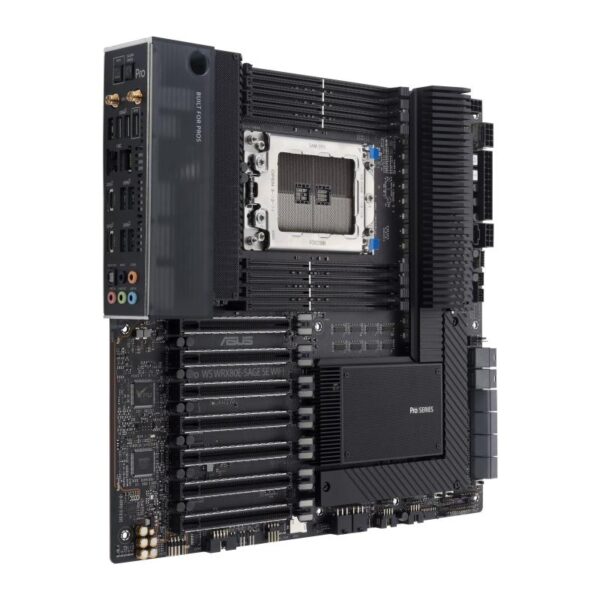

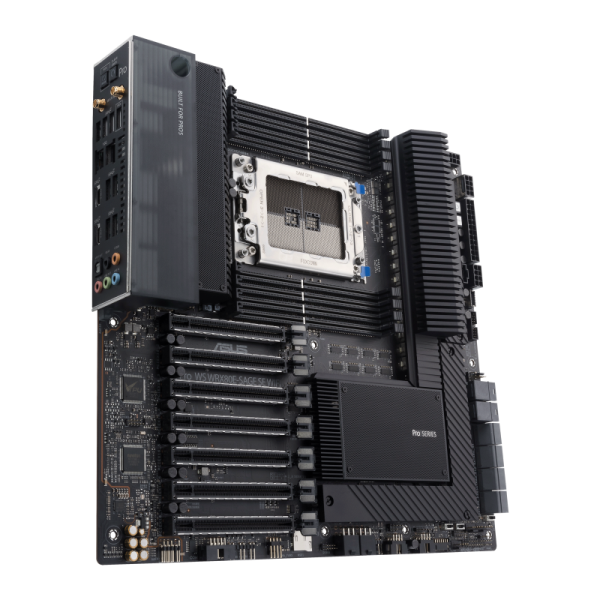

Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket sWRX8

General
Recomandat pentru Gaming
Da
Format
eATX
Soclu procesor
sWRX8
Producator chipset
AMD
Model chipset
WRX80
Procesoare suportate
AMD WRX8 Socket AMD® Ryzen™ Threadripper™ Pro Processors*
Interfata grafica
PCI Express x16 4.0
RAID
0, 1, 10
Placa audio integrata
7.1 Audio with ALC4080
Chipset audio
Realtek ALC4080
Placa retea integrata
10/100/1000/2500/5000/10000 Mbps
Chipset retea
Intel® X550-AT2 dual 10Gb
Numar SATA-III
8
M.2
3
Memorii Suportate
Tip memorie
DDR4
Memorie maxima
2048 GB
Numar sloturi
8
Tehnologie
Eight Channel
Frecvente suportate
3200/3000/2933/2800/2666/2400/2133 MHz
Sloturi
PCI Express 4.0 x16
7

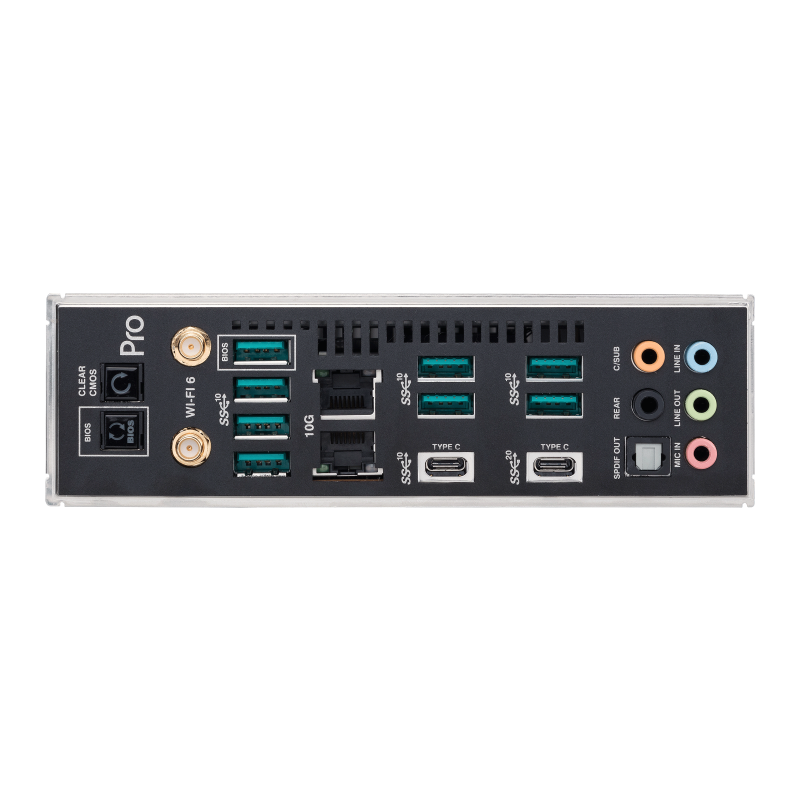

Conectori Back Panel
Optical S/PDIF out
1
Clear CMOS
1
USB 3.2 Gen2 tip A
8
USB 3.2 Gen2 tip C
2
RJ-45 LAN
2
Suport audio
7.1
Bluetooth
Bluetooth 5.1
Wireless
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Conectori speciali
1x BIOS Flashback Button
BIOS Flashback
Da
Specificații tehnice 79 caracteristici
ATX Power connector (24-pin)
Yes
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Da
Cables included
SATA, VGA
Canale audio
N/A
Chassis intrusion connector
Yes
Chipset audio integrat
Realtek
Clear CMOS button
Yes
Compatible operating systems
Windows 10
Compatible processor series
AMD Ryzen Threadripper PRO 3000 WX-Series
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
CPU încorporat
Yes
Depth
330 mm
Drivers included
Yes
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
10 Gigabit Ethernet
Format
E-ATX
Gaming
Da
Harmonized System (HS) code
84733020
HDMI
Nu
Headphone outputs
1
Height
108 mm
LAN controller
Intel X550-T2
Maximum number of SMP processors
1
Memorie maxima
2 TB
Memory channels
Octa-channel
Memory slots type
DIMM
Model Chipset
WRX80
Motherboard chipset
AMD WRX80
Motherboard chipset family
AMD
Motherboard form factor
Extended ATX
Numar sloturi memorie
8
Number of chassis fan connectors
6
Number of M.2 (M) slots
3
Number of memory slots
8
Number of processors supported
1
Number of SATA III connectors
8
Parallel processing technology support
2-Way SLI, 3-Way SLI, 4-Way SLI
PCI Express x16 slots
7
Processor number of cores supported
64
Processor socket
Socket SP3
RAID levels
0, 1, 5, 10
RAID support
Yes
RJ-45 LAN
N/A
Serial-or-Paralel
No/No
Sloturi M.2
3
Soclu Procesor
Socket sWRX8
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Thunderbolt
Nu
Tip Memorie
DDR4
Tip slot interfata grafica
PCIe 4.0 x16
TPM connector
Yes
Trusted Platform Module (TPM)
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB Type-C
Da
VGA (D-Sub) ports quantity
1
Video-Connection
None
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width
309.8 mm
Windows operating systems supported
Windows 10 x64
Wireless
Da
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 6 (802.11ax)
Greutate
572 g
Garanție comercială
36
Producător
ASUS
Memorie RAM maximă
2 TB
Număr USB-A 3.2 Gen 2
9
Număr nuclee procesor
64
Producător procesor
AMD
