Placi de baza

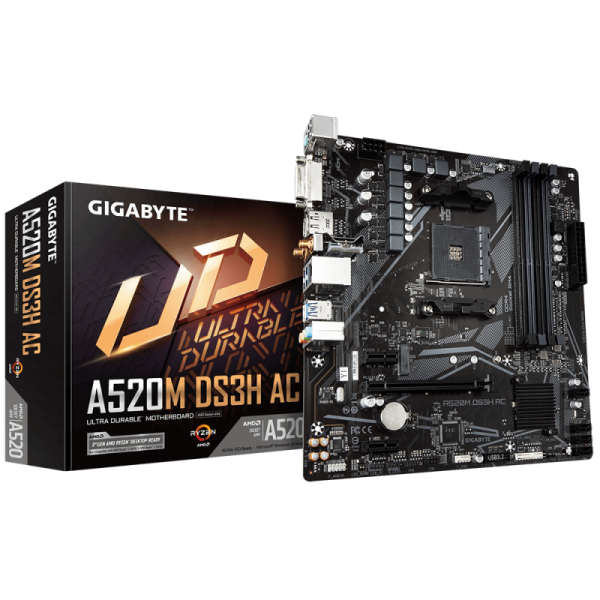

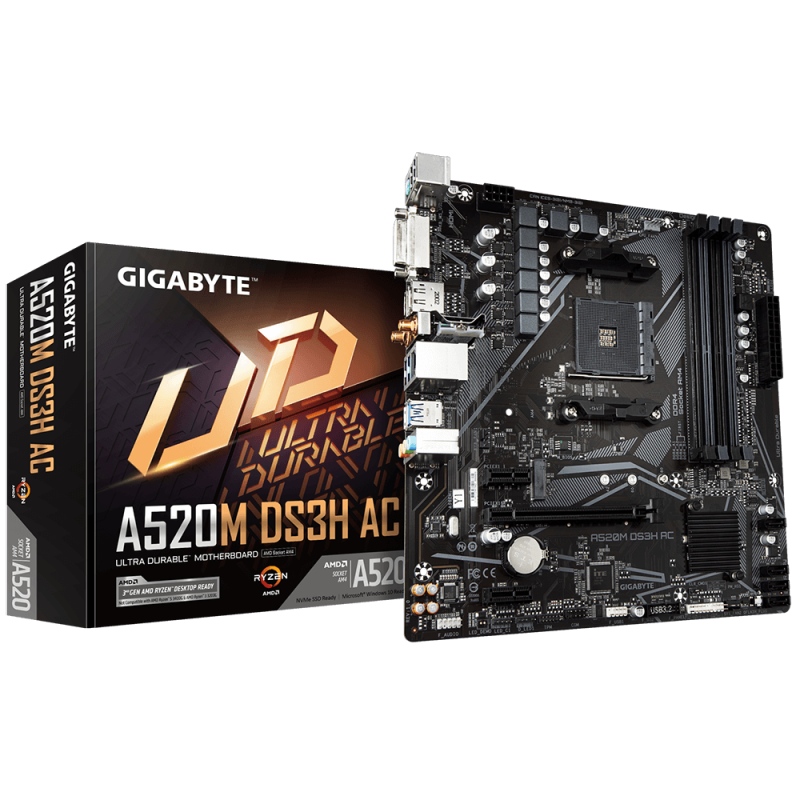

Placa de baza Gigabyte A520M DS3H AC, Socket AM4, DDR4,

(0) Stoc epuizat

Vândut de RITC.ro Cod produs: A520M DS3H AC

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Produsul curent

Placa de baza Gigabyte A520M DS3H AC, Socket AM4, DDR4,

474,99 lei

Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA

1.676,00 lei ~~1.980,00 lei~~

Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4,

837,99 lei ~~989,99 lei~~

Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5,

1.179,99 lei ~~1.393,99 lei~~

Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,

713,98 lei ~~843,99 lei~~

Vezi comparația completă

Evidențiază diferențele

Caracteristică	Placa de baza Gigabyte A520M DS3H AC, Socket AM4, DDR4,	Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA	Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4,	Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5,	Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,
Alte caracteristici
1st M.2 highest PCI Express generation	3.0	5.0	4.0	5.0	4.0
1st M.2 largest key size	2280	25110	22110	2280	22110
2nd M.2 highest PCI Express generation	—	4.0	3.0	4.0	3.0
2nd M.2 largest key size	—	22110	22110	2280	22110
3rd M.2 highest PCI Express generation	—	4.0	—	4.0	—
3rd M.2 largest key size	—	22110	—	2280	—
12V power connector	Yes	Yes	Yes	Yes	Yes
ACPI version	5.0	5.0	5.0	5.0	5.0
Antenna included	Yes	Yes	Yes	Yes	Yes
ATX Power connector (24-pin)	Yes	Yes	Yes	Yes	Yes
Audio Chip	—	Realtek ALC1220	Realtek ALC897	Realtek ALC1220	Realtek ALC897
Audio output channels	7.1 channels	7.1 channels	7.1 channels	7.1 channels	7.1 channels
Batteries included	Yes	Yes	Yes	Yes	Yes
Battery-Capacity	—	220 mAh	220 mAh	220 mAh	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)	Lithium-Manganese Dioxide (LiMnO2)	Lithium-Manganese Dioxide (LiMnO2)	Lithium-Manganese Dioxide (LiMnO2)	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032	CR2032	CR2032	CR2032	CR2032
Battery weight	3 g	3 g	3 g	3 g	3 g
BIOS memory size	128 Mbit	512 Mbit	128 Mbit	512 Mbit	128 Mbit
BIOS type	UEFI AMI	UEFI AMI	UEFI AMI	UEFI AMI	UEFI AMI
Bluetooth	Yes	Yes	Yes	Yes	Yes
Bundled software	—	Norton® Internet Security (OEM version)	Norton® Internet Security (OEM version)	Norton® Internet Security (OEM version)	Norton® Internet Security (OEM version)
Canale audio	7.1	7.1	7.1	7.1	7.1
Chipset audio integrat	Realtek	Realtek	Realtek	Realtek	Realtek
Clear CMOS button	—	Yes	—	Yes	—
Clear CMOS jumper	Yes	Yes	—	Yes	Yes
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series	Intel Core Ultra (Series 2)	AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series	AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Component for	PC	PC	PC	PC	PC
Cooling type	—	Passive	Passive	Passive	Passive
Country of origin	—	China	China	—	China
CPU fan connector	Yes	Yes	Yes	Yes	Yes
Depth	24.4 mm	305 mm	305 mm	244 mm	244 mm
Desktop Management Interface (DMI) version	2.7	2.7	2.7	2.7	2.7
Digital audio optical out	—	1	1	1	—
DirectX version	—	12.0	12.0	12.0	12.0
DisplayPorts quantity	1	1	1	1	—
DisplayPort version	1.4	2.1	1.4	1.4	—
ECC сompatibility	ECC & Non-ECC	ECC & Non-ECC	ECC & Non-ECC	Non-ECC	ECC & Non-ECC
EPS power connector (8-pin)	Yes	Yes	Yes	Yes	Yes
Ethernet interface type	Gigabit Ethernet	5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet	2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1	1	1	1	1
Format	Micro-ATX	ATX	ATX	Micro-ATX	ATX
Front panel audio connector	Yes	Yes	Yes	Yes	Yes
Front panel connector	Yes	Yes	Yes	Yes	Yes
Gaming	Nu	Nu	Nu	Nu	Da
HDCP	Yes	Yes	Yes	—	Yes
HDCP version	—	2.3	2.3	—	2.3
HDMI	Da	Nu	Da	Da	Da
HDMI version	2.1	—	2.1	2.1	2.1
Headphone outputs	1	1	1	1	1
Height	35 mm	35 mm	35 mm	35 mm	35 mm
LAN controller	—	Realtek RTL8126	Realtek RTL8125	Realtek RTL8126	Realtek RTL8125
Line-in	Yes	Yes	Yes	Yes	Yes
Lithium weight per battery	0.07 g	0.07 g	0.07 g	0.07 g	0.07 g
MAXIMUM-RESOLUTION	5120 x 2880 pixels	4096 x 2304 pixels	5120 x 2880 pixels	4096 x 2160 pixels	4096 x 2160 pixels
Maximum internal memory per slot	32 GB	128 GB	32 GB	64 GB	32 GB
MB-Format	micro-ATX	ATX	ATX	ATX	—
MB-Socket	AM4	AM5	AM4	AM5	—
Memorie maxima	128 GB	256 GB	128 GB	256 GB	128 GB
Memory channels	Dual-channel	Dual-channel	Dual-channel	Dual-channel	Dual-channel
Memory slots type	DIMM	DIMM	DIMM	DIMM	DIMM
Microphone in	Yes	—	Yes	—	—
Model Chipset	A520	Z890	B550	B850	B550
Motherboard chipset	AMD A520	Intel Z890 Express	AMD B550	AMD B850	AMD B550
Motherboard chipset family	AMD	Intel	AMD	AMD	AMD
Motherboard form factor	micro ATX	ATX	ATX	micro ATX	ATX
Numar sloturi memorie	4	2	4	4	4
Number of battery cells	1	1	1	1	1
Number of chassis fan connectors	2	4	3	2	4
Number of CPU fan connectors	1	2	2	2	2
Number of EPS power connectors (8-pin)	1	2	1	1	1
Number of HDDs supported	4	4	4	2	4
Number of M.2 (M) slots	1	5	2	3	2
Number of memory slots	4	2	4	4	4
Number of RGB LED pin headers	2	4	5	4	4
Number of SATA III connectors	4	4	4	2	4
Number of storage drives supported	5	9	6	5	6
Number of water pump connectors	—	2	1	2	2
Onboard-CPU	No	No	No	No	—
Package depth	268 mm	294 mm	270 mm	287 mm	294 mm
Package height	68 mm	80 mm	80 mm	89 mm	80 mm
Package weight	12.1 kg	3.05 kg	1.92 kg	2.66 kg	2.46 kg
Package width	270 mm	345 mm	335 mm	268 mm	345 mm
Parallel processing technology support	Not supported	Not supported	Not supported	Not supported	Not supported
PC health monitoring	Fan, Temperature, Voltage	Fan, Temperature, Voltage, Water cooling	Fan, LED, Temperature, Voltage, Water cooling	Fan, Temperature, Voltage, Water cooling	CPU, Fan, Temperature, Voltage, Water cooling
PCI-Ex1	2	1	1	—	—
PCI-Ex16	1	4	3	1	—
PCI Express x1 (Gen 3.x) slots	2	—	1	—	—
PCI Express x16 (Gen 3.x) slots	1	—	2	—	4
PCI Express x16 (Gen 4.x) slots	—	2	1	1	1
PCI Express x16 (Gen 5.x) slots	—	1	—	1	—
Power source type	ATX	ATX	ATX	ATX	ATX
Processor socket	Socket AM4	LGA 1851 (Socket V1)	Socket AM4	Socket AM5	Socket AM4
Products per shipping (inner) case	1 pc(s)	1 pc(s)	1 pc(s)	1 pc(s)	1 pc(s)
RAID levels	0, 1, 10	0, 1, 5, 10	0, 1, 10	0, 1, 10, 5	0, 1, 10
RAID support	Yes	Yes	Yes	Yes	Yes
RAM-Slots	4	4	4	4	—
RGB LED pin header	Yes	Yes	Yes	Yes	Yes
RJ-45 LAN	1	1	1	1	1
S/PDIF out port	—	Yes	Yes	Yes	—
Screws included	Yes	Yes	Yes	Yes	Yes
Serial-or-Paralel	No/No	Yes/No	No/No	No/No	—
Sloturi M.2	1	5	2	3	2
Soclu Procesor	Socket AM4	Socket 1851	Socket AM4	Socket AM5	Socket AM4
Supported memory clock speeds	2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz	10266 MHz	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz	8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz	2133,2400,2667,2933,3200 MHz
Supported memory types	DDR4-SDRAM	DDR5-SDRAM	DDR4-SDRAM	DDR5-SDRAM	DDR4-SDRAM
Supported processor sockets	Socket AM4	LGA 1851	Socket AM4	Socket AM5	Socket AM4
Supported storage drive interfaces	M.2, SATA III	PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III	M.2, PCI Express 4.0, PCI Express 3.0, SATA III	M.2, PCI Express 4.0, PCI Express 5.0, SATA III	M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
Supported storage drive types	HDD & SSD	HDD & SSD	HDD & SSD	HDD & SSD	HDD & SSD
System Management BIOS (SMBIOS) version	2.7	2.7	2.7	2.7	2.7
Thunderbolt	Nu	Nu	Nu	Nu	Nu
Tip Memorie	DDR4	DDR5	DDR4	DDR5	DDR4
Tip slot interfata grafica	PCIe 3.0 x16	PCIe 5.0 x16	PCIe 4.0 x16	PCIe 5.0 x16	PCIe 4.0 x16
TPM connector	Yes	Yes	—	Yes	—
Unbuffered memory	Yes	Yes	Yes	Yes	Yes
USB 2.0 connectors	1	2	2	2	2
USB3	4-8	4-8	4-8	4-8	—
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1	1	2	1	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	—	1	—	1	—
USB Type-C	N/A	N/A	N/A	Da	N/A
Video-Connection	HDMI	HDMI/DP	HDMI/DP	HDMI	—
Wi-Fi	Yes	Yes	Yes	Yes	Yes
Width	244 mm	244 mm	244 mm	244 mm	305 mm
WiFi-AP antenna jack	2	2	2	2	2
Windows operating systems supported	Windows 10 x64, Windows 11	Windows 11	Windows 11	Windows 11 Home	Windows 11 x64, Windows 10 x64
Wireless	Da	Da	Da	Da	Da
WLAN controller model	Intel Dual Band Wireless-AC 3168	Intel Wi-Fi 7 BE200	Realtek RTL8922AE	Realtek RTL8922AE	MediaTek MT7902
Laptopuri - Conectivitate
Rețea prin cablu (LAN)	Yes	Yes	Yes	Yes	Yes
Standard Wi-Fi	Wi-Fi 5 (802.11ac)	Wi-Fi 7 (802.11be)	Wi-Fi 7 (802.11be)	Wi-Fi 6E (802.11ax)	Wi-Fi 6E (802.11ax)
Versiune Bluetooth	4.2	5.4	5.4	5.4	5.3
Laptopuri - Construcție
Culoare	—	Black	Black	Black	Dark brown
Greutate	720 g	2.63 kg	1.68 kg	2.29 kg	2.04 kg
Laptopuri - Generale
Garanție comercială	36	36	36	36	—
Producător	GIGABYTE	GIGABYTE	GIGABYTE	GIGABYTE	GIGABYTE
Laptopuri - Memorie
Memorie RAM maximă	128 GB	256 GB	128 GB	256 GB	128 GB
Laptopuri - Porturi
Număr porturi USB 2.0	2	4	2	4	4
Număr USB-A 3.2 Gen 1	4	—	—	4	1
Porturi HDMI	1	—	1	1	1
Laptopuri - Procesor
Producător procesor	AMD	Intel	AMD	AMD	AMD

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4, 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Specificații tehnice 126 caracteristici

1st M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
12V power connector: Yes
ACPI version: 5.0
Antenna included: Yes
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
Batteries included: Yes
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Bluetooth: Yes
Canale audio: 7.1
Chipset audio integrat: Realtek
Clear CMOS jumper: Yes
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for: PC
CPU fan connector: Yes
Depth: 24.4 mm
Desktop Management Interface (DMI) version: 2.7
Discrete graphics support: Yes
DisplayPorts quantity: 1
DisplayPort version: 1.4
DVI-D ports quantity: 1
ECC сompatibility: ECC & Non-ECC
EPS power connector (8-pin): Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN (RJ-45) ports: 1
Format: Micro-ATX
Front panel audio connector: Yes
Front panel connector: Yes
Gaming: Nu
HDCP: Yes
HDMI: Da
HDMI version: 2.1
Headphone outputs: 1
Height: 35 mm
Line-in: Yes
Lithium weight per battery: 0.07 g
MAXIMUM-RESOLUTION: 5120 x 2880 pixels
Maximum internal memory per slot: 32 GB
Maximum number of SMP processors: 1
MB-Format: micro-ATX
MB-Socket: AM4
Memorie maxima: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Microphone in: Yes
Model Chipset: A520
Motherboard chipset: AMD A520
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Numar sloturi memorie: 4
Number of battery cells: 1
Number of chassis fan connectors: 2
Number of CPU fan connectors: 1
Number of displays supported: 3
Number of EPS power connectors (8-pin): 1
Number of HDDs supported: 4
Number of M.2 (M) slots: 1
Number of memory slots: 4
Number of RGB LED pin headers: 2
Number of SATA III connectors: 4
Number of storage drives supported: 5
Onboard-CPU: No
Package depth: 268 mm
Package height: 68 mm
Package weight: 12.1 kg
Package width: 270 mm
Parallel processing technology support: Not supported
PC health monitoring: Fan, Temperature, Voltage
PCI-Ex1: 2
PCI-Ex16: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Power source type: ATX
Processor socket: Socket AM4
Products per shipping (inner) case: 1 pc(s)
PS/2 ports quantity: 1
RAID levels: 0, 1, 10
RAID support: Yes
RAM-Slots: 4
RGB LED pin header: Yes
RJ-45 LAN: 1
Screws included: Yes
Serial-or-Paralel: No/No
Serial port headers: 1
Sloturi M.2: 1
Soclu Procesor: Socket AM4
Supported memory clock speeds: 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz
Supported memory types: DDR4-SDRAM
Supported processor sockets: Socket AM4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
System Management BIOS (SMBIOS) version: 2.7
Thunderbolt: Nu
Tip Memorie: DDR4
Tip slot interfata grafica: PCIe 3.0 x16
Total number of SATA connectors: 4
TPM connector: Yes
Unbuffered memory: Yes
USB 2.0 connectors: 1
USB3: 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB Type-C: N/A
Video-Connection: HDMI
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width: 244 mm
WiFi-AP antenna jack: 2
Windows operating systems supported: Windows 10 x64, Windows 11
Wireless: Da
WLAN controller model: Intel Dual Band Wireless-AC 3168
Rețea prin cablu (LAN): Yes
Standard Wi-Fi: Wi-Fi 5 (802.11ac)
Versiune Bluetooth: 4.2
Greutate: 720 g
Garanție comercială: 36
Producător: GIGABYTE
Memorie RAM maximă: 128 GB
Număr porturi USB 2.0: 2
Număr USB-A 3.2 Gen 1: 4
Porturi HDMI: 1
Producător procesor: AMD
