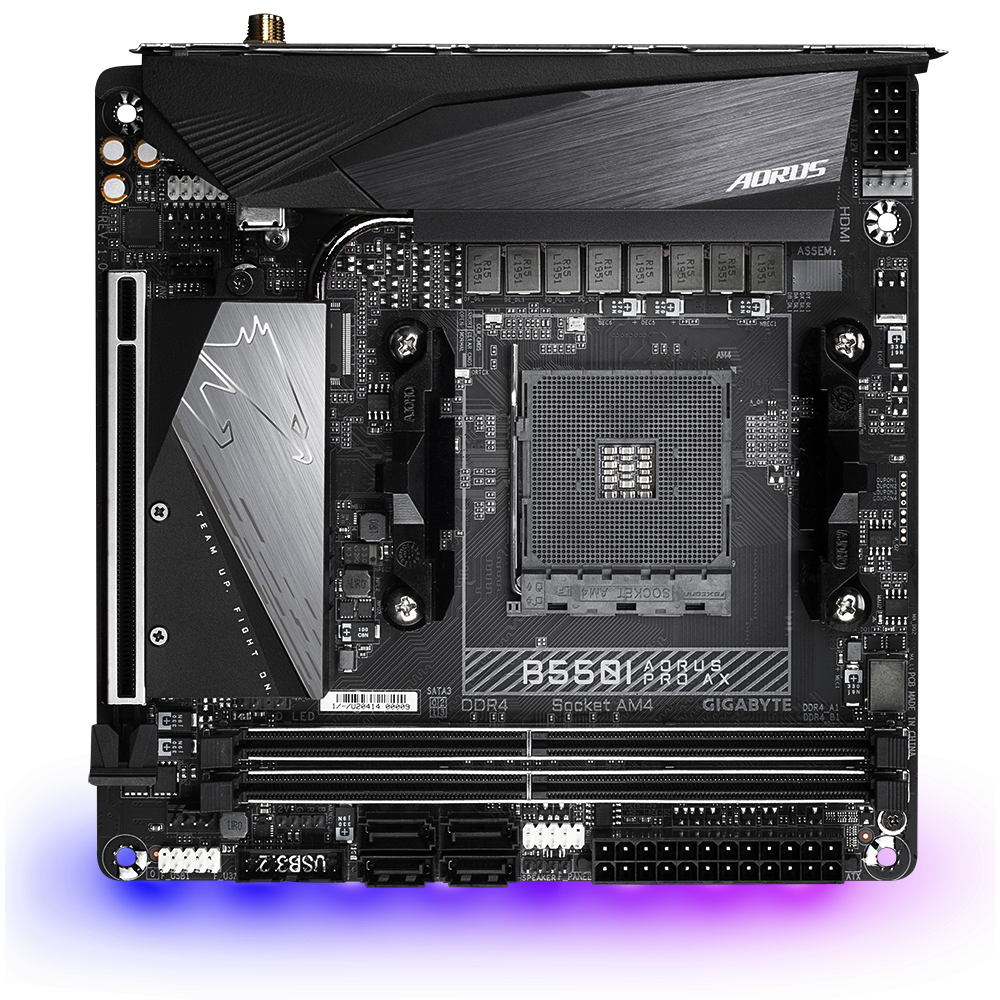

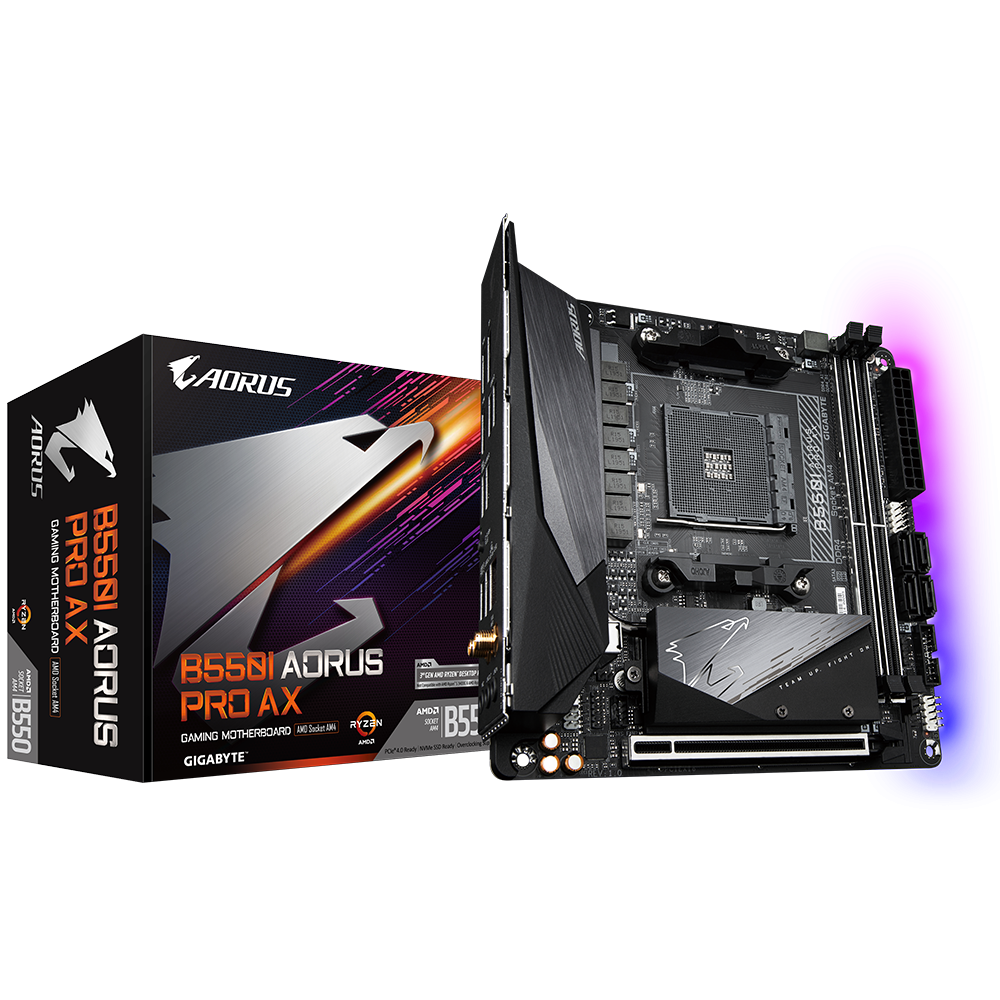

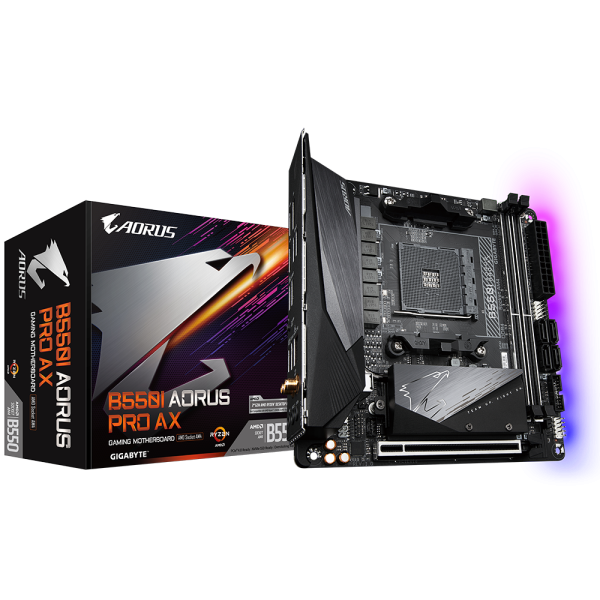

Placa de baza Gigabyte B550I AORUS PRO AX, Socket AM4,

Placi de baza

Placa de baza Gigabyte B550I AORUS PRO AX, Socket AM4,

(0) În stoc
Vândut de RITC.ro Cod produs: B550I AORUS PRO AX

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza Gigabyte B550I AORUS PRO AX, Socket AM4, Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4, Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5, Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,
Alte caracteristici
1st M.2 highest PCI Express generation — 5.0 4.0 5.0 4.0
1st M.2 largest key size — 25110 22110 2280 22110
2nd M.2 highest PCI Express generation — 4.0 3.0 4.0 3.0
2nd M.2 largest key size — 22110 22110 2280 22110
3rd M.2 highest PCI Express generation — 4.0 — 4.0 —
3rd M.2 largest key size — 22110 — 2280 —
12V power connector Yes Yes Yes Yes Yes
ACPI version 5.0 5.0 5.0 5.0 5.0
Antenna included — Yes Yes Yes Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip Realtek ALC1220-VB Realtek ALC1220 Realtek ALC897 Realtek ALC1220 Realtek ALC897
Audio output channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels
Batteries included — Yes Yes Yes Yes
Battery-Capacity — 220 mAh 220 mAh 220 mAh 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032 CR2032 CR2032 CR2032 CR2032
Battery weight 3 g 3 g 3 g 3 g 3 g
BIOS memory size 256 Mbit 512 Mbit 128 Mbit 512 Mbit 128 Mbit
BIOS type UEFI AMI UEFI AMI UEFI AMI UEFI AMI UEFI AMI
Bluetooth Da Yes Yes Yes Yes
Bluetooth version 5.3 5.4 5.4 5.4 5.3
Bundled software — Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version)
Canale audio 7.1 7.1 7.1 7.1 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS button — Yes — Yes —
Clear CMOS jumper Yes Yes — Yes Yes
Compatible processor series AMD Ryzen 3000 Series Intel Core Ultra (Series 2) AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Component for Nettop PC PC PC PC
Cooling type — Passive Passive Passive Passive
Country of origin Taiwan China China — China
CPU fan connector Yes Yes Yes Yes Yes
Depth 170 mm 305 mm 305 mm 244 mm 244 mm
Desktop Management Interface (DMI) version 2.7 2.7 2.7 2.7 2.7
Digital audio optical out — 1 1 1 —
DirectX version 12.0 12.0 12.0 12.0 12.0
DisplayPorts quantity 1 1 1 1 —
DisplayPort version 1.4 2.1 1.4 1.4 —
ECC сompatibility ECC & Non-ECC ECC & Non-ECC ECC & Non-ECC Non-ECC ECC & Non-ECC
EPS power connector (8-pin) — Yes Yes Yes Yes
Ethernet interface type 2.5 Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet
Ethernet LAN Yes Yes Yes Yes Yes
Ethernet LAN (RJ-45) ports — 1 1 1 1
Format Mini-ITX ATX ATX Micro-ATX ATX
Front panel audio connector Yes Yes Yes Yes Yes
Front panel connector Yes Yes Yes Yes Yes
Gaming Nu Nu Nu Nu Da
Garantie 36 36 36 36 —
HDCP Yes Yes Yes — Yes
HDCP version — 2.3 2.3 — 2.3
HDMI Da Nu Da Da Da
HDMI ports quantity 2 — 1 1 1
HDMI version 2.1 — 2.1 2.1 2.1
Headphone outputs — 1 1 1 1
Height 35 mm 35 mm 35 mm 35 mm 35 mm
LAN controller — Realtek RTL8126 Realtek RTL8125 Realtek RTL8126 Realtek RTL8125
Line-in — Yes Yes Yes Yes
Lithium weight per battery 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g
MAXIMUM-RESOLUTION 5120 x 2880 pixels 4096 x 2304 pixels 5120 x 2880 pixels 4096 x 2160 pixels 4096 x 2160 pixels
Maximum internal memory 64 GB 256 GB 128 GB 256 GB 128 GB
Maximum internal memory per slot — 128 GB 32 GB 64 GB 32 GB
MB-Format — ATX ATX ATX —
MB-Socket — AM5 AM4 AM5 —
Memorie maxima 64 GB 256 GB 128 GB 256 GB 128 GB
Memory channels Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Model Chipset B550 Z890 B550 B850 B550
Motherboard chipset AMD B550 Intel Z890 Express AMD B550 AMD B850 AMD B550
Motherboard chipset family AMD Intel AMD AMD AMD
Motherboard form factor mini ITX ATX ATX micro ATX ATX
Numar sloturi memorie 2 2 4 4 4
Number of battery cells 1 1 1 1 1
Number of chassis fan connectors 2 4 3 2 4
Number of CPU fan connectors — 2 2 2 2
Number of EPS power connectors (8-pin) — 2 1 1 1
Number of HDDs supported 4 4 4 2 4
Number of M.2 (M) slots 2 5 2 3 2
Number of memory slots 2 2 4 4 4
Number of RGB LED pin headers — 4 5 4 4
Number of SATA III connectors 4 4 4 2 4
Number of storage drives supported 6 9 6 5 6
Number of water pump connectors — 2 1 2 2
Onboard-CPU — No No No —
Package depth 235 mm 294 mm 270 mm 287 mm 294 mm
Package height 97 mm 80 mm 80 mm 89 mm 80 mm
Package weight 1.4 kg 3.05 kg 1.92 kg 2.66 kg 2.46 kg
Package width 265 mm 345 mm 335 mm 268 mm 345 mm
Parallel processing technology support Not supported Not supported Not supported Not supported Not supported
PC health monitoring Fan, Temperature, Voltage Fan, Temperature, Voltage, Water cooling Fan, LED, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling CPU, Fan, Temperature, Voltage, Water cooling
PCI-Ex1 — 1 1 — —
PCI-Ex16 — 4 3 1 —
PCI Express x16 (Gen 3.x) slots — — 2 — 4
PCI Express x16 (Gen 4.x) slots 1 2 1 1 1
PCI Express x16 (Gen 5.x) slots — 1 — 1 —
Power source type — ATX ATX ATX ATX
Processor manufacturer AMD Intel AMD AMD AMD
Processor socket Socket AM4 LGA 1851 (Socket V1) Socket AM4 Socket AM5 Socket AM4
Product colour — Black Black Black Dark brown
Products per shipping (inner) case — 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s)
RAID levels 0, 1, 10 0, 1, 5, 10 0, 1, 10 0, 1, 10, 5 0, 1, 10
RAID support Yes Yes Yes Yes Yes
RAM-Slots — 4 4 4 —
RGB LED pin header Yes Yes Yes Yes Yes
RJ-45 LAN 1 1 1 1 1
S/PDIF out port — Yes Yes Yes —
Screws included — Yes Yes Yes Yes
Serial-or-Paralel No/No Yes/No No/No No/No —
Sloturi M.2 2 5 2 3 2
Soclu Procesor Socket AM4 Socket 1851 Socket AM4 Socket AM5 Socket AM4
Supported memory clock speeds 5300 MHz 10266 MHz 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz 8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz 2133,2400,2667,2933,3200 MHz
Supported memory types DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM
Supported processor sockets — LGA 1851 Socket AM4 Socket AM5 Socket AM4
Supported storage drive interfaces M.2, SATA PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III M.2, PCI Express 4.0, PCI Express 3.0, SATA III M.2, PCI Express 4.0, PCI Express 5.0, SATA III M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
Supported storage drive types — HDD & SSD HDD & SSD HDD & SSD HDD & SSD
System Management BIOS (SMBIOS) version 2.7 2.7 2.7 2.7 2.7
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR4 DDR5 DDR4 DDR5 DDR4
Tip slot interfata grafica PCIe 4.0 x16 PCIe 5.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 PCIe 4.0 x16
Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 7 (802.11be) Wi-Fi 6E (802.11ax) Wi-Fi 6E (802.11ax)
TPM connector — Yes — Yes —
Unbuffered memory Yes Yes Yes Yes Yes
USB 2.0 connectors 1 2 2 2 2
USB 2.0 ports quantity — 4 2 4 4
USB3 — 4-8 4-8 4-8 —
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 2 1 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 — — 4 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors — 1 — 1 —
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 — — 1 —
USB Type-C Da N/A N/A Da N/A
Video-Connection HDMI HDMI/DP HDMI/DP HDMI —
Weight 790 g 2.63 kg 1.68 kg 2.29 kg 2.04 kg
Wi-Fi Yes Yes Yes Yes Yes
Width 170 mm 244 mm 244 mm 244 mm 305 mm
WiFi-AP antenna jack — 2 2 2 2
Windows operating systems supported Windows 10 x64, Windows 11 x64 Windows 11 Windows 11 Windows 11 Home Windows 11 x64, Windows 10 x64
Wireless Da Da Da Da Da
WLAN controller model — Intel Wi-Fi 7 BE200 Realtek RTL8922AE Realtek RTL8922AE MediaTek MT7902
Producator GIGABYTE GIGABYTE GIGABYTE GIGABYTE GIGABYTE

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer “CPU Support List” for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp

Specificații tehnice 99 caracteristici
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio Chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Da
Bluetooth version
5.3
Canale audio
7.1
Chipset audio integrat
Realtek
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 3000 Series
Component for
Nettop
Country of origin
Taiwan
CPU fan connector
Yes
CPU încorporat
No
Depth
170 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPorts quantity
1
DisplayPort version
1.4
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Format
Mini-ITX
Front panel audio connector
Yes
Front panel connector
Yes
Gaming
Nu
Garantie
36
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI
Da
HDMI ports quantity
2
HDMI version
2.1
Height
35 mm
Lithium weight per battery
0.07 g
MAXIMUM-RESOLUTION
5120 x 2880 pixels
Maximum internal memory
64 GB
Maximum internal memory supported by processor
64 GB
Maximum number of SMP processors
1
Memorie maxima
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Model Chipset
B550
Motherboard chipset
AMD B550
Motherboard chipset family
AMD
Motherboard form factor
mini ITX
Numar sloturi memorie
2
Number of battery cells
1
Number of chassis fan connectors
2
Number of displays supported
3
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
6
On-board graphics card
No
Package depth
235 mm
Package height
97 mm
Package weight
1.4 kg
Package width
265 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM4
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
RJ-45 LAN
1
Serial-or-Paralel
No/No
Sloturi M.2
2
Soclu Procesor
Socket AM4
Supported memory clock speeds
5300 MHz
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA
System Management BIOS (SMBIOS) version
2.7
Thunderbolt
Nu
Tip Memorie
DDR4
Tip slot interfata grafica
PCIe 4.0 x16
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Total number of SATA connectors
4
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB Type-C
Da
Video-Connection
HDMI
Weight
790 g
Wi-Fi
Yes
Width
170 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Wireless
Da
Producator
GIGABYTE
