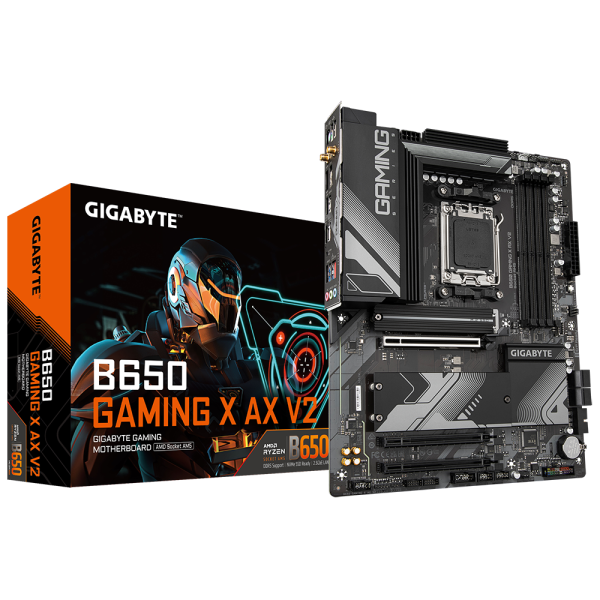

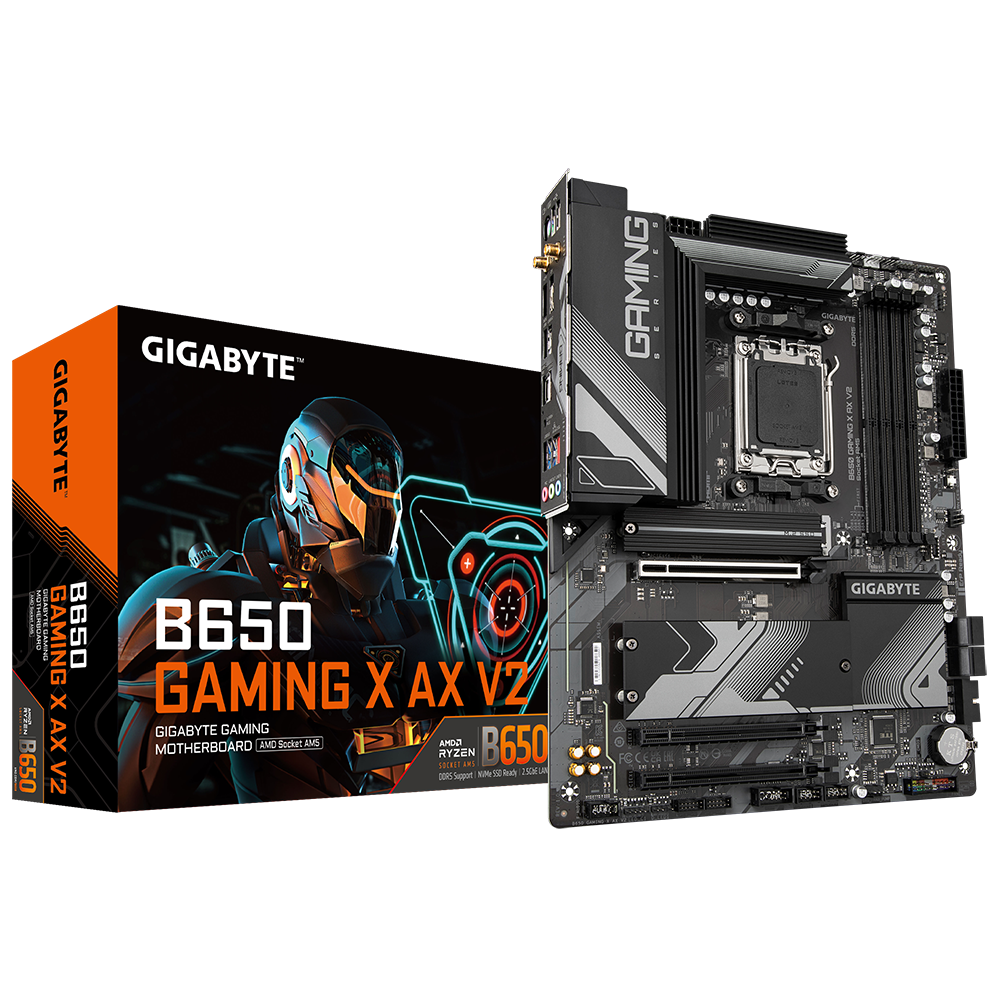

Placa de baza Gigabyte B650 GAMING X AX V2, Socket AM5, DDR5, ATX
806,38 lei 1.149,12 lei
Placa de baza Gigabyte B650 GAMING X AX V2, Socket AM5, DDR5, ATX
(0)
În stoc
Vândut de RITC.ro
Cod produs: B650 GAMING X AX V2
Livrare și beneficii
Compară cu produse similare
Placa de baza Gigabyte B650 GAMING X AX V2, Socket AM5, DDR5, ATX
Placa de baza Gigabyte X870E AORUS PRO X3D, Socket AM5, DDR5, ATX
2.174,64 lei 2.436,94 lei
Placa de baza Gigabyte B550 GAMING X V2, Socket AM4, DDR4, ATX
540,88 lei 694,71 lei
Placa de baza Gigabyte X870 AORUS INFINITY, Socket AM5, DDR5, E-ATX
3.953,89 lei 4.371,52 lei
Placa de baza Gigabyte Z890M FORCE DUO X WIFI7, Socket 1851, DDR5, Micro-ATX
1.317,96 lei 1.456,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza Gigabyte B650 GAMING X AX V2, Socket AM5, DDR5, ATX | Placa de baza Gigabyte X870E AORUS PRO X3D, Socket AM5, DDR5, ATX | Placa de baza Gigabyte B550 GAMING X V2, Socket AM4, DDR4, ATX | Placa de baza Gigabyte X870 AORUS INFINITY, Socket AM5, DDR5, E-ATX | Placa de baza Gigabyte Z890M FORCE DUO X WIFI7, Socket 1851, DDR5, Micro-ATX |
|---|---|---|---|---|---|
| Culoare produs | Brown | Black | Brown | Black | Black |
| 1st M.2 highest PCI Express generation | 5.0 | 5.0 | 4.0 | 5.0 | 5.0 |
| 1st M.2 largest key size | 25110 | 25110 | 22110 | 25110 | 2580 |
| 2nd M.2 highest PCI Express generation | 4.0 | 5.0 | 3.0 | 5.0 | 4.0 |
| 2nd M.2 largest key size | 25110 | 22110 | 22110 | 22110 | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 | 4.0 | — | 4.0 | 4.0 |
| 3rd M.2 largest key size | 25110 | 22110 | — | 22110 | 22110 |
| 4th M.2 highest PCI Express generation | — | 4.0 | — | — | 4.0 |
| 4th M.2 largest key size | — | 22110 | — | — | 22110 |
| 12V power connector | Yes | — | Yes | — | Yes |
| ACPI version | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Antenna included | Yes | Yes | — | Yes | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | Realtek ALC897 | Realtek ALC1220-VB | Realtek ALC897 | Realtek ALC1220 | — |
| Batteries included | Yes | Yes | Yes | Yes | Yes |
| Battery weight | 3 g | 3 g | 3 g | 3 g | 3 g |
| BIOS memory size | 256 Mbit | 512 Mbit | 128 Mbit | 1024 Mbit | 512 Mbit |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software | — | Norton® Internet Security (OEM version) LAN bandwidth management software | Norton® Internet Security (OEM version) | Norton® Internet Security (OEM version) |
| Canale audio | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 |
| Clear CMOS button | — | Yes | — | Yes | Yes |
| Clear CMOS jumper | Yes | Yes | Yes | Yes | — |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Intel Core Ultra (Series 2) |
| Component for | PC | PC | PC | PC | PC |
| Country of origin | China | Taiwan | China | — | China |
| CPU fan connector | Yes | Yes | Yes | Yes | Yes |
| Desktop Management Interface (DMI) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Digital audio optical out | — | 1 | — | — | 1 |
| ECC сompatibility | Non-ECC | Non-ECC | ECC & Non-ECC | Non-ECC | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes | Yes | Yes | Yes | Yes |
| Front panel audio connector | Yes | Yes | Yes | Yes | Yes |
| Front panel connector | Yes | Yes | Yes | Yes | Yes |
| Headphone outputs | 1 | 1 | 1 | 1 | 1 |
| LAN controller | Realtek RTL8125 | Realtek RTL8126 | Realtek RTL8111H | Realtek RTL8126 | Realtek RTL8126 |
| Line-in | Yes | Yes | Yes | Yes | Yes |
| Lithium weight per battery | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g |
| Maximum internal memory per slot | 64 GB | 64 GB | 32 GB | 64 GB | 128 GB |
| Memorie maxima | 256 GB | 256 GB | 128 GB | 128 GB | 256 GB |
| Microphone in | Yes | — | Yes | — | — |
| Number of CPU fan connectors | 2 | 2 | 1 | 2 | 2 |
| Number of EPS power connectors (8-pin) | 1 | 2 | 1 | 2 | 2 |
| Number of HDDs supported | 4 | 4 | 4 | 4 | 4 |
| Number of M.2 (M) slots | 3 | 4 | 2 | 3 | 5 |
| Number of memory slots | 4 | 4 | 4 | 2 | 2 |
| Number of RGB LED pin headers | 5 | 4 | 5 | 4 | 4 |
| Number of temperature sensor headers | — | 2 | — | 2 | — |
| Number of water pump connectors | 2 | 3 | 4 | 3 | 2 |
| Package depth | 270 mm | 294 mm | 270 mm | 328 mm | 268 mm |
| Package height | 80 mm | 80 mm | 80 mm | 93 mm | 68 mm |
| Package weight | 2.16 kg | 4.25 kg | 17.1 kg | 4.67 kg | 1.47 kg |
| Package width | 335 mm | 345 mm | 335 mm | 370 mm | 270 mm |
| Parallel processing technology support | Not supported | Not supported | Not supported | Not supported | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling | CPU, Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling | CPU, Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling |
| PCI Express x16 (Gen 3.x) slots | 2 | 1 | 2 | — | — |
| PCI Express x16 (Gen 4.x) slots | 1 | 1 | 1 | — | 1 |
| PCI Express x16 (Gen 5.x) slots | — | 1 | — | 2 | 1 |
| Products per shipping (inner) case | 1 pc(s) | 1 pc(s) | 1 pc(s) | 1 pc(s) | 1 pc(s) |
| PS/2 ports quantity | — | — | 1 | 2 | — |
| RJ-45 LAN | 1 | 1 | 1 | 1 | 1 |
| S/PDIF out port | — | Yes | — | Yes | Yes |
| Screws included | Yes | Yes | Yes | Yes | Yes |
| Serial-or-Paralel | No/No | — | No/No | — | — |
| Supported memory clock speeds | 8000 MHz, 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz | 9000 MHz, 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz | 4733 MHz, 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz | 11400 MHz | 9733 MHz |
| System Management BIOS (SMBIOS) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| TPM connector | Yes | Yes | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | Yes | Yes | — |
| USB 2.0 connectors | 2 | 2 | 2 | 2 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 | 2 | 2 | 1 | 1 |
| USB 3.2 Gen 2x2 connectors | 1 | 1 | — | 1 | — |
| USB4 Gen 2x2 ports quantity | — | 2 | — | 1 | — |
| Warranty-Period | 3 year(s) | 3 year(s) | 3 year(s) | — | 3 year(s) |
| WiFi-AP antenna jack | 2 | 2 | — | 2 | 2 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Windows 11 x64 | Windows 10 x64, Windows 11 x64 | Windows 11 x64 | Windows 11 |
| WLAN controller model | Realtek RTL8852CE | Qualcomm QCNCM865 | — | Qualcomm QCNCM865 | Realtek RTL8922AE |
| Greutate | — | 3.73 kg | 11.2 kg | 4.06 kg | 1.27 kg |
| Rezoluție maximă | 4096 x 2160 pixels | 4096 x 2304 pixels | — | 4096 x 2160 pixels | 4096 x 2304 pixels |
| Tehnologie baterie | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) |
| Tip Memorie | DDR5 | DDR5 | DDR4 | DDR5 | DDR5 |
| Wi-Fi | Yes | Yes | No | Yes | Yes |
| Număr porturi RJ-45 | 1 | 1 | 1 | 1 | 1 |
| Număr porturi DisplayPort | 1 | — | — | — | 1 |
| Versiune DisplayPort | 1.4 | 1.4 | — | — | 2.1 |
| Gaming | Da | Nu | Da | Nu | Nu |
| Canale audio | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels |
| Conectori ventilatoare carcasă | 3 | 6 | 3 | 6 | 4 |
| Conector RGB | Yes | Yes | Yes | Yes | Yes |
| Producător chipset audio | Realtek | Realtek | Realtek | Realtek | Realtek |
| Tip BIOS | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI |
| Tip slot RAM | DIMM | DIMM | DIMM | DIMM | DIMM |
| Tip baterie | CR2032 | CR2032 | CR2032 | CR2032 | CR2032 |
| Chipset placă de bază | AMD B650 | AMD X870E | AMD B550 | AMD X870 | Intel Z890 Express |
| Interfețe stocare suportate | M.2, SATA III | M.2, PCI Express 4.0, PCI Express 5.0, SATA III | M.2, SATA III | M.2, PCI Express 4.0, PCI Express 5.0, SATA III | M.2, NVMe, PCI Express 4.0, PCI Express 5.0, SATA III |
| Niveluri RAID | 0, 1, 10 | 0, 1, 5, 10 | 0, 1, 10 | 0, 1, 5, 10 | 0, 1, 5, 10 |
| Număr unități stocare suportate | 7 | 8 | 6 | 7 | 9 |
| Tip sursă alimentare | ATX | ATX | ATX | ATX | ATX |
| Tipuri stocare suportate | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| Capacitate baterie | 220 mAh | 220 mAh | — | 220 mAh | 220 mAh |
| Număr celule baterie | 1 | 1 | 1 | 1 | 1 |
| Adâncime | 244 mm | 244 mm | 24.4 mm | 275 mm | 244 mm |
| Lățime | 305 mm | 305 mm | 30.5 mm | 305 mm | 244 mm |
| Înălțime | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Bluetooth | Da, Yes | Da, Yes | Nu | Da, Yes | Da, Yes |
| HDMI | Da | Da | Da | Da | Nu |
| Număr porturi HDMI | 1 | 1 | 1 | 1 | — |
| Număr porturi USB 2.0 | 3 | — | 2 | — | 4 |
| Porturi USB-A 3.2 Gen 1 | 3 | 3 | 3 | 4 | 4 |
| Porturi USB-A 3.2 Gen 2 | 1 | 2, 5 | 1 | 3 | 1 |
| Rețea prin cablu (LAN) | Yes | Yes | Yes | Yes | Yes |
| Standard Wi-Fi | Wi-Fi 6E (802.11ax) | Wi-Fi 7 (802.11be) | — | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | Da | N/A | Da |
| Versiune Bluetooth | 5.3 | 5.4 | — | 5.4 | 5.4 |
| Versiune HDMI | 2.1 | 2.1 | 2.1 | 2.1 | — |
| Producător | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE |
| Canale memorie RAM | Dual-channel | Dual-channel | Dual-channel | Dual-channel | Dual-channel |
| Memorie RAM maximă | 256 GB | 256 GB | 128 GB | 128 GB | 256 GB |
| Producător procesor | AMD | AMD | AMD | AMD | Intel |
| Tip răcire | — | Passive | Passive | Passive | Passive |
| Format placă de bază | ATX | ATX | ATX | Extended ATX | micro ATX |
| Model chipset | B650 | X870E | B550 | X870 | Z890 |
| Număr sloturi RAM | 4 | 4 | 4 | 2 | 2 |
| Platformă chipset | AMD | AMD | AMD | AMD | Intel |
| Soclu procesor | Socket AM5 | Socket AM5 | Socket AM4 | Socket AM5 | Socket 1851 |
| Tipuri RAM acceptate | DDR5-SDRAM | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM | DDR5-SDRAM |
| Versiune HDCP | — | 2.3 | — | 2.3 | 2.3 |
| Socket procesor | Socket AM5 | Socket AM5 | Socket AM4 | Socket AM5 | LGA 1851 (Socket V1) |
| Tip rețea Ethernet | 2.5 Gigabit Ethernet | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | Gigabit Ethernet | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Socketuri compatibile | Socket AM5 | Socket AM5 | Socket AM4 | Socket AM5 | LGA 1851 |
| HDCP | Yes | Yes | Yes | Yes | Yes |
| Wireless | Da | Da | Nu | Da | Da |
| Format | ATX | ATX | ATX | E-ATX | Micro-ATX |
| Număr porturi SATA III | 4 | 4 | 4 | 4 | 4 |
| Număr sloturi M.2 | 3 | 4 | 2 | 3 | 5 |
| Slot grafic PCI Express | PCIe 5.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 5.0 x16 |
| Suport RAID | Yes | Yes | Yes | Yes | Yes |
| Versiune DirectX | 12.0 | 12.0 | 12.0 | 12.0 | — |
Analiză inteligentă a produsului
Specificații tehnice 131 caracteristici ⌄
- Culoare produs
- Brown
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 25110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 25110
- 12V power connector
- Yes
- ACPI version
- 5.0
- Antenna included
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- Realtek ALC897
- Batteries included
- Yes
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- Bundled software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Canale audio
- 7.1
- Clear CMOS jumper
- Yes
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Component for
- PC
- Country of origin
- China
- CPU fan connector
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- Discrete graphics support
- Yes
- ECC сompatibility
- Non-ECC
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Headphone outputs
- 1
- LAN controller
- Realtek RTL8125
- Line-in
- Yes
- Lithium weight per battery
- 0.07 g
- Maximum internal memory per slot
- 64 GB
- MB-Format
- micro-ATX
- MB-Socket
- AM5
- Memorie maxima
- 256 GB
- Microphone in
- Yes
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- Number of HDDs supported
- 4
- Number of M.2 (M) slots
- 3
- Number of memory slots
- 4
- Number of RGB LED pin headers
- 5
- Number of water pump connectors
- 2
- Onboard-CPU
- No
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2.16 kg
- Package width
- 335 mm
- Parallel processing technology support
- Not supported
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- PCI-Ex16
- 3
- PCI Express x16 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- Products per shipping (inner) case
- 1 pc(s)
- RAM-Slots
- 4
- RJ-45 LAN
- 1
- Screws included
- Yes
- Serial-or-Paralel
- No/No
- Serial port headers
- 1
- Supported memory clock speeds
- 8000 MHz, 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
- System Management BIOS (SMBIOS) version
- 2.7
- TPM connector
- Yes
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 2
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Warranty-Period
- 3 year(s)
- WiFi-AP antenna jack
- 2
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- WLAN controller model
- Realtek RTL8852CE
- Rezoluție maximă
- 4096 x 2160 pixels
- Tehnologie baterie
- Lithium-Manganese Dioxide (LiMnO2)
- Tip Memorie
- DDR5
- Wi-Fi
- Yes
- Număr porturi RJ-45
- 1
- Număr porturi DisplayPort
- 1
- Versiune DisplayPort
- 1.4
- Gaming
- Da
- Canale audio
- 7.1 channels
- Conectori ventilatoare carcasă
- 3
- Conector RGB
- Yes
- Producător chipset audio
- Realtek
- Tip BIOS
- UEFI AMI
- Tip slot RAM
- DIMM
- Tip baterie
- CR2032
- Chipset placă de bază
- AMD B650
- Interfețe stocare suportate
- M.2, SATA III
- Niveluri RAID
- 0, 1, 10
- Număr unități stocare suportate
- 7
- Tip sursă alimentare
- ATX
- Tipuri stocare suportate
- HDD & SSD
- Capacitate baterie
- 220 mAh
- Număr celule baterie
- 1
- Adâncime
- 244 mm
- Lățime
- 305 mm
- Înălțime
- 35 mm
- Bluetooth
- Da, Yes
- HDMI
- Da
- Număr porturi HDMI
- 1
- Număr porturi USB 2.0
- 3
- Porturi USB-A 3.2 Gen 1
- 3
- Porturi USB-A 3.2 Gen 2
- 1
- Rețea prin cablu (LAN)
- Yes
- Standard Wi-Fi
- Wi-Fi 6E (802.11ax)
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune Bluetooth
- 5.3
- Versiune HDMI
- 2.1
- Producător
- GIGABYTE
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 256 GB
- Producător procesor
- AMD
- Format placă de bază
- ATX
- Model chipset
- B650
- Număr sloturi RAM
- 4
- Platformă chipset
- AMD
- Soclu procesor
- Socket AM5
- Tipuri RAM acceptate
- DDR5-SDRAM
- Socket procesor
- Socket AM5
- Tip rețea Ethernet
- 2.5 Gigabit Ethernet
- Socketuri compatibile
- Socket AM5
- HDCP
- Yes
- Wireless
- Da
- Format
- ATX
- Număr porturi SATA III
- 4
- Număr sloturi M.2
- 3
- Slot grafic PCI Express
- PCIe 5.0 x16
- Suport RAID
- Yes
- Versiune DirectX
- 12.0
Întrebări și răspunsuri 0 întrebări ⌄
Nu există întrebări încă.
Pune o întrebare despre produs
Recenzii clienți Nicio recenzie încă ⌄
0,0
☆☆☆☆☆
0 recenzii
- 5 ★ 0
- 4 ★ 0
- 3 ★ 0
- 2 ★ 0
- 1 ★ 0
Acest produs nu are încă recenzii.
Scrie o recenzie
Produse recomandate
-
Placa de baza Gigabyte B840 EAGLE WIFI6E, Socket AM5, DDR5, ATX
-
Placa de baza Gigabyte B840 GAMING X WIFI6E, Socket AM5, DDR5, ATX
-
Placa de baza Gigabyte B760 GAMING X WIFI6E GEN5, Socket 1700, DDR5, ATX
-
Placa de baza Gigabyte B650M AORUS ELITE, Socket AM5, DDR5, Micro-ATX
-
Placa de baza Gigabyte B840M Aorus Elite Wifi6E, Socket AM5, DDR5, Micro-ATX
-
Placa de baza Gigabyte X870 AORUS STEALTH, Socket AM5, DDR5, ATX
-
Placa de baza Gigabyte B850M EAGLE WIFI6E, Socket AM5, DDR5, Micro-ATX
-
Placa de baza Gigabyte B760 DS3H WIFI6E GEN5, LGA 1700, DDR5, ATX
-

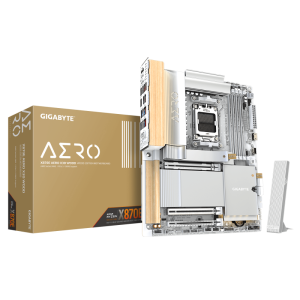

Placa de baza Gigabyte X870E AERO X3D WOOD, Socket AM5, DDR5, ATX
-
Placa de baza Gigabyte X870 AORUS TACHYON ICE, Socket AM5, DDR5, ATX
Trebuie să fii autentificat pentru a publica un comentariu.
