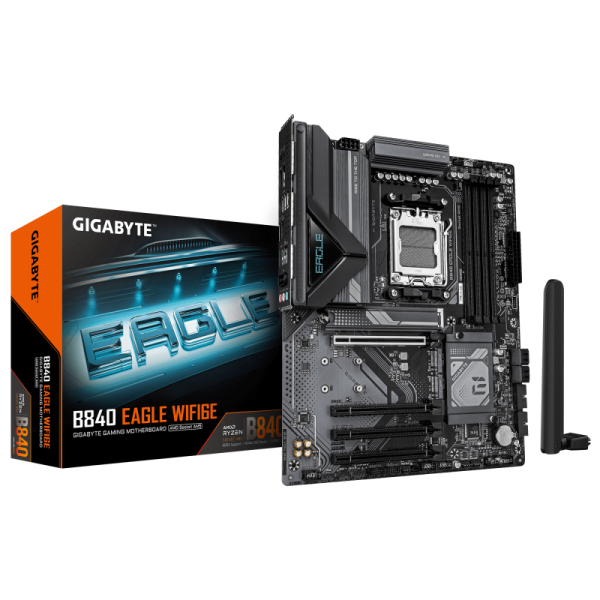

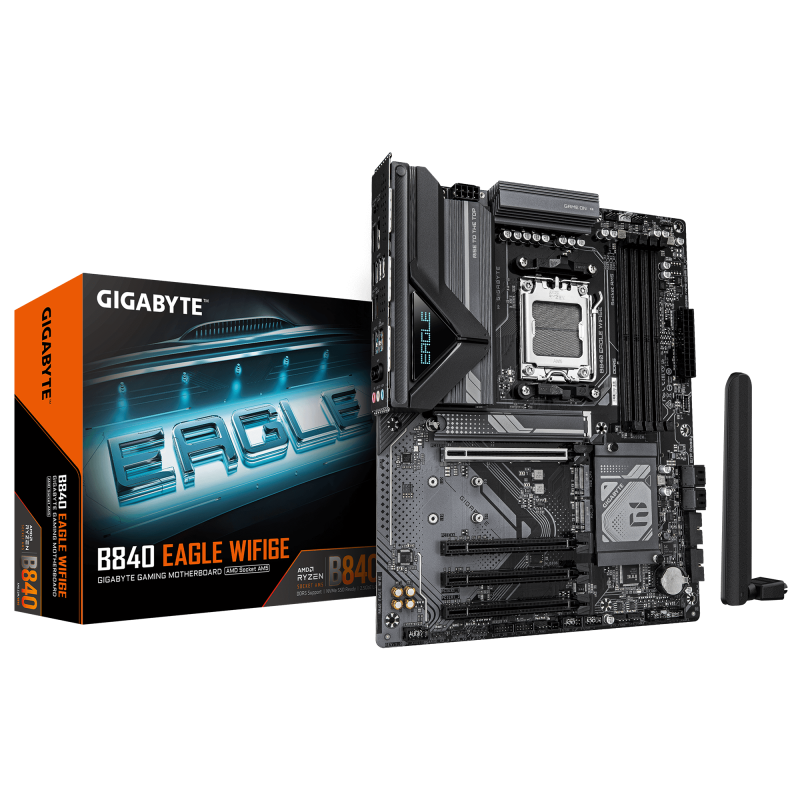

Placa de baza Gigabyte B840 EAGLE WIFI6E, Socket AM5, DDR5,

Placi de baza

Placa de baza Gigabyte B840 EAGLE WIFI6E, Socket AM5, DDR5,

(0) În stoc
Vândut de RITC.ro Cod produs: B840 EAGLE WIFI6E

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător 36 luni Producător: 36 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza Gigabyte B840 EAGLE WIFI6E, Socket AM5, DDR5, Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX Placa de baza Gigabyte B850 EAGLE ICE, Socket AM5, DDR5, Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5, Placa de baza Gigabyte X870 AORUS ELITE WIFI7, Socket AM5,
Culoare produs Dark brown Brown White Brown —
1st M.2 highest PCI Express generation 4.0 5.0 5.0 5.0 5.0
1st M.2 largest key size 25110 25110 22110 2280 25110
2nd M.2 highest PCI Express generation 4.0 4.0 4.0 4.0 5.0
2nd M.2 largest key size 25110 22110 22110 2280 22110
3rd M.2 highest PCI Express generation 3.0 4.0 4.0 — 5.0
3rd M.2 largest key size 25110 22110 22110 — 22110
12V power connector Yes Yes Yes — —
ACPI version 5.0 5.0 5.0 5.0 5.0
Antenna included Yes — — Yes Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip Realtek ALC897 Realtek ALC897 Realtek ALC897 Realtek ALC897 Realtek ALC1220
Batteries included Yes — Yes Yes —
Battery weight 3 g 3 g 3 g 3 g 3 g
BIOS memory size 256 Mbit 256 Mbit 256 Mbit 256 Mbit 256 Mbit
Canale audio 7.1 7.1 7.1 7.1 7.1
Clear CMOS button Yes — — — Yes
Clear CMOS jumper Yes Yes Yes Yes Yes
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for PC PC PC PC PC
Country of origin China China China — China
CPU fan connector Yes Yes Yes Yes Yes
Desktop Management Interface (DMI) version 2.7 2.7 2.7 2.7 2.7
ECC сompatibility Non-ECC Non-ECC Non-ECC ECC & Non-ECC Non-ECC
EPS power connector (8-pin) Yes Yes Yes Yes Yes
Front panel audio connector Yes Yes Yes Yes Yes
Front panel connector Yes Yes Yes Yes Yes
Headphone outputs 1 1 1 1 1
LAN controller Realtek RTL8125 Realtek RTL8111H Realtek RTL8125 Realtek RTL8125 Realtek RTL8125
Line-in Yes Yes Yes Yes —
Lithium weight per battery 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g
Maximum internal memory per slot 64 GB 64 GB 64 GB 64 GB 64 GB
MB-Format micro-ATX — ATX — ATX
MB-Socket AM5 — 1700 — AM5
Memorie maxima 256 GB 256 GB 256 GB 128 GB 256 GB
Microphone in Yes Yes Yes Yes Yes
Number of CPU fan connectors 2 2 2 2 2
Number of EPS power connectors (8-pin) 1 — 1 1 2
Number of HDDs supported 4 4 4 4 4
Number of M.2 (M) slots 3 3 3 2 4
Number of memory slots 4 4 4 2 4
Number of RGB LED pin headers 4 4 4 4 4
Number of water pump connectors 2 2 2 2 3
Onboard-CPU No No No — No
Package depth 270 mm 270 mm 270 mm 268 mm 270 mm
Package height 80 mm 80 mm 80 mm 68 mm 80 mm
Package weight 18.7 kg 1.82 kg 1.88 kg 1.29 kg 2.74 kg
Package width 335 mm 335 mm 335 mm 270 mm 335 mm
Parallel processing technology support Not supported Not supported Not supported Not supported Not supported
PC health monitoring Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage
PCI-Ex16 2 — 3 — 3
PCI Express x16 (Gen 3.x) slots 3 3 2 — 1
PCI Express x16 (Gen 4.x) slots 1 1 1 1 1
PCI Express x16 (Gen 5.x) slots — — 1 1 1
Products per shipping (inner) case 1 pc(s) — 1 pc(s) 1 pc(s) —
PS/2 ports quantity — 1 1 — —
RAM-Slots 4 — 2 — 4
RJ-45 LAN 1 1 1 1 1
Screws included Yes Yes Yes Yes Yes
Serial-or-Paralel No/No No/No No/No — No/No
Supported memory clock speeds 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz 4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz 5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
System Management BIOS (SMBIOS) version 2.7 2.7 2.7 2.7 2.7
TPM connector Yes Yes Yes Yes Yes
Unbuffered memory Yes Yes Yes Yes —
USB 2.0 connectors 2 3 2 2 2
USB3 4-8 — 4-8 — 4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 3 1 2 1 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors — 1 — 1 —
Video-Connection HDMI HDMI/DP HDMI/DP — HDMI
WiFi-AP antenna jack 2 — — 2 2
Windows operating systems supported Windows 10 x64, Windows 11 x64 Windows 10 x64, Windows 11 x64 Windows 11 x64 Windows 10 x64, Windows 11 x64 Windows 11 x64
WLAN controller model Realtek RTL8852CE — — Realtek RTL8851BE MediaTek MT7925
Greutate 1.64 kg — 1.65 kg 12.3 kg 2.4 kg
Rezoluție maximă 4096 x 2160 pixels 4096 x 2160 pixels 4096 x 2160 pixels 4096 x 2160 pixels —
Tehnologie baterie Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2)
Tip Memorie DDR5 DDR5 DDR5 DDR5 DDR5
Standarde Wi-Fi — — — 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be)
Wi-Fi Yes No No Yes Yes
Număr porturi RJ-45 1 — 1 1 —
Număr porturi DisplayPort 1 1 1 1 2
Versiune DisplayPort 1.4 1.4 1.4 2.1 1.4
Gaming Nu Nu Nu Da Nu
Canale audio 7.1 channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels
Conectori ventilatoare carcasă 4 3 4 2 6
Conector RGB Yes Yes — Yes Yes
Producător chipset audio Realtek Realtek Realtek Realtek Realtek
Tip BIOS UEFI AMI UEFI AMI UEFI AMI UEFI AMI UEFI AMI
Tip slot RAM DIMM DIMM DIMM DIMM DIMM
Tip baterie CR2032 CR2032 CR2032 CR2032 CR2032
Chipset placă de bază AMD B840 AMD B650 AMD B850 — AMD X870
Interfețe stocare suportate M.2, PCI Express 3.0, PCI Express 4.0, SATA III M.2, SATA III M.2, PCI Express 4.0, PCI Express 5.0, SATA III M.2, SATA III M.2, SATA III
Niveluri RAID 0, 1, 5, 10 0, 1, 10 0, 1, 10 0, 1, 5, 10 0, 1, 10
Număr unități stocare suportate 7 7 7 6 8
Tip sursă alimentare ATX ATX ATX ATX —
Tipuri stocare suportate HDD & SSD HDD & SSD HDD & SSD HDD & SSD HDD & SSD
Număr celule baterie 1 1 1 1 1
Adâncime 24.4 mm 24.4 mm 24.4 mm 225 mm 24.4 mm
Lățime 30.5 mm 30.5 mm 30.5 mm 244 mm 30.5 mm
Înălțime 35 mm 35 mm 35 mm 35 mm 35 mm
Bluetooth Yes Nu Nu Yes Da
HDMI Da Da Da Da Da
Număr porturi HDMI 1 1 1 1 1
Număr porturi USB 2.0 4 6 4 3 2
Porturi USB-A 3.2 Gen 1 — — 1 — 4
Porturi USB-A 3.2 Gen 2 1 — — — 3
Rețea prin cablu (LAN) Yes Yes Yes Yes Yes
Standard Wi-Fi Wi-Fi 6E (802.11ax) — — Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be)
Thunderbolt Nu Nu Nu Da Nu
USB-C N/A Da N/A Da Da
Versiune Bluetooth 5.3 — — 5.3 5.4
Versiune HDMI 2.1 2.1 2.1 2.1 2.1
Garanție comercială 36 36 36 36 36
Producător GIGABYTE GIGABYTE GIGABYTE GIGABYTE GIGABYTE
Canale memorie RAM Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel
Memorie RAM maximă 256 GB 256 GB 256 GB 128 GB 256 GB
Producător procesor AMD AMD AMD Intel AMD
Tip răcire Passive — Passive Passive —
Format placă de bază ATX ATX ATX micro ATX ATX
Model chipset B840 B650 B850 B860 X870
Număr sloturi RAM 4 4 4 2 4
Platformă chipset AMD AMD AMD Intel AMD
Soclu procesor Socket AM5 Socket AM5 Socket AM5 Socket 1851 Socket AM5
Tipuri RAM acceptate DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM
Socket procesor Socket AM5 Socket AM5 Socket AM5 LGA 1851 (Socket V1) Socket AM5
Tip rețea Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet 2.5 Gigabit Ethernet 2.5 Gigabit Ethernet 2.5 Gigabit Ethernet
Socketuri compatibile Socket AM5 Socket AM5 Socket AM5 LGA 1851 Socket AM5
HDCP Yes Yes Yes Yes —
Wireless Da Nu Nu Da Da
Format ATX ATX ATX Micro-ATX ATX
Număr porturi SATA III 4 4 4 4 4
Număr sloturi M.2 3 3 3 2 4
Slot grafic PCI Express PCIe 4.0 x16 PCIe 3.0 x16 N/A PCIe 5.0 x16 N/A
Suport RAID Yes Yes Yes Yes Yes
Versiune DirectX 12.0 12.0 12.0 12.0 12.0

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placă de bază GIGABYTE B840 EAGLE WIFI 6E, ATX, socket AM5, chipset B840, DDR5 192 GB, PCIe 4.0 x16, M.2 Gen4, WiFi 6E, LAN 2.5 Gbps.

Specificații tehnice 131 caracteristici
Culoare produs
Dark brown
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
25110
3rd M.2 highest PCI Express generation
3.0
3rd M.2 largest key size
25110
12V power connector
Yes
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio Chip
Realtek ALC897
Batteries included
Yes
Battery weight
3 g
BIOS memory size
256 Mbit
Bundled software
Norton® Internet Security (OEM version)
Canale audio
7.1
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Headphone outputs
1
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory per slot
64 GB
MB-Format
micro-ATX
MB-Socket
AM5
Memorie maxima
256 GB
Microphone in
Yes
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of water pump connectors
2
Onboard-CPU
No
Package depth
270 mm
Package height
80 mm
Package weight
18.7 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI-Ex16
2
PCI Express x16 (Gen 3.x) slots
3
PCI Express x16 (Gen 4.x) slots
1
Products per shipping (inner) case
1 pc(s)
RAM-Slots
4
RJ-45 LAN
1
Screws included
Yes
Serial-or-Paralel
No/No
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB3
4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Video-Connection
HDMI
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8852CE
Greutate
1.64 kg
Rezoluție maximă
4096 x 2160 pixels
Tehnologie baterie
Lithium-Manganese Dioxide (LiMnO2)
Tip Memorie
DDR5
Wi-Fi
Yes
Număr porturi RJ-45
1
Număr porturi DisplayPort
1
Versiune DisplayPort
1.4
Gaming
Nu
Canale audio
7.1 channels
Conectori ventilatoare carcasă
4
Conector RGB
Yes
Producător chipset audio
Realtek
Tip BIOS
UEFI AMI
Tip slot RAM
DIMM
Tip baterie
CR2032
Chipset placă de bază
AMD B840
Interfețe stocare suportate
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Niveluri RAID
0, 1, 5, 10
Număr unități stocare suportate
7
Tip sursă alimentare
ATX
Tipuri stocare suportate
HDD & SSD
Număr celule baterie
1
Adâncime
24.4 mm
Lățime
30.5 mm
Înălțime
35 mm
Bluetooth
Yes
HDMI
Da
Număr porturi HDMI
1
Număr porturi USB 2.0
4
Porturi USB-A 3.2 Gen 2
1
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 6E (802.11ax)
Thunderbolt
Nu
USB-C
N/A
Versiune Bluetooth
5.3
Versiune HDMI
2.1
Garanție comercială
36
Producător
GIGABYTE
Canale memorie RAM
Dual-channel
Memorie RAM maximă
256 GB
Producător procesor
AMD
Tip răcire
Passive
Format placă de bază
ATX
Model chipset
B840
Număr sloturi RAM
4
Platformă chipset
AMD
Soclu procesor
Socket AM5
Tipuri RAM acceptate
DDR5-SDRAM
Versiune HDCP
2.3
Socket procesor
Socket AM5
Tip rețea Ethernet
2.5 Gigabit Ethernet
Socketuri compatibile
Socket AM5
HDCP
Yes
Wireless
Da
Format
ATX
Număr porturi SATA III
4
Număr sloturi M.2
3
Slot grafic PCI Express
PCIe 4.0 x16
Suport RAID
Yes
Versiune DirectX
12.0
Întrebări și răspunsuri 0 întrebări

Nu există întrebări încă.

Pune o întrebare despre produs
Adresa de e-mail nu va fi publicată. Întrebarea apare după moderare.
Recenzii clienți Nicio recenzie încă
0,0 ☆☆☆☆☆ 0 recenzii
  1. 5 ★ 0% 0
  2. 4 ★ 0% 0
  3. 3 ★ 0% 0
  4. 2 ★ 0% 0
  5. 1 ★ 0% 0

Acest produs nu are încă recenzii.

Scrie o recenzie

SHOPPING CART

close
