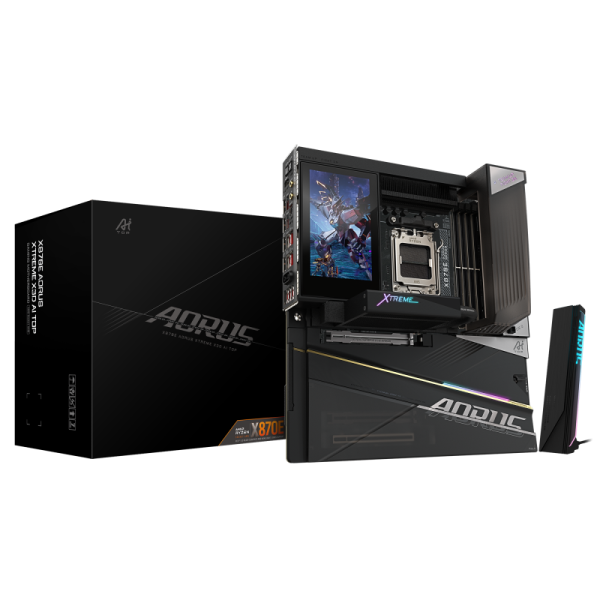

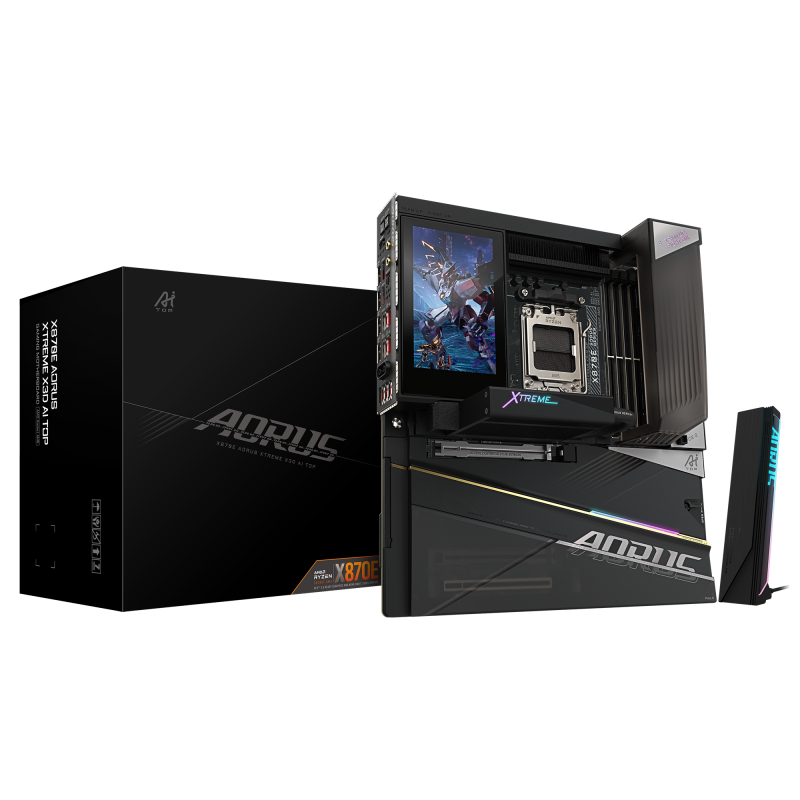

Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP,
7.470,99 lei
Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP,
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: X870E A XTR X AI TOP
Livrare și beneficii
Compară cu produse similare
Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP,
Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX
620,98 lei 809,99 lei
Placa de baza Gigabyte B850 EAGLE ICE, Socket AM5, DDR5,
849,99 lei 1.173,99 lei

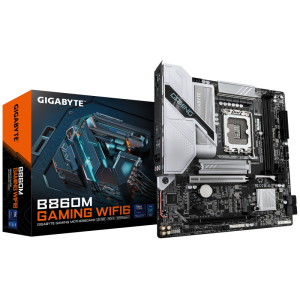

Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5,
782,99 lei 1.009,99 lei
Placa de baza Gigabyte X870 AORUS ELITE WIFI7, Socket AM5,
1.494,99 lei 1.930,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP, | Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX | Placa de baza Gigabyte B850 EAGLE ICE, Socket AM5, DDR5, | Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5, | Placa de baza Gigabyte X870 AORUS ELITE WIFI7, Socket AM5, |
|---|---|---|---|---|---|
| Culoare produs | Black | Brown | White | Brown | — |
| 1st M.2 highest PCI Express generation | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| 1st M.2 largest key size | 2580 | 25110 | 22110 | 2280 | 25110 |
| 2nd M.2 highest PCI Express generation | 5.0 | 4.0 | 4.0 | 4.0 | 5.0 |
| 2nd M.2 largest key size | 22110 | 22110 | 22110 | 2280 | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 | 4.0 | 4.0 | — | 5.0 |
| 3rd M.2 largest key size | 22110 | 22110 | 22110 | — | 22110 |
| 12V power connector | — | Yes | Yes | — | — |
| ACPI version | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Antenna included | Yes | — | — | Yes | Yes |
| ATX Power connector (24-pin) | Yes | Yes | Yes | Yes | Yes |
| Audio Chip | 1 ESS ES9280AC + 2 ESS ES9080 | Realtek ALC897 | Realtek ALC897 | Realtek ALC897 | Realtek ALC1220 |
| Batteries included | Yes | — | Yes | Yes | — |
| Battery weight | 3 g | 3 g | 3 g | 3 g | 3 g |
| BIOS memory size | 512 Mbit | 256 Mbit | 256 Mbit | 256 Mbit | 256 Mbit |
| Canale audio | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 |
| Clear CMOS button | Yes | — | — | — | Yes |
| Clear CMOS jumper | — | Yes | Yes | Yes | Yes |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Component for | PC | PC | PC | PC | PC |
| Country of origin | Taiwan | China | China | — | China |
| CPU fan connector | Yes | Yes | Yes | Yes | Yes |
| Desktop Management Interface (DMI) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| ECC сompatibility | Non-ECC | Non-ECC | Non-ECC | ECC & Non-ECC | Non-ECC |
| EPS power connector (8-pin) | Yes | Yes | Yes | Yes | Yes |
| Front panel audio connector | Yes | Yes | Yes | Yes | Yes |
| Front panel connector | Yes | Yes | Yes | Yes | Yes |
| Headphone outputs | — | 1 | 1 | 1 | 1 |
| LAN controller | Realtek RTL8127 | Realtek RTL8111H | Realtek RTL8125 | Realtek RTL8125 | Realtek RTL8125 |
| Line-in | Yes | Yes | Yes | Yes | — |
| Lithium weight per battery | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g |
| Maximum internal memory per slot | 64 GB | 64 GB | 64 GB | 64 GB | 64 GB |
| MB-Format | — | — | ATX | — | ATX |
| MB-Socket | — | — | 1700 | — | AM5 |
| Memorie maxima | 256 GB | 256 GB | 256 GB | 128 GB | 256 GB |
| Microphone in | Yes | Yes | Yes | Yes | Yes |
| Number of CPU fan connectors | 2 | 2 | 2 | 2 | 2 |
| Number of EPS power connectors (8-pin) | 2 | — | 1 | 1 | 2 |
| Number of HDDs supported | 2 | 4 | 4 | 4 | 4 |
| Number of M.2 (M) slots | 5 | 3 | 3 | 2 | 4 |
| Number of memory slots | 4 | 4 | 4 | 2 | 4 |
| Number of RGB LED pin headers | 1 | 4 | 4 | 4 | 4 |
| Number of water pump connectors | 3 | 2 | 2 | 2 | 3 |
| Onboard-CPU | — | No | No | — | No |
| Package depth | 387 mm | 270 mm | 270 mm | 268 mm | 270 mm |
| Package height | 167 mm | 80 mm | 80 mm | 68 mm | 80 mm |
| Package weight | 11.2 kg | 1.82 kg | 1.88 kg | 1.29 kg | 2.74 kg |
| Package width | 387 mm | 335 mm | 335 mm | 270 mm | 335 mm |
| Parallel processing technology support | Not supported | Not supported | Not supported | Not supported | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage, Water cooling | Fan, Temperature, Voltage |
| PCI-Ex16 | — | — | 3 | — | 3 |
| PCI Express x16 (Gen 3.x) slots | — | 3 | 2 | — | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 | 1 | 1 | 1 | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 | — | 1 | 1 | 1 |
| Products per shipping (inner) case | 1 pc(s) | — | 1 pc(s) | 1 pc(s) | — |
| PS/2 ports quantity | — | 1 | 1 | — | — |
| RAM-Slots | — | — | 2 | — | 4 |
| RJ-45 LAN | 2 | 1 | 1 | 1 | 1 |
| S/PDIF out port | Yes | — | — | — | Yes |
| Screws included | Yes | Yes | Yes | Yes | Yes |
| Serial-or-Paralel | — | No/No | No/No | — | No/No |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz | 4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz | 5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| System Management BIOS (SMBIOS) version | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| TPM connector | — | Yes | Yes | Yes | Yes |
| Unbuffered memory | Yes | Yes | Yes | Yes | — |
| USB 2.0 connectors | 1 | 3 | 2 | 2 | 2 |
| USB3 | — | — | 4-8 | — | 4-8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 | 1 | 2 | 1 | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 | 1 | — | 1 | — |
| USB 3.2 Gen 2x2 connectors | 1 | — | — | — | 1 |
| USB4 Gen 2x2 ports quantity | 2 | — | — | — | 2 |
| Video-Connection | — | HDMI/DP | HDMI/DP | — | HDMI |
| WiFi-AP antenna jack | 2 | — | — | 2 | 2 |
| Windows operating systems supported | Windows 11 x64 | Windows 10 x64, Windows 11 x64 | Windows 11 x64 | Windows 10 x64, Windows 11 x64 | Windows 11 x64 |
| WLAN controller model | MediaTek MT7927 | — | — | Realtek RTL8851BE | MediaTek MT7925 |
| Greutate | 8.02 kg | — | 1.65 kg | 12.3 kg | 2.4 kg |
| Rezoluție maximă | 4096 x 2160 pixels | 4096 x 2160 pixels | 4096 x 2160 pixels | 4096 x 2160 pixels | — |
| Tehnologie baterie | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) | Lithium-Manganese Dioxide (LiMnO2) |
| Tip Memorie | DDR5 | DDR5 | DDR5 | DDR5 | DDR5 |
| Standarde Wi-Fi | — | — | — | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes | No | No | Yes | Yes |
| Număr porturi RJ-45 | 2 | — | 1 | 1 | — |
| Număr porturi DisplayPort | — | 1 | 1 | 1 | 2 |
| Versiune DisplayPort | 1.4 | 1.4 | 1.4 | 2.1 | 1.4 |
| Gaming | Nu | Nu | Nu | Da | Nu |
| Canale audio | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels |
| Conectori ventilatoare carcasă | 3 | 3 | 4 | 2 | 6 |
| Conector RGB | Yes | Yes | — | Yes | Yes |
| Producător chipset audio | ESS | Realtek | Realtek | Realtek | Realtek |
| Tip BIOS | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI |
| Tip slot RAM | DIMM | DIMM | DIMM | DIMM | DIMM |
| Tip baterie | CR2032 | CR2032 | CR2032 | CR2032 | CR2032 |
| Chipset placă de bază | AMD X870E | AMD B650 | AMD B850 | — | AMD X870 |
| Interfețe stocare suportate | M.2, SATA III | M.2, SATA III | M.2, PCI Express 4.0, PCI Express 5.0, SATA III | M.2, SATA III | M.2, SATA III |
| Niveluri RAID | 0, 1, 5, 10 | 0, 1, 10 | 0, 1, 10 | 0, 1, 5, 10 | 0, 1, 10 |
| Număr unități stocare suportate | 7 | 7 | 7 | 6 | 8 |
| Tip sursă alimentare | ATX | ATX | ATX | ATX | — |
| Tipuri stocare suportate | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| Capacitate baterie | 220 mAh | — | — | 220 mAh | — |
| Număr celule baterie | 1 | 1 | 1 | 1 | 1 |
| Adâncime | 285 mm | 24.4 mm | 24.4 mm | 225 mm | 24.4 mm |
| Lățime | 305 mm | 30.5 mm | 30.5 mm | 244 mm | 30.5 mm |
| Înălțime | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Bluetooth | Yes | Nu | Nu | Yes | Da |
| HDMI | Da | Da | Da | Da | Da |
| Număr porturi HDMI | 1 | 1 | 1 | 1 | 1 |
| Număr porturi USB 2.0 | — | 6 | 4 | 3 | 2 |
| Porturi USB-A 3.2 Gen 1 | — | — | 1 | — | 4 |
| Porturi USB-A 3.2 Gen 2 | 8 | — | — | — | 3 |
| Rețea prin cablu (LAN) | Yes | Yes | Yes | Yes | Yes |
| Standard Wi-Fi | Wi-Fi 7 (802.11be) | — | — | Wi-Fi 6 (802.11ax) | Wi-Fi 7 (802.11be) |
| Thunderbolt | Nu | Nu | Nu | Da | Nu |
| USB-C | Da | Da | N/A | Da | Da |
| Versiune Bluetooth | 5.4 | — | — | 5.3 | 5.4 |
| Versiune HDMI | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 |
| Garanție comercială | 24 | 36 | 36 | 36 | 36 |
| Producător | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE |
| Canale memorie RAM | Dual-channel | Dual-channel | Dual-channel | Dual-channel | Dual-channel |
| Memorie RAM maximă | 256 GB | 256 GB | 256 GB | 128 GB | 256 GB |
| Producător procesor | AMD | AMD | AMD | Intel | AMD |
| Tip răcire | Passive | — | Passive | Passive | — |
| Format placă de bază | Extended ATX | ATX | ATX | micro ATX | ATX |
| Model chipset | X870E | B650 | B850 | B860 | X870 |
| Număr sloturi RAM | 4 | 4 | 4 | 2 | 4 |
| Platformă chipset | AMD | AMD | AMD | Intel | AMD |
| Soclu procesor | Socket AM5 | Socket AM5 | Socket AM5 | Socket 1851 | Socket AM5 |
| Tipuri RAM acceptate | DDR5-SDRAM | DDR5-SDRAM | DDR5-SDRAM | DDR5-SDRAM | DDR5-SDRAM |
| Socket procesor | Socket AM5 | Socket AM5 | Socket AM5 | LGA 1851 (Socket V1) | Socket AM5 |
| Tip rețea Ethernet | 10 Gigabit Ethernet | Gigabit Ethernet | 2.5 Gigabit Ethernet | 2.5 Gigabit Ethernet | 2.5 Gigabit Ethernet |
| Socketuri compatibile | Socket AM5 | Socket AM5 | Socket AM5 | LGA 1851 | Socket AM5 |
| HDCP | Yes | Yes | Yes | Yes | — |
| Wireless | Da | Nu | Nu | Da | Da |
| Format | E-ATX | ATX | ATX | Micro-ATX | ATX |
| Număr porturi SATA III | 2 | 4 | 4 | 4 | 4 |
| Număr sloturi M.2 | 5 | 3 | 3 | 2 | 4 |
| Slot grafic PCI Express | PCIe 5.0 x16 | PCIe 3.0 x16 | N/A | PCIe 5.0 x16 | N/A |
| Suport RAID | Yes | Yes | Yes | Yes | Yes |
| Versiune DirectX | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 |
Analiză inteligentă a produsului
Descriere oficială
GIGABYTE X870E AORUS XTREME X3D AI TOP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Specificații tehnice 124 caracteristici ⌄
- Culoare produs
- Black
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2580
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- ACPI version
- 5.0
- Antenna included
- Yes
- ATX Power connector (24-pin)
- Yes
- Audio Chip
- 1 ESS ES9280AC + 2 ESS ES9080
- Batteries included
- Yes
- Battery weight
- 3 g
- BIOS memory size
- 512 Mbit
- Bundled software
- Norton® Internet Security (OEM version)
- Canale audio
- 7.1
- Clear CMOS button
- Yes
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Component for
- PC
- Country of origin
- Taiwan
- CPU fan connector
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- Digital audio optical out
- 1
- ECC сompatibility
- Non-ECC
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- LAN controller
- Realtek RTL8127
- Line-in
- Yes
- Lithium weight per battery
- 0.07 g
- Maximum internal memory per slot
- 64 GB
- Memorie maxima
- 256 GB
- Microphone in
- Yes
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- Number of HDDs supported
- 2
- Number of M.2 (M) slots
- 5
- Number of memory slots
- 4
- Number of RGB LED pin headers
- 1
- Number of water pump connectors
- 3
- Package depth
- 387 mm
- Package height
- 167 mm
- Package weight
- 11.2 kg
- Package width
- 387 mm
- Parallel processing technology support
- Not supported
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 2
- Products per shipping (inner) case
- 1 pc(s)
- RJ-45 LAN
- 2
- S/PDIF out port
- Yes
- Screws included
- Yes
- Supported memory clock speeds
- 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
- System Management BIOS (SMBIOS) version
- 2.7
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 2
- WiFi-AP antenna jack
- 2
- Windows operating systems supported
- Windows 11 x64
- WLAN controller model
- MediaTek MT7927
- Greutate
- 8.02 kg
- Rezoluție maximă
- 4096 x 2160 pixels
- Tehnologie baterie
- Lithium-Manganese Dioxide (LiMnO2)
- Tip Memorie
- DDR5
- Wi-Fi
- Yes
- Număr porturi RJ-45
- 2
- Versiune DisplayPort
- 1.4
- Gaming
- Nu
- Canale audio
- 7.1 channels
- Conectori ventilatoare carcasă
- 3
- Conector RGB
- Yes
- Producător chipset audio
- ESS
- Tip BIOS
- UEFI AMI
- Tip slot RAM
- DIMM
- Tip baterie
- CR2032
- Chipset placă de bază
- AMD X870E
- Interfețe stocare suportate
- M.2, SATA III
- Niveluri RAID
- 0, 1, 5, 10
- Număr unități stocare suportate
- 7
- Tip sursă alimentare
- ATX
- Tipuri stocare suportate
- HDD & SSD
- Capacitate baterie
- 220 mAh
- Număr celule baterie
- 1
- Adâncime
- 285 mm
- Lățime
- 305 mm
- Înălțime
- 35 mm
- Bluetooth
- Yes
- HDMI
- Da
- Număr porturi HDMI
- 1
- Porturi USB-A 3.2 Gen 2
- 8
- Rețea prin cablu (LAN)
- Yes
- Standard Wi-Fi
- Wi-Fi 7 (802.11be)
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune Bluetooth
- 5.4
- Versiune HDMI
- 2.1
- Garanție comercială
- 24
- Producător
- GIGABYTE
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 256 GB
- Producător procesor
- AMD
- Tip răcire
- Passive
- Format placă de bază
- Extended ATX
- Model chipset
- X870E
- Număr sloturi RAM
- 4
- Platformă chipset
- AMD
- Soclu procesor
- Socket AM5
- Tipuri RAM acceptate
- DDR5-SDRAM
- Versiune HDCP
- 2.3
- Socket procesor
- Socket AM5
- Tip rețea Ethernet
- 10 Gigabit Ethernet
- Socketuri compatibile
- Socket AM5
- HDCP
- Yes
- Wireless
- Da
- Format
- E-ATX
- Număr porturi SATA III
- 2
- Număr sloturi M.2
- 5
- Slot grafic PCI Express
- PCIe 5.0 x16
- Suport RAID
- Yes
- Versiune DirectX
- 12.0
Întrebări și răspunsuri 0 întrebări ⌄
Nu există întrebări încă.
Pune o întrebare despre produs
Recenzii clienți Nicio recenzie încă ⌄
0,0
☆☆☆☆☆
0 recenzii
- 5 ★ 0
- 4 ★ 0
- 3 ★ 0
- 2 ★ 0
- 1 ★ 0
Acest produs nu are încă recenzii.
Scrie o recenzie
Produse recomandate
-

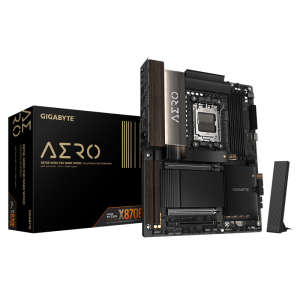

Placa de baza Gigabyte X870E AERO X3D Dark Wood, Socket
-

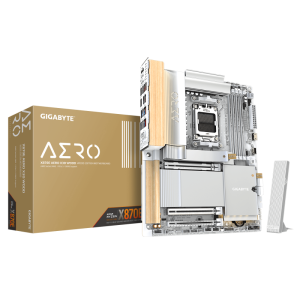

Placa de baza Gigabyte X870E AERO X3D WOOD, Socket AM5,
-

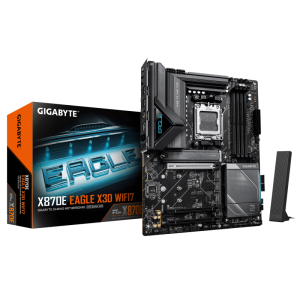

Placa de baza Gigabyte X870E EAGLE X3D WIFI7, Socket AM5,
-

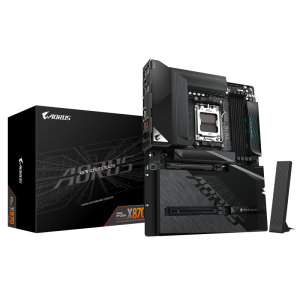

Placa de baza Gigabyte X870 AORUS STEALTH, Socket AM5, DDR5,
-

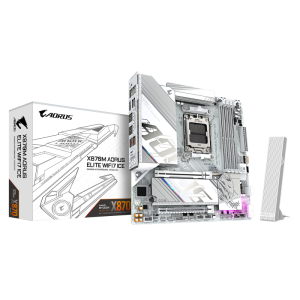

Placa de baza Gigabyte X870M AORUS ELITE WIFI7 ICE, Socket
-
Placa de baza Gigabyte B850M EAGLE WIFI7, Socket AM5, DDR5,
-
Placa de baza Gigabyte X870 AORUS TACHYON ICE, Socket AM5,
-
Placa de baza Gigabyte B650E EAGLE WIFI6E, Socket AM5, DDR5,
-
Placa de baza Gigabyte B840M GAMING X WIFI6E, Socket AM5,
-
Placa de baza Gigabyte B850M EAGLE WIFI6E, Socket AM5, DDR5,
Trebuie să fii autentificat pentru a publica un comentariu.
