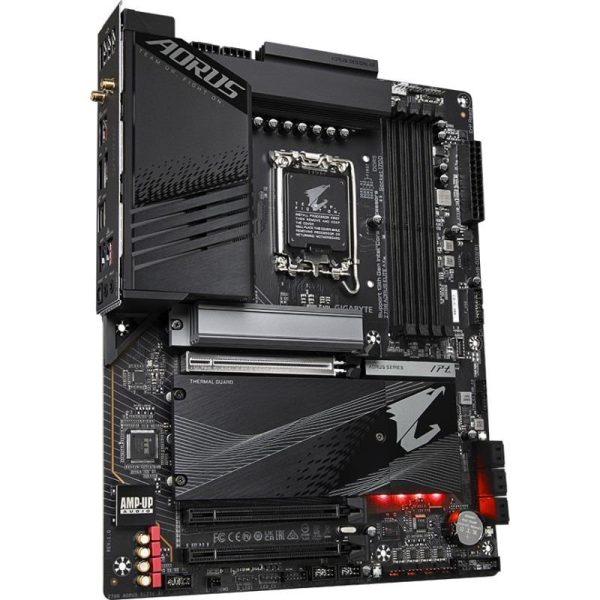

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700,

Placi de baza

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700,

(0) În stoc
Vândut de RITC.ro Cod produs: Z790 AORUS ELITEAX

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, Placa de baza Gigabyte Z890 AORUS ELITE DUO X, LGA Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4, Placa de baza Gigabyte B850M AORUS STEALTH, Socket AM5, DDR5, Placa de baza Gigabyte B550 X EAGLE WIFI6E, Socket AM4,
Alte caracteristici
1st M.2 highest PCI Express generation — 5.0 4.0 5.0 4.0
1st M.2 largest key size — 25110 22110 2280 22110
2nd M.2 highest PCI Express generation — 4.0 3.0 4.0 3.0
2nd M.2 largest key size — 22110 22110 2280 22110
3rd M.2 highest PCI Express generation — 4.0 — 4.0 —
3rd M.2 largest key size — 22110 — 2280 —
12V power connector Yes Yes Yes Yes Yes
ACPI version 5.0 5.0 5.0 5.0 5.0
Antenna included — Yes Yes Yes Yes
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip — Realtek ALC1220 Realtek ALC897 Realtek ALC1220 Realtek ALC897
Audio output channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels
Batteries included — Yes Yes Yes Yes
Battery-Capacity — 220 mAh 220 mAh 220 mAh 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032 CR2032 CR2032 CR2032 CR2032
Battery weight 3 g 3 g 3 g 3 g 3 g
BIOS memory size 256 Mbit 512 Mbit 128 Mbit 512 Mbit 128 Mbit
BIOS type UEFI AMI UEFI AMI UEFI AMI UEFI AMI UEFI AMI
Bluetooth Da Yes Yes Yes Yes
Bundled software Norton Internet Security Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version) Norton® Internet Security (OEM version)
Canale audio 7.1 7.1 7.1 7.1 7.1
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Clear CMOS button Yes Yes — Yes —
Clear CMOS jumper Yes Yes — Yes Yes
Compatible processor series — Intel Core Ultra (Series 2) AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Component for PC PC PC PC PC
Cooling type — Passive Passive Passive Passive
Country of origin China China China — China
CPU fan connector Yes Yes Yes Yes Yes
Depth 24.4 mm 305 mm 305 mm 244 mm 244 mm
Desktop Management Interface (DMI) version 2.7 2.7 2.7 2.7 2.7
Digital audio optical out — 1 1 1 —
DirectX version 12.0 12.0 12.0 12.0 12.0
DisplayPorts quantity 1 1 1 1 —
DisplayPort version 1.2 2.1 1.4 1.4 —
ECC сompatibility ECC & Non-ECC ECC & Non-ECC ECC & Non-ECC Non-ECC ECC & Non-ECC
EPS power connector (8-pin) Yes Yes Yes Yes Yes
Ethernet interface type 2.5 Gigabit Ethernet 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports — 1 1 1 1
Format ATX ATX ATX Micro-ATX ATX
Front panel audio connector Yes Yes Yes Yes Yes
Front panel connector Yes Yes Yes Yes Yes
Gaming Nu Nu Nu Nu Da
HDCP Yes Yes Yes — Yes
HDCP version — 2.3 2.3 — 2.3
HDMI Da Nu Da Da Da
HDMI version 2.0 — 2.1 2.1 2.1
Headphone outputs 2 1 1 1 1
Height 35 mm 35 mm 35 mm 35 mm 35 mm
LAN controller — Realtek RTL8126 Realtek RTL8125 Realtek RTL8126 Realtek RTL8125
Line-in — Yes Yes Yes Yes
Lithium weight per battery 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g
MAXIMUM-RESOLUTION 4096 x 2304 pixels 4096 x 2304 pixels 5120 x 2880 pixels 4096 x 2160 pixels 4096 x 2160 pixels
Maximum internal memory per slot — 128 GB 32 GB 64 GB 32 GB
MB-Format ATX ATX ATX ATX —
MB-Socket 1700 AM5 AM4 AM5 —
Memorie maxima 192 GB 256 GB 128 GB 256 GB 128 GB
Memory channels Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel
Memory slots type DIMM DIMM DIMM DIMM DIMM
Microphone in Yes — Yes — —
Model Chipset Z790 Z890 B550 B850 B550
Motherboard chipset Intel Z790 Intel Z890 Express AMD B550 AMD B850 AMD B550
Motherboard chipset family Intel Intel AMD AMD AMD
Motherboard form factor ATX ATX ATX micro ATX ATX
Numar sloturi memorie 4 2 4 4 4
Number of battery cells 1 1 1 1 1
Number of chassis fan connectors — 4 3 2 4
Number of CPU fan connectors — 2 2 2 2
Number of EPS power connectors (8-pin) — 2 1 1 1
Number of HDDs supported 6 4 4 2 4
Number of M.2 (M) slots 4 5 2 3 2
Number of memory slots 4 2 4 4 4
Number of RGB LED pin headers — 4 5 4 4
Number of SATA III connectors 6 4 4 2 4
Number of storage drives supported 10 9 6 5 6
Number of water pump connectors — 2 1 2 2
Onboard-CPU No No No No —
Package depth 270 mm 294 mm 270 mm 287 mm 294 mm
Package height 80 mm 80 mm 80 mm 89 mm 80 mm
Package weight 2.32 kg 3.05 kg 1.92 kg 2.66 kg 2.46 kg
Package width 335 mm 345 mm 335 mm 268 mm 345 mm
Parallel processing technology support Crossfire Not supported Not supported Not supported Not supported
PC health monitoring Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, LED, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling CPU, Fan, Temperature, Voltage, Water cooling
PCI-Ex1 — 1 1 — —
PCI-Ex16 3 4 3 1 —
PCI Express x16 (Gen 3.x) slots — — 2 — 4
PCI Express x16 (Gen 4.x) slots — 2 1 1 1
PCI Express x16 (Gen 5.x) slots — 1 — 1 —
Power source type — ATX ATX ATX ATX
Processor socket LGA 1700 LGA 1851 (Socket V1) Socket AM4 Socket AM5 Socket AM4
Products per shipping (inner) case — 1 pc(s) 1 pc(s) 1 pc(s) 1 pc(s)
RAID levels 0, 1, 5, 10 0, 1, 5, 10 0, 1, 10 0, 1, 10, 5 0, 1, 10
RAID support Yes Yes Yes Yes Yes
RAM-Slots 4 4 4 4 —
RGB LED pin header Yes Yes Yes Yes Yes
RJ-45 LAN 1 1 1 1 1
S/PDIF out port Yes Yes Yes Yes —
Screws included — Yes Yes Yes Yes
Serial-or-Paralel No/No Yes/No No/No No/No —
Sloturi M.2 4 5 2 3 2
Soclu Procesor Socket 1700 Socket 1851 Socket AM4 Socket AM5 Socket AM4
Supported memory clock speeds 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz 10266 MHz 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz 8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz 2133,2400,2667,2933,3200 MHz
Supported memory types DDR5-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM DDR4-SDRAM
Supported processor sockets LGA 1700 LGA 1851 Socket AM4 Socket AM5 Socket AM4
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III M.2, PCI Express 4.0, PCI Express 3.0, SATA III M.2, PCI Express 4.0, PCI Express 5.0, SATA III M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
Supported storage drive types HDD & SSD HDD & SSD HDD & SSD HDD & SSD HDD & SSD
System Management BIOS (SMBIOS) version 2.7 2.7 2.7 2.7 2.7
Thunderbolt Nu Nu Nu Nu Nu
Tip Memorie DDR5 DDR5 DDR4 DDR5 DDR4
Tip slot interfata grafica PCIe 5.0 x16 PCIe 5.0 x16 PCIe 4.0 x16 PCIe 5.0 x16 PCIe 4.0 x16
TPM connector Yes Yes — Yes —
Unbuffered memory Yes Yes Yes Yes Yes
USB 2.0 connectors 2 2 2 2 2
USB3 4-8 4-8 4-8 4-8 —
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 1 2 1 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 1 — 1 —
USB Type-C Da N/A N/A Da N/A
Video-Connection HDMI/DP HDMI/DP HDMI/DP HDMI —
Wi-Fi Yes Yes Yes Yes Yes
Width 30.5 mm 244 mm 244 mm 244 mm 305 mm
WiFi-AP antenna jack 2 2 2 2 2
Windows operating systems supported Windows 10 x64, Windows 11 x64 Windows 11 Windows 11 Windows 11 Home Windows 11 x64, Windows 10 x64
Wireless Da Da Da Da Da
WLAN controller model Intel Wi-Fi 6E AX211 Intel Wi-Fi 7 BE200 Realtek RTL8922AE Realtek RTL8922AE MediaTek MT7902
Laptopuri - Conectivitate
Rețea prin cablu (LAN) Yes Yes Yes Yes Yes
Standard Wi-Fi Wi-Fi 6E (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 7 (802.11be) Wi-Fi 6E (802.11ax) Wi-Fi 6E (802.11ax)
Versiune Bluetooth 5.3 5.4 5.4 5.4 5.3
Laptopuri - Construcție
Culoare — Black Black Black Dark brown
Greutate — 2.63 kg 1.68 kg 2.29 kg 2.04 kg
Laptopuri - Generale
Garanție comercială 36 36 36 36 —
Producător GIGABYTE GIGABYTE GIGABYTE GIGABYTE GIGABYTE
Laptopuri - Memorie
Memorie RAM maximă 192 GB 256 GB 128 GB 256 GB 128 GB
Laptopuri - Porturi
Număr porturi USB 2.0 4 4 2 4 4
Număr USB-A 3.2 Gen 1 — — — 4 1
Porturi HDMI 1 — 1 1 1
Laptopuri - Procesor
Producător procesor Intel Intel AMD AMD AMD

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Recomandat pentru Gaming
Da
Format
ATX
Soclu procesor
1700
Producator chipset
Intel
Model chipset
Z790
Procesoare suportate
Intel 12th/13th Generation Core/Pentium Gold/Celeron
Interfata grafica
PCI Express x16 5.0
Placa video integrata
Necesita procesor cu tehnologia Intel HD Graphics
Placa audio integrata
7.1 Audio with Realtek
Chipset audio
Realtek
Placa retea integrata
10/100/1000/2500 Mbps
Chipset retea
Intel 2.5GbE
Numar SATA-III
6
M.2
4
Memorii Suportate
Tip memorie
DDR5
Memorie maxima
128 GB
Numar sloturi
4
Tehnologie
Dual channel
Frecvente suportate
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000
Sloturi
PCI Express 5.0 x16
1
PCI Express 4.0 x16
2 (x4 / x4)

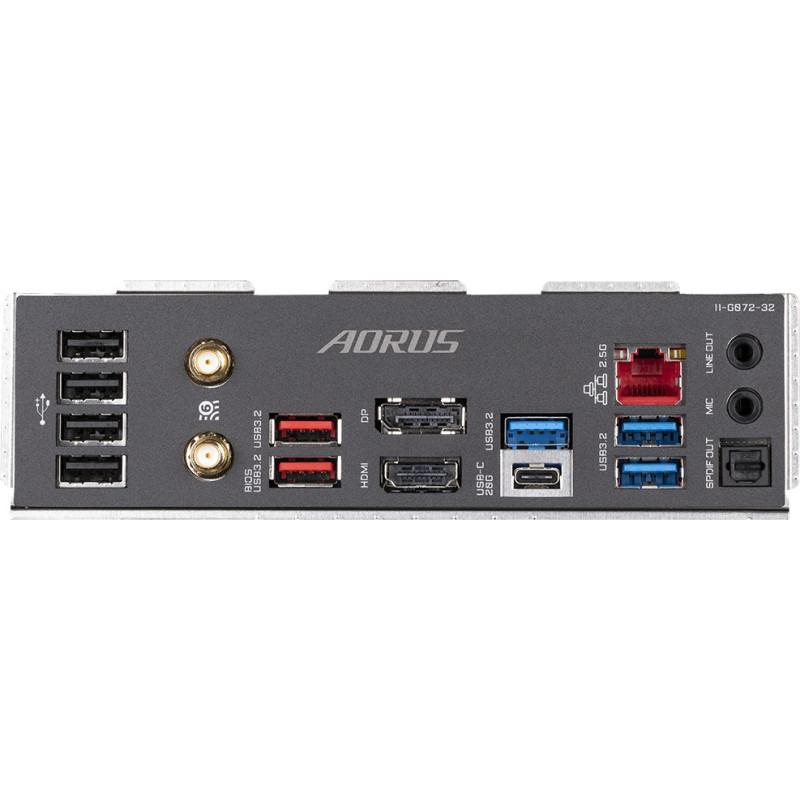

Conectori Back Panel
Optical S/PDIF out
1
HDMI
1
Display Port
1
USB 2.0
4
USB 3.2 Gen1 tip A
3
USB 3.2 Gen2 tip A
2
USB 3.2 Gen2 tip C
1
RJ-45 LAN
1
Suport audio
7.1
Bluetooth
Bluetooth 5.3
Wireless
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Specificații tehnice 112 caracteristici
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Da
Bundled software
Norton Internet Security
Cables included
SATA
Canale audio
7.1
Chipset audio integrat
Realtek
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
24.4 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPorts quantity
1
DisplayPort version
1.2
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Format
ATX
Front panel audio connector
Yes
Front panel connector
Yes
Gaming
Nu
HDCP
Yes
HDMI
Da
HDMI version
2.0
Headphone outputs
2
Height
35 mm
Lithium weight per battery
0.07 g
MAXIMUM-RESOLUTION
4096 x 2304 pixels
Maximum internal memory supported by processor
192 GB
MB-Format
ATX
MB-Socket
1700
Memorie maxima
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Model Chipset
Z790
Motherboard chipset
Intel Z790
Motherboard chipset family
Intel
Motherboard form factor
ATX
Numar sloturi memorie
4
Number of battery cells
1
Number of HDDs supported
6
Number of M.2 (M) slots
4
Number of memory slots
4
Number of SATA III connectors
6
Number of storage drives supported
10
On-board graphics card
No
Onboard-CPU
No
Package depth
270 mm
Package height
80 mm
Package weight
2.32 kg
Package width
335 mm
Parallel processing technology support
Crossfire
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI-Ex16
3
PCI Express x16 slots
3
Processor socket
LGA 1700
RAID levels
0, 1, 5, 10
RAID support
Yes
RAM-Slots
4
RGB LED pin header
Yes
RJ-45 LAN
1
S/PDIF out port
Yes
Serial-or-Paralel
No/No
Sloturi M.2
4
Soclu Procesor
Socket 1700
Supported memory clock speeds
7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt
Nu
Thunderbolt headers
2
Tip Memorie
DDR5
Tip slot interfata grafica
PCIe 5.0 x16
Total number of SATA connectors
6
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB3
4-8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB connector type
USB Type-A, USB Type-C
USB Type-C
Da
Video-Connection
HDMI/DP
Wi-Fi
Yes
Width
30.5 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Wireless
Da
WLAN controller model
Intel Wi-Fi 6E AX211
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 6E (802.11ax)
Versiune Bluetooth
5.3
Garanție comercială
36
Producător
GIGABYTE
Memorie RAM maximă
192 GB
Număr porturi USB 2.0
4
Porturi HDMI
1
Producător procesor
Intel
Întrebări și răspunsuri 0 întrebări

Nu există întrebări încă.

Pune o întrebare despre produs
Adresa de e-mail nu va fi publicată. Întrebarea apare după moderare.
Recenzii clienți Nicio recenzie încă
0,0 ☆☆☆☆☆ 0 recenzii
  1. 5 ★ 0% 0
  2. 4 ★ 0% 0
  3. 3 ★ 0% 0
  4. 2 ★ 0% 0
  5. 1 ★ 0% 0

Acest produs nu are încă recenzii.

Scrie o recenzie

SHOPPING CART

close
Promoția curentă: Campanie SALE DAYS 2026 →
