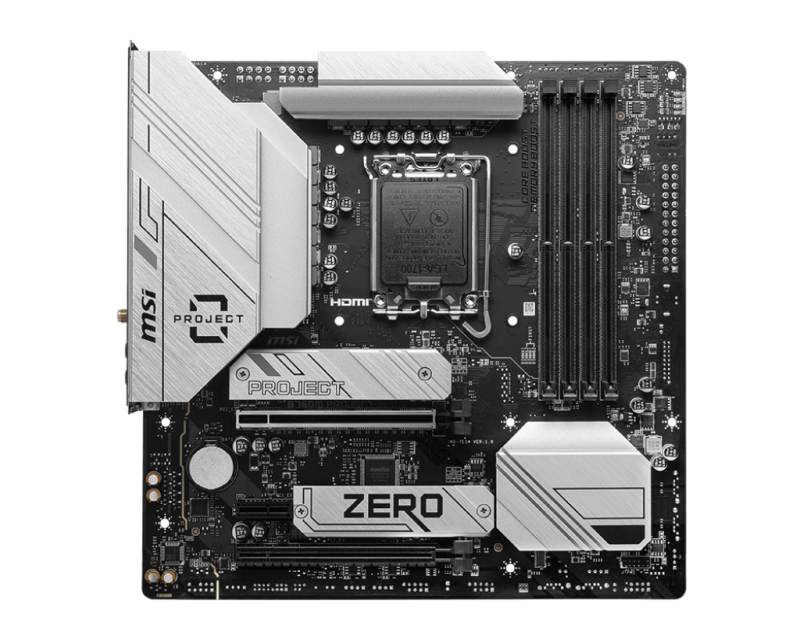

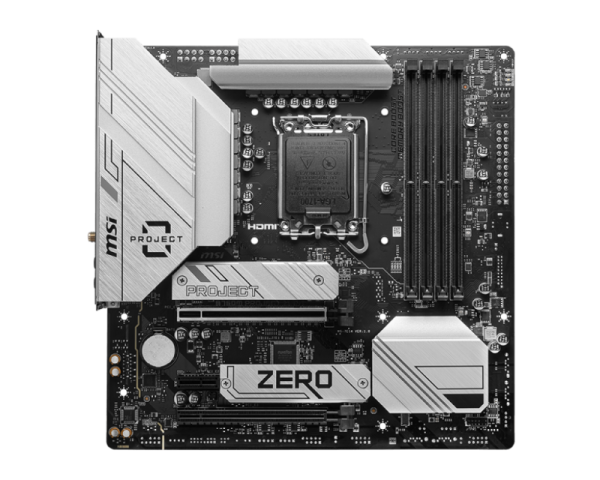

Placa de baza MSI B760M Project Zero, Socket 1700, DDR5,

Placi de baza

Placa de baza MSI B760M Project Zero, Socket 1700, DDR5,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: 7E14-001R

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni Garanție producător 24 luni Producător: 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza MSI B760M Project Zero, Socket 1700, DDR5, Placa de baza MSI A520M-A PRO, Socket AM4, DDR4, Micro-ATX Placa de baza Gigabyte B650 EAGLE, Socket AM5, DDR5, ATX Placa de baza Gigabyte B850 EAGLE ICE, Socket AM5, DDR5, Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5,
Culoare produs — — Brown White Brown
1st M.2 highest PCI Express generation — — 5.0 5.0 5.0
1st M.2 largest key size — — 25110 22110 2280
2nd M.2 highest PCI Express generation — — 4.0 4.0 4.0
2nd M.2 largest key size — — 22110 22110 2280
3rd M.2 highest PCI Express generation — — 4.0 4.0 —
3rd M.2 largest key size — — 22110 22110 —
12V power connector — — Yes Yes —
ACPI version 6.4 — 5.0 5.0 5.0
ATX Power connector (24-pin) Yes Yes Yes Yes Yes
Audio Chip Realtek ALC897 Realtek ALC892 Realtek ALC897 Realtek ALC897 Realtek ALC897
Batteries included — — — Yes Yes
Battery weight — — 3 g 3 g 3 g
BIOS memory size 256 Mbit — 256 Mbit 256 Mbit 256 Mbit
Canale audio 7.1 8.0 7.1 7.1 7.1
Chassis intrusion connector Yes Yes — — —
Clear CMOS jumper Yes — Yes Yes Yes
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold AMD Ryzen 3000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for PC PC PC PC PC
Country of origin — — China China —
CPU fan connector Yes Yes Yes Yes Yes
Desktop Management Interface (DMI) version — — 2.7 2.7 2.7
ECC сompatibility Non-ECC ECC & Non-ECC Non-ECC Non-ECC ECC & Non-ECC
EPS power connector (8-pin) — — Yes Yes Yes
Front panel audio connector Yes Yes Yes Yes Yes
Front panel connector Yes Yes Yes Yes Yes
Headphone outputs 1 1 1 1 1
LAN controller Realtek RTL8111H Realtek RTL8111H Realtek RTL8111H Realtek RTL8125 Realtek RTL8125
Line-in Yes — Yes Yes Yes
Lithium weight per battery — — 0.07 g 0.07 g 0.07 g
Maximum internal memory per slot — — 64 GB 64 GB 64 GB
MB-Format — micro-ATX — ATX —
MB-Socket — AM4 — 1700 —
Memorie maxima 256 GB 64 GB 256 GB 256 GB 128 GB
Microphone in Yes Yes Yes Yes Yes
Number of CPU fan connectors — — 2 2 2
Number of EPS power connectors (8-pin) — — — 1 1
Number of HDDs supported 4 5 4 4 4
Number of M.2 (M) slots 2 1 3 3 2
Number of memory slots 4 2 4 4 2
Number of RGB LED pin headers — — 4 4 4
Number of water pump connectors — — 2 2 2
Onboard-CPU — No No No —
Package depth — — 270 mm 270 mm 268 mm
Package height — — 80 mm 80 mm 68 mm
Package weight — — 1.82 kg 1.88 kg 1.29 kg
Package width — — 335 mm 335 mm 270 mm
Parallel processing technology support — — Not supported Not supported Not supported
PC health monitoring — — Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling Fan, Temperature, Voltage, Water cooling
PCI-Ex16 — 1 — 3 —
PCI Express x16 (Gen 3.x) slots — 1 3 2 —
PCI Express x16 (Gen 4.x) slots — — 1 1 1
PCI Express x16 (Gen 5.x) slots — — — 1 1
Products per shipping (inner) case — — — 1 pc(s) 1 pc(s)
PS/2 ports quantity 2 — 1 1 —
RAM-Slots — 2 — 2 —
RJ-45 LAN 1 1 1 1 1
Screws included — — Yes Yes Yes
Serial-or-Paralel — Yes/No No/No No/No —
Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz 4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz 5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz
System Management BIOS (SMBIOS) version 3.5 — 2.7 2.7 2.7
TPM connector Yes — Yes Yes Yes
Unbuffered memory Yes Yes Yes Yes Yes
USB 2.0 connectors 4 2 3 2 2
USB3 — 4-8 — 4-8 —
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 1 1 2 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 — 1 — 1
Video-Connection — DVI/HDMI HDMI/DP HDMI/DP —
Windows operating systems supported Windows 10 x64, Windows 11 x64 — Windows 10 x64, Windows 11 x64 Windows 11 x64 Windows 10 x64, Windows 11 x64
Greutate — 698 g — 1.65 kg 12.3 kg
Rezoluție maximă — 4096 x 2160 pixels 4096 x 2160 pixels 4096 x 2160 pixels 4096 x 2160 pixels
Tehnologie baterie — — Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2) Lithium-Manganese Dioxide (LiMnO2)
Tip Memorie DDR5 DDR4 DDR5 DDR5 DDR5
Wi-Fi No No No No Yes
Număr porturi RJ-45 1 — — 1 1
Număr porturi DisplayPort 1 — 1 1 1
Versiune DisplayPort 1.4 — 1.4 1.4 2.1
Gaming Nu Nu Nu Nu Da
Canale audio 7.1 channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels
Conectori ventilatoare carcasă — 2 3 4 2
Conector RGB Yes — Yes — Yes
Producător chipset audio Realtek Realtek Realtek Realtek Realtek
Tip BIOS UEFI AMI — UEFI AMI UEFI AMI UEFI AMI
Tip slot RAM — DIMM DIMM DIMM DIMM
Tip baterie — — CR2032 CR2032 CR2032
Chipset placă de bază Intel B760 AMD A520 AMD B650 AMD B850 —
Interfețe stocare suportate SATA III PCI Express 3.0, SATA M.2, SATA III M.2, PCI Express 4.0, PCI Express 5.0, SATA III M.2, SATA III
Niveluri RAID 0, 1, 5, 10 0, 1, 10 0, 1, 10 0, 1, 10 0, 1, 5, 10
Număr unități stocare suportate 6 — 7 7 6
Tip sursă alimentare ATX — ATX ATX ATX
Tipuri stocare suportate HDD & SSD HDD & SSD HDD & SSD HDD & SSD HDD & SSD
Număr celule baterie — — 1 1 1
Adâncime 243.8 mm 200 mm 24.4 mm 24.4 mm 225 mm
Lățime 243.8 mm — 30.5 mm 30.5 mm 244 mm
Înălțime — 60 mm 35 mm 35 mm 35 mm
Bluetooth Nu Nu Nu Nu Yes
HDMI Da Da Da Da Da
Număr porturi HDMI 1 1 1 1 1
Număr porturi USB 2.0 4 2 6 4 3
Porturi USB-A 3.2 Gen 1 3 4 — 1 —
Rețea prin cablu (LAN) Yes Yes Yes Yes Yes
Thunderbolt Nu Nu Nu Nu Da
USB-C N/A Da Da N/A Da
Versiune HDMI 1.4 — 2.1 2.1 2.1
Garanție comercială 24 36 36 36 36
Producător MSI MSI GIGABYTE GIGABYTE GIGABYTE
Canale memorie RAM — Dual-channel Dual-channel Dual-channel Dual-channel
Memorie RAM maximă 256 GB 64 GB 256 GB 256 GB 128 GB
Producător procesor Intel AMD AMD AMD Intel
Tip răcire — — — Passive Passive
Format placă de bază micro ATX micro ATX ATX ATX micro ATX
Model chipset B760 A520 B650 B850 B860
Număr sloturi RAM 4 2 4 4 2
Platformă chipset Intel AMD AMD AMD Intel
Soclu procesor Socket 1700 Socket AM4 Socket AM5 Socket AM5 Socket 1851
Tipuri RAM acceptate DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM
Socket procesor LGA 1700 Socket AM4 Socket AM5 Socket AM5 LGA 1851 (Socket V1)
Tip rețea Ethernet Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet 2.5 Gigabit Ethernet 2.5 Gigabit Ethernet
Socketuri compatibile LGA 1700 — Socket AM5 Socket AM5 LGA 1851
HDCP — — Yes Yes Yes
Wireless Nu Nu Nu Nu Da
Format Micro-ATX Micro-ATX ATX ATX Micro-ATX
Număr porturi SATA III 4 4 4 4 4
Număr sloturi M.2 2 1 3 3 2
Slot grafic PCI Express PCIe 5.0 x16 PCIe 3.0 x16 PCIe 3.0 x16 N/A PCIe 5.0 x16
Suport RAID Yes Yes Yes Yes Yes
Versiune DirectX — — 12.0 12.0 12.0

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

MSI B760M Ptoject Zero. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Specificații tehnice 80 caracteristici
ACPI version
6.4
ATX Power connector (24-pin)
Yes
Audio Chip
Realtek ALC897
BIOS memory size
256 Mbit
Cables included
SATA
Canale audio
7.1
Chassis intrusion connector
Yes
Clear CMOS jumper
Yes
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Component for
PC
CPU fan connector
Yes
ECC сompatibility
Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Headphone outputs
1
LAN controller
Realtek RTL8111H
Line-in
Yes
Memorie maxima
256 GB
Microphone in
Yes
Number of COM connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
PS/2 ports quantity
2
RJ-45 LAN
1
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
System Management BIOS (SMBIOS) version
3.5
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Tip Memorie
DDR5
Wi-Fi
No
Număr porturi RJ-45
1
Număr porturi DisplayPort
1
Versiune DisplayPort
1.4
Gaming
Nu
Canale audio
7.1 channels
Conector RGB
Yes
Producător chipset audio
Realtek
Tip BIOS
UEFI AMI
Chipset placă de bază
Intel B760
Interfețe stocare suportate
SATA III
Niveluri RAID
0, 1, 5, 10
Număr unități stocare suportate
6
Tip sursă alimentare
ATX
Tipuri stocare suportate
HDD & SSD
Adâncime
243.8 mm
Lățime
243.8 mm
Bluetooth
Nu
HDMI
Da
Număr porturi HDMI
1
Număr porturi USB 2.0
4
Porturi USB-A 3.2 Gen 1
3
Rețea prin cablu (LAN)
Yes
Thunderbolt
Nu
USB-C
N/A
Versiune HDMI
1.4
Garanție comercială
24
Producător
MSI
Memorie RAM maximă
256 GB
Producător procesor
Intel
Format placă de bază
micro ATX
Model chipset
B760
Număr sloturi RAM
4
Platformă chipset
Intel
Soclu procesor
Socket 1700
Tipuri RAM acceptate
DDR5-SDRAM
Socket procesor
LGA 1700
Tip rețea Ethernet
Gigabit Ethernet
Socketuri compatibile
LGA 1700
Wireless
Nu
Format
Micro-ATX
Număr porturi SATA III
4
Număr sloturi M.2
2
Slot grafic PCI Express
PCIe 5.0 x16
Suport RAID
Yes
