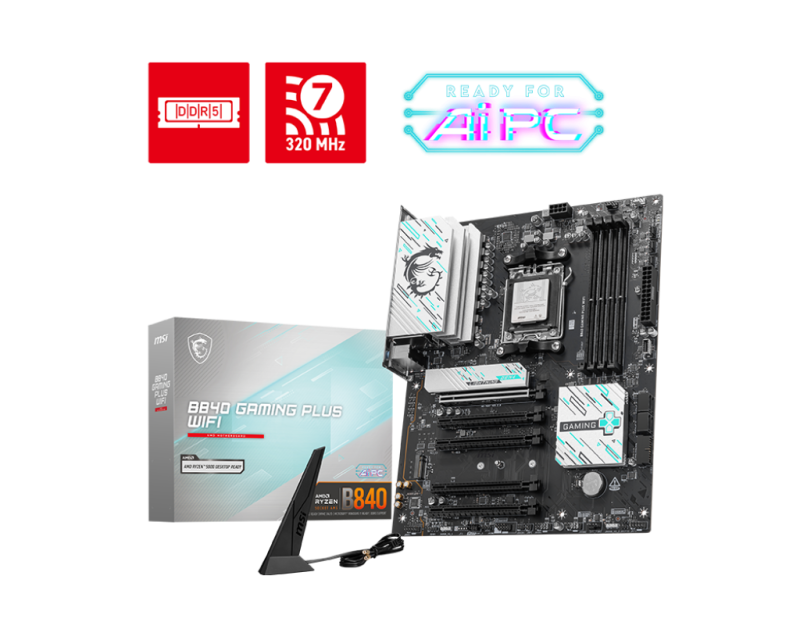

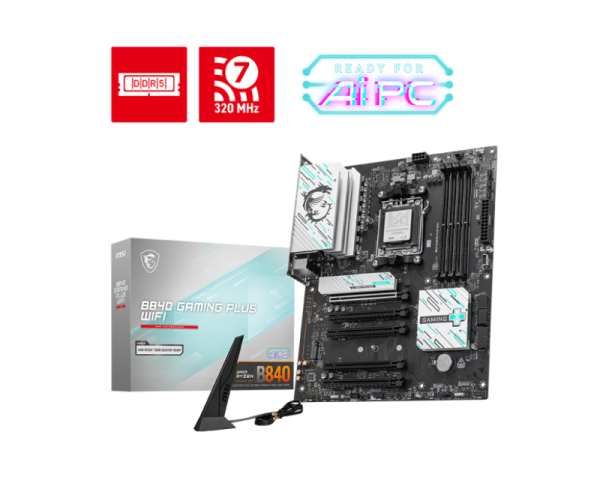

Placa de baza MSI B840 GAMING PLUS WIFI, Socket AM5,

Placi de baza

Placa de baza MSI B840 GAMING PLUS WIFI, Socket AM5,

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: B840 GAMING PLUS WIFI

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Placa de baza MSI B840 GAMING PLUS WIFI, Socket AM5, Placa de baza MSI PRO B860-P, LGA 1851, DDR5, ATX Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX Placa de bază ASUS PRIME H610M-R D4 LGA1700 Placa de baza ASUS Z13PE-D16/ASMB11, Socket LGA 4677, DDR5, E-ATX
Alte caracteristici
1st M.2 highest PCI Express generation 4.0 5.0 4.0 — —
1st M.2 largest key size 2280 2280 2280 — —
2nd M.2 highest PCI Express generation 4.0 4.0 4.0 — —
2nd M.2 largest key size 22110 2280 2280 — —
ACPI version 6.5 6.5 6.5 — —
ATX Power connector (24-pin) — — — Yes Yes
Audio Chip Realtek ALC897 Realtek ALC897 Realtek ALC897 — —
Audio output channels 7.1 channels 7.1 channels 7.1 channels 7.1 channels —
BIOS memory size — 256 Mbit 256 Mbit 128 Mbit —
BIOS type UEFI AMI UEFI AMI UEFI AMI UEFI AMI —
Canale audio 7.1 7.1 7.1 7.1 N/A
Chipset audio integrat Realtek Realtek Realtek Realtek Realtek
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Intel Core Ultra (Series 2) AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series — Intel® Xeon®
Component for PC PC PC PC Server
CPU fan connector — Yes — Yes —
ECC сompatibility Non-ECC Non-ECC Non-ECC Non-ECC —
Ethernet interface type 2.5 Gigabit Ethernet 5 Gigabit Ethernet 2.5 Gigabit Ethernet Gigabit Ethernet 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports — — 1 — 2
Format ATX ATX Micro-ATX Micro-ATX E-ATX
Gaming Da Nu Nu Nu Nu
LAN controller — — Realtek RTL8125D — Intel X710-AT2
Maximum internal memory supported by processor 256 GB 256 GB — — —
Memorie maxima 256 GB 256 GB 128 GB 64 GB 2 TB
Memory slots type DIMM DIMM DIMM DIMM DIMM
Model Chipset B840 B860 B840 H610 C741
Motherboard chipset AMD B840 Intel B860 AMD B840 Intel H610 Intel C741
Motherboard chipset family AMD AMD AMD Intel Intel
Motherboard form factor ATX ATX micro ATX micro ATX Extended ATX
Numar sloturi memorie 4 4 2 2 16
Number of chassis fan connectors 5 — 5 1 —
Number of CPU fan connectors 1 1 1 — —
Number of HDDs supported 4 4 4 — 10
Number of M.2 (M) slots 2 3 2 1 2
Number of memory slots 4 4 2 2 16
Number of RGB LED pin headers 3 3 3 — —
Number of SATA III connectors 4 4 4 4 10
Number of storage drives supported 6 7 6 5 —
Number of water pump connectors 1 1 1 — —
On-board graphics card — — No — Yes
Onboard-CPU No No — No —
PCI Express x16 (Gen 4.x) slots 1 3 — 1 —
PCI Express x16 (Gen 5.x) slots — 1 — — 5
Processor socket Socket AM5 LGA 1851 (Socket V1) Socket AM5 LGA 1700 LGA 4677 (Socket E)
RAID levels 0, 1, 10 0, 1, 5, 10 0, 1, 10 — —
RAID support Yes Yes Yes — —
RGB LED pin header Yes Yes Yes — —
RJ-45 LAN 1 1 1 1 2
Serial-or-Paralel No/No No/No — No/No —
Sloturi M.2 2 3 2 1 2
Soclu Procesor Socket AM5 Socket 1851 Socket AM5 Socket 1700 Socket LGA 4677
Supported memory clock speeds 4800,5600,8000 MHz 4800,6400,8800 MHz 4800,5600,8000 MHz 2133,2400,2666,2800,2933,3000,3200 MHz 4800,5600 MHz
Supported memory types DDR5-SDRAM DDR5-SDRAM DDR5-SDRAM DDR4-SDRAM DDR5-SDRAM
Supported processor sockets Socket AM5 LGA 1851 Socket AM5 LGA 1700 —
Supported storage drive interfaces M.2, Micro SATA III M.2, Micro SATA III M.2, Micro SATA III M.2, SATA III M.2, SATA III
Supported storage drive types HDD & SSD HDD & SSD HDD & SSD HDD & SSD HDD & SSD
System Management BIOS (SMBIOS) version — 3.7 3.7 — —
Tip Memorie DDR5 DDR5 DDR5 DDR4 DDR5
Tip slot interfata grafica N/A PCIe 5.0 x16 PCIe 4.0 x16 PCIe 4.0 x16 PCIe 5.0 x16
Total number of SATA connectors 4 4 4 — —
TPM connector — — — Yes Yes
USB 2.0 connectors 4 4 4 2 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 4 2 1 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 1 1 — —
VGA (D-Sub) ports quantity — — — 1 1
Video-Connection HDMI HDMI/DP — VGA/DVI/HDMI —
Wi-Fi Yes No No — —
Windows operating systems supported Windows 11 x64 Windows 11 x64 Windows 11 x64 Windows 10 x64, Windows 11 x64 —
Wireless Da Nu Nu Nu N/A
Caracteristici fizice
Greutate — — — 842 g 1.75 kg
Laptopuri - Caracteristici fizice 25.09
Adâncime 304.8 mm 304.8 mm 243.8 mm 193 mm 330.2 mm
Lățime 243.8 mm 243.8 mm 226 mm 226 mm 304.8 mm
Laptopuri - Conectivitate și porturi 25.09
Bluetooth Da Nu Nu Nu Nu
HDMI Da Da Da Da Nu
Număr porturi HDMI 1 1 1 — —
Număr porturi USB 2.0 4 4 2 2 —
Rețea prin cablu (LAN) Yes Yes Yes — Yes
Thunderbolt Nu Nu Nu Nu Nu
USB-C Da Da N/A Da N/A
Versiune HDMI 2.1 2.1 2.1 2.1 —
Laptopuri - Generale
Garanție comercială 36 36 24 36 24
Producător MSI MSI MSI ASUS ASUS
Laptopuri - Memorie RAM 25.09
Canale memorie RAM Dual-channel Dual-channel Dual-channel — Octa-channel
Memorie RAM maximă 256 GB 256 GB 128 GB — 2 TB
Laptopuri - Procesor
Producător procesor AMD Intel AMD — Intel

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Placa de Baza MSI B840 GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI, 5x PCIE x16, 2x M.2, 4x SATA 6GB/s, ATX

Specificații tehnice 78 caracteristici
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
6.5
Audio Chip
Realtek ALC897
Audio output channels
7.1 channels
BIOS type
UEFI AMI
Canale audio
7.1
Chipset audio integrat
Realtek
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Format
ATX
Gaming
Da
Maximum internal memory supported by processor
256 GB
Memorie maxima
256 GB
Memory slots type
DIMM
Model Chipset
B840
Motherboard chipset
AMD B840
Motherboard chipset family
AMD
Motherboard form factor
ATX
Numar sloturi memorie
4
Number of chassis fan connectors
5
Number of CPU fan connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of RGB LED pin headers
3
Number of SATA III connectors
4
Number of storage drives supported
6
Number of water pump connectors
1
Onboard-CPU
No
PC health monitoring
CPU, Fan, Temperature, Voltage
PCI Express x16 (Gen 3.x) slots
4
PCI Express x16 (Gen 4.x) slots
1
Processor socket
Socket AM5
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
RJ-45 LAN
1
Serial-or-Paralel
No/No
Sloturi M.2
2
Soclu Procesor
Socket AM5
Supported memory clock speeds
4800,5600,8000 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, Micro SATA III
Supported storage drive types
HDD & SSD
Tip Memorie
DDR5
Tip slot interfata grafica
N/A
Total number of SATA connectors
4
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Video-Connection
HDMI
Wi-Fi
Yes
Windows operating systems supported
Windows 11 x64
Wireless
Da
Adâncime
304.8 mm
Lățime
243.8 mm
Bluetooth
Da
HDMI
Da
Număr porturi HDMI
1
Număr porturi USB 2.0
4
Porturi USB-A 3.2 Gen 2
1
Rețea prin cablu (LAN)
Yes
Standard Wi-Fi
Wi-Fi 7 (802.11be)
Thunderbolt
Nu
USB-C
Da
Versiune Bluetooth
5.4
Versiune HDMI
2.1
Garanție comercială
36
Producător
MSI
Canale memorie RAM
Dual-channel
Memorie RAM maximă
256 GB
Producător procesor
AMD
