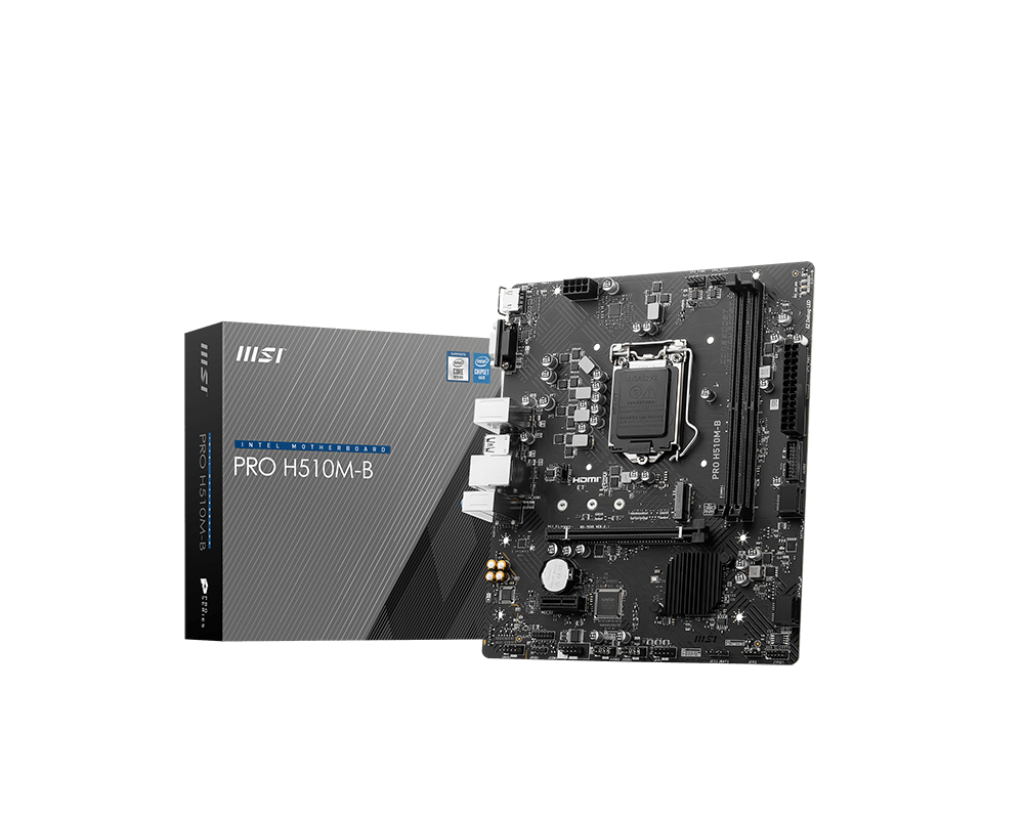

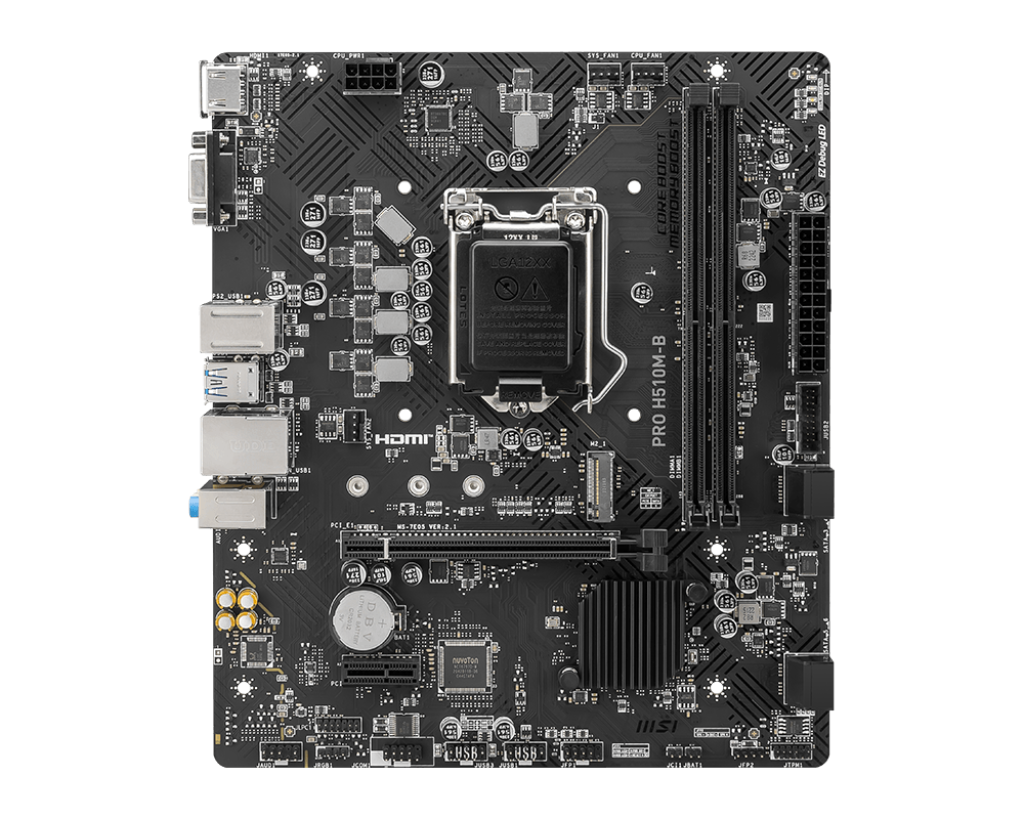

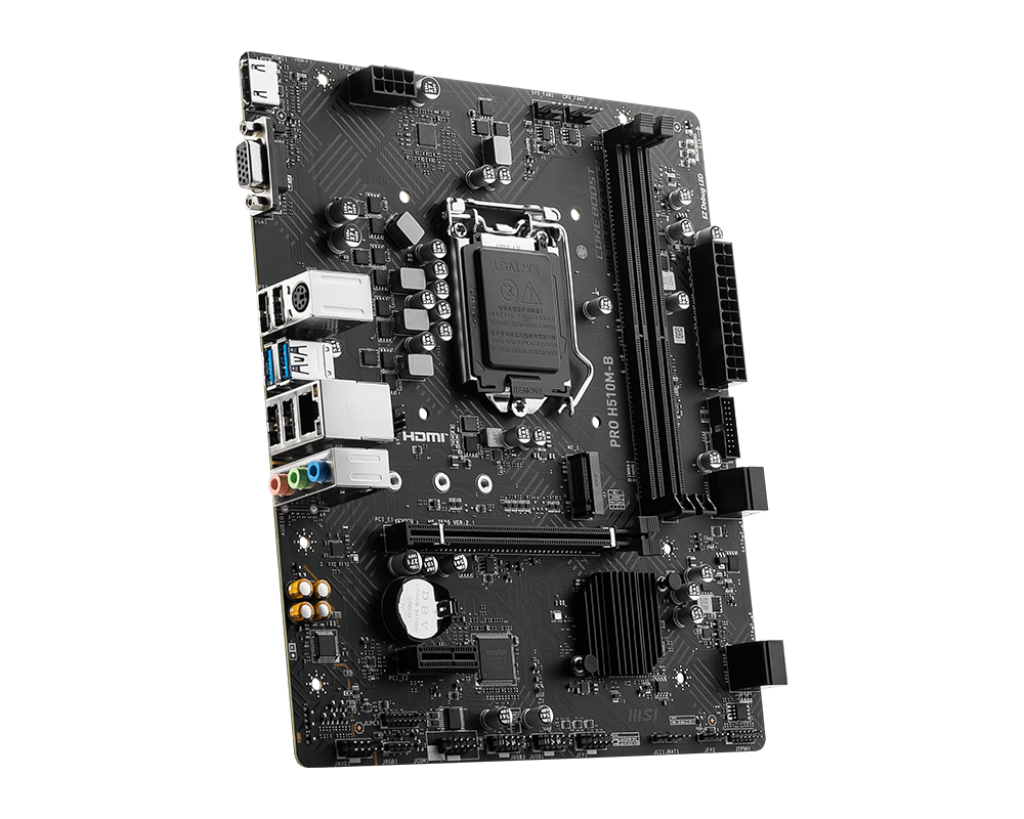

Placa de baza MSI PRO H510M-B, Socket 1200, DDR4, Micro-ATX
322,99 lei
Placa de baza MSI PRO H510M-B, Socket 1200, DDR4, Micro-ATX
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: PRO H510M-B
Livrare și beneficii
Compară cu produse similare
Placa de baza MSI PRO H510M-B, Socket 1200, DDR4, Micro-ATX
Placa de baza MSI PRO B860-P, LGA 1851, DDR5, ATX
853,99 lei 1.254,00 lei
Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX
554,99 lei
Placa de baza MSI PRO X870E-S EVO WIFI, Socket AM5,
1.517,99 lei
Placa de bază ASUS PRIME H610M-R D4 LGA1700
329,99 lei 456,99 lei
Vezi comparația completă
| Caracteristică | Placa de baza MSI PRO H510M-B, Socket 1200, DDR4, Micro-ATX | Placa de baza MSI PRO B860-P, LGA 1851, DDR5, ATX | Placa de baza MSI PRO B840M-B, Socket AM5, DDR5, Micro-ATX | Placa de baza MSI PRO X870E-S EVO WIFI, Socket AM5, | Placa de bază ASUS PRIME H610M-R D4 LGA1700 |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 1st M.2 highest PCI Express generation | — | 5.0 | 4.0 | 5.0 | — |
| 1st M.2 largest key size | — | 2280 | 2280 | 2280 | — |
| 2nd M.2 highest PCI Express generation | — | 4.0 | 4.0 | 4.0 | — |
| 2nd M.2 largest key size | — | 2280 | 2280 | 22110 | — |
| 3rd M.2 highest PCI Express generation | — | 4.0 | — | 4.0 | — |
| 3rd M.2 largest key size | — | 2280 | — | 2280 | — |
| ACPI version | — | 6.5 | 6.5 | 6.5 | — |
| ATX Power connector (24-pin) | — | — | — | Yes | Yes |
| Audio Chip | Realtek ALC897 | Realtek ALC897 | Realtek ALC897 | Realtek ALC897 | — |
| Audio output channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels | 7.1 channels |
| BIOS memory size | — | 256 Mbit | 256 Mbit | 512 Mbit | 128 Mbit |
| BIOS type | — | UEFI AMI | UEFI AMI | UEFI AMI | UEFI AMI |
| Canale audio | 7.1 | 7.1 | 7.1 | 7.1 | 7.1 |
| Chassis intrusion connector | Yes | — | — | — | Yes |
| Chipset audio integrat | Realtek | Realtek | Realtek | Realtek | Realtek |
| Compatible processor series | — | Intel Core Ultra (Series 2) | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series | — |
| Component for | PC | PC | PC | PC | PC |
| CPU fan connector | Yes | Yes | — | Yes | Yes |
| ECC сompatibility | Non-ECC | Non-ECC | Non-ECC | Non-ECC | Non-ECC |
| Ethernet interface type | Gigabit Ethernet | 5 Gigabit Ethernet | 2.5 Gigabit Ethernet | — | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 | — | 1 | 1 | — |
| Format | Micro-ATX | ATX | Micro-ATX | ATX | Micro-ATX |
| Front panel audio connector | Yes | — | — | — | Yes |
| Gaming | Nu | Nu | Nu | Nu | Nu |
| Headphone outputs | 1 | — | — | — | 3 |
| LAN controller | Realtek 8111H | — | Realtek RTL8125D | — | — |
| MB-Format | micro-ATX | — | — | — | micro-ATX |
| MB-Socket | AM5 | — | — | — | 1700 |
| Memorie maxima | 64 GB | 256 GB | 128 GB | 256 GB | 64 GB |
| Memory slots type | DIMM | DIMM | DIMM | DIMM | DIMM |
| Microphone in | Yes | — | — | — | Yes |
| Model Chipset | H510 | B860 | B840 | X870E | H610 |
| Motherboard chipset | Intel H470 | Intel B860 | AMD B840 | AMD X870E | Intel H610 |
| Motherboard chipset family | Intel | AMD | AMD | AMD | Intel |
| Motherboard form factor | micro ATX | ATX | micro ATX | ATX | micro ATX |
| Numar sloturi memorie | 2 | 4 | 2 | 4 | 2 |
| Number of chassis fan connectors | 2 | — | 5 | — | 1 |
| Number of COM connectors | 1 | — | — | — | 1 |
| Number of CPU fan connectors | — | 1 | 1 | — | — |
| Number of HDDs supported | 4 | 4 | 4 | 4 | — |
| Number of M.2 (M) slots | — | 3 | 2 | 3 | 1 |
| Number of memory slots | 2 | 4 | 2 | 4 | 2 |
| Number of RGB LED pin headers | — | 3 | 3 | — | — |
| Number of SATA III connectors | — | 4 | 4 | 4 | 4 |
| Number of storage drives supported | — | 7 | 6 | 7 | 5 |
| Number of water pump connectors | — | 1 | 1 | — | — |
| On-board graphics card | — | — | No | No | — |
| Onboard-CPU | No | No | — | — | No |
| PCI-Ex16 | 1 | — | — | — | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 | — | — | — | 1 |
| PCI Express x16 (Gen 4.x) slots | — | 3 | — | — | 1 |
| PCI Express x16 slots | — | — | 2 | 3 | — |
| Processor socket | LGA 1200 (Socket H5) | LGA 1851 (Socket V1) | Socket AM5 | Socket AM5 | LGA 1700 |
| PS/2 ports quantity | 1 | — | — | — | 2 |
| RAID levels | — | 0, 1, 5, 10 | 0, 1, 10 | 0, 1 | — |
| RAID support | — | Yes | Yes | Yes | — |
| RAM-Slots | 2 | — | — | — | 2 |
| RGB LED pin header | Yes | Yes | Yes | Yes | — |
| RJ-45 LAN | 1 | 1 | 1 | 1 | 1 |
| Serial-or-Paralel | Yes/No | No/No | — | — | No/No |
| Sloturi M.2 | N/A | 3 | 2 | 3 | 1 |
| Soclu Procesor | Socket 1200 | Socket 1851 | Socket AM5 | Socket AM5 | Socket 1700 |
| Supported memory clock speeds | 2133,2400,2666,2933 MHz | 4800,6400,8800 MHz | 4800,5600,8000 MHz | 4800,5600,8200 MHz | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Supported memory types | DDR4-SDRAM | DDR5-SDRAM | DDR5-SDRAM | DDR5-SDRAM | DDR4-SDRAM |
| Supported processor sockets | — | LGA 1851 | Socket AM5 | Socket AM5 | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III | M.2, Micro SATA III | M.2, Micro SATA III | M.2, SATA III | M.2, SATA III |
| Supported storage drive types | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD | HDD & SSD |
| System Management BIOS (SMBIOS) version | — | 3.7 | 3.7 | 3.7 | — |
| Tip Memorie | DDR4 | DDR5 | DDR5 | DDR5 | DDR4 |
| Tip slot interfata grafica | PCIe 3.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 | PCIe 5.0 x16 | PCIe 4.0 x16 |
| Total number of SATA connectors | — | 4 | 4 | 4 | — |
| TPM connector | Yes | — | — | Yes | Yes |
| Unbuffered memory | Yes | — | — | — | Yes |
| USB 2.0 connectors | 4 | 4 | 4 | 6 | 2 |
| USB3 | 4-8 | — | — | — | 4-8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 | 4 | 2 | 4 | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | — | 1 | 1 | 1 | — |
| VGA (D-Sub) ports quantity | 1 | — | — | — | 1 |
| Video-Connection | HDMI/DP | HDMI/DP | — | — | VGA/DVI/HDMI |
| Wi-Fi | — | No | No | Yes | — |
| Windows operating systems supported | — | Windows 11 x64 | Windows 11 x64 | Windows 11 x64 | Windows 10 x64, Windows 11 x64 |
| Wireless | N/A | Nu | Nu | Da | Nu |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 236 mm | 304.8 mm | 243.8 mm | — | 193 mm |
| Lățime | 202 mm | 243.8 mm | 226 mm | — | 226 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| Bluetooth | Nu | Nu | Nu | Yes | Nu |
| HDMI | Da | Da | Da | Da | Da |
| Număr porturi HDMI | 1 | 1 | 1 | 1 | — |
| Număr porturi USB 2.0 | 4 | 4 | 2 | 4 | 2 |
| Porturi USB-A 3.2 Gen 1 | 2 | — | 4 | — | — |
| Rețea prin cablu (LAN) | Yes | Yes | Yes | — | — |
| Thunderbolt | Nu | Nu | Nu | Nu | Nu |
| USB-C | Da | Da | N/A | N/A | Da |
| Versiune HDMI | 1.4 | 2.1 | 2.1 | 2.1 | 2.1 |
| Laptopuri - Construcție | |||||
| Culoare | — | — | Black | Black | — |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 24 | 24 | 36 |
| Producător | MSI | MSI | MSI | MSI | ASUS |
| Laptopuri - Memorie RAM 25.09 | |||||
| Canale memorie RAM | Dual-channel | Dual-channel | Dual-channel | Dual-channel | — |
| Memorie RAM maximă | 64 GB | 256 GB | 128 GB | 256 GB | — |
| Laptopuri - Procesor | |||||
| Producător procesor | Intel | Intel | AMD | AMD | — |
Analiză inteligentă a produsului
Descriere oficială
Placa de baza MSI PRO H510M-B 2x DDR4, LGA 1200 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz 1x PCI-E x16 slot 1x PCI-E x1 slot https://www.msi.com/Motherboard/PRO-H510M-B/Specification
Specificații tehnice 75 caracteristici ⌄
- Audio Chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Canale audio
- 7.1
- Chassis intrusion connector
- Yes
- Chipset audio integrat
- Realtek
- Component for
- PC
- CPU fan connector
- Yes
- ECC сompatibility
- Non-ECC
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Format
- Micro-ATX
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Gaming
- Nu
- Headphone outputs
- 1
- LAN controller
- Realtek 8111H
- Line-in
- Yes
- MB-Format
- micro-ATX
- MB-Socket
- AM5
- Memorie maxima
- 64 GB
- Memory slots type
- DIMM
- Microphone in
- Yes
- Model Chipset
- H510
- Motherboard chipset
- Intel H470
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Numar sloturi memorie
- 2
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 1
- Number of HDDs supported
- 4
- Number of memory slots
- 2
- Number of SATA connectors
- 4
- Onboard-CPU
- No
- PCI-Ex1
- 1
- PCI-Ex16
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- Processor socket
- LGA 1200 (Socket H5)
- PS/2 ports quantity
- 1
- RAM-Slots
- 2
- RGB LED pin header
- Yes
- RJ-45 LAN
- 1
- Serial-or-Paralel
- Yes/No
- Sloturi M.2
- N/A
- Soclu Procesor
- Socket 1200
- Supported memory clock speeds
- 2133,2400,2666,2933 MHz
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Tip Memorie
- DDR4
- Tip slot interfata grafica
- PCIe 3.0 x16
- TPM connector
- Yes
- Unbuffered memory
- Yes
- USB 2.0 connectors
- 4
- USB3
- 4-8
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- VGA (D-Sub) ports quantity
- 1
- Video-Connection
- HDMI/DP
- Wireless
- N/A
- Adâncime
- 236 mm
- Lățime
- 202 mm
- Bluetooth
- Nu
- HDMI
- Da
- Număr porturi HDMI
- 1
- Număr porturi USB 2.0
- 4
- Porturi USB-A 3.2 Gen 1
- 2
- Rețea prin cablu (LAN)
- Yes
- Thunderbolt
- Nu
- USB-C
- Da
- Versiune HDMI
- 1.4
- Garanție comercială
- 36
- Producător
- MSI
- Canale memorie RAM
- Dual-channel
- Memorie RAM maximă
- 64 GB
- Producător procesor
- Intel
