Placa video SPARKLE Intel Arc B570, 10GB GDDR6, PCI Express
1.536,99 lei
Placa video SPARKLE Intel Arc B570, 10GB GDDR6, PCI Express
(0)
Stoc epuizat
Vândut de RITC.ro
Cod produs: SB570G-10GOC
Livrare și beneficii
Compară cu produse similare
Placa video SPARKLE Intel Arc B570, 10GB GDDR6, PCI Express
Placa video Gigabyte GeForce RTX 3060, 12GB GDDR6, PCI Express
2.693,99 lei 3.058,99 lei
Placa video Gigabyte GeForce RTX 3050, 8GB GDDR6, PCI Express
1.984,99 lei 2.293,99 lei
Placa video Gigabyte GeForce RTX 5080, 16GB GDDR7, PCI Express
9.384,99 lei 10.849,99 lei
Placa video Gigabyte GeForce RTX 5080, 16GB GDDR7, PCI Express
9.699,99 lei 11.213,99 lei
Vezi comparația completă
| Caracteristică | Placa video SPARKLE Intel Arc B570, 10GB GDDR6, PCI Express | Placa video Gigabyte GeForce RTX 3060, 12GB GDDR6, PCI Express | Placa video Gigabyte GeForce RTX 3050, 8GB GDDR6, PCI Express | Placa video Gigabyte GeForce RTX 5080, 16GB GDDR7, PCI Express | Placa video Gigabyte GeForce RTX 5080, 16GB GDDR7, PCI Express |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| Alimentare separata | N/A | 1x 8-pin PCI-E | 1x 8-pin PCI-E | 1x 16-pin PCI-E | 1x 16-pin PCI-E |
| Bus Memorie | 160bit | 192bit | 128bit | 256bit | 256bit |
| Cables included | — | — | — | Power | Power |
| Capacitate | 10GB | 12GB | 8GB | 16GB | 16GB |
| Chipset | Intel | nVidia | nVidia | nVidia | nVidia |
| Cooling | — | — | Active | Active | Active |
| Cooling technology | — | GIGABYTE WINDFORCE 2X | GIGABYTE WINDFORCE 2X | GIGABYTE WINDFORCE 3X | GIGABYTE WINDFORCE 3X |
| Cooling type | Active | Active | Active | Active | Active |
| CUDA | No | Yes | Yes | Yes | Yes |
| CUDA cores | — | 3584 | 2560 | 10752 | 10752 |
| Data transfer rate | — | — | — | 30 Gbit/s | 30 Gbit/s |
| DirectX version | 12 Ultimate | 12 Ultimate | 12 Ultimate | 12.0 | 12.0 |
| DisplayPorts quantity | 3 | 2 | 2 | 3 | 3 |
| DisplayPort version | 2.1 | 1.4a | 1.4a | 2.1b | 2.1b |
| Dual Link DVI | No | No | Yes | No | No |
| Graphics card memory type | GDDR6 | GDDR6 | GDDR6 | GDDR7 | GDDR7 |
| Graphics processor | Arc B570 | GeForce RTX 3060 | GeForce RTX 3050 | GeForce RTX 5080 | GeForce RTX 5080 |
| Graphics processor family | Intel | NVIDIA | NVIDIA | NVIDIA | NVIDIA |
| Illumination | — | — | — | Yes | Yes |
| Illumination colour | — | — | — | Multi | Multi |
| Interface type | PCI Express x8 4.0 | PCI Express x16 4.0 | PCI Express 4.0 | PCI Express 5.0 | PCI Express 5.0 |
| Length | 242 mm | 198 mm | 198.1 mm | 304 mm | 360 mm |
| LP-Bracket | No | No | No | No | No |
| MAXIMUM-RESOLUTION | 7680 x 4320 pixels | 7680 x 4320 pixels | 7680 x 4320 pixels | 7680 x 4320 pixels | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 | 4 | 4 | 4 | 4 |
| Memory-Capacity | — | — | 8192MB | 16384MB | 16384MB |
| Memory bandwidth (max) | 380 GB/s | 360 GB/s | — | — | — |
| Memory BUS | 160 bit | 192 bit | 128bit | 256bit | 256bit |
| Memory type | — | — | — | GDDR7 | GDDR7 |
| MiniDP | N/A | N/A | N/A | N/A | N/A |
| Minimum system power supply | 600 W | 550 W | 450 W | 850 W | 850 W |
| Model | Intel Arc B570 | GeForce RTX 3060 | GeForce RTX 3050 | GeForce RTX 5080 | GeForce RTX 5080 |
| Numar Sloturi | Triple Slot | N/A | Dual Slot | Dual Slot | Triple Slot |
| Number of fans | 2 fan(s) | 2 fan(s) | 2 fan(s) | 3 fan(s) | 3 fan(s) |
| Number of slots | 2.2 | — | — | 2.5 | 3.7 |
| NVIDIA G-SYNC | — | Yes | Yes | Yes | Yes |
| OpenGL version | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Package depth | — | — | — | 398 mm | 453 mm |
| Package height | — | — | — | 85 mm | 160 mm |
| Package type | — | Box | Box | Box | Box |
| Package weight | — | — | — | 3 kg | 3 kg |
| Package width | — | — | — | 230 mm | 245 mm |
| Parallel processing technology support | Not supported | Not supported | Not supported | Not supported | Not supported |
| Products per shipping (inner) case | — | — | — | 1 pc(s) | 1 pc(s) |
| Recomandat pentru Gaming | Da | Da | Da | Da | Da |
| Segment | Consumer | Consumer | Consumer | Consumer | Consumer |
| Seria | Intel Arc B570 | GeForce RTX 3000 | GeForce RTX 3000 | GeForce RTX 5000 | GeForce RTX 5000 |
| SFF ready | — | — | — | Yes | No |
| Sistem racire | N/A | Activ | Activ | Activ | Activ |
| Slot | N/A | PCI Express 4.0 | PCI Express 4.0 | PCI Express 5.0 | PCI Express 5.0 |
| Supplementary power connectors | 1x 8-pin | 1x 8-pin | 1x 8-pin | 1x 16-pin | 1x 16-pin |
| Tip Memorie | GDDR6 | GDDR6 | GDDR6 | GDDR7 | GDDR7 |
| Tip memorie video | GDDR6 | GDDR6 | GDDR6 | — | — |
| TV tuner integrated | No | No | No | No | No |
| User guide | — | Yes | Yes | — | — |
| VGA-Format | — | — | Full-profile | Full-profile | Full-profile |
| VGA-Interface | PCI-E-4.0 | PCI-E-4.0 | PCI-E-4.0 | PCI-E-4.0 | PCI-E-4.0 |
| VGA-Segment | — | — | Consumer | Consumer | Consumer |
| Windows operating systems supported | Windows 10, Windows 11 | Windows 10 x64, Windows 11 x64, Windows 7 x64 | Windows 10 x64, Windows 11 x64 | — | — |
| Caracteristici fizice | |||||
| Greutate | 796 g | — | — | 2 kg | 2 kg |
| Laptopuri - Caracteristici fizice 25.09 | |||||
| Adâncime | 44 mm | 39 mm | 39 mm | 50 mm | 75 mm |
| Înălțime | 105 mm | 12.1 mm | 120.6 mm | 126 mm | 149 mm |
| Laptopuri - Conectivitate și porturi 25.09 | |||||
| HDMI | 1 | 2 | 2 | 1 | 1 |
| Număr porturi HDMI | 1 | 2 | 2 | 1 | 1 |
| Versiune HDMI | 2.1 | 2.1 | 2.1 | 2.1b | 2.1b |
| Laptopuri - Construcție | |||||
| Culoare | Blue | Black | Black, Silver | White | Black |
| Laptopuri - Generale | |||||
| Garanție comercială | 36 | 36 | 36 | 36 | 36 |
| Producător | SPARKLE | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE |
| Laptopuri - Memorie RAM 25.09 | |||||
| Frecvență memorie RAM | — | 15000 MHz | 14000 MHz | 28000 MHz | 28000 MHz |
| Laptopuri - Placă video 25.09 | |||||
| Capacitate memorie video dedicată | 10 GB | 12 GB | 8 GB | 16 GB | 16 GB |
| Laptopuri - Tip laptop | |||||
| Construcție laptop | — | — | — | Full-Height/Full-Length (FH/FL) | Full-Height/Full-Length (FH/FL) |
| PROCESOR v2 | |||||
| Frecvență procesor | 2500 MHz | 1792 MHz | 1792 MHz | 2730 MHz | 2805 MHz |
Analiză inteligentă a produsului
Descriere oficială

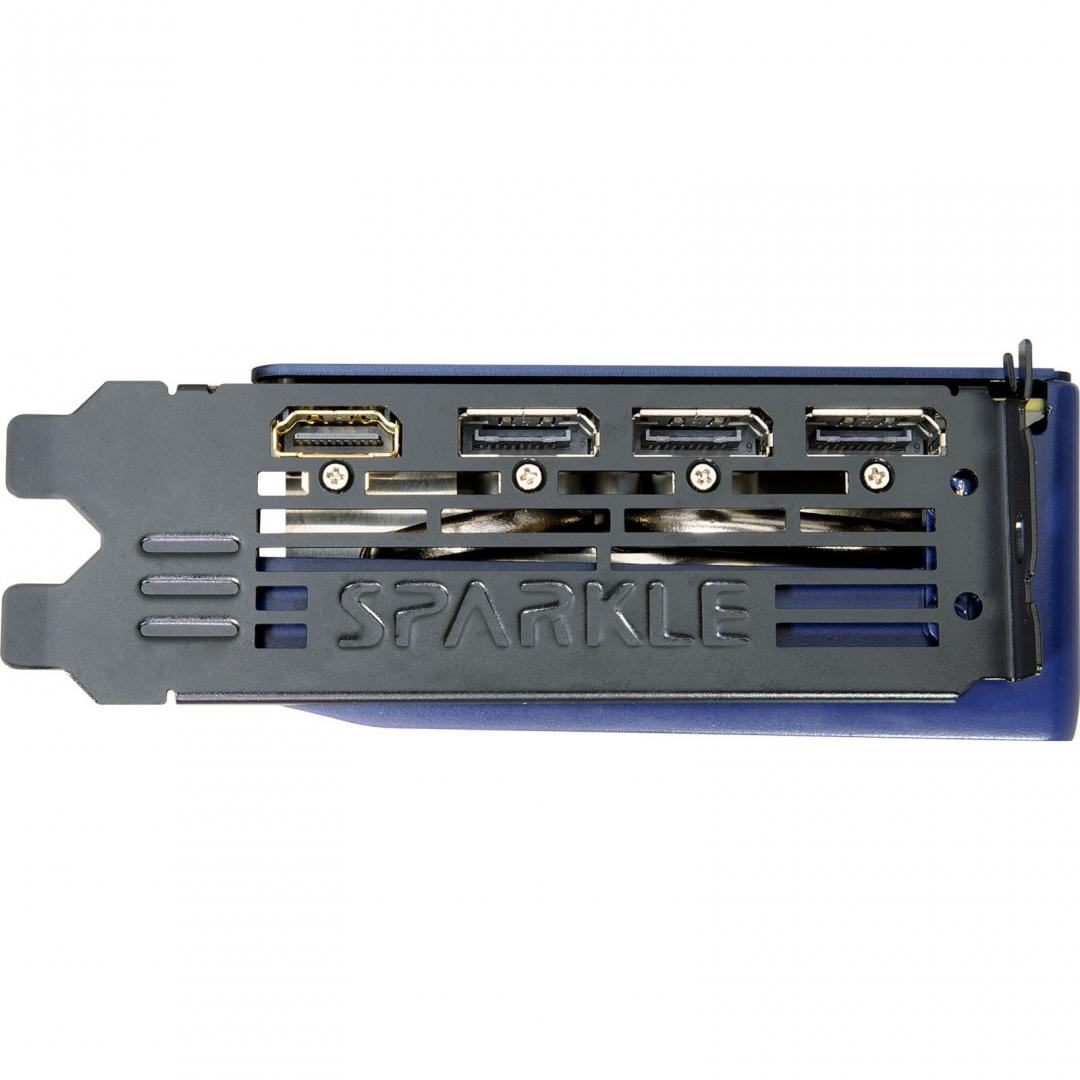

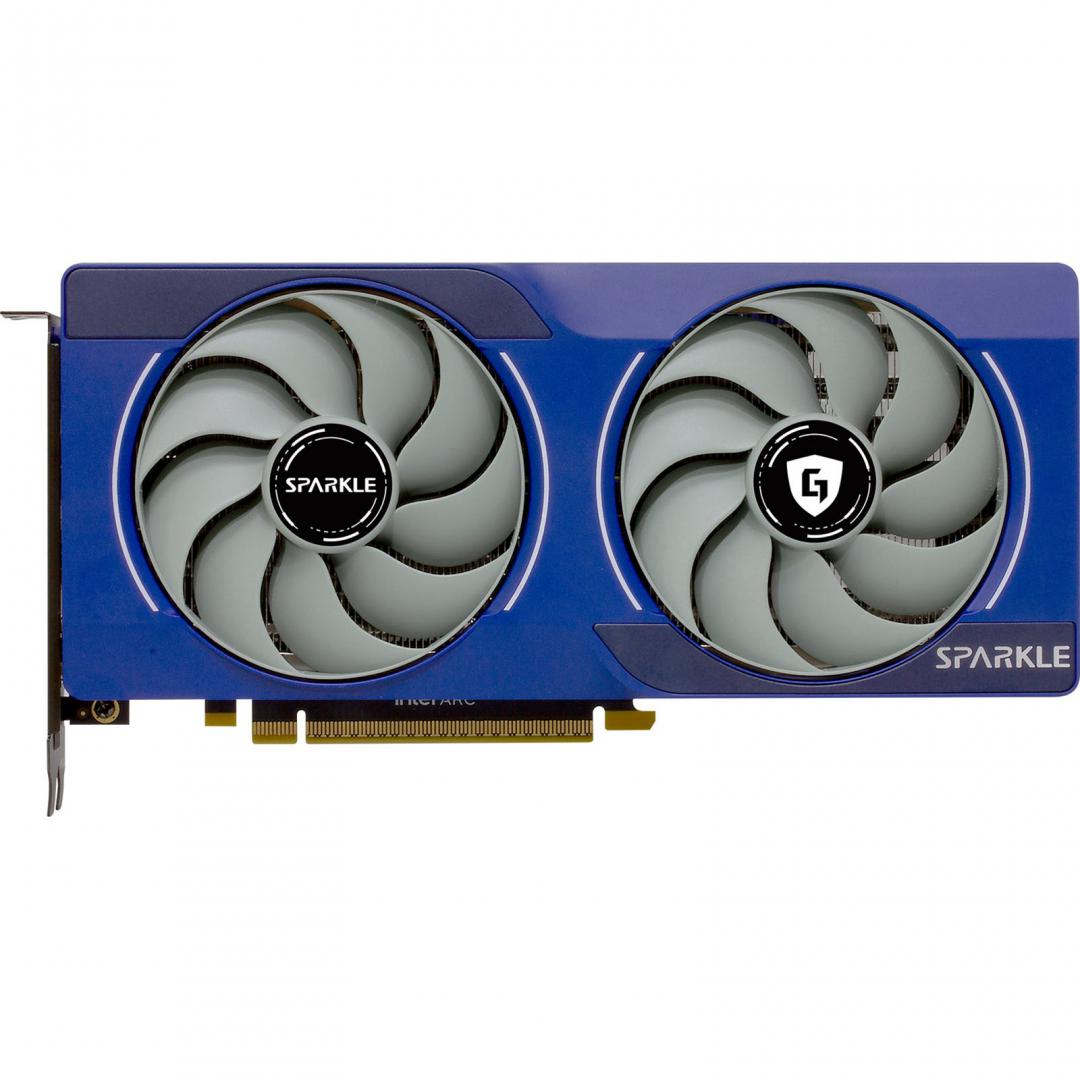

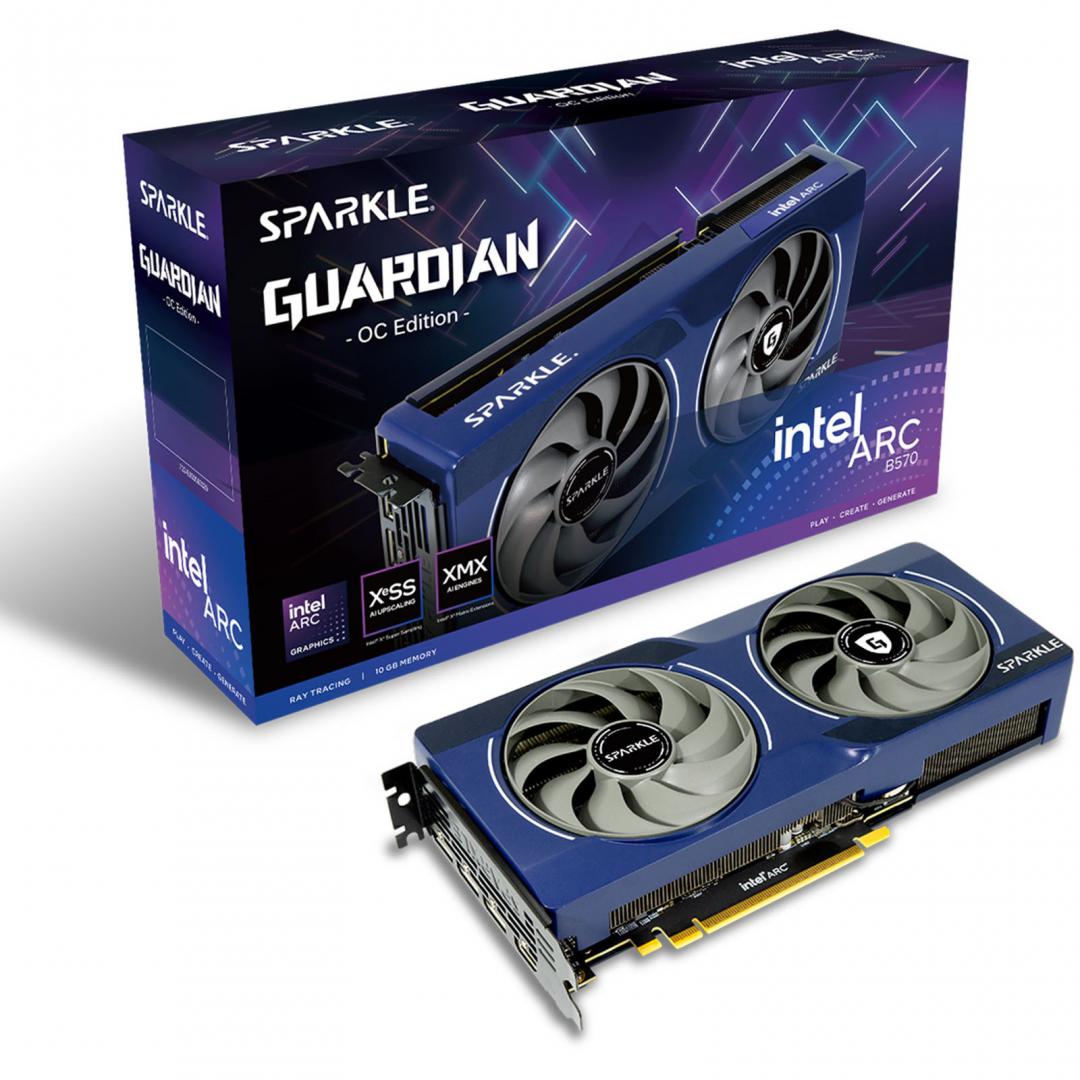

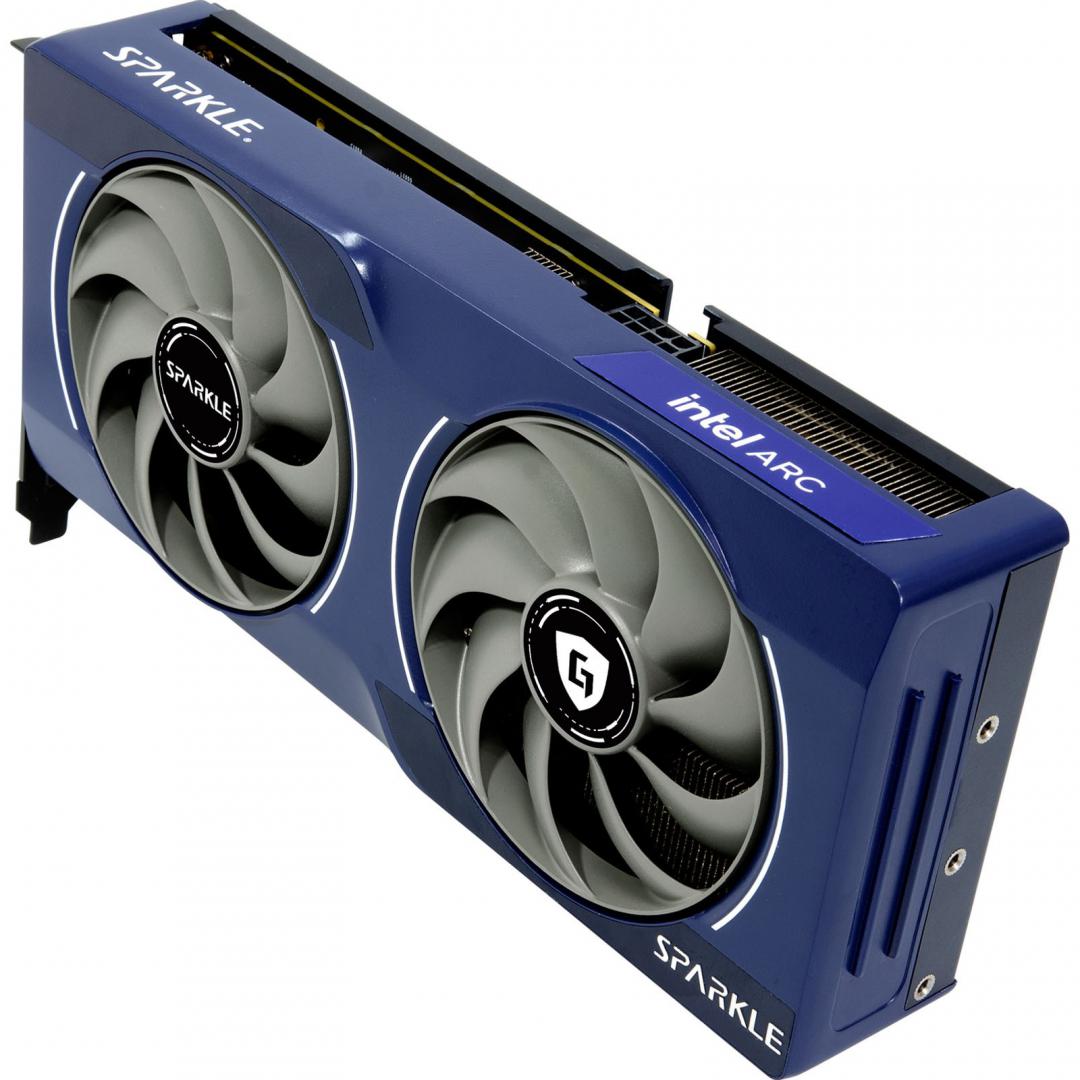

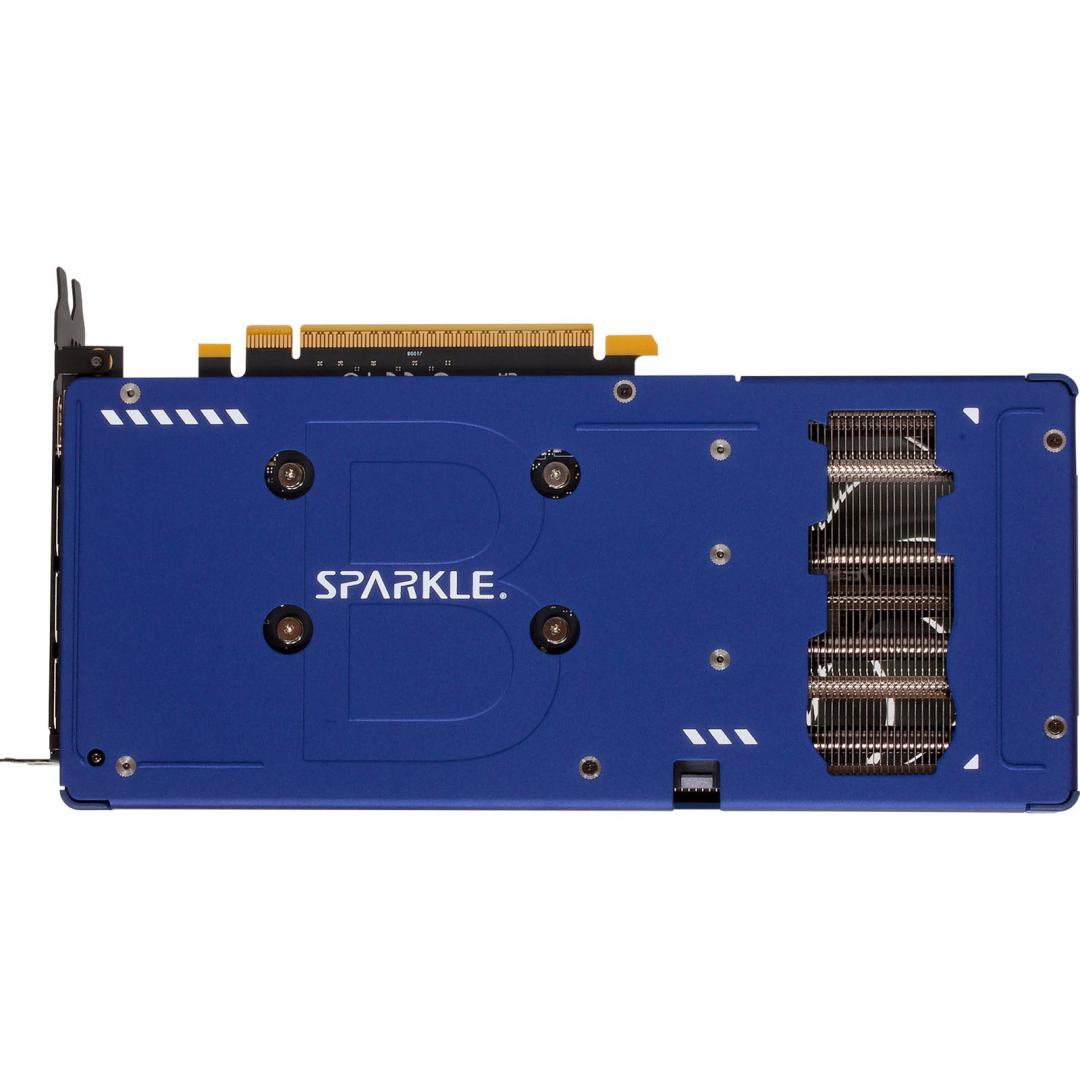

Placa Video INTEL SPARKLE ARC B570 GUARDIAN OC 10GB GDDR6 160 bit, 3x DP 1x HDMI
Specificații tehnice 61 caracteristici ⌄
- Alimentare separata
- N/A
- Bus Memorie
- 160bit
- Capacitate
- 10GB
- Chipset
- Intel
- Cooling type
- Active
- CUDA
- No
- DirectX version
- 12 Ultimate
- DisplayPorts quantity
- 3
- DisplayPort version
- 2.1
- Dual Link DVI
- No
- Graphics card memory type
- GDDR6
- Graphics processor
- Arc B570
- Graphics processor family
- Intel
- Intel® Xe Matrix Extensions (Intel® XMX) Engines
- 144
- Interface type
- PCI Express x8 4.0
- Length
- 242 mm
- LP-Bracket
- No
- MAXIMUM-RESOLUTION
- 7680 x 4320 pixels
- Maximum displays per videocard
- 4
- Memory bandwidth (max)
- 380 GB/s
- Memory BUS
- 160 bit
- MiniDP
- N/A
- Minimum RAM
- 8000 MB
- Minimum system power supply
- 600 W
- Minimum system requirements
- PCI-Express compliant MB with one x16 PCIe slot
- Model
- Intel Arc B570
- Numar Sloturi
- Triple Slot
- Number of fans
- 2 fan(s)
- Number of slots
- 2.2
- OpenCL version
- 3.0
- OpenGL version
- 4.6
- Parallel processing technology support
- Not supported
- Power consumption (max)
- 170 W
- Power consumption (typical)
- 150 W
- Power supply location
- Top
- Processor boost clock speed
- 2660 MHz
- Ray accelerators
- 18
- Recomandat pentru Gaming
- Da
- Segment
- Consumer
- Seria
- Intel Arc B570
- Sistem racire
- N/A
- Slot
- N/A
- Supplementary power connectors
- 1x 8-pin
- Tip Memorie
- GDDR6
- Tip memorie video
- GDDR6
- TV tuner integrated
- No
- VGA-Interface
- PCI-E-4.0
- Windows operating systems supported
- Windows 10, Windows 11
- Xe-cores
- 18
- Greutate
- 796 g
- Adâncime
- 44 mm
- Înălțime
- 105 mm
- HDMI
- 1
- Număr porturi HDMI
- 1
- Versiune HDMI
- 2.1
- Culoare
- Blue
- Garanție comercială
- 36
- Producător
- SPARKLE
- Capacitate memorie video dedicată
- 10 GB
- Frecvență procesor
- 2500 MHz
- Performanță NPU (TOPS)
- 203 TOPs
