"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G

Switchuri

"JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G

(0) În stoc
Vândut de RITC.ro Cod produs: TL-SX3008F

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support Yes No No Yes No
Access Control List (ACL) Yes — — Yes —
AC input frequency — 50 - 60 Hz 50 - 60 Hz — 50 Hz
AC input voltage 220 V — — — 220 V
ARP inspection Yes — — Yes —
Auto-negotiation — Yes Yes — Yes
Auto MDI/MDI-X — Yes Yes — Yes
Basic switching RJ-45 Ethernet ports type No Fast Ethernet (10/100) Fast Ethernet (10/100) 24 Fast Ethernet (10/100)
Broadcast storm control Yes — — Yes —
Cables included AC — AC AC —
Cable types supported — — Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e
Cloud-managed Yes — — Yes —
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Console port RJ-45/micro-USB — — RJ-45 —
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — 10BASE-T, 100BASE-TX
DC input voltage — 5 V — — 53.5 V
Depth 180 mm 7.9 mm 180 mm 180 mm 98 mm
DHCP features DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — — DHCP relay, DHCP server —
Fanless — Yes Yes Yes Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes — Yes
Forwarding rate 119.04 Mpps — 2.38 Mpps 95.23 Mpps 0.744 Mpps
Full duplex — Yes — — Yes
Garantie 60 36 36 24 60
Half duplex — Yes — — Yes
Harmonized System (HS) code — 85176990 85176990 — 85176990
Heat dissipation 52.75 BTU/h 6.99 BTU/h 7.03 BTU/h 66.87 BTU/h 5.73 BTU/h
Height — 22.5 mm 44 mm 44 mm 25 mm
IGMP snooping Yes — — Yes —
Input current — 0.6 A — — 1.31 A
IP-MAC-Port binding Yes — — Yes —
Jumbo frames 9000 — — 9000 2000
Jumbo frames support Yes — — Yes Yes
LAN port type 10Gigabit FastEthernet FastEthernet — —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — — Yes —
MAC address filtering Yes — — Yes —
MAC address table 32000 entries 1000 entries 8000 entries 16000 entries 2000 entries
Management Da nu nu — nu
Montare in rack Nu Nu Nu Da Nu
Multicast support Yes — — Yes —
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt IEEE 802.3af, IEEE 802.3x
Number of VLANs 4000 — — 4000 —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 45 °C 0 - 40 °C 0 - 40 °C -5 - 45 °C 0 - 40 °C
Package depth — 139 mm 528 mm — 196 mm
Package height — 85 mm — — 121 mm
Package type Box Box Box — Box
Package weight — 240 g 2.28 kg — 760 g
Package width — 100 mm 250 mm — 131 mm
Packet buffer memory 16 MB 2 MB 2 MB 12 MB —
PoE Nu Nu Nu — Da
Port mirroring Yes — — Yes —
Porturi RJ 45 1-4 5-10 11-18 24-28 5-10
Porturi SFP 5-8 N/A N/A 3-4 N/A
Power connector DC-in jack DC-in jack DC-in jack — —
Power consumption (max) 15.46 W 2.2 W 2.23 W 19.6 W 63.51 W
Power over Ethernet (PoE) No No No No Yes
Power source AC DC AC AC DC/PoE
Power supply included Yes No Yes Yes Yes
Product colour — White Black — Black
Quality of Service (QoS) support Yes — — Yes —
Quick start guide Yes Yes — — —
Rack mounting Yes No Yes Yes No
Rack mount kit Yes — Yes Yes —
Security algorithms HTTPS, SSH, SSH-2, SSL/TLS — — SNMP, SNMPv2, SNMPv3 —
SFP module slots quantity 8 — — 4 —
SSH/SSL support Yes — — Yes —
Stackable — No No Yes No
Static port security Yes — — Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes Yes Yes Yes
Sustainability compliance — Yes Yes — Yes
Switching capacity 160 Gbit/s 16 Gbit/s 32 Gbit/s 128 Gbit/s 1 Gbit/s
Switch layer L2+/L3 — — L3 —
Switch type Managed Unmanaged Unmanaged Managed Unmanaged
Virtual LAN features Private VLAN, Protocol-based VLAN, Voice VLAN — — MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN —
Viteza transfer 10G+ Fast Ethernet Fast Ethernet Gigabit Fast Ethernet
VLAN support Yes — — Yes —
Web-based management Yes — — Yes —
Width — 134.5 mm 440 mm 440 mm 99.8 mm
Producator TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

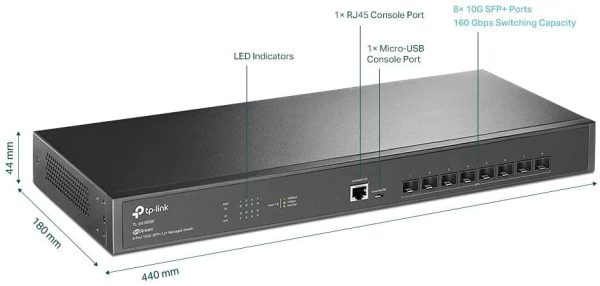

“JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6 “

Specificații tehnice 78 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
AC input voltage
220 V
ARP inspection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type
AAA, TACACS+
Basic switching RJ-45 Ethernet ports type
No
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
180 mm
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support
Yes
Forwarding rate
119.04 Mpps
Garantie
60
Head-of-line (HOL) blocking
Yes
Heat dissipation
52.75 BTU/h
IGMP snooping
Yes
IP-MAC-Port binding
Yes
IP routing
Yes
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames
9000
Jumbo frames support
Yes
LAN port type
10Gigabit
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address filtering
Yes
MAC address table
32000 entries
Management
Da
Management protocols
SNMPv1/v2c/v3, SNTP
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in rack
Nu
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of queues
8
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Package type
Box
Packet buffer memory
16 MB
PoE
Nu
Port mirroring
Yes
Porturi RJ 45
1-4
Porturi SFP
5-8
Power connector
DC-in jack
Power consumption (max)
15.46 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide
Yes
Rack mounting
Yes
Rack mount kit
Yes
Rate limiting
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity
8
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static port security
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
160 Gbit/s
Switch layer
L2+/L3
Switch type
Managed
System event log
Yes
Traffic classification
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer
10G+
VLAN support
Yes
Web-based management
Yes
Producator
TP-LINK
