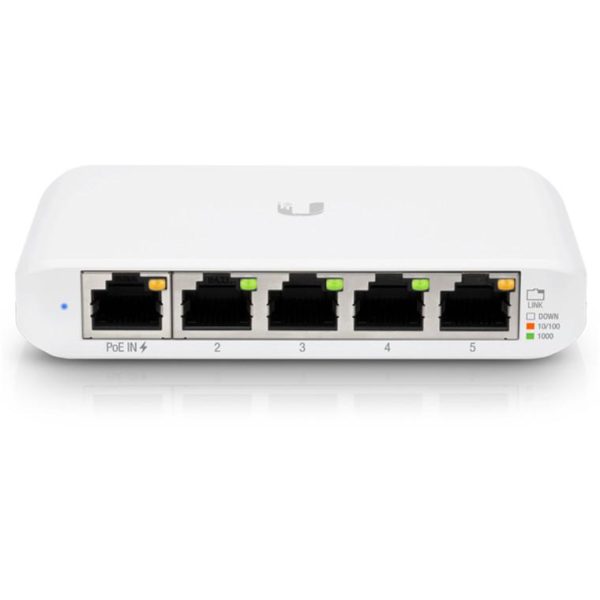

Switch Ubiquiti UniFi USW-FLEX MINI, 5 port, 10/100/1000 Mbps

Switchuri

Switch Ubiquiti UniFi USW-FLEX MINI, 5 port, 10/100/1000 Mbps

(0) În stoc
Vândut de RITC.ro Cod produs: USW-FLEX-MINI

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch Ubiquiti UniFi USW-FLEX MINI, 5 port, 10/100/1000 Mbps Switch Ubiquiti UniFi USW-24-POE, 24 port, 10/100/1000 Mbps Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
Alte caracteristici
10G support No — No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Auto-negotiation — — Yes Yes Yes
Auto MDI/MDI-X — Yes — Yes Yes
Basic switching RJ-45 Ethernet ports type 5 24 8 Fast Ethernet (10/100) Fast Ethernet (10/100)
Cables included USB Type-C — — — AC
Cable types supported — — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e
Certification CE, FCC, IC CE, FCC, IC CE, FCC — —
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage — 44 - 57 V — 5 V —
Depth 70.2 mm 200 mm 8.2 mm 7.9 mm 180 mm
Fanless — — — Yes Yes
Fast Ethernet (copper) ports quantity — — — 8 16
Flow control support Yes Yes — Yes Yes
Form factor — 1U 1U — 1U
Forwarding rate 7.44 Mpps 38.69 Mpps — — 2.38 Mpps
Full duplex — Yes — Yes —
Garantie 24 24 60 36 36
Harmonized System (HS) code 85176990 85176990 — 85176990 85176990
Heat dissipation — — — 6.99 BTU/h 7.03 BTU/h
Height 21.2 mm 43.7 mm 27 mm 22.5 mm 44 mm
Housing material — — Metal — Metal
Input current — — 2.5 A 0.6 A —
LAN ports 5 24 — — —
LAN port type Gigabit 10Gigabit Gigabit FastEthernet FastEthernet
LED indicators Activity, Link, Speed, Status Activity, Link, PoE, Speed, System Yes Yes Yes
MAC address table — — 4096 entries 1000 entries 8000 entries
Management Da Da nu nu nu
Montare in rack Nu Da Nu Nu Nu
Networking standards IEEE 802.3af, IEEE 802.3at IEEE 802.3af, IEEE 802.3at IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 80% 10 - 90% 10 - 90%
Operating temperature (T-T) -5 - 45 °C — 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — — 139 mm 528 mm
Package type — — — Box Box
Package weight — — — 240 g 2.28 kg
Package width — — — 100 mm 250 mm
Packet buffer memory — — — 2 MB 2 MB
PoE Da Da Da Nu Nu
Port mirroring — Yes No — —
Porturi RJ 45 5-10 24-28 5-10 5-10 11-18
Porturi SFP N/A 1-2 N/A N/A N/A
Power connector DC-in jack — DC-in jack DC-in jack DC-in jack
Power consumption (max) 2.5 W — — 2.2 W 2.23 W
Power over Ethernet (PoE) Yes Yes Yes No No
Power over Ethernet (PoE) power per port — 32 W 30 W — —
Power source — — AC DC AC
Power supply included Yes Yes Yes No Yes
Product colour White Silver Black White Black
Rackable No Yes — — —
Rack mounting No Yes No No Yes
Redundant PSU No No — — —
Stackable No Yes No No No
Storage relative humidity (H-H) — — 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) — — -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — — Yes Yes
Sustainability compliance — — — Yes Yes
Switching capacity 10 Gbit/s 52 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s
Switch layer L2 — L2 — —
Switch type Managed Managed Unmanaged Unmanaged Unmanaged
Throughput 5 Gbit/s 26000 Mpps — — —
Total Power over Ethernet (PoE) budget — 92 W 60 W — —
Viteza transfer Gigabit Gigabit Gigabit Fast Ethernet Fast Ethernet
Weight 150 g 3 kg 500 g — —
Width 107.2 mm 442.4 mm 192 mm 134.5 mm 440 mm
Producator UBIQUITI UBIQUITI EXTRALINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Ubiquiti UniFi Switch, USW-FLEX MINI, 5x 10/100/1000 Mbps RJ45 Ports, 802.3af/at PoE (Pins 1, 2+; 3, 6-), USB Type C, 5V.

Specificații tehnice 39 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
5
Cables included
USB Type-C
Certification
CE, FCC, IC
Depth
70.2 mm
Flow control support
Yes
Forwarding rate
7.44 Mpps
Garantie
24
Harmonized System (HS) code
85176990
Height
21.2 mm
LAN ports
5
LAN port type
Gigabit
LED indicators
Activity, Link, Speed, Status
Management
Da
Montare in rack
Nu
Networking standards
IEEE 802.3af, IEEE 802.3at
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 45 °C
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
2.5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
1
Power supply included
Yes
Product colour
White
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Switching capacity
10 Gbit/s
Switch layer
L2
Switch type
Managed
Throughput
5 Gbit/s
Viteza transfer
Gigabit
Weight
150 g
Width
107.2 mm
Producator
UBIQUITI
