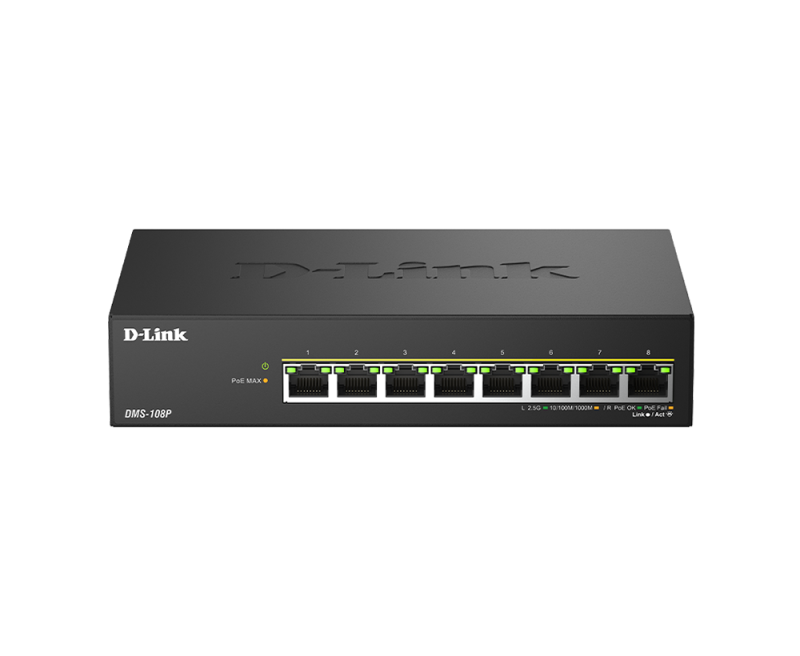

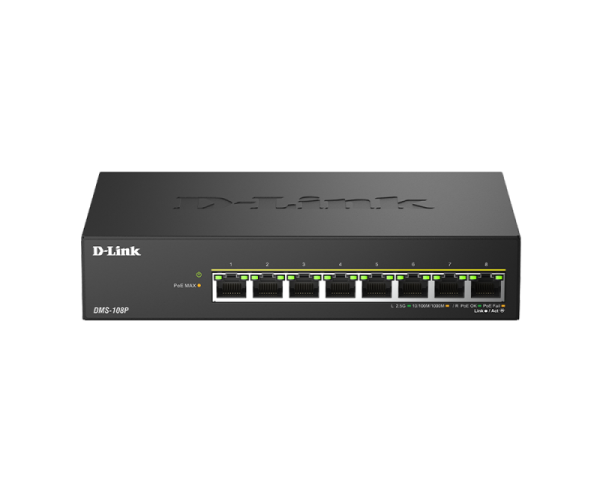

Switch DLink DMS-108P, 8 porturi, PoE, 8 x RJ-45, Auto

Switchuri

Switch DLink DMS-108P, 8 porturi, PoE, 8 x RJ-45, Auto

(0) În stoc
Vândut de RITC.ro Cod produs: DMS-108P/E

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch DLink DMS-108P, 8 porturi, PoE, 8 x RJ-45, Auto Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
Auto-negotiation — Yes Yes Yes Yes
Auto MDI/MDI-X Yes — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) 8 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100)
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e
Certification CB; UL; LVD; FCC; VCCI; IC; BSMI CE, FCC — — —
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 54 V — 5 V — 53.5 V
Depth 120 mm 8.2 mm 7.9 mm 180 mm 98 mm
Ethernet LAN data rates 10,100,1000,2500 Mbit/s — — 10,100 Mbit/s —
Fanless — — Yes Yes Yes
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support — — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate 29.76 Mpps — — 2.38 Mpps 0.744 Mpps
Full duplex — — Yes — Yes
Garantie 24 60 36 36 60
Half duplex — — Yes — Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation 890.6 BTU/h — 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h
Height 38 mm 27 mm 22.5 mm 44 mm 25 mm
Housing material — Metal — Metal —
Input current 4.62 A 2.5 A 0.6 A — 1.31 A
LAN port type — Gigabit FastEthernet FastEthernet —
LED indicators Yes Yes Yes Yes Yes
MAC address table 4000 entries 4096 entries 1000 entries 8000 entries 2000 entries
Management — nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards — IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — 139 mm 528 mm 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight — — 240 g 2.28 kg 760 g
Package width — — 100 mm 250 mm 131 mm
Packet buffer memory — — 2 MB 2 MB —
PoE — Da Nu Nu Da
Porturi RJ 45 5-10 5-10 5-10 11-18 5-10
Porturi SFP N/A N/A N/A N/A N/A
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 261.02 W — 2.2 W 2.23 W 63.51 W
Power over Ethernet (PoE) Yes Yes No No Yes
Power over Ethernet (PoE) ports quantity 8 — — — 4
Power over Ethernet (PoE) power per port 90 W 30 W — — —
Power source DC AC DC AC DC/PoE
Power supply included Yes Yes No Yes Yes
Product colour Black Black White Black Black
Quality of Service (QoS) support Yes No — — —
Rack mounting — No No Yes No
Stackable Yes No No No No
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes — Yes Yes Yes
Sustainability compliance — — Yes Yes Yes
Switching capacity 40 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget 290 W 60 W — — 58 W
Traffic classification Yes No — — —
Viteza transfer 2.5G Gigabit Fast Ethernet Fast Ethernet Fast Ethernet
Weight 753 g 500 g — — —
Width 190 mm 192 mm 134.5 mm 440 mm 99.8 mm
Producator D-LINK EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch DLink DMS-108P, 8 porturi, PoE, 8 x RJ-45, Auto MDI/MDIX adjustment for all ports, viteza de transfer LAN 2.5 Gbps, capacitate 40 Gbps

Specificații tehnice 40 caracteristici
10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Certification
CB; UL; LVD; FCC; VCCI; IC; BSMI
DC input voltage
54 V
Depth
120 mm
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Forwarding rate
29.76 Mpps
Garantie
24
Heat dissipation
890.6 BTU/h
Height
38 mm
Input current
4.62 A
LED indicators
Yes
MAC address table
4000 entries
Mean time between failures (MTBF)
140688261 h
Montare in rack
Nu
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
261.02 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
90 W
Power source
DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Stackable
Yes
Storage relative humidity (H-H)
5 - 90%
Store-and-forward
Yes
Switching capacity
40 Gbit/s
Switch type
Unmanaged
Total Power over Ethernet (PoE) budget
290 W
Traffic classification
Yes
Viteza transfer
2.5G
Weight
753 g
Width
190 mm
Producator
D-LINK
