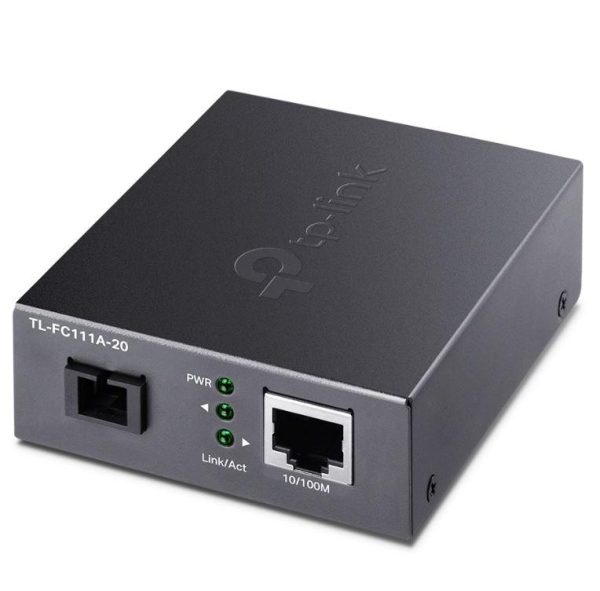

"10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional

Accesorii switchuri

"10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-FC111A-20

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică "10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM "24V Passive PoE Injector Adapter PORT: 1× Gigabit PoE Port, "Gigabit Multi-Mode SFP Module SPEC: Multi-mode, MiniGBIC, LC Interface, Up "Gigabit Single-Mode SFP Module SPEC: Single-mode, MiniGBIC, LC Interface, Up
Alte caracteristici
Auto-negotiation Yes — Yes — —
Auto MDI/MDI-X Yes — Yes — —
Cable types supported Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e, Cat6 — —
Certification FCC, CE — — FCC, CE FCC, CE
Compliance certificates RoHS — RoHS RoHS RoHS
Connectivity technology Wired Wired — — —
Data transfer rate 100 Mbit/s 100 Mbit/s 1000 Mbit/s 1250 Mbit/s 1250 Mbit/s
Depth 73 mm 73 mm 43.9 mm 13.7 mm —
Ethernet LAN (RJ-45) ports 1 — 2 — —
Ethernet LAN data rates 10,100 Mbit/s — 10,100,1000 Mbit/s — —
Fiber cable diameters supported (core/cladding) 9/125 µm 9/125 µm — 50/125,62.5/125 µm 9/125 µm
Fiber mode structure Single-mode Single-mode — — —
Fiber optic connector SC — — LC (UPC) LC (UPC)
Fiber ports quantity 1 1 — — —
Harmonized System (HS) code 85176990 — 85044095 85369010 85369010
Height 27 mm 27 mm 35 mm 12.9 mm —
Input voltage — — — 3.3 V 3.3 V
Interface type — — — mini-GBIC/SFP mini-GBIC/SFP
Internal No No — — —
LED indicators Activity, Link, Power Yes Power — —
Maximum data transfer rate 100 Mbit/s 100 Mbit/s — 1250 Mbit/s 1250 Mbit/s
Maximum transfer distance 20000 m 20000 m — 550 m 10000 m
Multi-mode fiber (MMF) supported — — — Yes No
Networking standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u — — IEEE 802.3z IEEE 802.3z
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 50 °C 0 - 50 °C 32 - 104 °F 0 - 70 °C 0 - 70 °C
Package depth 204 mm — 180 mm 207 mm 122.5 mm
Package height 65 mm — 60 mm 38 mm 385 mm
Package weight 360 g — 290 g 110 g 60 g
Package width 165 mm — 60 mm 38 mm 815 mm
SFP transceiver type — — — Fiber optic Fiber optic
Single-mode fiber (SMF) supported — — — No Yes
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 80 °C -40 - 80 °C
Switch-CM-Type SFP SFP — SFP SFP
User guide — Yes — Yes —
Wavelength — — — 850 nm 1310 nm
Width 94.5 mm 94.5 mm 85.8 mm 55.4 mm —
Laptopuri - Construcție
Culoare Black Black White Metallic Metallic
Laptopuri - Generale
Garanție comercială 60 60 60 60 24
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

“10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter PORT: 1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX) SPEC: Full-duplex, Tx:1550 nm, Rx:1310 nm, Up to 20 km, Chassis TL-FC1420 rack-mountable”

Specificații tehnice 40 caracteristici
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Certification
FCC, CE
Compliance certificates
RoHS
Connectivity technology
Wired
Copper ethernet cabling technology
10BASE-T, 100BASE-T
Data transfer rate
100 Mbit/s
Depth
73 mm
Duplex system
Full, Half
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber ethernet cabling technology
100BASE-FX
Fiber mode structure
Single-mode
Fiber optic connector
SC
Fiber ports quantity
1
Flow control support
Yes
Harmonized System (HS) code
85176990
Height
27 mm
Internal
No
LED indicators
Activity, Link, Power
Maximum data transfer rate
100 Mbit/s
Maximum transfer distance
20000 m
Networking standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Output current
0.6 A
Output voltage
5 V
Package depth
204 mm
Package height
65 mm
Package weight
360 g
Package width
165 mm
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switch-CM-Type
SFP
Width
94.5 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
