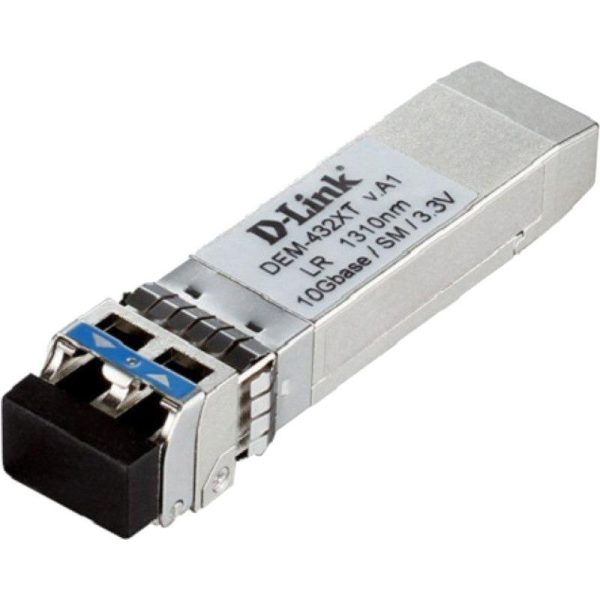

Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR;
206,99 lei 1.126,99 lei
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR;
(0)
În stoc
Vândut de RITC.ro
Cod produs: DEM-432XT
Livrare și beneficii
Compară cu produse similare
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR;
"10Gbase-LR SFP+ LC Transceiver SPEC: 1310 nm Single-mode, LC Duplex
201,99 lei 304,99 lei
Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector,
196,00 lei 291,99 lei
"Gigabit Single-Mode SFP Module SPEC: Single-mode, MiniGBIC, LC Interface, Up
83,99 lei 134,00 lei
Port D-Link, Poe Injecor, DPE-101GI, 0.4 A at 48 V,
272,00 lei
Vezi comparația completă
| Caracteristică | Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; | "10Gbase-LR SFP+ LC Transceiver SPEC: 1310 nm Single-mode, LC Duplex | Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, | "Gigabit Single-Mode SFP Module SPEC: Single-mode, MiniGBIC, LC Interface, Up | Port D-Link, Poe Injecor, DPE-101GI, 0.4 A at 48 V, |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| Brand compatibility | — | TP-Link | — | TP-Link | — |
| Certification | CE, FCC, VCCI, MSA | FCC, CE | — | FCC, CE | CE FCC VCCI C-Tick IC |
| Compliance certificates | RoHS | — | CE, Federal Communications Commission (FCC), RoHS | RoHS | — |
| Data transfer rate | 10000 Mbit/s | 10000 Mbit/s | 10300 Mbit/s | 1250 Mbit/s | 1000 Mbit/s |
| Depth | 118 mm | 139 mm | 14 mm | — | 109.8 mm |
| Digital Diagnostics Monitoring (DDM) | — | Yes | Yes | — | — |
| Duplex system | Full | Full | — | — | — |
| Fiber cable diameters supported (core/cladding) | 9/125 µm | 9/125 µm | 9/125 µm | 9/125 µm | — |
| Fiber optic connector | LC | LC | LC (UPC) | LC (UPC) | — |
| Harmonized System (HS) code | 85369010 | 85369010 | — | 85369010 | 85044095 |
| Height | 56.5 mm | 103 mm | 12 mm | — | 24.5 mm |
| Hot-Plug support | Yes | Yes | — | — | — |
| Hot-swap | — | Yes | Yes | — | — |
| Input voltage | — | 3.3 V | 3.3 V | 3.3 V | — |
| Interface type | SFP | SFP | SFP | mini-GBIC/SFP | — |
| Master (outer) cases per pallet | 60 pc(s) | — | — | — | 60 pc(s) |
| Maximum data transfer rate | 10000 Mbit/s | 10000 Mbit/s | 10312 Mbit/s | 1250 Mbit/s | — |
| Maximum transfer distance | 10000 m | 10000 m | 10000 m | 10000 m | — |
| Multi-mode fiber (MMF) supported | No | No | — | No | — |
| Networking standards | IEEE 802.3ae | IEEE 802.3ae | IEEE 802.3ae | IEEE 802.3z | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Operating relative humidity (H-H) | 5 - 85% | 10 - 90% | 10 - 90% | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 70 °C | 0 - 70 °C | 0 - 70 °C | 0 - 70 °C | 0 - 50 °C |
| Package depth | 131 mm | 122.5 mm | — | 122.5 mm | 213 mm |
| Package height | 49 mm | 385 mm | — | 385 mm | 68 mm |
| Package weight | 64 g | 60 g | — | 60 g | 420 g |
| Package width | 74 mm | 815 mm | — | 815 mm | 153 mm |
| Pallet gross length | 102 cm | — | — | — | 120 cm |
| Pallet gross weight (air) | 272 kg | — | — | — | 316.4 kg |
| Pallet gross weight (sea) | 272 kg | — | — | — | 316.4 kg |
| Pallet gross width | 122 cm | — | — | — | 110 cm |
| Pallet height (air) | 199 cm | — | — | — | 194 cm |
| Pallet height (sea) | 199 cm | — | — | — | 194 cm |
| Products per pallet (air) | 3000 pc(s) | — | — | — | 600 pc(s) |
| Products per pallet (sea) | 3000 pc(s) | — | — | — | 600 pc(s) |
| Products per shipping (inner) case | 50 pc(s) | — | — | — | 10 pc(s) |
| Quantity per pack | — | 1 pc(s) | 1 pc(s) | — | — |
| SFP transceiver standard | LR | LR | — | — | — |
| SFP transceiver type | Fiber optic | Fiber optic | Fiber optic | Fiber optic | — |
| Shipping (inner) case gross weight | 4.2 kg | — | — | — | 4.94 kg |
| Shipping (inner) case height | 31 cm | — | — | — | 36 cm |
| Shipping (inner) case length | 36 cm | — | — | — | 32.6 cm |
| Shipping (inner) case net weight | 3.2 kg | — | — | — | 4.26 kg |
| Shipping (inner) case width | 26 cm | — | — | — | 23.3 cm |
| Single-mode fiber (SMF) supported | Yes | Yes | Yes | Yes | — |
| Storage relative humidity (H-H) | 5 - 95% | 5 - 90% | 5 - 90% | 5 - 90% | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C | -40 - 85 °C | -40 - 85 °C | -40 - 80 °C | -20 - 70 °C |
| Switch-CM-Type | — | SFP | SFP | SFP | SFP |
| Wavelength | 1310 nm | 1310 nm | — | 1310 nm | — |
| Width | 148 mm | 56.7 mm | 57 mm | — | 62.2 mm |
| Laptopuri - Construcție | |||||
| Culoare | Gold, Metallic | — | Silver | Metallic | White |
| Greutate | 195 g | — | — | — | 65 g |
| Laptopuri - Generale | |||||
| Garanție comercială | 60 | 60 | 60 | 24 | 24 |
| Producător | D-LINK | TP-LINK | TP-LINK | TP-LINK | D-LINK |
Analiză inteligentă a produsului
Descriere oficială
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;
Specificații tehnice 57 caracteristici ⌄
- Certification
- CE, FCC, VCCI, MSA
- Compliance certificates
- RoHS
- Data transfer rate
- 10000 Mbit/s
- Depth
- 118 mm
- Duplex system
- Full
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Fiber ethernet cabling technology
- 10GBASE
- Fiber optic connector
- LC
- Harmonized System (HS) code
- 85369010
- Height
- 56.5 mm
- Hot-Plug support
- Yes
- Interface type
- SFP
- Link budget
- 10.1 dB
- Master (outer) cases per pallet
- 60 pc(s)
- Maximum current
- 300 A
- Maximum data transfer rate
- 10000 Mbit/s
- Maximum transfer distance
- 10000 m
- Maximum voltage
- 3.3 V
- Mean time between failures (MTBF)
- 4650000 h
- Multi-mode fiber (MMF) supported
- No
- Networking standards
- IEEE 802.3ae
- Operating relative humidity (H-H)
- 5 - 85%
- Operating temperature (T-T)
- 0 - 70 °C
- Package depth
- 131 mm
- Package height
- 49 mm
- Package weight
- 64 g
- Package width
- 74 mm
- Pallet gross length
- 102 cm
- Pallet gross weight (air)
- 272 kg
- Pallet gross weight (sea)
- 272 kg
- Pallet gross width
- 122 cm
- Pallet height (air)
- 199 cm
- Pallet height (sea)
- 199 cm
- Products per pallet (air)
- 3000 pc(s)
- Products per pallet (sea)
- 3000 pc(s)
- Products per shipping (inner) case
- 50 pc(s)
- Rx power (max)
- 0.5 dBmW
- Rx power (min)
- -12.6 dBmW
- Safety
- UL, TUV, CDRH
- SFP transceiver standard
- LR
- SFP transceiver type
- Fiber optic
- Shipping (inner) case gross weight
- 4.2 kg
- Shipping (inner) case height
- 31 cm
- Shipping (inner) case length
- 36 cm
- Shipping (inner) case net weight
- 3.2 kg
- Shipping (inner) case width
- 26 cm
- Single-mode fiber (SMF) supported
- Yes
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 85 °C
- Tx power (max)
- 0.5 dBmW
- Tx power (min)
- -8.5 dBmW
- Wavelength
- 1310 nm
- Width
- 148 mm
- Culoare
- Gold, Metallic
- Greutate
- 195 g
- Garanție comercială
- 60
- Producător
- D-LINK
