Multi Mode Fibre Transceiver (300m) D-link, DEM-431XT

Accesorii switchuri

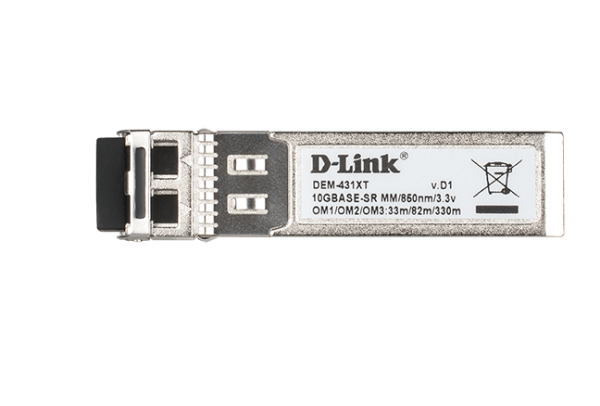

Multi Mode Fibre Transceiver (300m) D-link, DEM-431XT

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DEM-431XT/10

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Multi Mode Fibre Transceiver (300m) D-link, DEM-431XT Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TP-Link SFP MODULE 1000Base-SX MMF Industrial, standard IEEE 802.3z,TCP/IP, fibra Port D-Link, Poe Injecor, DPE-101GI, 0.4 A at 48 V,
Alte caracteristici
Certification — CE, FCC, VCCI, MSA — FCC, CE CE FCC VCCI C-Tick IC
Compliance certificates RoHS RoHS CE, Federal Communications Commission (FCC), RoHS — —
Data transfer rate 10000 Mbit/s 10000 Mbit/s 10300 Mbit/s 1250 Mbit/s 1000 Mbit/s
Ethernet interface type — — — 1.25 Gigabit Ethernet Gigabit Ethernet
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm 9/125 µm 9/125 µm 50/125,62.5/125 µm —
Fiber ethernet cabling technology 10GBASE 10GBASE — — —
Fiber optic connector LC LC LC (UPC) LC (UPC) —
Harmonized System (HS) code — 85369010 — — 85044095
Hot-Plug support Yes Yes — — —
Hot-swap — — Yes Yes —
Input voltage 3.3 V — 3.3 V 3.3 V —
Interface type SFP SFP SFP SFP —
Link budget 10.1 dB 10.1 dB — — —
Master (outer) cases per pallet — 60 pc(s) — — 60 pc(s)
Maximum current 0.3 A 300 A — — —
Maximum data transfer rate 10000 Mbit/s 10000 Mbit/s 10312 Mbit/s 1.25 Mbit/s —
Maximum operating temperature 70 °C — 70 °C 85 °C —
Maximum transfer distance 550 m 10000 m 10000 m 550 m —
Mean time between failures (MTBF) 3960000 h 4650000 h — — —
Minimum operating temperature 0 °C — 0 °C -40 °C —
Multi-mode fiber (MMF) supported Yes No — Yes —
Networking standards IEEE 802.3ae, IEEE 802.3x IEEE 802.3ae IEEE 802.3ae IEEE 802.3z IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Operating relative humidity (H-H) 5 - 85% 5 - 85% 10 - 90% 5 - 85% 10 - 90%
Operating temperature (T-T) 0 - 70 °C 0 - 70 °C 0 - 70 °C — 0 - 50 °C
Package depth — 131 mm — — 213 mm
Package height — 49 mm — — 68 mm
Package weight — 64 g — — 420 g
Package width — 74 mm — — 153 mm
Pallet gross length — 102 cm — — 120 cm
Pallet gross weight (air) — 272 kg — — 316.4 kg
Pallet gross weight (sea) — 272 kg — — 316.4 kg
Pallet gross width — 122 cm — — 110 cm
Pallet height (air) — 199 cm — — 194 cm
Pallet height (sea) — 199 cm — — 194 cm
Products per pallet (air) — 3000 pc(s) — — 600 pc(s)
Products per pallet (sea) — 3000 pc(s) — — 600 pc(s)
Products per shipping (inner) case — 50 pc(s) — — 10 pc(s)
Quantity per pack 10 pc(s) — 1 pc(s) 1 pc(s) —
Rx power (max) -1 dBmW 0.5 dBmW — — —
Rx power (min) -11.1 dBmW -12.6 dBmW — — —
SFP transceiver type Fiber optic Fiber optic Fiber optic Fiber optic —
Shipping (inner) case gross weight — 4.2 kg — — 4.94 kg
Shipping (inner) case height — 31 cm — — 36 cm
Shipping (inner) case length — 36 cm — — 32.6 cm
Shipping (inner) case net weight — 3.2 kg — — 4.26 kg
Shipping (inner) case width — 26 cm — — 23.3 cm
Single-mode fiber (SMF) supported — Yes Yes — —
Storage relative humidity (H-H) 5 - 95% 5 - 95% 5 - 90% 5 - 85% 5 - 90%
Storage temperature (T-T) -40 - 85 °C -40 - 85 °C -40 - 85 °C -40 - 85 °C -20 - 70 °C
Switch-CM-Type — — SFP SFP SFP
Tx power (max) -1 dBmW 0.5 dBmW — — —
Tx power (min) -6.5 dBmW -8.5 dBmW — — —
Wavelength — 1310 nm — 850 nm —
Caracteristici fizice
Greutate 18 g 195 g — — 65 g
Laptopuri - Caracteristici fizice 25.09
Adâncime 56.5 mm 118 mm 14 mm 134 mm 109.8 mm
Lățime 148 mm 148 mm 57 mm 56.4 mm 62.2 mm
Înălțime 118 mm 56.5 mm 12 mm 11 mm 24.5 mm
Laptopuri - Construcție
Culoare Black, Stainless steel Gold, Metallic Silver Grey White
Laptopuri - Generale
Garanție comercială 60 60 60 24 24
Producător D-LINK D-LINK TP-LINK TP-LINK D-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Multi Mode Fibre Transceiver (300m) D-link, DEM-431XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-SR; Fibre Channel FC-PI Standard: 1200-Mx-SN-I; Speed: 10 Gbps; Duplex LC connector; Single-direction; Wavelength: 850 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.6 dB/ 10.1 dB, bulk

Specificații tehnice 36 caracteristici
Compatible products
CE, FCC, VCC, UL, TUV, CDRH
Compliance certificates
RoHS
Data transfer rate
10000 Mbit/s
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber ethernet cabling technology
10GBASE
Fiber optic connector
LC
Hot-Plug support
Yes
Input voltage
3.3 V
Interface type
SFP
Link budget
10.1 dB
Maximum current
0.3 A
Maximum data transfer rate
10000 Mbit/s
Maximum operating temperature
70 °C
Maximum transfer distance
550 m
Mean time between failures (MTBF)
3960000 h
Minimum operating temperature
0 °C
Multi-mode fiber (MMF) supported
Yes
Networking standards
IEEE 802.3ae, IEEE 802.3x
Operating relative humidity (H-H)
5 - 85%
Operating temperature (T-T)
0 - 70 °C
Quantity per pack
10 pc(s)
Rx power (max)
-1 dBmW
Rx power (min)
-11.1 dBmW
SFP transceiver type
Fiber optic
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Sustainability compliance
Yes
Tx power (max)
-1 dBmW
Tx power (min)
-6.5 dBmW
Greutate
18 g
Adâncime
56.5 mm
Lățime
148 mm
Înălțime
118 mm
Culoare
Black, Stainless steel
Garanție comercială
60
Producător
D-LINK
