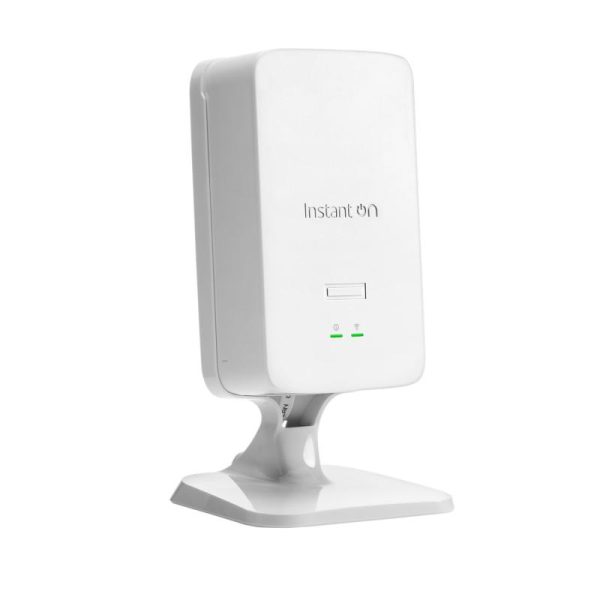

Access point HPE AP22D, Gigabit, PoE, Dual-band, WiFi 6 -

Access point & Range Ext.

Access point HPE AP22D, Gigabit, PoE, Dual-band, WiFi 6 -

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: S1U81A

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Access point HPE AP22D, Gigabit, PoE, Dual-band, WiFi 6 - Access Point TP-Link EAP620 HD-Outdoor, AX1800, Dual-Band, Gigabit Access point TP-Link EAP683 UR, Poe, Dual-band, WiFi 6 - Range Extender TP-Link RE220BE, Gigabit, Dual-band, Wi-Fi 7 Network Card MERCUSYS MA310E, Gigabit
Alte caracteristici
2.4 GHz — Yes Yes Yes —
5 GHz — Yes Yes Yes —
6 GHz — No No No —
Access Control List (ACL) — Yes Yes — —
Airtime Fairness (ATF) — Yes Yes — —
Antena — Interna Interna Interna N/A
Antenna direction type — Omni-directional Omni-directional — —
Antenna type — Internal Internal External —
Automatic channel scanning — Yes Yes — —
Automatic channel selection — Yes Yes — —
Band steering — Yes Yes — —
BeamForming — Yes Yes — —
Compatibil Mesh — N/A Da Da Nu
DC-in jack — Yes Yes — —
DC voltage range — 12 V 12 V — —
Depth — 160 mm 220 mm 46 mm 21.5 mm
Ethernet LAN (RJ-45) ports — 1 1 — —
Ethernet LAN data rates — 10,100,1000 Mbit/s 10,100,1000,2500 Mbit/s — —
Firmware upgradeable — Yes Yes — —
Fit AP mode features — Mesh networking — Mesh networking —
Frequency-Band — 2.4 - 5 GHz 2.4 - 6 GHz 5 GHz DualBand
Height — 33 mm 325 mm 15.8 mm 78.4 mm
LED indicators — Yes Yes — —
MAC address filtering — Yes Yes — —
Maximum data transfer rate — 1201 Mbit/s 6000 Mbit/s 2882 Mbit/s 2500 Mbit/s
MIMO — Yes Yes — —
MIMO type — Multi User MIMO Multi User MIMO — —
Mounting kit — Yes Yes — —
Networking standards — IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Numar porturi — 1-3 1-3 1-3 1-3
Number of users — 1020 user(s) 510 user(s) — —
Operating relative humidity (H-H) — 10 - 90% 10 - 90% — —
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C —
Package type — Box Box — —
Placement — Ceiling, Wall Ceiling, Wall — —
Power over Ethernet (PoE) — Yes Yes — —
Quality of Service (QoS) support — Yes Yes — —
Quantity per pack — 1 pc(s) 1 pc(s) 1 pc(s) —
Quick start guide — Yes Yes Yes —
Rate limiting — Yes Yes — —
Reset button — Yes Yes Yes —
Security algorithms — SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK HTTPS, SNMP, SNMPv2, SNMPv3, SSH HTTPS, WPA, WPA2, WPA2-PSK, WPA3, WPS —
Storage relative humidity (H-H) — 5 - 90% 5 - 90% 10 - 90% —
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C —
Syslog — Yes Yes — —
Tehnologie WI-FI — WiFi 6 - AX WiFi 6 - AX Wi-Fi 7 N/A
USB-Port — — — No Yes
Viteza Transport — Gigabit N/A Gigabit Gigabit
VLAN support — Yes Yes — —
Width — 160 mm 220 mm 97 mm 120.8 mm
WiFI standard — — — b/g/n b/g/n
Wireless-Speed — — — 72Mbps 300Mbps
Laptopuri - Construcție
Culoare — White White White —
Laptopuri - Generale
Garanție comercială 24 24 24 24 24
Producător HPE TP-LINK TP-LINK LINKSYS MERCUSYS

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Lifecycle

  • Obsolete Date 31-12-2099

Specifications

  • Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
  • Warranty Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.
  • Wi-Fi antenna Antennas: Dual semi-directional 2×2 MIMO Antenna Gain: 5.2 dBi in 2.4GHz and 5.4 dBi in 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
  • Ports 1x 2.5 GbE Base-T PoE Class 4/6 uplink 2x 1 GbE Base-T PoE Class 3 downlink 2x 1 GbE Base-T downlink DC power connector LED status indicators Reset/LED control button Kensington security slot
  • Input voltage PoE: 802.3bt (class 6) Full functionality or 802.3at (class 4) limited functionality DC power (48V) PoE In: 802.3at/802.3bt POE Out: 2x 15W PoE (802.3af) Note: Power sources are sold separately unless you purchase the bundle SKU
  • Radio coverage Dual-radio 802.11ax 2×2 5 GHz/2.4 GHz MIMO
  • Connectivity, standard Ultra-fast 802.11ax
  • Mounting Gang wall box-mount kit or Desk-mount kit
  • Power consumption 51W (PoE) or 50W (DC)

Quickspecs

Overview

The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi CERTIFIED 6™ access point that provides reliable wired and wireless connectivity over a 2.5 GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE (802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7 Gbps. Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set PoE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.

What’s new

  • Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
  • 2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
  • Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
  • Up to 1.7 Gbps aggregate wireless throughput.

Features

Four Downlink 1 Gigabit Ethernet Ports

Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.

Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.

802.11ax Wi-Fi CERTIFIED 6™
2.5 Gigabit Ethernet Uplink Port

HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.

Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.

Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.

HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.

Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.

Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).
