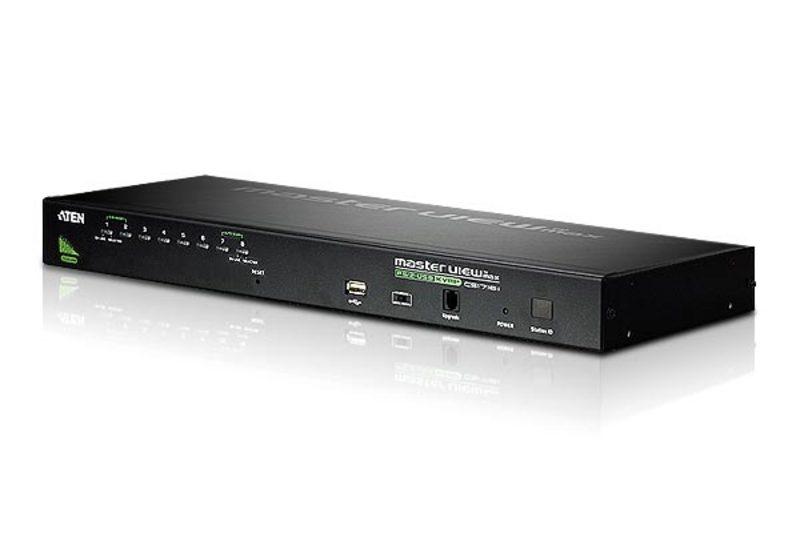

Switch KVM Aten Raft pentru montat echipamente 1U Neg, Număr
1.777,99 lei 2.755,99 lei
Switch KVM Aten Raft pentru montat echipamente 1U Neg, Număr
(0)
În stoc
Vândut de RITC.ro
Cod produs: CS1708A-AT-G
Livrare și beneficii
Compară cu produse similare
Switch KVM Aten Raft pentru montat echipamente 1U Neg, Număr
Switch KVM desktop ATEN CM1284. Tastatură de tip port: USB,
16.774,99 lei
ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de
28.969,99 lei
ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de
44.795,99 lei
KVM-LCD Aten KL1508AIN-AXA-XG. Diagonala afișajului: 48,3 cm (19"), Ecran: LCD.
10.537,99 lei 16.328,99 lei
Vezi comparația completă
| Caracteristică | Switch KVM Aten Raft pentru montat echipamente 1U Neg, Număr | Switch KVM desktop ATEN CM1284. Tastatură de tip port: USB, | ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de | ATEN VM6809H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de | KVM-LCD Aten KL1508AIN-AXA-XG. Diagonala afișajului: 48,3 cm (19"), Ecran: LCD. |
|---|---|---|---|---|---|
| Alte caracteristici | |||||
| 3D | — | — | Yes | Yes | — |
| AC input frequency | — | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz | — |
| Built-in display | No | No | No | Yes | — |
| Cables included | KVM | HDMI, USB | AC | AC | — |
| Compliance certificates | RoHS | RoHS | — | RoHS | RoHS |
| Console ports | USB A, VGA (D-Sub) | 3.5mm headphone, HDMI, RJ–45, USB A | — | — | — |
| Console USB ports quantity | 1 | 2 | — | — | — |
| Daisy chain | Yes | Yes | — | — | Yes |
| Data transfer rate | — | — | 6.75 Gbit/s | 10.2 Gbit/s | — |
| Depth | 159.9 mm | 164 mm | 432.4 mm | 432.4 mm | 701.2 mm |
| Ethernet LAN (RJ-45) ports | — | 2 | 1 | — | — |
| Extended display identification data (EDID) | — | — | Yes | Yes | — |
| Firmware upgradeable | Yes | Yes | Yes | — | — |
| Harmonized System (HS) code | 85176200 | 85176200 | — | 85299097 | — |
| HDCP | — | Yes | Yes | Yes | — |
| HDCP version | — | — | 1.4 | 2.2 | — |
| HDMI input ports quantity | — | — | 8 | 8 | — |
| HDMI output ports quantity | — | — | 9 | 8 | — |
| HD type | QXGA | 4K Ultra HD | — | — | — |
| Height | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Hot keys | Yes | Yes | — | — | Yes |
| Housing colour | — | — | Black | Black | — |
| Housing material | Metal | Metal | Metal | Metal | — |
| Input current | — | 1 A | 1 A | 1 A | 1 A |
| Input voltage | 5.3 V | 110 - 220 V | — | — | — |
| Interfata HDMI | Nu | Da | Da | Da | Nu |
| Keyboard port type | USB, PS/2 | USB | — | — | USB, PS/2 |
| KVM-Ports | 8 | 8 | 8 | 8 | 8 |
| KVM-Type | Analog | Analog | Analog | Analog | Analog |
| LED indicators | Yes | Yes | — | Yes | Yes |
| Manual | — | Yes | Yes | — | Yes |
| Master (outer) case gross weight | 12.2 kg | 13.8 kg | 7.04 kg | 8.64 kg | 19.2 kg |
| Master (outer) case height | 258 mm | 258 mm | 130 mm | 130 mm | 135 mm |
| Master (outer) case length | 565 mm | 555 mm | 575 mm | 575 mm | 833 mm |
| Master (outer) case net weight | 10.2 kg | 11.6 kg | 5.87 kg | 7.35 kg | 15.6 kg |
| Master (outer) case width | 375 mm | 420 mm | 506 mm | 559 mm | 668 mm |
| MAXIMUM-RESOLUTION | 2048 x 1536 pixels | 4096 x 2160 pixels | 1920 x 1080 pixels | 4096 x 2160 pixels | 1920 x 1200 pixels |
| Maximum pixel clock | — | — | 225 MHz | 340 MHz | — |
| Mouse port type | USB, PS/2 | USB | — | — | USB, PS/2 |
| Numar porturi HDMI | N/A | 5-10 | 5-10 | 5-10 | N/A |
| Numar porturi USB | 1-2 | 3-4 | N/A | N/A | 1-2 |
| Number of computers controlled | 256 | 4 | — | — | 8 |
| On Screen Display (OSD) | Yes | Yes | — | — | Yes |
| Operating relative humidity (H-H) | 0 - 80% | 0 - 80% | 0 - 80% | 0 - 80% | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C | 0 - 40 °C | 0 - 40 °C | 0 - 50 °C | 0 - 40 °C |
| Package depth | 540 mm | 540 mm | 575 mm | 575 mm | 833 mm |
| Package height | 233 mm | 233 mm | 130 mm | 130 mm | 135 mm |
| Package weight | 3.85 kg | 4.26 kg | 7.04 kg | 8.64 kg | 18.9 kg |
| Package width | 116 mm | 131 mm | 506 mm | 559 mm | 668 mm |
| Power consumption (max) | — | — | 58.1 W | 79.5 W | — |
| Power consumption (typical) | 5 W | 16 W | 56.6 W | — | 27.5 W |
| Power source | DC | AC | — | — | — |
| Products per master (outer) case | 3 pc(s) | 3 pc(s) | — | 1 pc(s) | 1 pc(s) |
| Product type | — | — | AV matrix switcher | Scaling matrix switcher | — |
| Push button | Yes | Yes | — | — | Yes |
| Rack capacity | 1U | 1U | 1U | 1U | 1U |
| Rack mounting | Yes | Yes | Yes | — | Yes |
| Rack mount kit | — | Yes | Yes | — | — |
| Rezolutie | 2048 x 1536 | 4096 x 2160 | 1920 x 1080 | 4096 x 2160 | 1920 x 1200 |
| RS-232 ports | — | — | 1 | 1 | — |
| Scan interval | 1,255 s | 5,10,15,30,60,90 s | — | — | — |
| Storage temperature (T-T) | -20 - 60 °C | -10 - 60 °C | -20 - 60 °C | -20 - 60 °C | -20 - 60 °C |
| USB connector type | USB Type-A | USB Type-A, USB Type-B | — | — | — |
| Video port type | VGA | HDMI | — | — | VGA |
| Width | 437.2 mm | 437.2 mm | 378.2 mm | 450.3 mm | 480 mm |
| Windows operating systems supported | Yes | — | — | — | Yes |
| Laptopuri - Construcție | |||||
| Culoare | Black | Black | — | — | Black |
| Greutate | 3.41 kg | 3.86 kg | 5.54 kg | 7.35 kg | 15.6 kg |
| Laptopuri - Generale | |||||
| Garanție comercială | 24 | 24 | 24 | 24 | 24 |
| Producător | ATEN | ATEN | ATEN | ATEN | ATEN |
Analiză inteligentă a produsului
Descriere oficială
Switch KVM Aten Raft pentru montat echipamente 1U Neg, Număr de calculatoare: 256, Tastatură de tip port: USB, PS/2 Mouse tip de port: USB, PS/2 Video Type portul: VGA, QXGA 2048 x 1536 Pixel, Material carcasă: Metal, negru
Specificații tehnice 58 caracteristici ⌄
- Built-in display
- No
- Cables included
- KVM
- Compliance certificates
- RoHS
- Console ports
- USB A, VGA (D-Sub)
- Console USB ports quantity
- 1
- Daisy chain
- Yes
- DC-in jack
- Yes
- DDC/DDC2 supported
- Yes
- DDC2B support
- Yes
- Depth
- 159.9 mm
- Firmware upgradeable
- Yes
- Harmonized System (HS) code
- 85176200
- HD type
- QXGA
- Height
- 44 mm
- Hot keys
- Yes
- Housing material
- Metal
- Input voltage
- 5.3 V
- Interfata HDMI
- Nu
- Keyboard port type
- USB, PS/2
- KVM-Ports
- 8
- KVM-Type
- Analog
- LED indicators
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Master (outer) case gross weight
- 12.2 kg
- Master (outer) case height
- 258 mm
- Master (outer) case length
- 565 mm
- Master (outer) case net weight
- 10.2 kg
- Master (outer) case width
- 375 mm
- MAXIMUM-RESOLUTION
- 2048 x 1536 pixels
- Mouse port type
- USB, PS/2
- Numar porturi HDMI
- N/A
- Numar porturi USB
- 1-2
- Number of computers controlled
- 256
- On Screen Display (OSD)
- Yes
- Operating relative humidity (H-H)
- 0 - 80%
- Operating temperature (T-T)
- 0 - 50 °C
- Package depth
- 540 mm
- Package height
- 233 mm
- Package weight
- 3.85 kg
- Package width
- 116 mm
- Power consumption (typical)
- 5 W
- Power source
- DC
- Products per master (outer) case
- 3 pc(s)
- Push button
- Yes
- Rack capacity
- 1U
- Rack mounting
- Yes
- Rezolutie
- 2048 x 1536
- Scan interval
- 1,255 s
- Storage temperature (T-T)
- -20 - 60 °C
- USB connector type
- USB Type-A
- Video port type
- VGA
- Width
- 437.2 mm
- Windows operating systems supported
- Yes
- Culoare
- Black
- Greutate
- 3.41 kg
- Garanție comercială
- 24
- Producător
- ATEN
