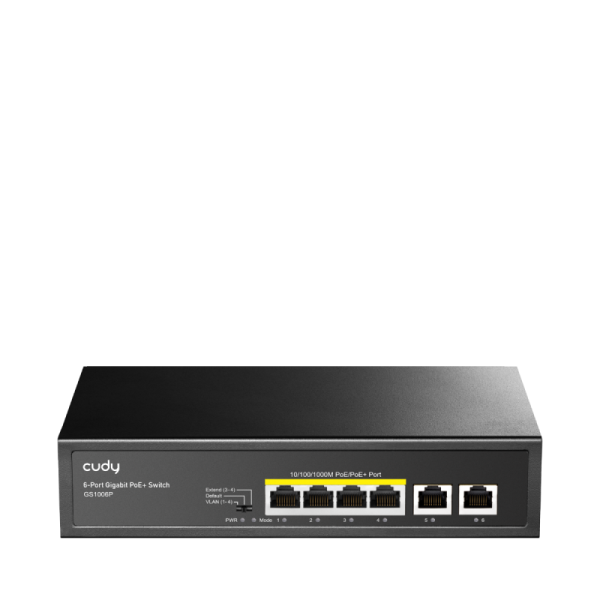

CUDY 6-Port 10/100/1000M PoE+ Switch, 4-Port 10/100/1000 BASE-T Gigabit PoE+

Switchuri

CUDY 6-Port 10/100/1000M PoE+ Switch, 4-Port 10/100/1000 BASE-T Gigabit PoE+

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: GS1006P

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică CUDY 6-Port 10/100/1000M PoE+ Switch, 4-Port 10/100/1000 BASE-T Gigabit PoE+ Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G
Alte caracteristici
10G support No No No No Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz —
Auto-negotiation — Yes Yes Yes —
Auto MDI/MDI-X — — Yes Yes —
Basic switching RJ-45 Ethernet ports type 6 8 Fast Ethernet (10/100) Fast Ethernet (10/100) No
Cables included AC — — AC AC
Cable types supported Cat3, Cat5, Cat5e Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e —
Cloud-managed — No — — Yes
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS —
Configuring Location Settings (CLI) — No — — Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX —
Depth 118 mm 8.2 mm 7.9 mm 180 mm 180 mm
Fanless — — Yes Yes —
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support — — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate 8.928 Mpps — — 2.38 Mpps 119.04 Mpps
Harmonized System (HS) code — — 85176990 85176990 —
Heat dissipation — — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h
Height 44 mm 27 mm 22.5 mm 44 mm —
Housing material Metal Metal — Metal —
Input current — 2.5 A 0.6 A — —
Jumbo frames support Yes — — — Yes
LAN port type Gigabit Gigabit FastEthernet FastEthernet 10Gigabit
LED indicators Link, Power Yes Yes Yes Yes
MAC address table 2048 entries 4096 entries 1000 entries 8000 entries 32000 entries
Management nu nu nu nu Da
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Operating relative humidity (H-H) — 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 45 °C
Package depth — — 139 mm 528 mm —
Package type — — Box Box Box
Package weight — — 240 g 2.28 kg —
Package width — — 100 mm 250 mm —
Packet buffer memory 1 MB — 2 MB 2 MB 16 MB
PoE Nu Da Nu Nu Nu
Port mirroring — No — — Yes
Porturi RJ 45 5-10 5-10 5-10 11-18 1-4
Porturi SFP N/A N/A N/A N/A 5-8
Power connector — DC-in jack DC-in jack DC-in jack DC-in jack
Power consumption (max) — — 2.2 W 2.23 W 15.46 W
Power over Ethernet (PoE) Yes Yes No No No
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power source AC AC DC AC AC
Power supply included Yes Yes No Yes Yes
Quality of Service (QoS) support — No — — Yes
Quick start guide Yes — Yes — Yes
Rack mounting Yes No No Yes Yes
Rack mount kit — — — Yes Yes
Stackable No No No No —
Storage relative humidity (H-H) — 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes —
Sustainability compliance — — Yes Yes —
Switching capacity 12 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s
Switch layer — L2 — — L2+/L3
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Managed
System event log — No — — Yes
Traffic classification — No — — Yes
Viteza transfer Gigabit Gigabit Fast Ethernet Fast Ethernet 10G+
VLAN support Yes — — — Yes
Web-based management — No — — Yes
Width 200 mm 192 mm 134.5 mm 440 mm —
Laptopuri - Construcție
Culoare Black Black White Black —
Laptopuri - Generale
Garanție comercială 24 60 36 36 60
Producător CUDY EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

CUDY 6-Port 10/100/1000M PoE+ Switch, 4-Port 10/100/1000 BASE-T Gigabit PoE+ ports, 2-Port 10/100/1000 BASE-T Gigabit Uplink ports, 802.3at/af, VLAN mode support for port #1 ~ #4, Extend mode support for port #3 ~ # 4, Fanless, ±4KV Surge Protection,Watchdog, 65W internal

Specificații tehnice 41 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
6
Cables included
AC
Cable types supported
Cat3, Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
118 mm
Forwarding rate
8.928 Mpps
Height
44 mm
Housing material
Metal
Jumbo frames support
Yes
LAN ports
8
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Link, Power
MAC address table
2048 entries
Management
nu
Montare in rack
Nu
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Packet buffer memory
1 MB
PoE
Nu
Porturi RJ 45
5-10
Porturi SFP
N/A
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
4
Power source
AC
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
Yes
Redundant PSU
No
Stackable
No
Switching capacity
12 Gbit/s
Switch type
Unmanaged
Viteza transfer
Gigabit
VLAN support
Yes
Width
200 mm
Culoare
Black
Garanție comercială
24
Producător
CUDY
