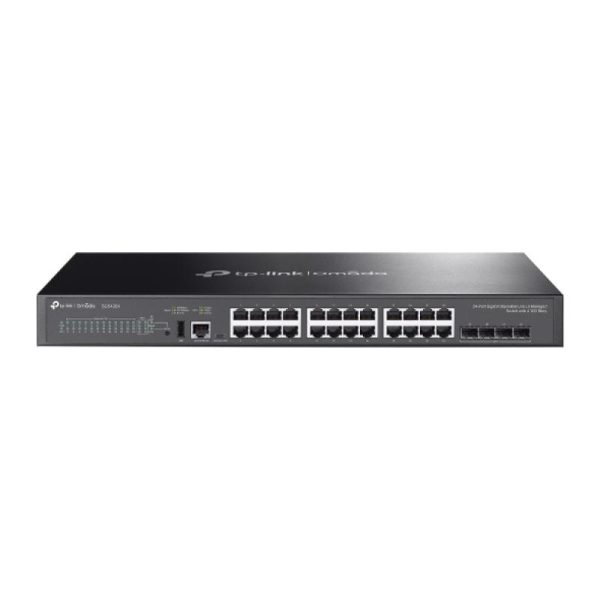

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4

Switchuri

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4

(0) În stoc
Vândut de RITC.ro Cod produs: SG5428X

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps
Alte caracteristici
10G support Yes No Yes No No
Access Control List (ACL) Yes — Yes — —
AC input frequency — 50 - 60 Hz — 50 Hz 50 - 60 Hz
AC input voltage — — 220 V 220 V —
ARP inspection Yes — Yes — —
Auto-negotiation — Yes — Yes Yes
Auto MDI/MDI-X — Yes — Yes Yes
Basic switching RJ-45 Ethernet ports type 24 Fast Ethernet (10/100) No Fast Ethernet (10/100) Fast Ethernet (10/100)
Broadcast storm control Yes — Yes — —
Cables included AC AC AC — —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — Cat3, Cat4, Cat5, Cat5e —
Cloud-managed Yes — Yes — —
Compliance certificates CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Console port RJ-45 — RJ-45/micro-USB — —
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage — — — 53.5 V 5 V
Depth 180 mm 180 mm 180 mm 98 mm 7.9 mm
DHCP features DHCP relay, DHCP server — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping — —
Fanless Yes Yes — Yes Yes
Fast Ethernet (copper) ports quantity — 16 — — 8
Flow control support — Yes Yes Yes Yes
Forwarding rate 95.23 Mpps 2.38 Mpps 119.04 Mpps 0.744 Mpps —
Full duplex — — — Yes Yes
Half duplex — — — Yes Yes
Harmonized System (HS) code — 85176990 — 85176990 85176990
Heat dissipation 66.87 BTU/h 7.03 BTU/h 52.75 BTU/h 5.73 BTU/h 6.99 BTU/h
Height 44 mm 44 mm — 25 mm 22.5 mm
IGMP snooping Yes — Yes — —
Input current — — — 1.31 A 0.6 A
IP-MAC-Port binding Yes — Yes — —
Jumbo frames 9000 — 9000 2000 —
Jumbo frames support Yes — Yes Yes —
LAN port type — FastEthernet 10Gigabit — FastEthernet
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes — —
MAC address filtering Yes — Yes — —
MAC address table 16000 entries 8000 entries 32000 entries 2000 entries 1000 entries
Management — nu Da nu nu
Montare in rack Da Nu Nu Nu Nu
Multicast support Yes — Yes — —
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3x IEEE 802.3u, IEEE 802.3x
Number of VLANs 4000 — 4000 — —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) -5 - 45 °C 0 - 40 °C 0 - 45 °C 0 - 40 °C 0 - 40 °C
Package depth — 528 mm — 196 mm 139 mm
Package height — — — 121 mm 85 mm
Package type — Box Box Box Box
Package weight — 2.28 kg — 760 g 240 g
Package width — 250 mm — 131 mm 100 mm
Packet buffer memory 12 MB 2 MB 16 MB — 2 MB
PoE — Nu Nu Da Nu
Port mirroring Yes — Yes — —
Porturi RJ 45 24-28 11-18 1-4 5-10 5-10
Porturi SFP 3-4 N/A 5-8 N/A N/A
Power connector — DC-in jack DC-in jack — DC-in jack
Power consumption (max) 19.6 W 2.23 W 15.46 W 63.51 W 2.2 W
Power over Ethernet (PoE) No No No Yes No
Power source AC AC AC DC/PoE DC
Power supply included Yes Yes Yes Yes No
Quality of Service (QoS) support Yes — Yes — —
Quick start guide — — Yes — Yes
Rack mounting Yes Yes Yes No No
Rack mount kit Yes Yes Yes — —
Security algorithms SNMP, SNMPv2, SNMPv3 — HTTPS, SSH, SSH-2, SSL/TLS — —
SFP module slots quantity 4 — 8 — —
SSH/SSL support Yes — Yes — —
Stackable Yes No — No No
Static port security Yes — Yes — —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 95%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes — Yes Yes
Sustainability compliance — Yes — Yes Yes
Switching capacity 128 Gbit/s 32 Gbit/s 160 Gbit/s 1 Gbit/s 16 Gbit/s
Switch layer L3 — L2+/L3 — —
Switch type Managed Unmanaged Managed Unmanaged Unmanaged
Virtual LAN features MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Voice VLAN — —
Viteza transfer Gigabit Fast Ethernet 10G+ Fast Ethernet Fast Ethernet
VLAN support Yes — Yes — —
Web-based management Yes — Yes — —
Width 440 mm 440 mm — 99.8 mm 134.5 mm
Laptopuri - Construcție
Culoare — Black — Black White
Laptopuri - Generale
Garanție comercială 24 36 60 60 36
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 10G Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/USB Type C Console Port, 1× USB2.0 Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Centralized Managed by Omada SDN Controller, Stacking, RIP, OSPF, Static Routing, ERPS, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Specificații tehnice 76 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Bandwidth
64 Gbit/s
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Built-in processor
Yes
Cables included
AC
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Console port
RJ-45
Depth
180 mm
DHCP features
DHCP relay, DHCP server
Fanless
Yes
Firmware upgradeable
Yes
Flash memory
512 MB
Forwarding rate
95.23 Mpps
Gigabit Ethernet (copper) ports quantity
24
Heat dissipation
66.87 BTU/h
Height
44 mm
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LED indicators
Yes
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Management level
4
Mean time between failures (MTBF)
519.543 h
Memory type
DRAM
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 45 °C
Packet buffer memory
12 MB
Password protection
Yes
Physical stacking (units)
4
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
3-4
Power consumption (max)
19.6 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Rack mount kit
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
SFP module slots quantity
4
SSH/SSL support
Yes
Stackable
Yes
Static port security
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switching capacity
128 Gbit/s
Switch layer
L3
Switch type
Managed
Telnet
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Garanție comercială
24
Producător
TP-LINK
Capacitate memorie RAM
2000 MB
Număr porturi USB-C
1
Număr porturi USB 2.0
1
Frecvență procesor
1200 MHz
Producător procesor
ARM
