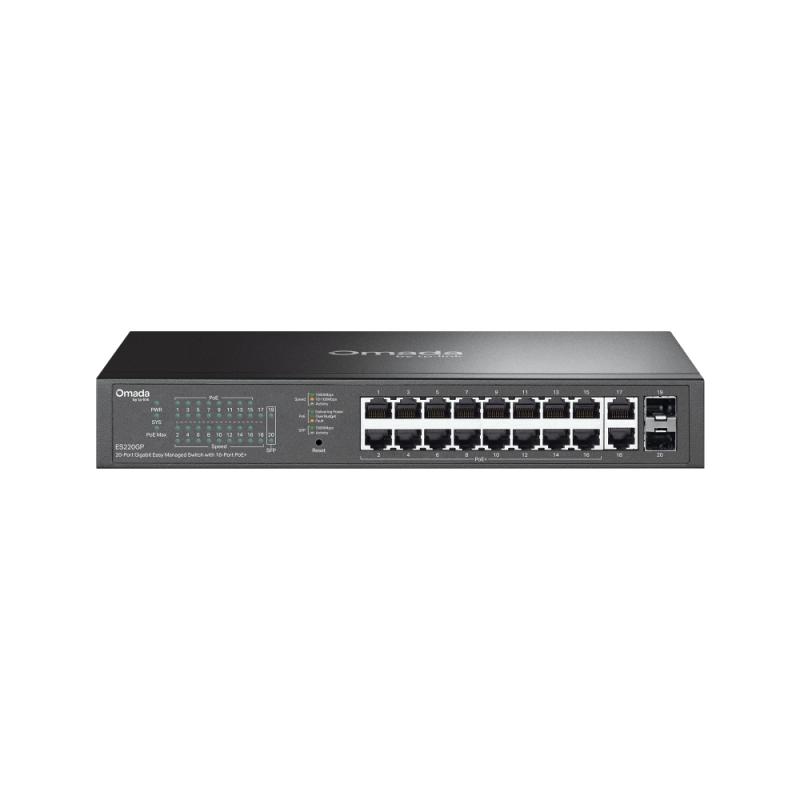

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45

Switchuri

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45

(0) În stoc
Vândut de RITC.ro Cod produs: ES220GP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4
Alte caracteristici
10G support No No No Yes Yes
Access Control List (ACL) — — — Yes Yes
AC input frequency — 50 - 60 Hz 50 - 60 Hz — —
ARP inspection — — — Yes Yes
Auto-negotiation Yes Yes Yes — —
Auto MDI/MDI-X Yes Yes Yes — —
Basic switching RJ-45 Ethernet ports type 18 Fast Ethernet (10/100) Fast Ethernet (10/100) No 24
Broadcast storm control Yes — — Yes Yes
Cables included AC — AC AC AC
Cloud-managed Yes — — Yes Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Console port — — — RJ-45/micro-USB RJ-45
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX — —
Depth 180 mm 7.9 mm 180 mm 180 mm 180 mm
DHCP features DHCP client — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server
Ethernet LAN data rates 10,100,1000 Mbit/s — 10,100 Mbit/s — —
Fanless Yes Yes Yes — Yes
Fast Ethernet (copper) ports quantity — 8 16 — —
Flow control support Yes Yes Yes Yes —
Forwarding rate 29.76 Mpps — 2.38 Mpps 119.04 Mpps 95.23 Mpps
Gigabit Ethernet (copper) ports quantity 18 — — — 24
Harmonized System (HS) code — 85176990 85176990 — —
Heat dissipation — 6.99 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h
Height 44 mm 22.5 mm 44 mm — 44 mm
Housing material Metal — Metal — —
IGMP snooping Yes — — Yes Yes
Input current 2.5 A 0.6 A — — —
IP-MAC-Port binding — — — Yes Yes
Jumbo frames — — — 9000 9000
Jumbo frames support Yes — — Yes Yes
LAN port type FastEthernet FastEthernet FastEthernet 10Gigabit —
LED indicators — Yes Yes Yes Yes
Link aggregation Yes — — Yes Yes
MAC address filtering — — — Yes Yes
MAC address table 8000 entries 1000 entries 8000 entries 32000 entries 16000 entries
Management Unmanaged nu nu Da —
Mean time between failures (MTBF) 320156 h — — — 519.543 h
Montare in rack Da Nu Nu Nu Da
Multicast support Yes — — Yes Yes
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of queues 8 — — 8 —
Number of VLANs 32 — — 4000 4000
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C
Package depth — 139 mm 528 mm — —
Package type — Box Box Box —
Package weight — 240 g 2.28 kg — —
Package width — 100 mm 250 mm — —
Packet buffer memory 4 MB 2 MB 2 MB 16 MB 12 MB
PoE No Nu Nu Nu —
Port mirroring Yes — — Yes Yes
Porturi RJ 45 11-18 5-10 11-18 1-4 24-28
Porturi SFP 1-2 N/A N/A 5-8 3-4
Power connector AC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 182.43 W 2.2 W 2.23 W 15.46 W 19.6 W
Power over Ethernet (PoE) Yes No No No No
Power source AC DC AC AC AC
Power supply included — No Yes Yes Yes
Quality of Service (QoS) support Yes — — Yes Yes
Queue scheduling algorithms Weighted Round Robin (WRR) — — SP, WRR+SP, Weighted Round Robin (WRR) —
Quick start guide — Yes — Yes —
Rack mounting Yes No Yes Yes Yes
Rack mount kit — — Yes Yes Yes
Security algorithms — — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3
SFP module slots quantity 2 — — 8 4
SSH/SSL support — — — Yes Yes
Stackable No No No — Yes
Static port security — — — Yes Yes
Storage relative humidity (H-H) 5 - 90% 5 - 95% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes Yes — Yes
Sustainability compliance — Yes Yes — —
Switching capacity 40 Gbit/s 16 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s
Switch layer — — — L2+/L3 L3
Switch type Managed Unmanaged Unmanaged Managed Managed
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer Gigabit Fast Ethernet Fast Ethernet 10G+ Gigabit
VLAN support Yes — — Yes Yes
Web-based management Yes — — Yes Yes
Width 294 mm 134.5 mm 440 mm — 440 mm
Laptopuri - Construcție
Culoare Black White Black — —
Laptopuri - Generale
Garanție comercială 36 36 36 60 24
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps

Specificații tehnice 67 caracteristici
10G support
No
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
18
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Depth
180 mm
DHCP features
DHCP client
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Flow control support
Yes
Forwarding rate
29.76 Mpps
Gigabit Ethernet (copper) ports quantity
18
Height
44 mm
Housing material
Metal
IGMP snooping
Yes
Input current
2.5 A
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
Link aggregation
Yes
MAC address table
8000 entries
Management
Unmanaged
Mean time between failures (MTBF)
320156 h
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Noise level
20.1 dB
Number of queues
8
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Packet buffer memory
4 MB
PoE
No
Port mirroring
Yes
Porturi RJ 45
11-18
Porturi SFP
1-2
Power connector
AC-in jack
Power consumption (max)
182.43 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Rackable
No
Rack mounting
Yes
Redundant PSU
No
SFP module slots quantity
2
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
40 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
150 W
User guide
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
294 mm
Culoare
Black
Garanție comercială
36
Producător
TP-LINK
