Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE

Switchuri

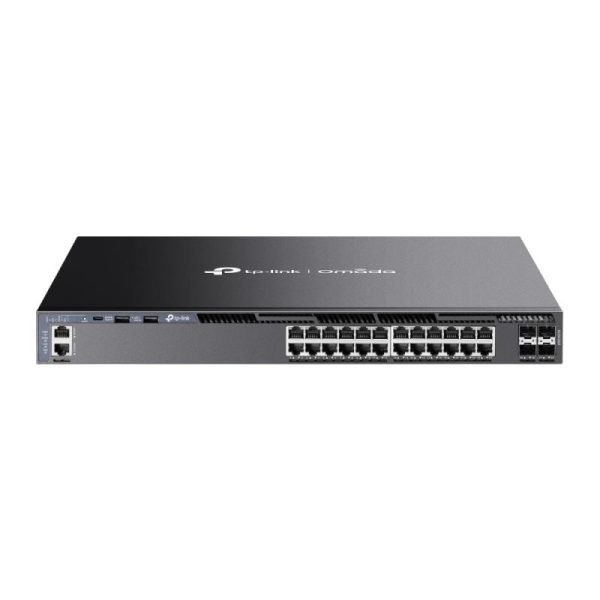

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TL-SG6428X

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 Hz
AC input voltage — — 220 V — 220 V
ARP inspection Yes — Yes Yes —
Authentication Auto VLAN, MAC-based authentication, Port-based authentication — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication — —
Authentication type RADIUS — AAA, TACACS+ — —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 24 Fast Ethernet (10/100) No 24 Fast Ethernet (10/100)
Broadcast storm control Yes — Yes Yes —
Cables included AC, LAN (RJ-45) AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat3, Cat4, Cat5, Cat5e
Cloud-managed Yes — Yes Yes —
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — Yes — —
Console port RJ-45/USB Type-C — RJ-45/micro-USB RJ-45 —
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX — — 10BASE-T, 100BASE-TX
Depth 380 mm 180 mm 180 mm 180 mm 98 mm
DHCP features DHCP relay, DHCP snooping, DHCPv6 snooping — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server —
Ethernet LAN data rates 10,100,1000 Mbit/s 10,100 Mbit/s — — —
Fanless — Yes — Yes Yes
Flow control support Yes Yes Yes — Yes
Form factor 1U 1U — — —
Forwarding rate 95.2 Mpps 2.38 Mpps 119.04 Mpps 95.23 Mpps 0.744 Mpps
Harmonized System (HS) code — 85176990 — — 85176990
Heat dissipation 96.91 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h 5.73 BTU/h
Height — 44 mm — 44 mm 25 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding — — Yes Yes —
IP routing Yes — Yes — —
Jumbo frames 9000 — 9000 9000 2000
Jumbo frames support Yes — Yes Yes Yes
LAN port type Gigabit FastEthernet 10Gigabit — —
LED indicators Yes Yes Yes Yes Yes
Link aggregation — — Yes Yes —
Loop protection Yes — Yes — —
MAC address filtering — — Yes Yes —
MAC address table 32000 entries 8000 entries 32000 entries 16000 entries 2000 entries
Management Managed nu Da — nu
Montare in rack Da Nu Nu Da Nu
Multicast support Yes — Yes Yes —
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt IEEE 802.3af, IEEE 802.3x
Number of VLANs 4000 — 4000 4000 —
Operating relative humidity (H-H) — 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 45 °C -5 - 45 °C 0 - 40 °C
Package depth — 528 mm — — 196 mm
Package type — Box Box — Box
Package weight — 2.28 kg — — 760 g
Package width — 250 mm — — 131 mm
Packet buffer memory 3 MB 2 MB 16 MB 12 MB —
PoE No Nu Nu — Da
Port mirroring Yes — Yes Yes —
Porturi RJ 45 24-28 11-18 1-4 24-28 5-10
Porturi SFP 4× 10G SFP+ Slots N/A 5-8 3-4 N/A
Power connector — DC-in jack DC-in jack — —
Power consumption (max) 28.4 W 2.23 W 15.46 W 19.6 W 63.51 W
Power over Ethernet (PoE) No No No No Yes
Power source AC AC AC AC DC/PoE
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes — Yes Yes —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes Yes Yes —
Rate limiting Yes — Yes — —
Security algorithms — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3 —
SFP module slots quantity 4 — 8 4 —
Spanning tree protocol Yes — Yes — —
SSH/SSL support Yes — Yes Yes —
Stackable Yes No — Yes No
Static port security — — Yes Yes —
Static route Yes — Yes — —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) — -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — Yes — Yes Yes
Sustainability compliance — Yes — — Yes
Switching capacity 128 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s 1 Gbit/s
Switch layer L3 — L2+/L3 L3 —
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes — —
Virtual LAN features MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN —
Viteza transfer Gigabit Fast Ethernet 10G+ Gigabit Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width — 440 mm — 440 mm 99.8 mm
Laptopuri - Construcție
Culoare — Black — — Black
Laptopuri - Generale
Garanție comercială 24 36 60 24 60
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK
Laptopuri - Porturi
Număr porturi USB 2.0 2 — — 1 —

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies

Specificații tehnice 66 caracteristici
10G support
No
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type
RADIUS
Basic switching RJ-45 Ethernet ports type
24
Broadcast storm control
Yes
Cables included
AC, LAN (RJ-45)
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/USB Type-C
Depth
380 mm
DHCP features
DHCP relay, DHCP snooping, DHCPv6 snooping
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Form factor
1U
Forwarding rate
95.2 Mpps
Heat dissipation
96.91 BTU/h
IGMP entries
2048
IGMP snooping
Yes
IP routing
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
24
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Yes
Loop protection
Yes
MAC address table
32000 entries
Management
Managed
Montare in rack
Da
Multicast support
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Number of fans
4 fan(s)
Number of VLANs
4000
Packet buffer memory
3 MB
PoE
No
Port mirroring
Yes
Porturi RJ 45
24-28
Porturi SFP
4× 10G SFP+ Slots
Power consumption (max)
28.4 W
Power over Ethernet (PoE)
No
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Rackable
Yes
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Switching capacity
128 Gbit/s
Switch layer
L3
Switch type
Managed
System event log
Yes
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Garanție comercială
24
Producător
TP-LINK
Număr porturi USB 2.0
2
