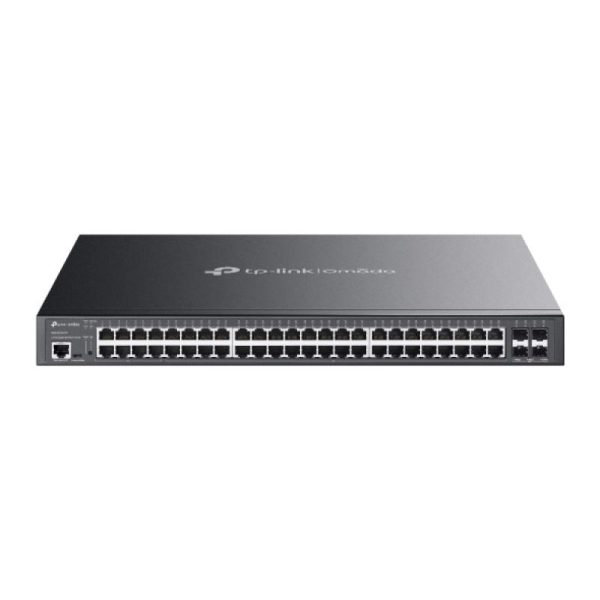

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

Switchuri

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: SG3452XMPP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support Yes No Yes Yes No
Access Control List (ACL) Yes — Yes Yes —
AC input frequency — 50 - 60 Hz — — 50 Hz
AC input voltage — — 220 V — 220 V
ARP inspection Yes — Yes Yes —
Authentication Auto VLAN, Guest VLAN — Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication — —
Auto-negotiation — Yes — — Yes
Auto MDI/MDI-X — Yes — — Yes
Basic switching RJ-45 Ethernet ports type 48 Fast Ethernet (10/100) No 24 Fast Ethernet (10/100)
BPDU filtering/protection Yes — Yes — —
Broadcast storm control Yes — Yes Yes —
Cables included AC AC AC AC —
Cable types supported — Cat3, Cat4, Cat5, Cat5e — — Cat3, Cat4, Cat5, Cat5e
Cloud-managed Yes — Yes Yes —
Compliance certificates — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) Yes — Yes — —
Console port RJ-45/micro-USB — RJ-45/micro-USB RJ-45 —
Copper ethernet cabling technology — 10BASE-T, 100BASE-TX — — 10BASE-T, 100BASE-TX
Depth 330 mm 180 mm 180 mm 180 mm 98 mm
DHCP features DHCP client, DHCP relay, DHCP server — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping DHCP relay, DHCP server —
Fanless — Yes — Yes Yes
Flow control support Yes Yes Yes — Yes
Form factor 1U 1U — — —
Forwarding rate 130.9 Mpps 2.38 Mpps 119.04 Mpps 95.23 Mpps 0.744 Mpps
Harmonized System (HS) code — 85176990 — — 85176990
Head-of-line (HOL) blocking Yes — Yes — —
Heat dissipation 2169.2 BTU/h 7.03 BTU/h 52.75 BTU/h 66.87 BTU/h 5.73 BTU/h
Height 44 mm 44 mm — 44 mm 25 mm
IGMP snooping Yes — Yes Yes —
IP-MAC-Port binding Yes — Yes Yes —
Jumbo frames 9000 — 9000 9000 2000
Jumbo frames support Yes — Yes Yes Yes
LAN port type Gigabit FastEthernet 10Gigabit — —
LED indicators Yes Yes Yes Yes Yes
Link aggregation Yes — Yes Yes —
MAC address filtering Yes — Yes Yes —
MAC address table 16000 entries 8000 entries 32000 entries 16000 entries 2000 entries
Management Managed nu Da — nu
Montare in rack Da Nu Nu Da Nu
Multicast support Yes — Yes Yes —
Networking standards — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt IEEE 802.3af, IEEE 802.3x
Number of VLANs — — 4000 4000 —
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 45 °C -5 - 45 °C 0 - 40 °C
Package depth — 528 mm — — 196 mm
Package type — Box Box — Box
Package weight — 2.28 kg — — 760 g
Package width — 250 mm — — 131 mm
Packet buffer memory 12 MB 2 MB 16 MB 12 MB —
PoE Yes Nu Nu — Da
Port mirroring Yes — Yes Yes —
Porturi RJ 45 28+ 11-18 1-4 24-28 5-10
Porturi SFP 3-4 N/A 5-8 3-4 N/A
Power connector AC-in jack DC-in jack DC-in jack — —
Power consumption (max) 635.7 W 2.23 W 15.46 W 19.6 W 63.51 W
Power over Ethernet (PoE) Yes No No No Yes
Power over Ethernet plus (PoE+) ports quantity 40 — — — 4
Power source AC AC AC AC DC/PoE
Power supply included Yes Yes Yes Yes Yes
Quality of Service (QoS) support Yes — Yes Yes —
Quick start guide Yes — Yes — —
Rack mounting Yes Yes Yes Yes No
Rack mount kit — Yes Yes Yes —
Rate limiting Yes — Yes — —
Security algorithms — — HTTPS, SSH, SSH-2, SSL/TLS SNMP, SNMPv2, SNMPv3 —
SFP module slots quantity 4 — 8 4 —
Spanning tree protocol Yes — Yes — —
SSH/SSL support Yes — Yes Yes —
Stackable No No — Yes No
Static port security Yes — Yes Yes —
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes — Yes Yes
Sustainability compliance — Yes — — Yes
Switching capacity 176 Gbit/s 32 Gbit/s 160 Gbit/s 128 Gbit/s 1 Gbit/s
Switch layer L2 — L2+/L3 L3 —
Switch type Managed Unmanaged Managed Managed Unmanaged
System event log Yes — Yes — —
Total Power over Ethernet (PoE) budget 750 W — — — 58 W
Virtual LAN features — — Private VLAN, Protocol-based VLAN, Voice VLAN MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN —
Viteza transfer Gigabit Fast Ethernet 10G+ Gigabit Fast Ethernet
VLAN support Yes — Yes Yes —
Web-based management Yes — Yes Yes —
Width 440 mm 440 mm — 440 mm 99.8 mm
Laptopuri - Construcție
Culoare Black Black — — Black
Laptopuri - Generale
Garanție comercială 60 36 60 24 60
Producător TP-LINK TP-LINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40- Port PoE+ & 8-Port PoE++ PORT: 40× Gigabit PoE+ Ports, 8×Gigabit PoE++ Ports (max 90W/port), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 750 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Specificații tehnice 76 caracteristici
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Auto VLAN, Guest VLAN
Basic switching RJ-45 Ethernet ports type
48
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Cables included
AC
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Console port
RJ-45/micro-USB
Depth
330 mm
DHCP features
DHCP client, DHCP relay, DHCP server
Flow control support
Yes
Form factor
1U
Forwarding rate
130.9 Mpps
Head-of-line (HOL) blocking
Yes
Heat dissipation
2169.2 BTU/h
Height
44 mm
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Jumbo frames
9000
Jumbo frames support
Yes
LAN ports
24
LAN port type
Gigabit
Layer
Layer-2
LED indicators
Yes
Link aggregation
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Management
Managed
Montare in rack
Da
Multicast support
Yes
Number of fans
3 fan(s)
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
12 MB
PoE
Yes
Port mirroring
Yes
Porturi RJ 45
28+
Porturi SFP
3-4
Power connector
AC-in jack
Power consumption (max)
635.7 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet plus (PoE+) ports quantity
40
Power source
AC
Power supply included
Yes
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rackable
Yes
Rack mounting
Yes
Rate limiting
Yes
Redundant PSU
Yes
Reset button
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
No
Static port security
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
176 Gbit/s
Switch layer
L2
Switch type
Managed
System event log
Yes
Total Power over Ethernet (PoE) budget
750 W
Viteza transfer
Gigabit
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Culoare
Black
Garanție comercială
60
Producător
TP-LINK
