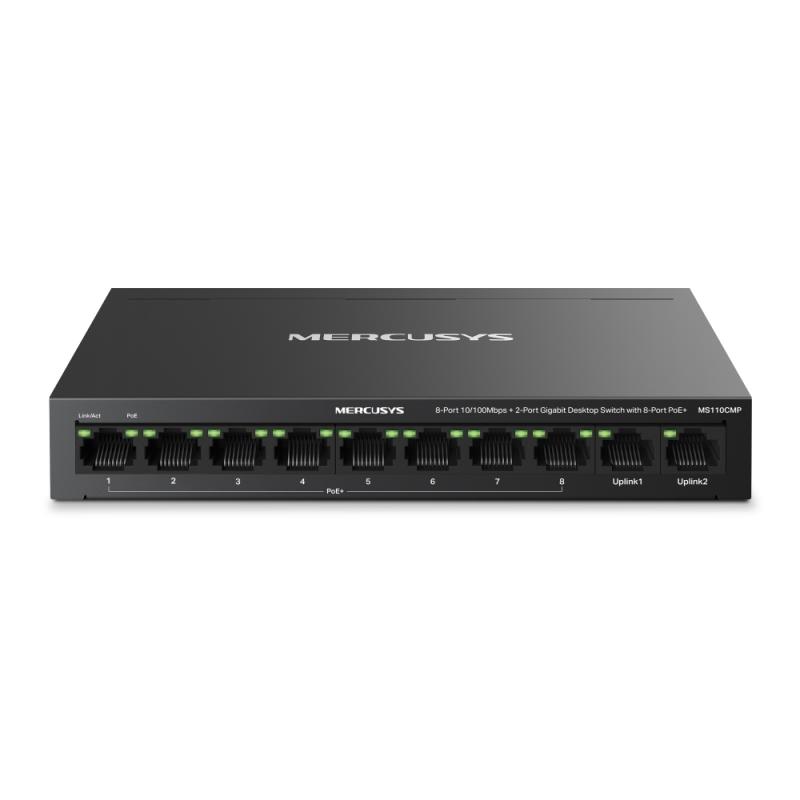

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop

Switchuri

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop

(0) În stoc
Vândut de RITC.ro Cod produs: MS110CMP

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency 50 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 Hz
AC input voltage 220 V — — — 220 V
Auto-negotiation Yes Yes Yes Yes Yes
Auto MDI/MDI-X Yes — Yes Yes Yes
Basic switching RJ-45 Ethernet ports type 10 8 Fast Ethernet (10/100) Fast Ethernet (10/100) Fast Ethernet (10/100)
Cables included AC — — AC —
Cable types supported — Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e
Compliance certificates — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 54 V — 5 V — 53.5 V
Depth 98 mm 8.2 mm 7.9 mm 180 mm 98 mm
Ethernet LAN data rates 10,100 Mbit/s — — 10,100 Mbit/s —
Fanless — — Yes Yes Yes
Fast Ethernet (copper) ports quantity — — 8 16 —
Flow control support Yes — Yes Yes Yes
Form factor — 1U — 1U —
Forwarding rate — — — 2.38 Mpps 0.744 Mpps
Full duplex Yes — Yes — Yes
Half duplex Yes — Yes — Yes
Harmonized System (HS) code — — 85176990 85176990 85176990
Heat dissipation 444.97 BTU/h — 6.99 BTU/h 7.03 BTU/h 5.73 BTU/h
Height 27 mm 27 mm 22.5 mm 44 mm 25 mm
Housing material Metal Metal — Metal —
Input current 2.2 A 2.5 A 0.6 A — 1.31 A
Jumbo frames 2 — — — 2000
Jumbo frames support Yes — — — Yes
LAN port type FastEthernet Gigabit FastEthernet FastEthernet —
LED indicators — Yes Yes Yes Yes
MAC address table 2000 entries 4096 entries 1000 entries 8000 entries 2000 entries
Management Unmanaged nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Operating relative humidity (H-H) 5 - 90% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — — 139 mm 528 mm 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight — — 240 g 2.28 kg 760 g
Package width — — 100 mm 250 mm 131 mm
Packet buffer memory — — 2 MB 2 MB —
PoE Yes Da Nu Nu Da
Porturi RJ 45 8-Port 5-10 5-10 11-18 5-10
Porturi SFP N/A N/A N/A N/A N/A
Power connector — DC-in jack DC-in jack DC-in jack —
Power consumption (max) 130.49 W — 2.2 W 2.23 W 63.51 W
Power over Ethernet (PoE) Yes Yes No No Yes
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power over Ethernet plus (PoE+) ports quantity 8 — — — 4
Power source DC/PoE AC DC AC DC/PoE
Power supply included Yes Yes No Yes Yes
Quick start guide Yes — Yes — —
Rack mounting No No No Yes No
Stackable No No No No No
Storage relative humidity (H-H) 10 - 95% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes Yes Yes
Sustainability compliance — — Yes Yes Yes
Switching capacity 5.6 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s 1 Gbit/s
Switch type — Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget 115 W 60 W — — 58 W
Viteza transfer Gigabit Gigabit Fast Ethernet Fast Ethernet Fast Ethernet
Width 171 mm 192 mm 134.5 mm 440 mm 99.8 mm
Laptopuri - Construcție
Culoare Black Black White Black Black
Laptopuri - Generale
Garanție comercială 24 60 36 36 60
Producător MERCUSYS EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch desktop Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, IEEE 802.3x Flow Control, 5.6 Gbps, dimensiuni 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Specificații tehnice 54 caracteristici
10G support
No
AC input frequency
50 Hz
AC input voltage
220 V
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
10
Cables included
AC
DC input voltage
54 V
Depth
98 mm
Ethernet LAN data rates
10,100 Mbit/s
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Heat dissipation
444.97 BTU/h
Height
27 mm
Housing material
Metal
Input current
2.2 A
Jumbo frames
2
Jumbo frames support
Yes
LAN ports
8
LAN port type
FastEthernet
Layer
Unmanaged
MAC address table
2000 entries
Management
Unmanaged
Montare in rack
Nu
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H)
5 - 90%
PoE
Yes
Porturi RJ 45
8-Port
Porturi SFP
N/A
Power consumption (max)
130.49 W
Power consumption (typical)
3.79 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Power source
DC/PoE
Power supply included
Yes
Quick start guide
Yes
Rackable
No
Rack mounting
No
Redundant PSU
No
Stackable
No
Storage relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-40 - 70 °C
Switching capacity
5.6 Gbit/s
Total Power over Ethernet (PoE) budget
115 W
Transmission distance (max)
0.25 km
Viteza transfer
Gigabit
Wall mountable
Yes
Width
171 mm
Culoare
Black
Garanție comercială
24
Producător
MERCUSYS
