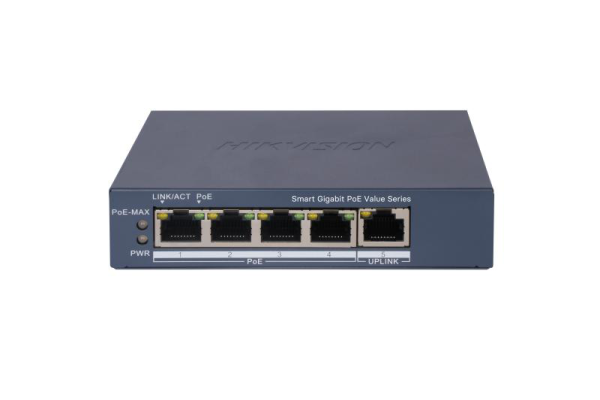

Switch PoE Hikvision DS-3E1505P-EI/M, 4 × Gigabit PoE port,1 ×

Switchuri

Switch PoE Hikvision DS-3E1505P-EI/M, 4 × Gigabit PoE port,1 ×

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: DS-3E1505P-EI/M

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch PoE Hikvision DS-3E1505P-EI/M, 4 × Gigabit PoE port,1 × Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps "JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch PORT: 8× 10G Switch TP-LINK TL-SF1005P, 5 Port, 10/100 Mbps
Alte caracteristici
10G support No No No Yes No
AC input frequency — 50 - 60 Hz 50 - 60 Hz — 50 Hz
AC input voltage — — — 220 V 220 V
Auto-negotiation — Yes Yes — Yes
Auto MDI/MDI-X — — Yes — Yes
Basic switching RJ-45 Ethernet ports type 5 8 Fast Ethernet (10/100) No Fast Ethernet (10/100)
Cable types supported — Cat5, Cat5e, Cat6 — — Cat3, Cat4, Cat5, Cat5e
Cloud-managed — No — Yes —
Compliance certificates CB, Low Voltage Directive (LVD), REACH, RoHS — CE, Federal Communications Commission (FCC), RoHS — CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI) — No — Yes —
Copper ethernet cabling technology — — 10BASE-T, 100BASE-TX — 10BASE-T, 100BASE-TX
DC input voltage 54 V — 5 V — 53.5 V
Depth 831 mm 8.2 mm 7.9 mm 180 mm 98 mm
DHCP features DHCP client — — DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping —
Fanless — — Yes — Yes
Flow control support — — Yes Yes Yes
Forwarding rate 7.44 Mpps — — 119.04 Mpps 0.744 Mpps
Full duplex — — Yes — Yes
Half duplex — — Yes — Yes
Harmonized System (HS) code — — 85176990 — 85176990
Heat dissipation — — 6.99 BTU/h 52.75 BTU/h 5.73 BTU/h
Height 27.6 mm 27 mm 22.5 mm — 25 mm
Housing material Metal Metal — — —
Input current 0.92 A 2.5 A 0.6 A — 1.31 A
Jumbo frames — — — 9000 2000
Jumbo frames support — — — Yes Yes
LAN port type — Gigabit FastEthernet 10Gigabit —
LED indicators — Yes Yes Yes Yes
Link aggregation Yes — — Yes —
Loop protection Yes — — Yes —
MAC address table 2000 entries 4096 entries 1000 entries 32000 entries 2000 entries
Management Da nu nu Da nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.1af, IEEE 802.3at IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x IEEE 802.3af, IEEE 802.3x
Number of VLANs 32 — — 4000 —
Operating relative humidity (H-H) 5 - 95% 10 - 80% 10 - 90% 10 - 90% 10 - 90%
Operating temperature (T-T) — 0 - 40 °C 0 - 40 °C 0 - 45 °C 0 - 40 °C
Package depth — — 139 mm — 196 mm
Package height — — 85 mm — 121 mm
Package type — — Box Box Box
Package weight 750 g — 240 g — 760 g
Package width — — 100 mm — 131 mm
Packet buffer memory — — 2 MB 16 MB —
PoE Da Da Nu Nu Da
Port mirroring — No — Yes —
Porturi RJ 45 1-4 5-10 5-10 1-4 5-10
Porturi SFP N/A N/A N/A 5-8 N/A
Power connector DC-in jack DC-in jack DC-in jack DC-in jack —
Power consumption (max) 50 W — 2.2 W 15.46 W 63.51 W
Power over Ethernet (PoE) Yes Yes No No Yes
Power over Ethernet (PoE) ports quantity 4 — — — 4
Power over Ethernet (PoE) power per port 30 W 30 W — — —
Power source DC/PoE AC DC AC DC/PoE
Power supply included — Yes No Yes Yes
Quality of Service (QoS) support — No — Yes —
Quick start guide — — Yes Yes —
Rack mounting No No No Yes No
Stackable No No No — No
Storage relative humidity (H-H) 5 - 95% 5 - 90% 5 - 95% 5 - 90% 5 - 90%
Storage temperature (T-T) -40 - 85 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward — — Yes — Yes
Sustainability compliance Yes — Yes — Yes
Switching capacity 10 Gbit/s 16 Gbit/s 16 Gbit/s 160 Gbit/s 1 Gbit/s
Switch layer — L2 — L2+/L3 —
Switch type Managed Unmanaged Unmanaged Managed Unmanaged
System event log — No — Yes —
Total Power over Ethernet (PoE) budget 45 W 60 W — — 58 W
Traffic classification — No — Yes —
Virtual LAN features VLAN Identifier ( VLAN ID) — — Private VLAN, Protocol-based VLAN, Voice VLAN —
Viteza transfer 10G+ Gigabit Fast Ethernet 10G+ Fast Ethernet
VLAN support Yes — — Yes —
Web-based management — No — Yes —
Width 1211 mm 192 mm 134.5 mm — 99.8 mm
Laptopuri - Construcție
Culoare — Black White — Black
Greutate 260 g 500 g — — —
Laptopuri - Generale
Garanție comercială 36 60 36 60 60
Producător HIKVISION EXTRALINK TP-LINK TP-LINK TP-LINK

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Switch PoE Hikvision DS-3E1505P-EI/M, 4 × Gigabit PoE port,1 × Gigabit RJ45 port, Total PoE Power Budget 45W, Support 802.1Q VLAN, capacitate: 10 Gbps, alimentare: 54VDC, 0.92A, dimensiuni: 121.1 mm × 27.6 mm × 83.1 mm, greutate: 0.26kg.

Specificații tehnice 47 caracteristici
10G support
No
Basic switching RJ-45 Ethernet ports type
5
Compliance certificates
CB, Low Voltage Directive (LVD), REACH, RoHS
DC input voltage
54 V
Depth
831 mm
DHCP features
DHCP client
Forwarding rate
7.44 Mpps
Gigabit Ethernet (copper) ports quantity
5
Height
27.6 mm
Housing material
Metal
Input current
0.92 A
Link aggregation
Yes
Loop protection
Yes
MAC address table
2000 entries
Management
Da
Montare in rack
Nu
Networking standards
IEEE 802.1af, IEEE 802.3at
Number of VLANs
32
Operating relative humidity (H-H)
5 - 95%
Package weight
750 g
PoE
Da
Porturi RJ 45
1-4
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
50 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power source
DC/PoE
Rack mounting
No
Stackable
No
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Surge protection voltage
6 kV
Sustainability compliance
Yes
Switching capacity
10 Gbit/s
Switch type
Managed
Total Power over Ethernet (PoE) budget
45 W
Transmission distance (max)
0.3 km
Virtual LAN features
VLAN Identifier ( VLAN ID)
Viteza transfer
10G+
VLAN support
Yes
Width
1211 mm
Greutate
260 g
Garanție comercială
36
Producător
HIKVISION
