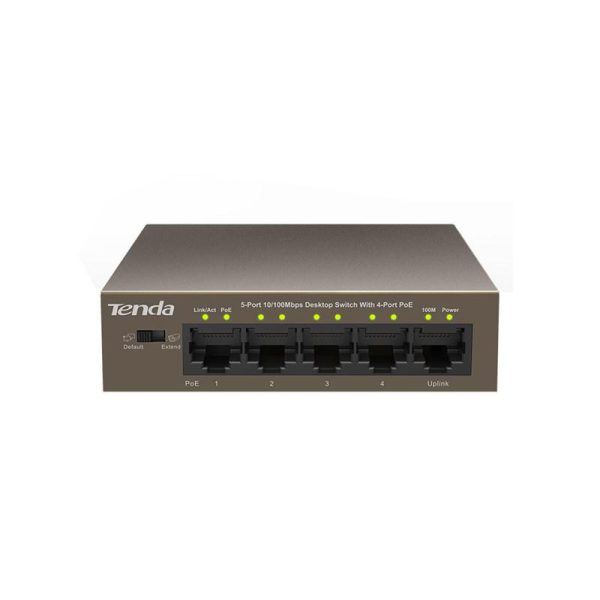

Switch TENDA TEF1105P-4-63W, 5 Port, 10/100 Mbps

Switchuri

Switch TENDA TEF1105P-4-63W, 5 Port, 10/100 Mbps

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: TEF1105P-4-63W

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică Switch TENDA TEF1105P-4-63W, 5 Port, 10/100 Mbps Switch TP-Link TL-SG1024D, 24 port, 10/100/1000 Mbps Extralink KRATOS PoE Switch 7x Gigabit PoE 1x Switch TP-Link TL-SF1008D, 8 port, 10/100 Mbps Switch TP-Link TL-SF1016, 16 port, 10/100 Mbps
Alte caracteristici
10G support No No No No No
AC input frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Auto-negotiation Yes Yes Yes Yes Yes
Auto MDI/MDI-X Yes Yes — Yes Yes
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) 24 8 Fast Ethernet (10/100) Fast Ethernet (10/100)
Cables included — AC — — AC
Cable types supported Cat5, Cat5e Cat3, Cat4, Cat5, Cat5e Cat5, Cat5e, Cat6 — Cat3, Cat4, Cat5, Cat5e
Compliance certificates — — — CE, Federal Communications Commission (FCC), RoHS CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology — — — 10BASE-T, 100BASE-TX 10BASE-T, 100BASE-TX
DC input voltage 51 V — — 5 V —
Depth 100 mm 180 mm 8.2 mm 7.9 mm 180 mm
Fanless — — — Yes Yes
Fast Ethernet (copper) ports quantity — — — 8 16
Flow control support — Yes — Yes Yes
Forwarding rate — 35.7 Mpps — — 2.38 Mpps
Full duplex — Yes — Yes —
Harmonized System (HS) code 85176990 85176990 — 85176990 85176990
Heat dissipation — 44.63 BTU/h — 6.99 BTU/h 7.03 BTU/h
Height 26 mm 44 mm 27 mm 22.5 mm 44 mm
Housing material — — Metal — Metal
Input current 1.25 A — 2.5 A 0.6 A —
LAN port type — Gigabit Gigabit FastEthernet FastEthernet
LED indicators Activity, Link, PoE, Power Yes Yes Yes Yes
MAC address table 1000 entries 8000 entries 4096 entries 1000 entries 8000 entries
Management nu nu nu nu nu
Montare in rack Nu Nu Nu Nu Nu
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x IEEE 802.3af IEEE 802.3u, IEEE 802.3x IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90% 10 - 90% 10 - 80% 10 - 90% 10 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 400 mm — 139 mm 528 mm
Package height — 80 mm — 85 mm —
Package type — Box — Box Box
Package weight — 1.95 kg — 240 g 2.28 kg
Package width — 250 mm — 100 mm 250 mm
Packet buffer memory — — — 2 MB 2 MB
PoE Da Nu Da Nu Nu
Porturi RJ 45 5-10 24-28 5-10 5-10 11-18
Porturi SFP N/A N/A N/A N/A N/A
Power connector DC-in jack DC-in jack DC-in jack DC-in jack DC-in jack
Power consumption (max) 63.7 W 13.08 W — 2.2 W 2.23 W
Power over Ethernet (PoE) Yes No Yes No No
Power over Ethernet (PoE) power per port 30 W — 30 W — —
Power source — AC AC DC AC
Power supply included — Yes Yes No Yes
Quality of Service (QoS) support — Yes No — —
Rack mounting No Yes No No Yes
Rack mount kit — Yes — — Yes
Stackable No Yes No No No
Storage relative humidity (H-H) 5 - 90% 5 - 90% 5 - 90% 5 - 95% 5 - 90%
Storage temperature (T-T) -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C -40 - 70 °C
Store-and-forward Yes Yes — Yes Yes
Supported network protocols — CSMA/CD, TCP/IP — CSMA/CD, TCP/IP —
Sustainability compliance — — — Yes Yes
Switching capacity 1 Gbit/s 48 Gbit/s 16 Gbit/s 16 Gbit/s 32 Gbit/s
Switch type Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Total Power over Ethernet (PoE) budget 57.8 W — 60 W — —
Viteza transfer Fast Ethernet Gigabit Gigabit Fast Ethernet Fast Ethernet
Width 100 mm 294 mm 192 mm 134.5 mm 440 mm
Laptopuri - Construcție
Culoare Black Grey Black White Black
Greutate 2 kg — 500 g — —
Laptopuri - Generale
Garanție comercială 36 60 60 36 36
Producător TENDA TP-LINK EXTRALINK TP-LINK TP-LINK
Laptopuri - Tip laptop
Construcție laptop — — 1U — 1U

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

Tenda switch TEF1105P-4-63W, 5-Port 10/100Mbps Desktop PoE Switch with 4Port POE, Switching Capacity: 1.0Gbps, IEEE802.3af/at, up to 60W

Specificații tehnice 46 caracteristici
10G support
No
AC input frequency
50 - 60 Hz
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cable types supported
Cat5, Cat5e
DC input voltage
51 V
Depth
100 mm
Harmonized System (HS) code
85176990
Height
26 mm
Input current
1.25 A
Input voltage
51 V
LED indicators
Activity, Link, PoE, Power
MAC address table
1000 entries
Management
nu
Maximum cable length
250 m
Montare in rack
Nu
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
PoE
Da
Porturi RJ 45
5-10
Porturi SFP
N/A
Power connector
DC-in jack
Power consumption (max)
63.7 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Rack mounting
No
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switching capacity
1 Gbit/s
Switch type
Unmanaged
Throughput
0.74 Mpps
Total Power over Ethernet (PoE) budget
57.8 W
Viteza transfer
Fast Ethernet
Width
100 mm
Culoare
Black
Greutate
2 kg
Garanție comercială
36
Producător
TENDA
