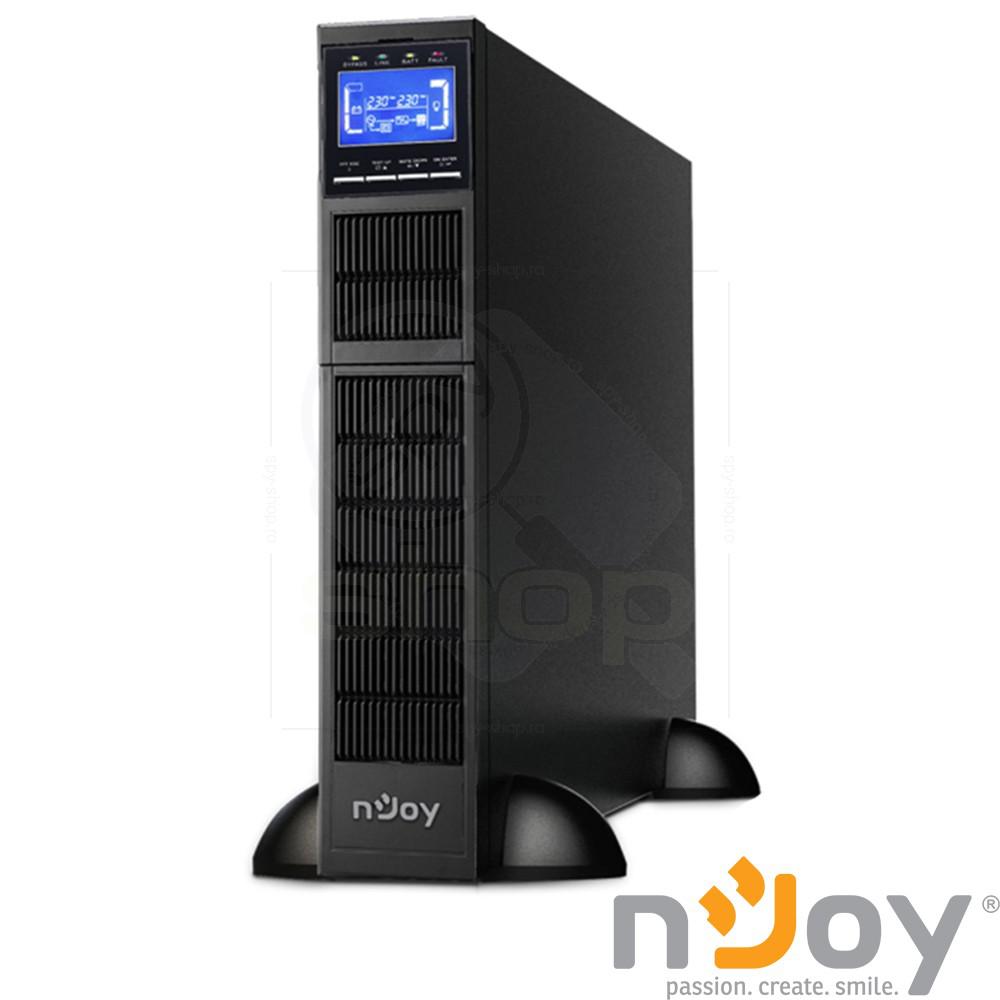

UPS nJoy Balder 10000, 10000W, LCD, USB, Rackmount 2U

UPS

UPS nJoy Balder 10000, 10000W, LCD, USB, Rackmount 2U

(0) În stoc
Vândut de RITC.ro Cod produs: PWUP-OL10KBA-AZ01B

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică UPS nJoy Balder 10000, 10000W, LCD, USB, Rackmount 2U UPS nJoy Runa 1K, 900W, LCD, USB, Rackmount 2U UPS nJoy Runa 2K, 1800W, LCD, USB, Rackmount 2U UPS APC SRV6KI, 6000W, LCD, USB, Tower OFYS RT 1000VA VFI UPS 1/1 PF=0,9 WITH BATTERY INTEGRATED
Alte caracteristici
AC outlets quantity — 4 AC outlet(s) 4 AC outlet(s) — —
AC outlet types — C13 coupler C13 coupler Hard Wire 3-wire (1PH + N + G) C13 coupler
Audible alarm(s) — Yes Yes — —
Auto-restart Yes Yes Yes — —
Batteries included — Yes Yes — —
Battery replacement accessibility — End-user End-user — —
Battery type — 2x GP09122F 4x GP09122F — —
Battery voltage 12 V — — 12 V —
Built-in fan — Yes Yes — —
Capacitate putere UPS 10000W 900W 1800W 6000W 900W
Capacitate Rack 2U 2U 2U N/A 2U
Certification CE, RoHS — — — CE; RCM (E2376)
Charging current 4 A 1 A 1 A — —
Cold start — Yes Yes — —
Compatibility — GP09122F, HR09122F GP09122F, HR09122F — —
Compliance certificates — CE, RoHS CE, RoHS — —
Control type Buttons — — — Buttons
Cooling type — Active Active — —
Crest factor 3:1 1:1 1:1 3:1 —
Depth — 439 mm 439 mm 374 mm 310 mm
Display type LCD LCD LCD LCD LCD
Doesn't contain — Lead, Mercury, Cadmium Lead, Mercury, Cadmium — —
ECO mode — Yes Yes — —
Ecran LCD Da Da Da Da Da
Efficiency (Battery mode) — 85% 86% — —
Efficiency (ECO mode) — 94% 94% — —
Emergency Power Off (EPO) Yes Yes Yes Yes —
Emergency Power Off (EPO) connector — Yes Yes — —
Form factor Rackmount/Tower Rackmount Rackmount Tower Rackmount/Tower
Garantie 36 36 36 24 24
Height 88 mm 88 mm 88 mm 685 mm 89 mm
Input frequency 46/54 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Input operation voltage (max) 300 V 240 V 240 V 300 V 300 V
Input operation voltage (min) 110 V 208 V 208 V 110 V 180 V
International Protection (IP) code — IP20 IP20 — —
Noise level 55 dB 50 dB 50 dB — 50 dB
Nominal input voltage — 208-240 V 208-240 V — —
Nominal output voltage — 208-240 V 208-240 V — —
Number of batteries included — 2 pc(s) 4 pc(s) — —
Number of input phases 1 1 1 — 1
Number of output phases — 1 1 — 1
Operating altitude — 0 - 3000 m 0 - 3000 m 0 - 3000 m —
Operating relative humidity (H-H) 0 - 95% 0 - 95% 0 - 95% 0 - 95% 20 - 90%
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C —
Output frequency 46/54 Hz — — — 50/60 Hz
Output operation voltage (max) 240 V 240 V 240 V 240 V 240 V
Output operation voltage (min) 208 V 208 V 208 V 220 V 208 V
Output power 10000 W 900 W 1800 W 6000 W 900 W
Output power capacity 10 kVA 1 kVA 2 kVA 6 kVA 1 kVA
Output power factor — 0.9 0.9 — —
Output voltage regulation — 1% 1% — —
Output voltage Total Harmonic Distortion (THD) 4% 2% 2% — —
Overload capacity (1 minute) — 125% 125% — —
Overload protection — Yes Yes — —
Package depth — 571 mm 571 mm 495 mm —
Package height — 189 mm 189 mm 910 mm —
Package type — Box Box — —
Package weight — 15.2 kg 21.2 kg 66 kg —
Package width — 541 mm 541 mm 291 mm —
Port USB Da Da Da Da Da
Product colour — Black Black Black —
Rack capacity 2U 2U 2U — 2U
Rechargeable battery — Yes Yes — —
RS-232 ports 1 1 1 1 1
Serial interface — — — Yes Yes
Serial interface type — — — RS-232 RS-232
Storage temperature (T-T) — -15 - 45 °C -15 - 45 °C -15 - 60 °C -15 - 50 °C
Surge energy rating 600 J 450 J 450 J 600 J —
Surge protection Yes Yes Yes — —
Tip UPS Online Online Online Online Online
Typical backup time at half load — 12 min 12 min — —
UPS topology Double-conversion (Online) Double-conversion (Online) Double-conversion (Online) Double-conversion (Online) Double-conversion (Online)
USB-Port — Yes Yes Yes —
Waveform Pure sine Pure sine Pure sine — —
Weight 17 kg 13 kg 18.2 kg 5.4 kg 1.08 kg
Width 438 mm 428 mm 428 mm 190 mm 438 mm
Producator NJOY NJOY NJOY APC SOCOMEC

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

UPS nJoy Balder 10000, 10000VA/10000 W, On-line, LCD Display, Management, Rack/Tower, Dubla conversie, 2U, Nu are baterie inclusa, PWUP-OL10KBA-AZ01B

Specificații tehnice 51 caracteristici
Auto-restart
Yes
Battery technology
Lead-Acid
Battery voltage
12 V
Capacitate putere UPS
10000W
Capacitate Rack
2U
Certification
CE, RoHS
Charging current
4 A
Control type
Buttons
Crest factor
3:1
Display type
LCD
Ecran LCD
Da
Emergency Power Off (EPO)
Yes
Form factor
Rackmount/Tower
Garantie
36
Height
88 mm
Input current Total Harmonic Distortion (THD)
6%
Input frequency
46/54 Hz
Input operation voltage (max)
300 V
Input operation voltage (min)
110 V
Master (outer) case gross weight
21 kg
Master (outer) case height
240 mm
Master (outer) case length
700 mm
Master (outer) case net weight
17 kg
Master (outer) case width
565 mm
Noise level
55 dB
Number of input phases
1
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Output frequency
46/54 Hz
Output operation voltage (max)
240 V
Output operation voltage (min)
208 V
Output power
10000 W
Output power capacity
10 kVA
Output voltage Total Harmonic Distortion (THD)
4%
Port USB
Da
Power factor
0.99
Power protection features
Overcharge, Overdischarge, Overheating, Overload
Products per master (outer) case
1 pc(s)
Rackable
No
Rack capacity
2U
Response time
4 ms
RS-232 ports
1
Surge energy rating
600 J
Surge protection
Yes
Tip UPS
Online
UPS-Management
Yes
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Weight
17 kg
Width
438 mm
Producator
NJOY
