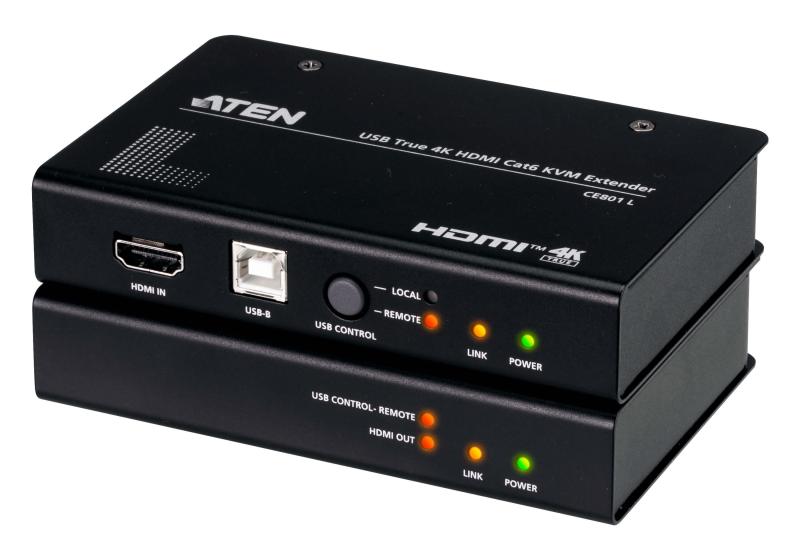

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia

Extendere audiovideo

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia

(0) Stoc epuizat
Vândut de RITC.ro Cod produs: CE801-AT-G

Livrare și beneficii

Livrare rapidă 24–48 ore prin curier Livrare rapidă Retur gratuit în 30 de zile Retur 30 de Garanție inclusă 24 luni garanție oficială Garanție 24 luni

Compară cu produse similare

Vezi comparația completă
Caracteristică KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia Extender Aten VE811-AT-G. Tipul: Emițător & receiver AV, Rezoluţia maximă: Extender ATEN UE331C-AT-G. Lungime cablu: 10 m. Conector 1: USB Extender ATEN UE332C-AT-G. Lungime cablu: 20 m. Conector 1: USB Extender ATEN UE3310-AT-G. Lungime cablu: 10 m. Conector 1: USB
Alte caracteristici
AC adapter included Yes — Yes Yes —
Cable length — — 10 m 20 m 10 m
Cable types supported Cat6, Cat6a Cat5e, Cat6, Cat6a — — —
Connectivity technology Wired Wired — — —
Connector 1 — — USB A USB A USB A
Connector 1 form factor — — Straight Straight Straight
Connector 1 gender — — Male Male Male
Connector 2 — — USB C USB C USB A
Connector 2 form factor — — Straight Straight Straight
Connector 2 gender — — Female Female Female
Connector housing material — — Plastic Plastic —
Country of origin China — Taiwan Taiwan —
DC-in jack Yes Yes Yes Yes —
Distanta maxima 100 m 150 m 10 m 20 m 10 m
Garantie 24 24 24 24 24
Harmonized System (HS) code 85176200 — — — 84733080
HDCP Yes Yes — — —
Interfata HDMI Da Da Nu Nu Nu
Mac operating systems supported — — Yes Yes —
Manual Yes — Yes Yes —
Master (outer) case gross weight 6.99 kg 4.02 kg 6.03 kg 9.89 kg 6.1 kg
Master (outer) case height 194 mm 175 mm 232 mm 232 mm 232 mm
Master (outer) case length 336 mm 325 mm 512 mm 512 mm 512 mm
Master (outer) case net weight 5.27 kg 3.15 kg 4.18 kg 7.98 kg 4.45 kg
Master (outer) case volume 19566.941 cm³ — 40776.26 cm³ 40776.26 cm³ —
Master (outer) case width 300 mm 250 mm 342 mm 342 mm 342 mm
Material Metal Metal — — —
MAXIMUM-DISTANCE 70M 150M 100M 100M 100M
MAXIMUM-RESOLUTION 3840x2160@60Hz 4096 x 2160 pixels — — —
Maximum data transfer rate — — 5 Gbit/s 5 Gbit/s 5 Gbit/s
Maximum transfer distance 100 m 150 m — — —
Numar porturi RJ-45 1 2 N/A N/A N/A
Numar porturi USB 4 None 2 2 2
Operating relative humidity (H-H) 0 - 80% 0 - 80% — — —
Operating temperature (T-T) 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Package depth — 239 mm — — 325 mm
Package height — 160 mm — — 210 mm
Package volume 3029.9026 cm³ — 6796.043 cm³ 6796.043 cm³ —
Package weight 1.38 kg 705 g 1.07 kg 1.84 kg 1.06 kg
Package width — 59 mm — — 98 mm
Plug and Play — — Yes Yes —
Product colour Black Black Black Black Black
Products per master (outer) case — 5 pc(s) — — 5 pc(s)
Quantity per pack — 2 pc(s) 1 pc(s) — 1 pc(s)
Receiver weight 310 g 170 g — — —
Rezolutie maxima 3840 x 2160 pixeli 4096 x 2160 pixeli None None None
Storage temperature (T-T) -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C -20 - 60 °C
SUPPORTED-BANDWIDTH 18 Gbit/s 340 MHz 4.95 Gbit/s 4.95 Gbit/s 4.95 Gbit/s
Transmitter weight 320 g 160 g — — —
USB-INTERFACE — — USB 2.0 USB 2.0 USB 2.0
USB version — — USB 3.2 Gen 1 (3.1 Gen 1) USB 3.2 Gen 1 (3.1 Gen 1) USB 3.2 Gen 1 (3.1 Gen 1)
Weight — 630 g 770 g — 890 g
Windows operating systems supported — — Yes Yes —
Producator ATEN ATEN ATEN ATEN ATEN

Analiză inteligentă a produsului

În curând vei putea afla mai multe informații despre produs, generate cu inteligență artificială.

Descriere oficială

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia de conectare: Prin cablu, Maximă de transfer de la distanţă: 100 m. Tip port transmițător video: HDMI, Tip port transmițător local video: HDMI, Tip port transmițător local tastatură/mouse: USB. Tip port receptor local video: HDMI, Tip port receptor local tastatură/mouse: USB. Tip port USB: USB Tip-A. Voltajul de ieşire al adaptorului AC: 5 V, Consum energie (transmițător) (max): 2,59 W, Consum energie (receptor): 1,88 W

Specificații tehnice 65 caracteristici
AC adapter included
Yes
AC adapter output voltage
5 V
Cables included
USB Type-A to USB Type-B
Cable types supported
Cat6, Cat6a
Connectivity technology
Wired
Country of origin
China
DC-in jack
Yes
Distanta maxima
100 m
Extended display identification data (EDID)
Yes
Garantie
24
Harmonized System (HS) code
85176200
HDCP
Yes
HDCP version
2.3
HDMI-INTERFACE
HDMI 1.3
Interfata HDMI
Da
KVM port selection
Push-buttons
LED indicators
Link, Power, Status
Manual
Yes
Master (outer) case gross weight
6.99 kg
Master (outer) case height
194 mm
Master (outer) case length
336 mm
Master (outer) case net weight
5.27 kg
Master (outer) case volume
19566.941 cm³
Master (outer) case width
300 mm
Material
Metal
MAXIMUM-DISTANCE
70M
MAXIMUM-RESOLUTION
3840x2160@60Hz
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Maximum transfer distance
100 m
Mounting brackets included
Yes
Numar porturi RJ-45
1
Numar porturi USB
4
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Package volume
3029.9026 cm³
Package weight
1.38 kg
Power consumption (receiver) (max)
1.88 W
Power consumption (transmitter) (max)
2.59 W
Product colour
Black
Rack mounting
Yes
Receiver depth
12.8 cm
Receiver height
2.5 cm
Receiver local keyboard/mouse port type
USB
Receiver local video port type
HDMI
Receiver weight
310 g
Receiver width
8.15 cm
Rezolutie maxima
3840 x 2160 pixeli
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
1
RS-232 ports
2
Storage temperature (T-T)
-20 - 60 °C
SUPPORTED-BANDWIDTH
18 Gbit/s
TRANSMISSION-PROTOCOL
CAT X
Transmitter depth
12.8 cm
Transmitter height
2.5 cm
Transmitter local keyboard/mouse port type
USB
Transmitter local video port
HDMI
Transmitter USB Type-B ports quantity
1
Transmitter video port type
HDMI
Transmitter weight
320 g
Transmitter width
8.21 cm
USB 2.0 ports quantity
4
USB port type
USB Type-A
Producator
ATEN
